Installation Procedure
Courtesy of GENERAL MOTORS CORP.
- Assemble the sun gear thrust bearing (698), the differential carrier sun gear (697), the park gear (696), the internal gear thrust bearing (695) and the sun gear shaft (689) into the differential carrier (700).
Courtesy of GENERAL MOTORS CORP.
- Install the differential carrier into the case.
Courtesy of GENERAL MOTORS CORP.

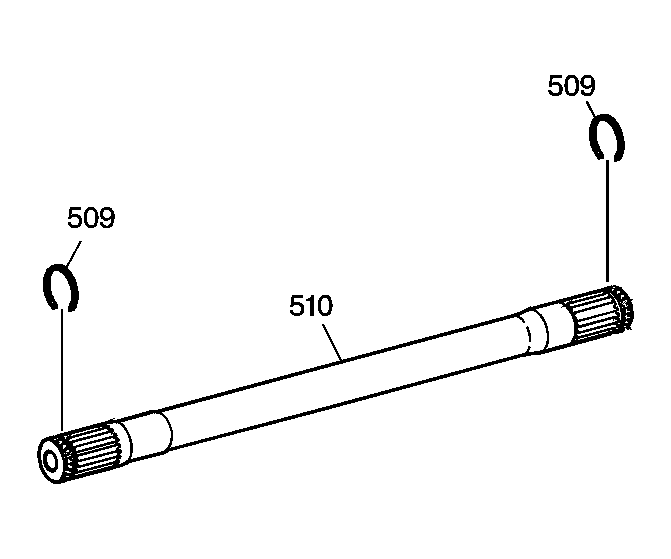

- Install the drive axle retainer rings (509) to the output shaft (510).
- Hold the front differential carrier in place and carefully install the output shaft to the transmission through the left wheel opening.
- Install the case extension housing. Refer Case Extension Housing Replacement .
- Install left drive axle to the transaxle. Refer to Wheel Drive Shaft Replacement
in Wheel Drive Shafts.
