Cruise Control Component Views
WARNING: This page is about a different car, the 2004 Buick Regal and 2004 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | P103 |
| 2 | I/P Wiring Harness |
| 3 | Cruise Control Module (CCM) Connector |
| 4 | Cruise Control Module (CCM) (K34) |
| 5 | Electronic Brake Control Module (EBCM) (JL9/JM4) |
| 6 | Electronic Brake Control Module (EBCM) Connector (JL9/JM4) |
| 7 | Engine Wiring Harness |
| 8 | Brake Fluid Level Switch |
| 9 | C101 |
| 10 | A/C Refrigerant Pressure Sensor |
| 11 | Engine Wiring Harness |
| 12 | G171 (JL9/JM4) |
| Callout | Component Name |
|---|---|
| 1 | Steering Wheel |
| 2 | Cruise Control On/Off Switch (K34) |
| 3 | Turn Signal/Multifunction Switch |
| 4 | Inflatable Restraint Steering Wheel Module Coil |
| 5 | C203 (UK3) |
| 6 | Inflatable Restraint Steering Wheel Module Connector |

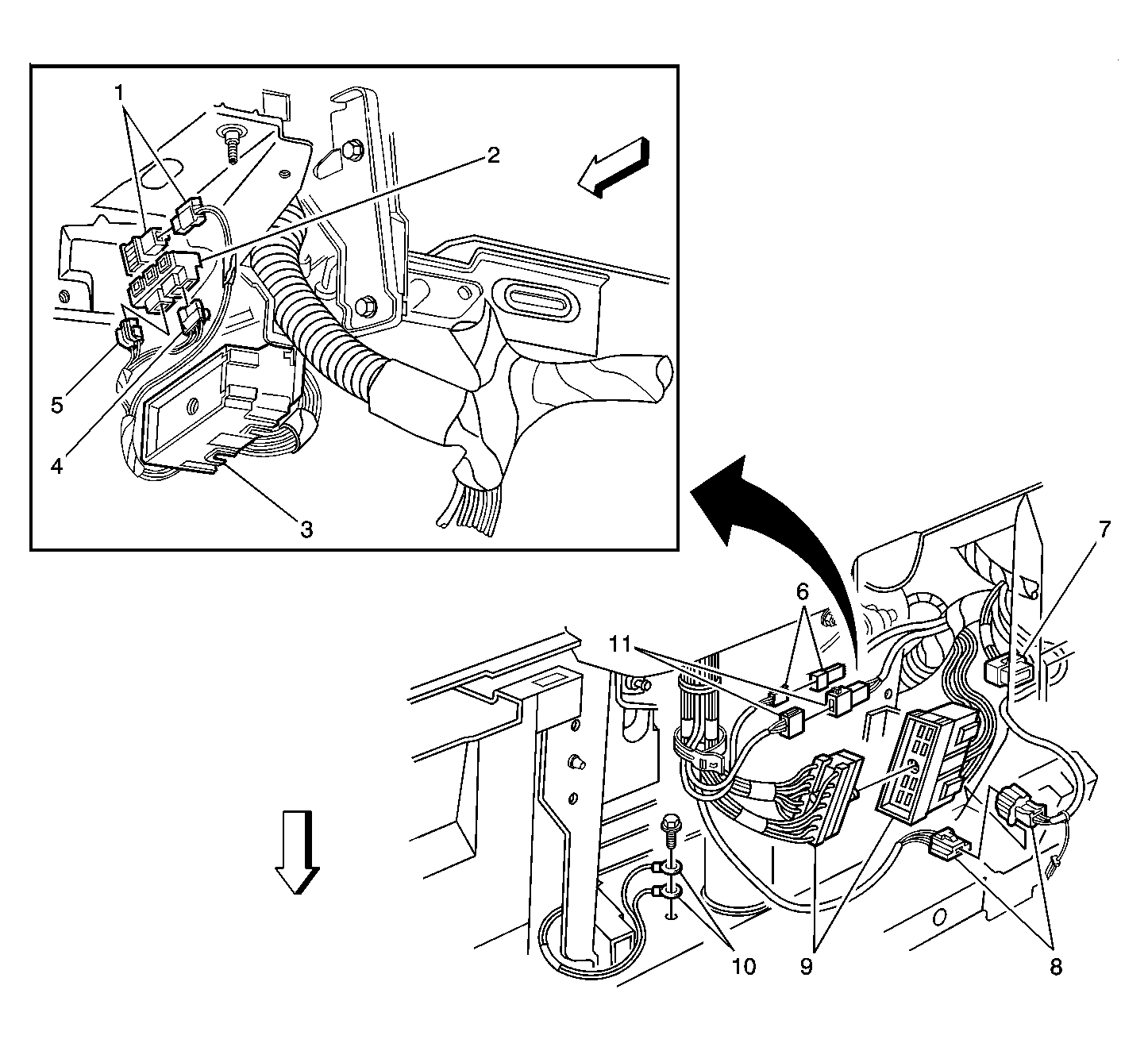

| Callout | Component Name |
|---|---|
| 1 | Cruise Control Release Switch |
| 2 | Stop Lamp Switch |
| 3 | C201 |
| 4 | Stop Lamp Switch Connector C2 |
| 5 | Stop Lamp Switch Connector C1 |
| 6 | C207 |
| 7 | C216 |
| 8 | C215 |
| 9 | C201 |
| 10 | G201 |
| 11 | C205 (UK3) |
