Global Positioning System Module

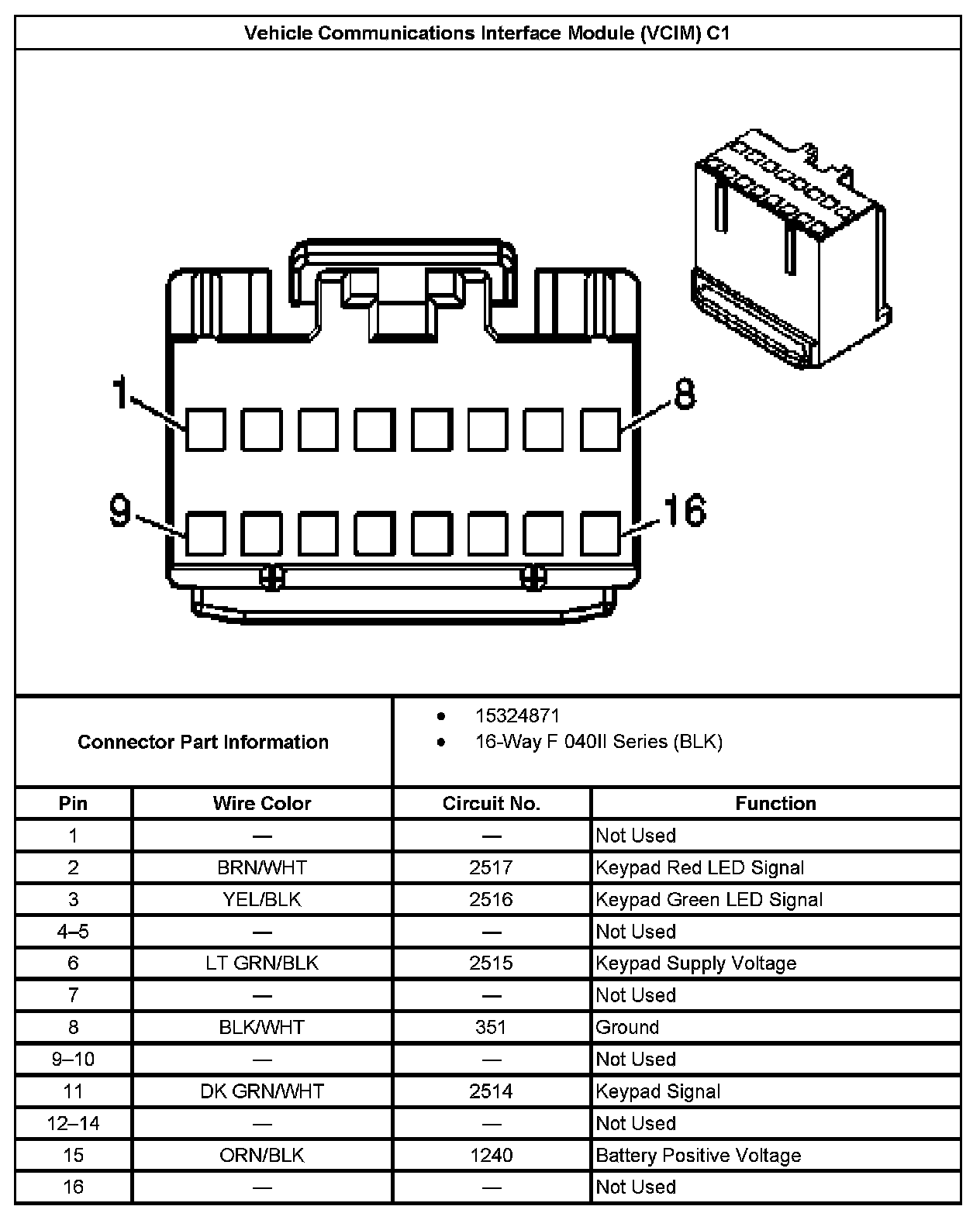

Vehicle Communications Interface Module (VCM) C1:

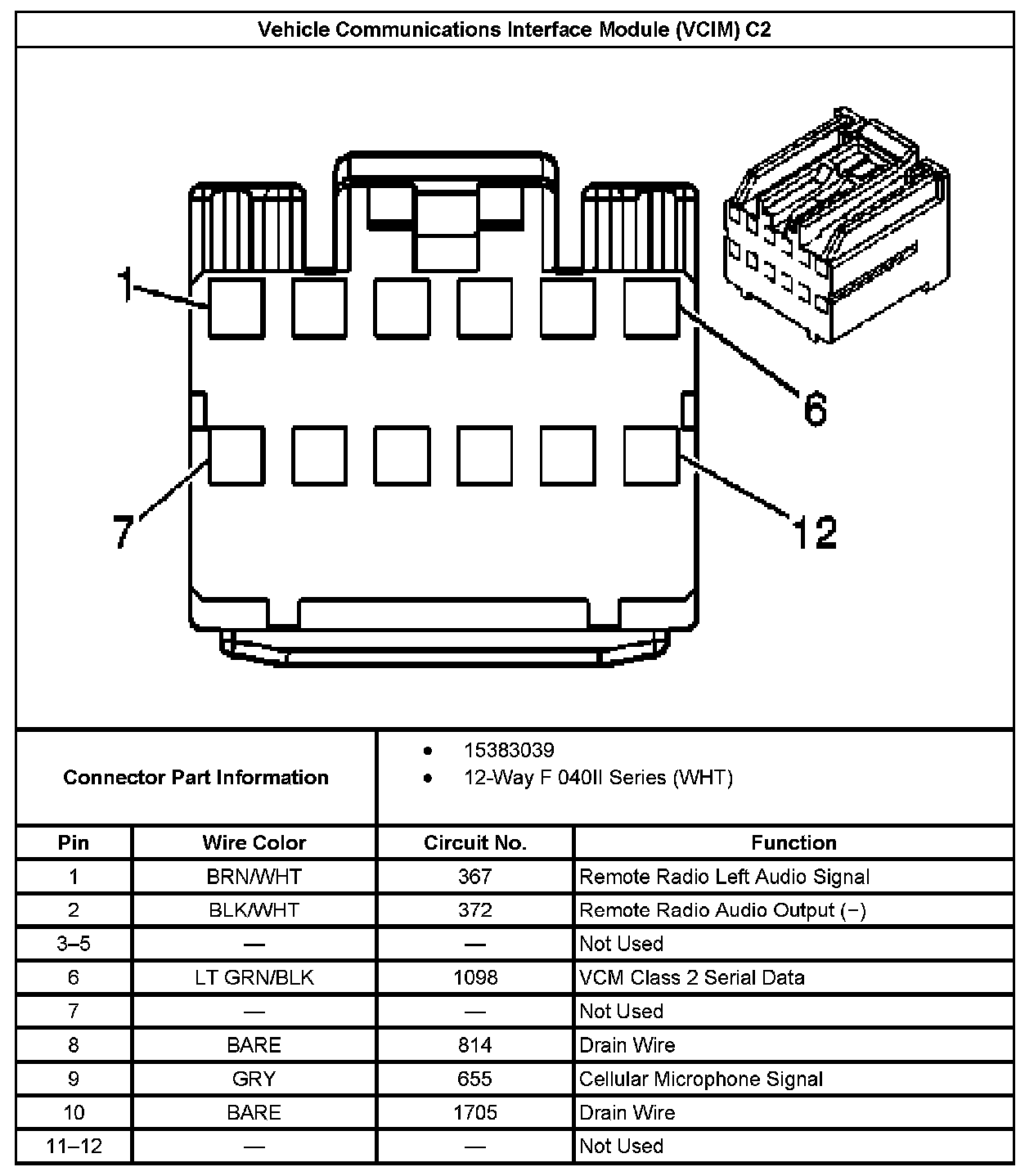

Vehicle Communications Interface Module (VCM) C2:
