Body Control Module

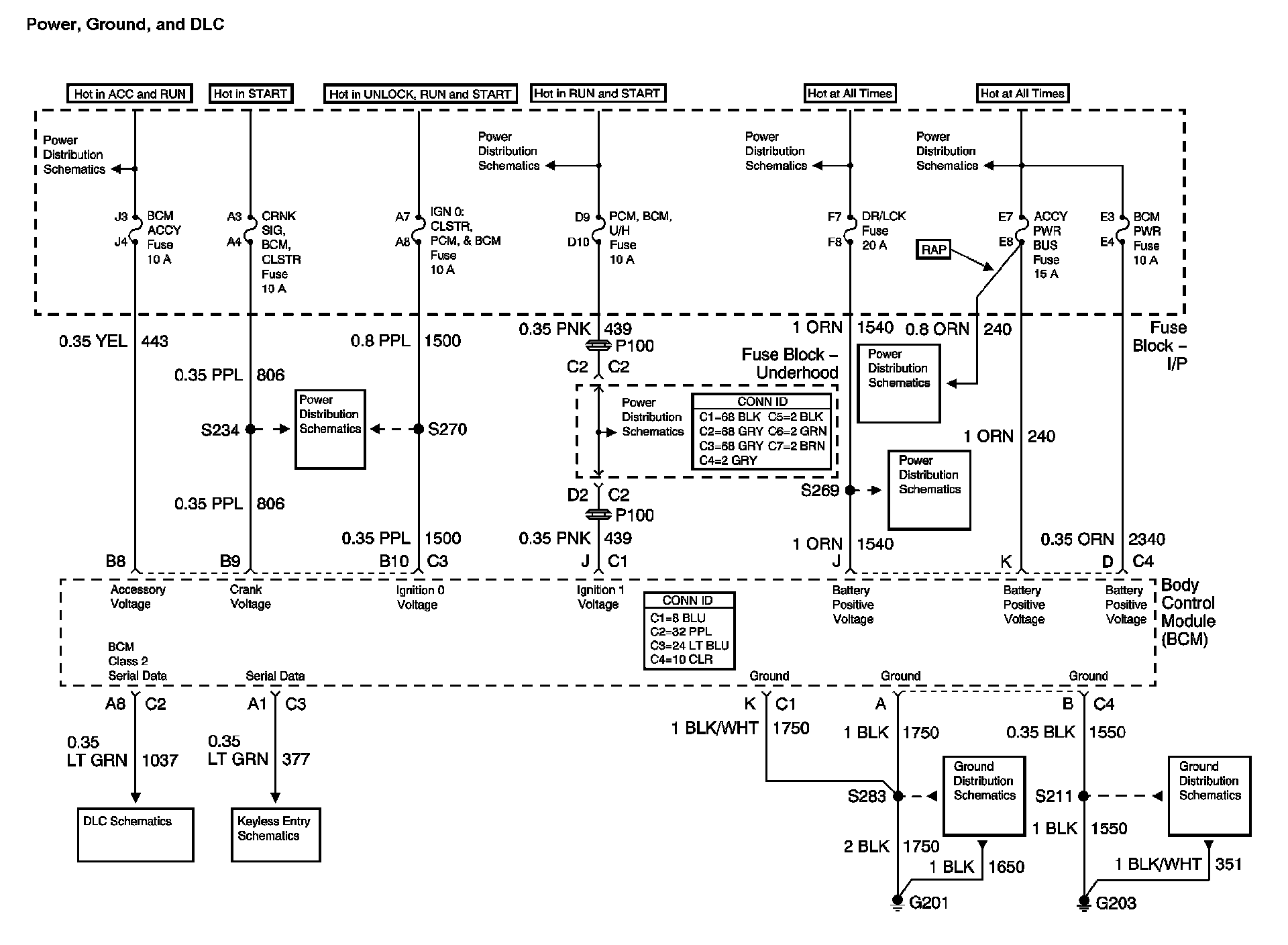

Body Control Systems Diagram 1:

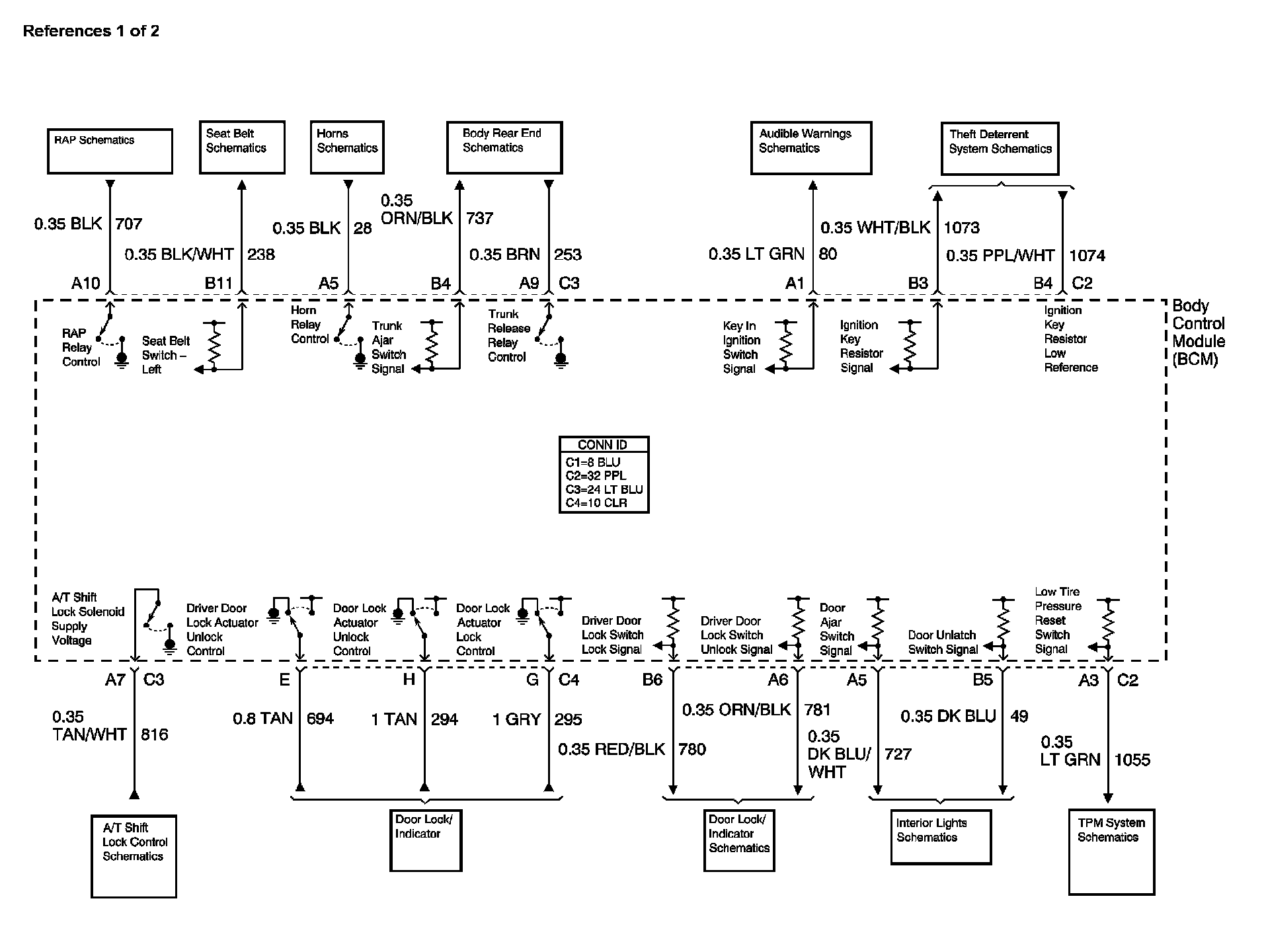

Body Control Systems Diagram 2:

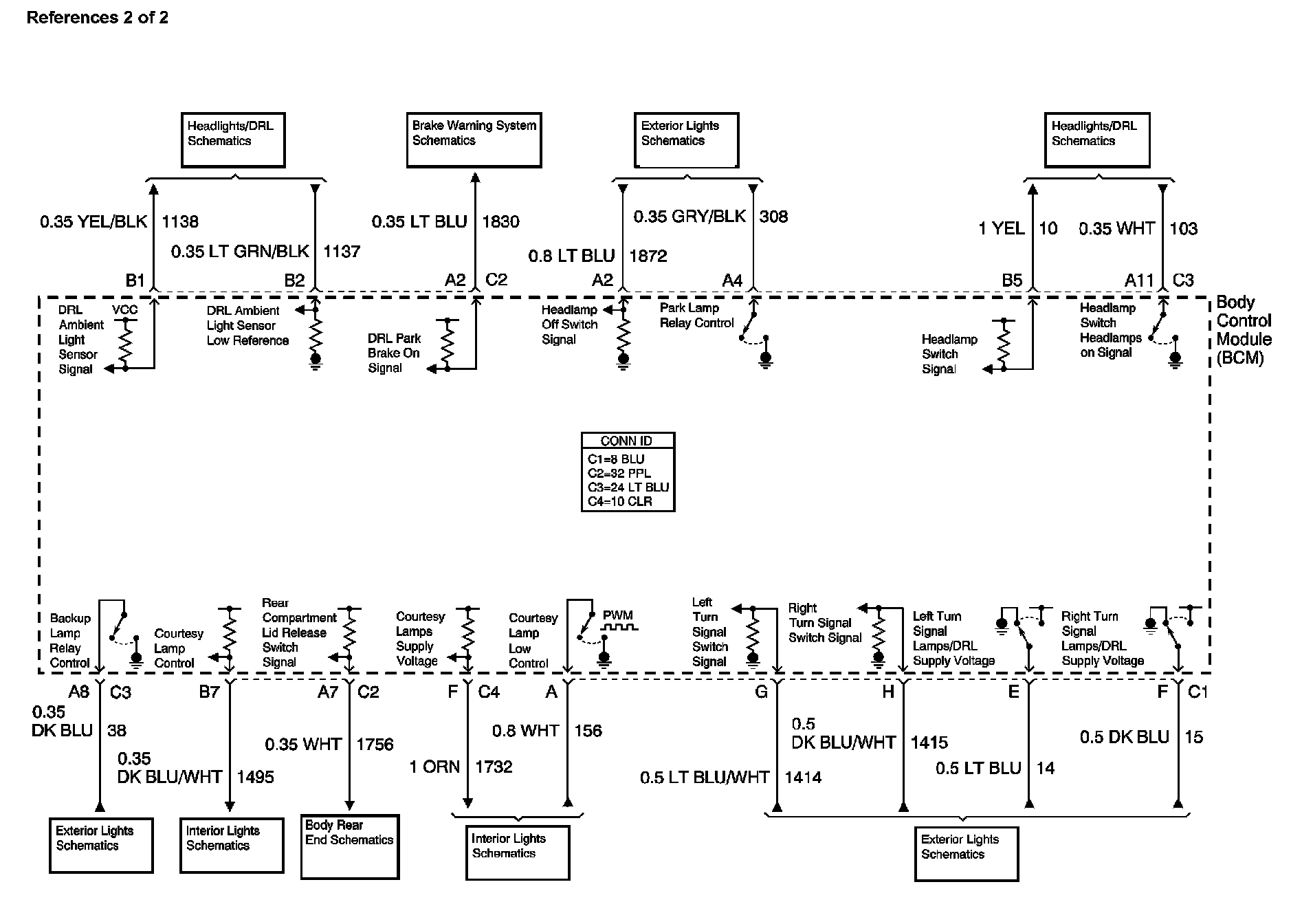

Body Control Systems Diagram 3:

Location: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their at Vehicle Locations. Locations
