Connector Views

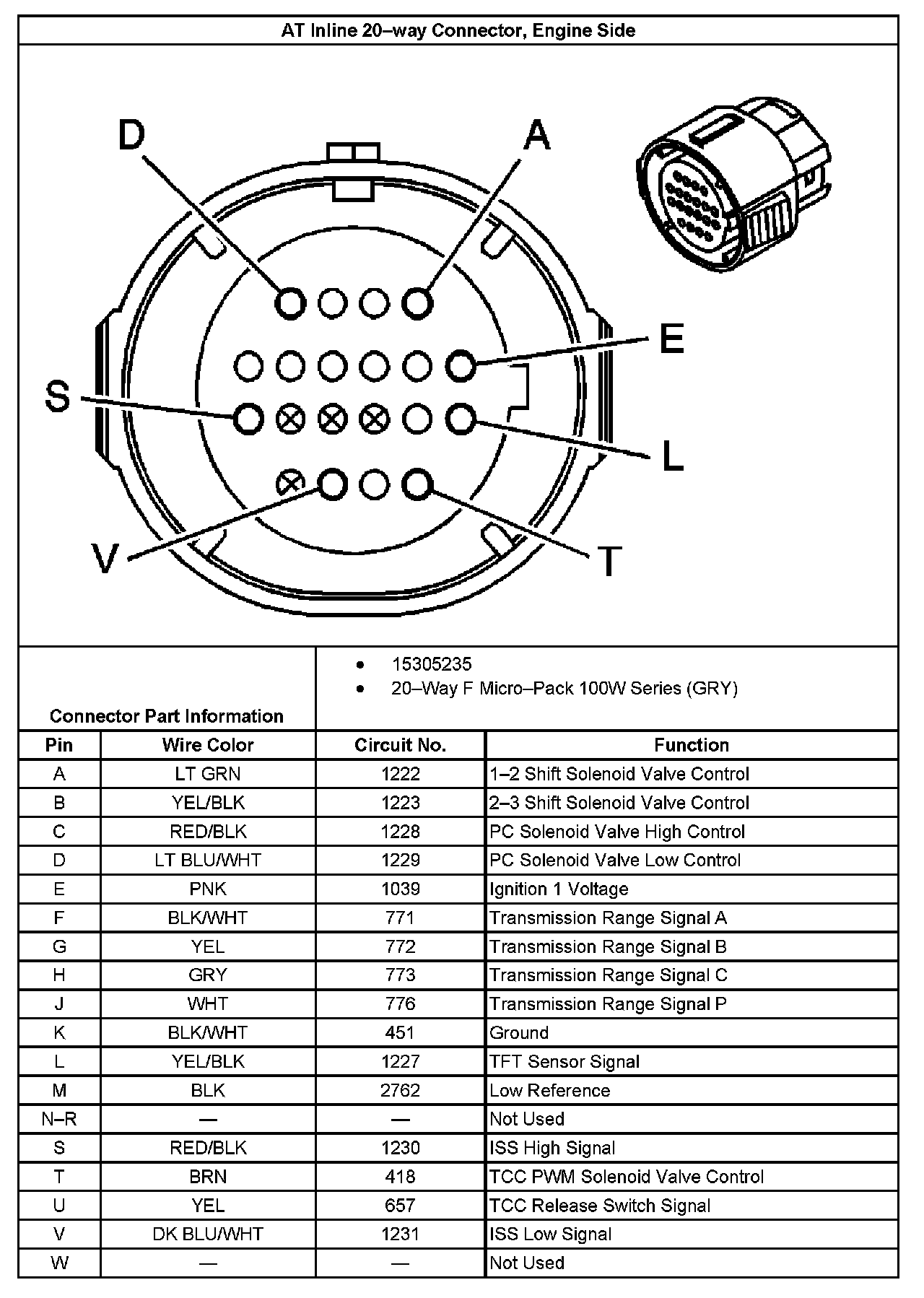

AT Inline 20-way Connector, Engine Side:

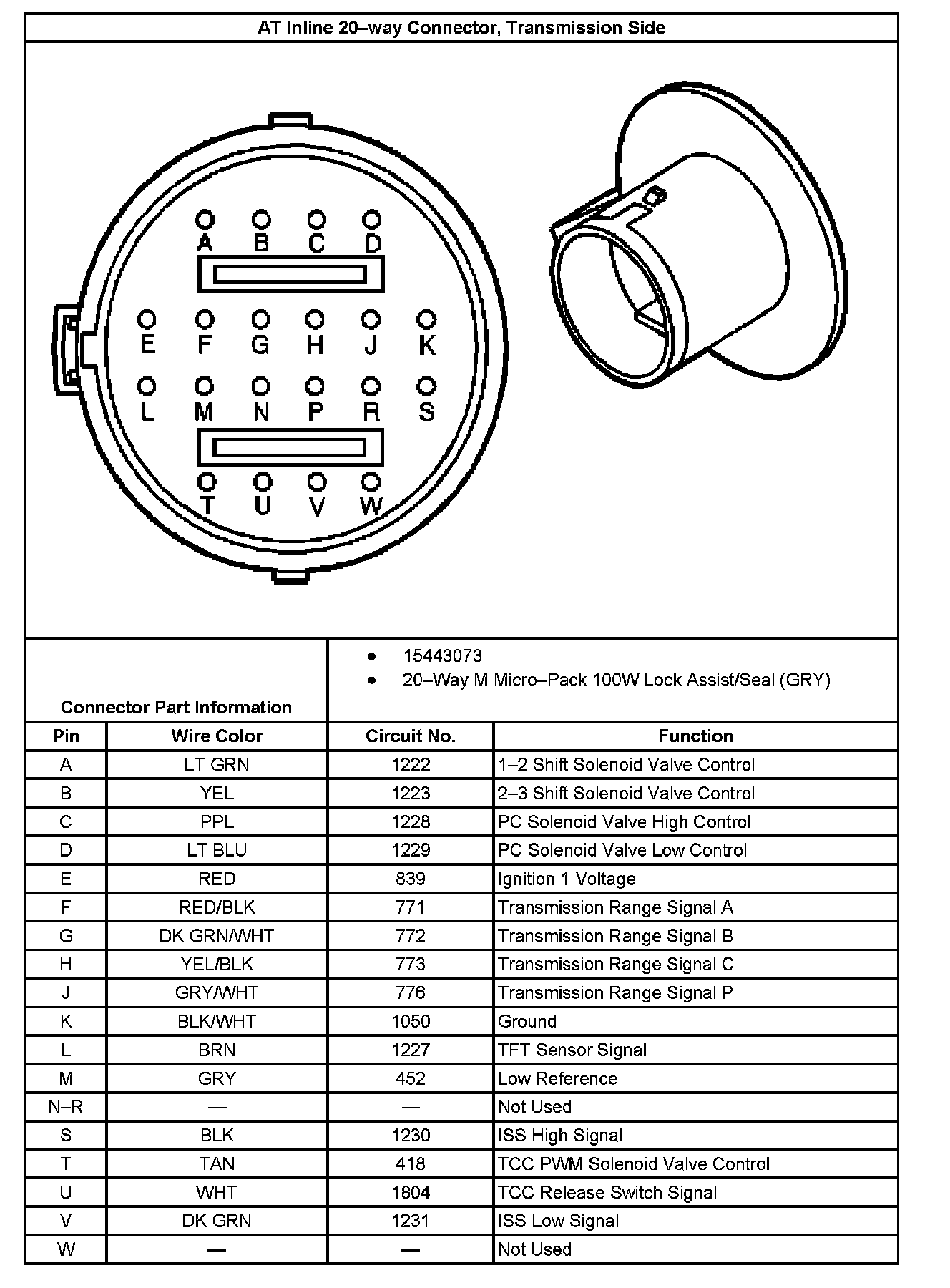

AT Inline 20-way Connector, Transmission Side:

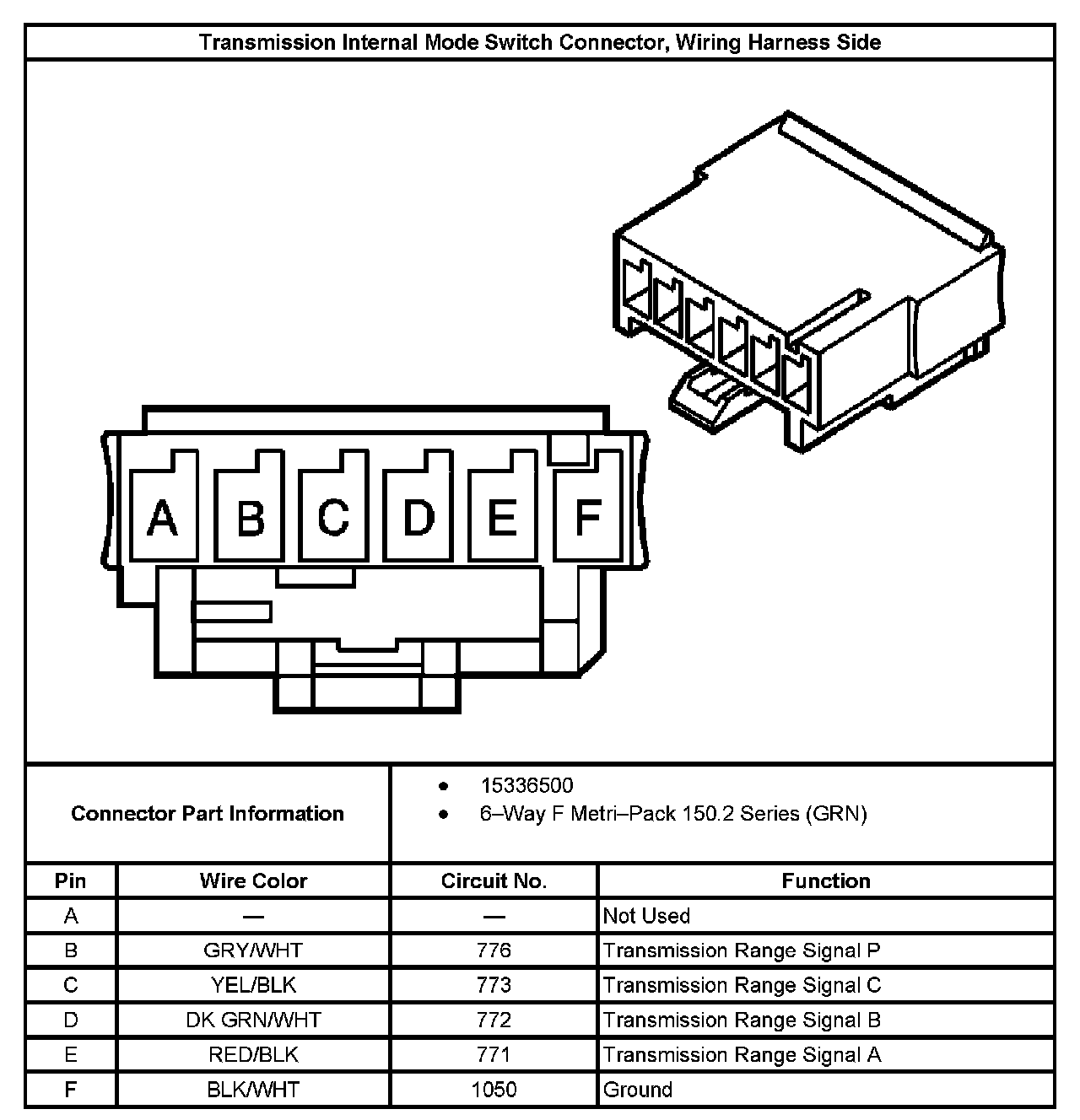

Transmission Internal Mode Switch Connector, Wiring Harness Side:
