Powertrain Control Module (PCM) 80-Way Clear Connector C2 Details

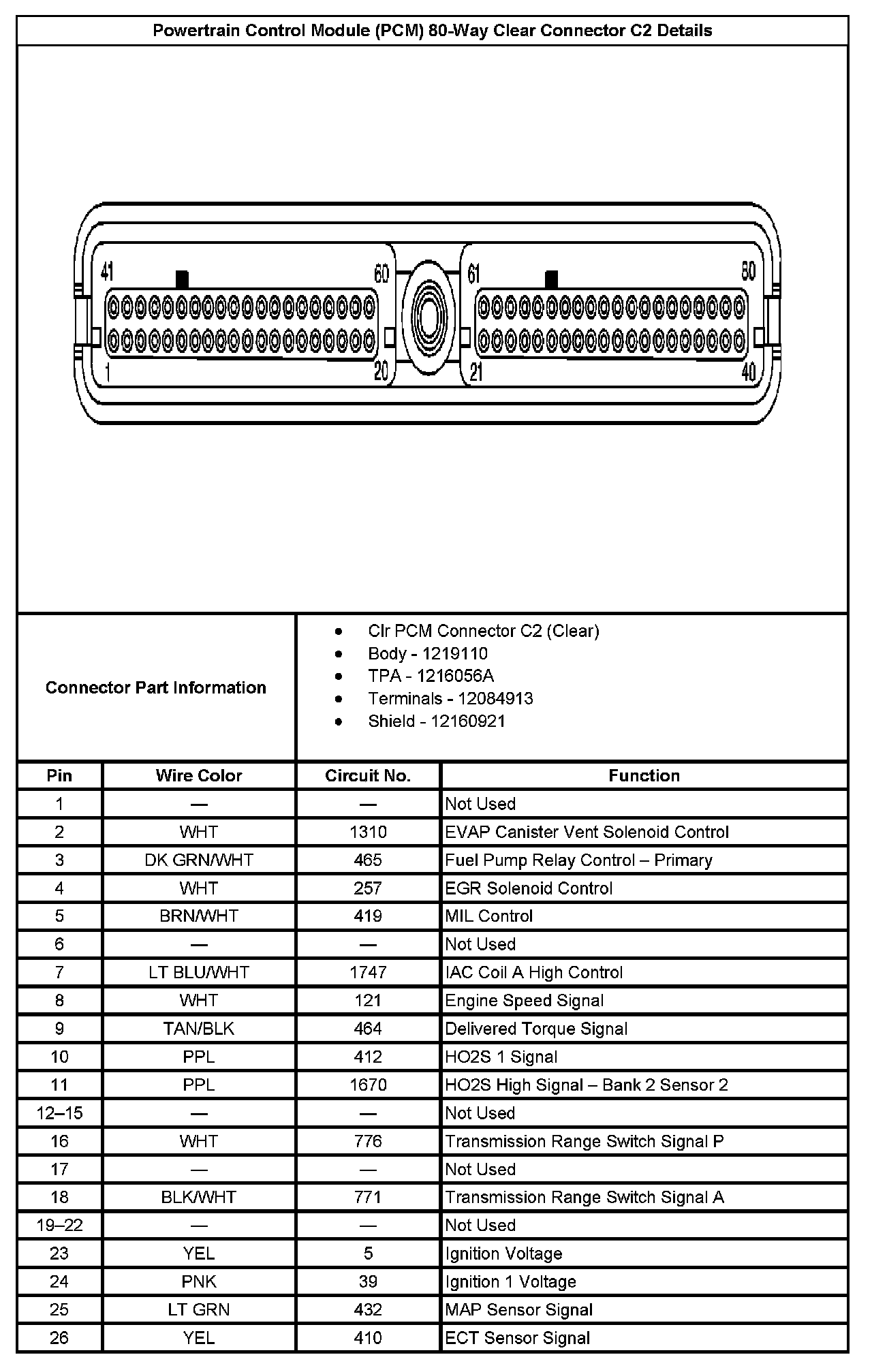

Powertrain Control Module (PCM) 80-Way Clear Connector C2 Details Part 1:

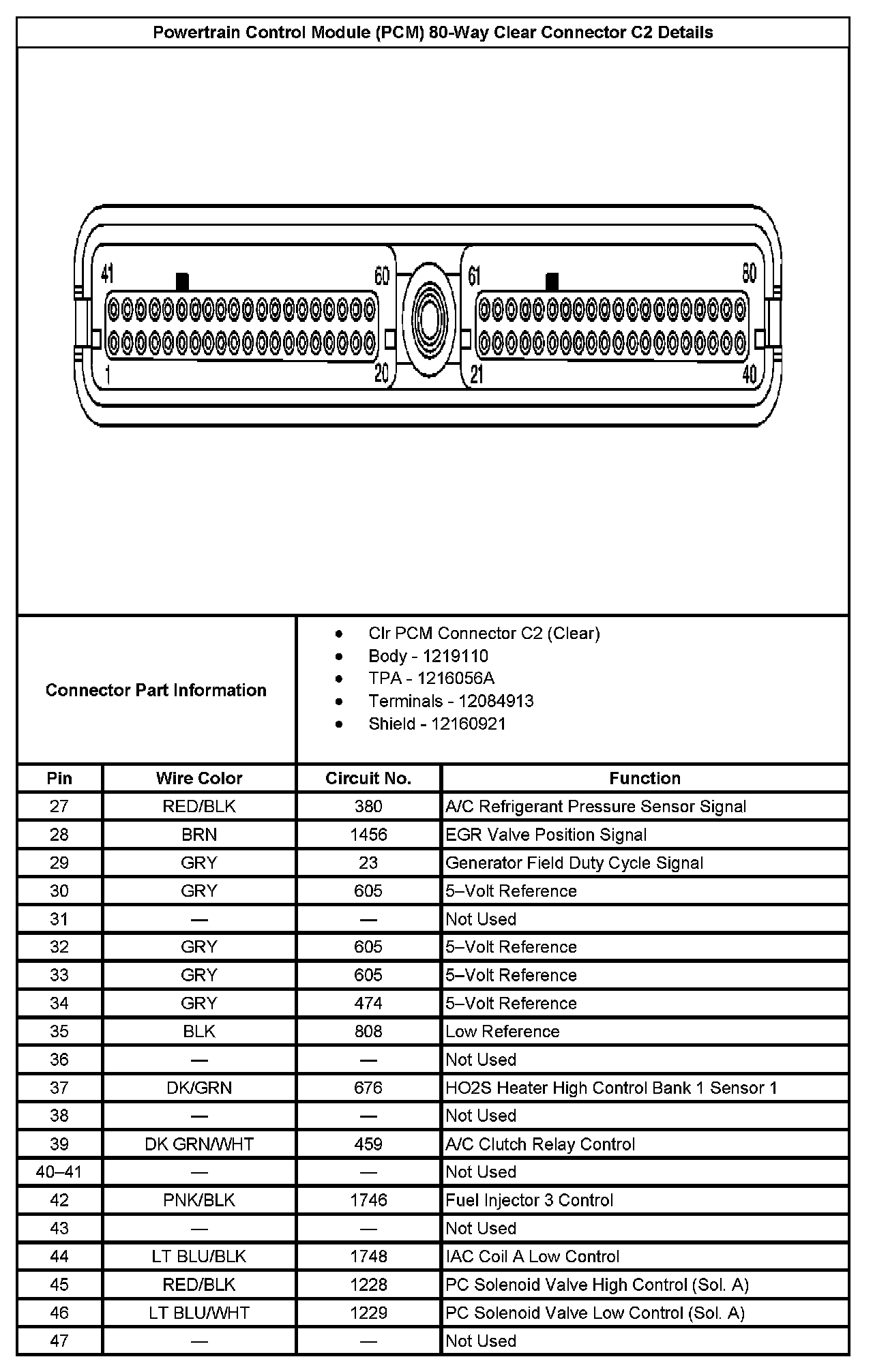

Powertrain Control Module (PCM) 80-Way Clear Connector C2 Details Part 2:

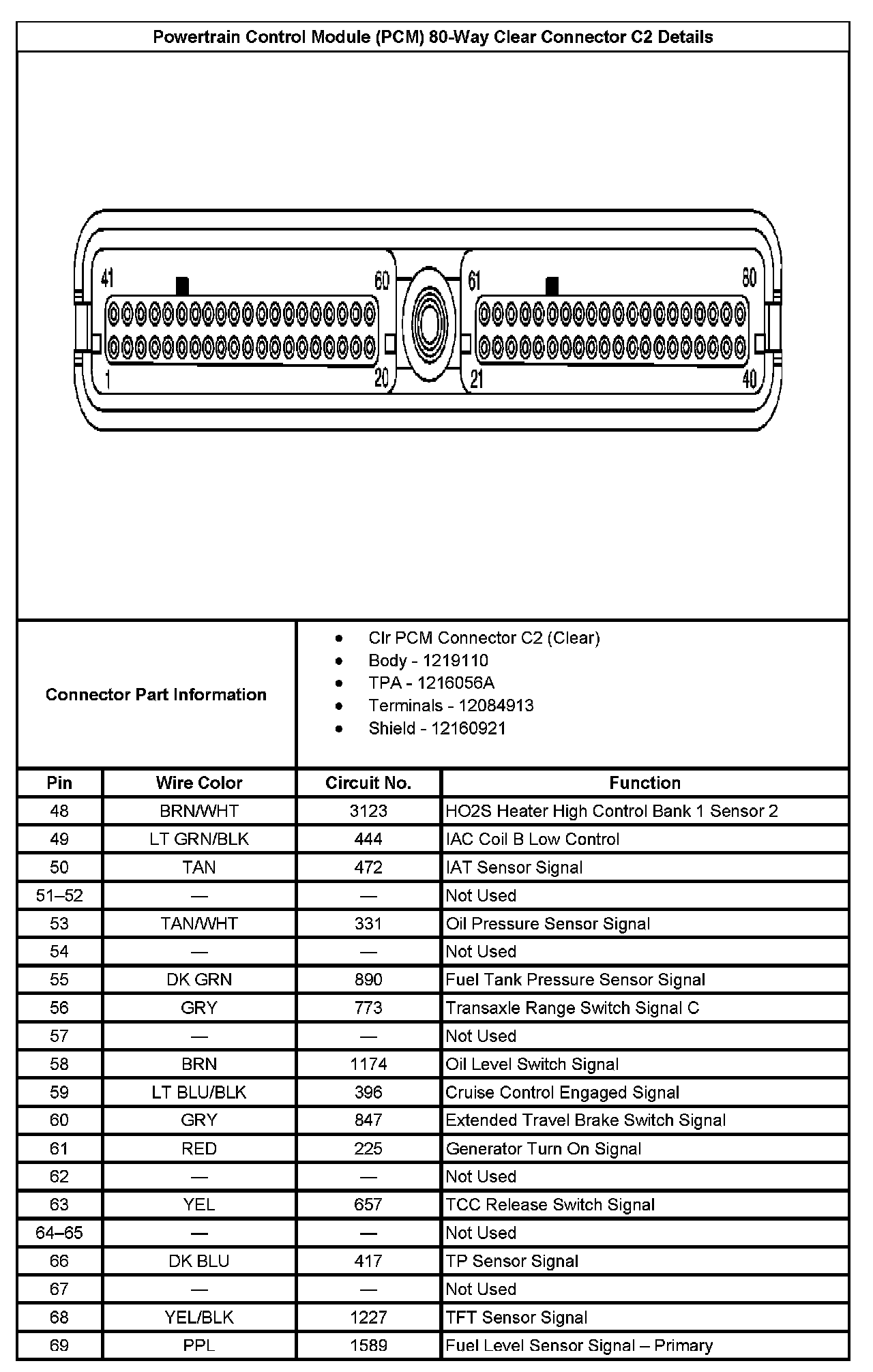

Powertrain Control Module (PCM) 80-Way Clear Connector C2 Details Part 3:

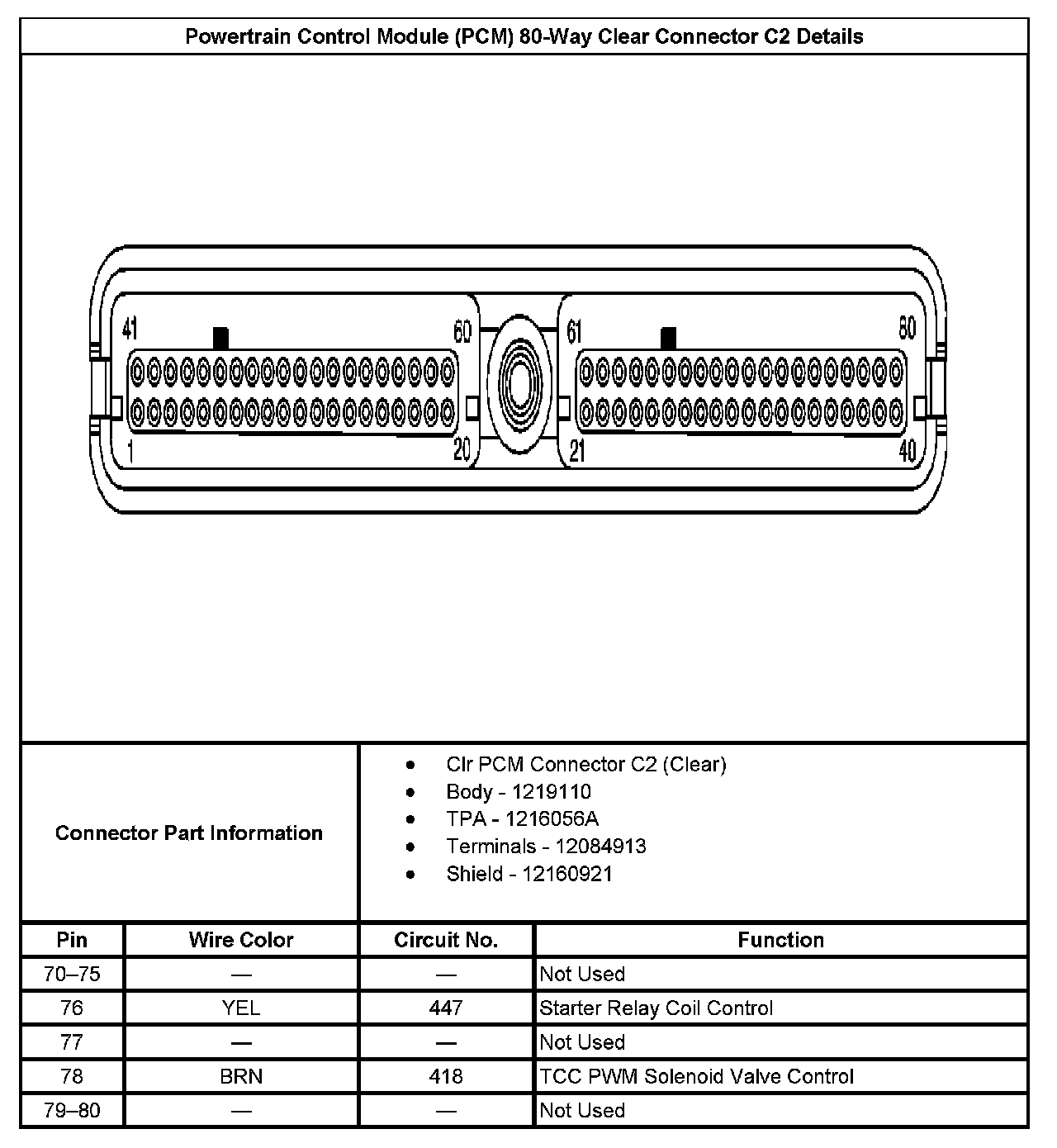

Powertrain Control Module (PCM) 80-Way Clear Connector C2 Details Part 4:
