Computer/Integrating Systems Component Views

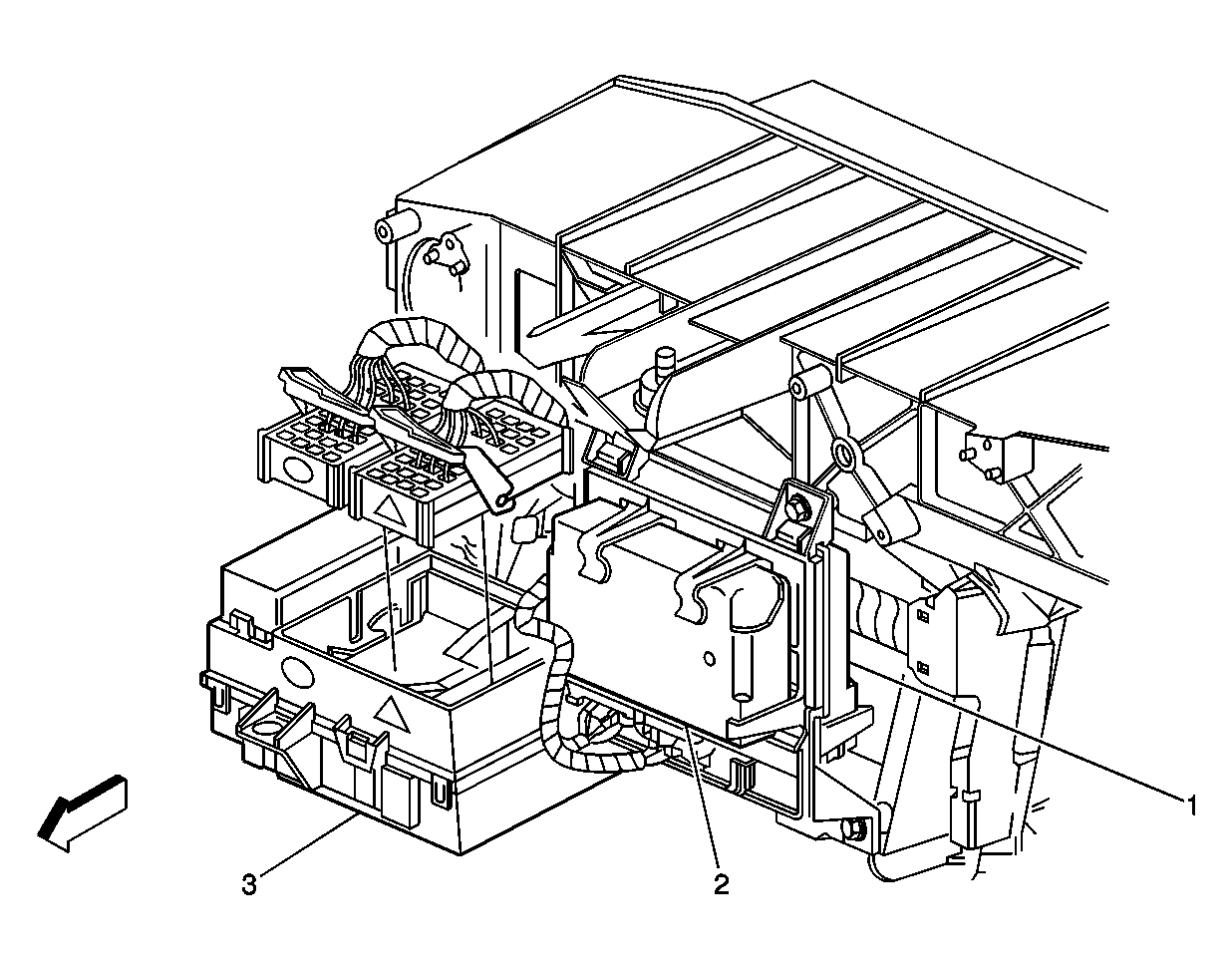

Fig 1: Identifying Components Behind Right Side Of Instrument Panel
GM317633Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Integration Module (IPM)
2 Body Control Module (BCM)
3 Fuse Block - I/P

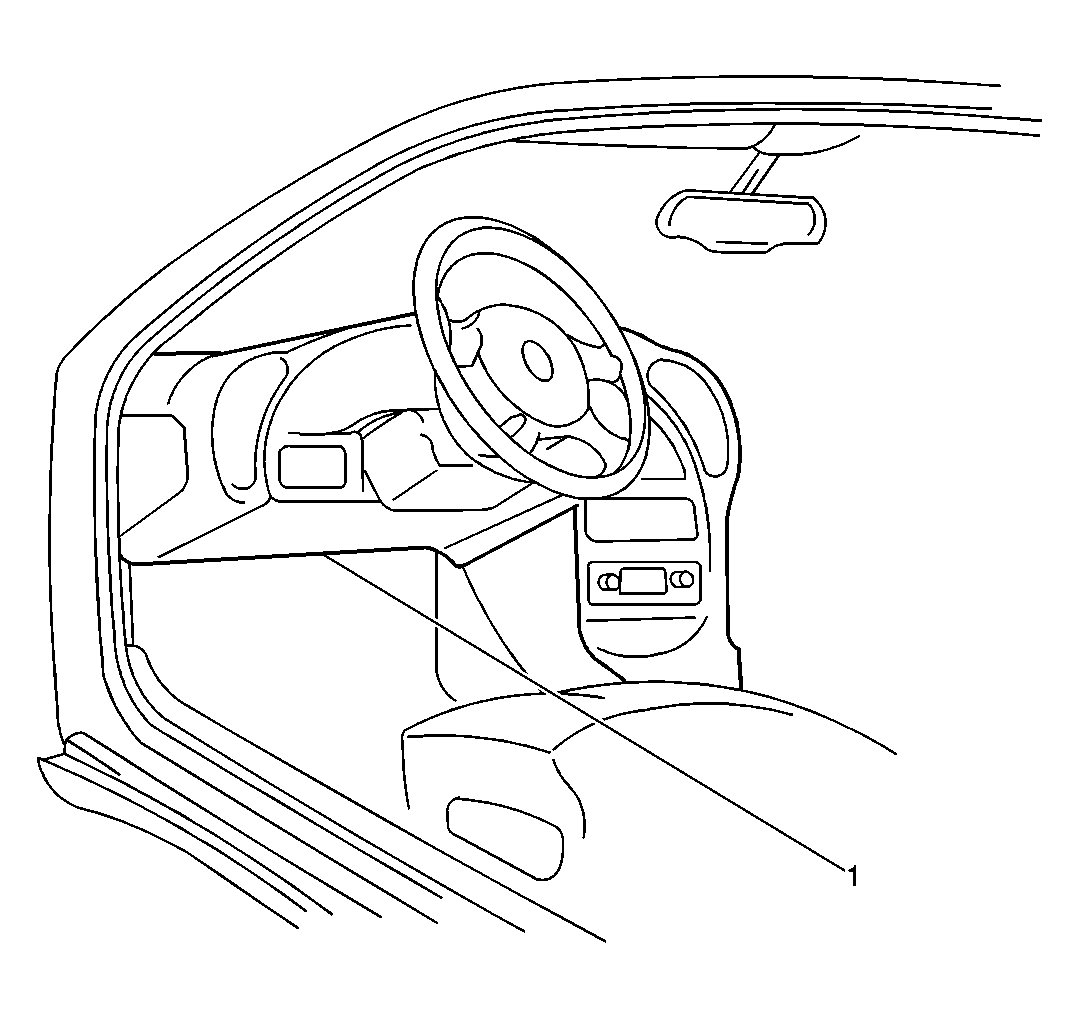

Fig 2: Identifying Data Link Communications (DLC) Connector
GM592145Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Data Link Connector (DLC)
