Engine Controls Component Views

Fig 1: Identifying VIN K Front Components
GM193776Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Mass Air Flow (MAF) Sensor
2 Idle Air Control (IAC) Valve
3 Throttle Position (TP) Sensor
4 Fuel Pressure Test Connector
5 Engine Coolant Temperature (ECT) Sensor
6 Fuel Injector
7 Evaporative Emissions (EVAP) Canister Purge Solenoid
8 Engine Oil Level Switch
9 Crankshaft Position (CKP) Sensor
10 Camshaft Position (CMP) Sensor (Behind Water Pump Pulley)
11 Ignition Control Module (ICM) and Coils
12 Positive crankcase ventilation (PCV) Valve (Under MAP Sensor)
13 Manifold Absolute Pressure (MAP) Sensor
14 Fuel Injector Harness Connector
15 Fuel Pressure Regulator

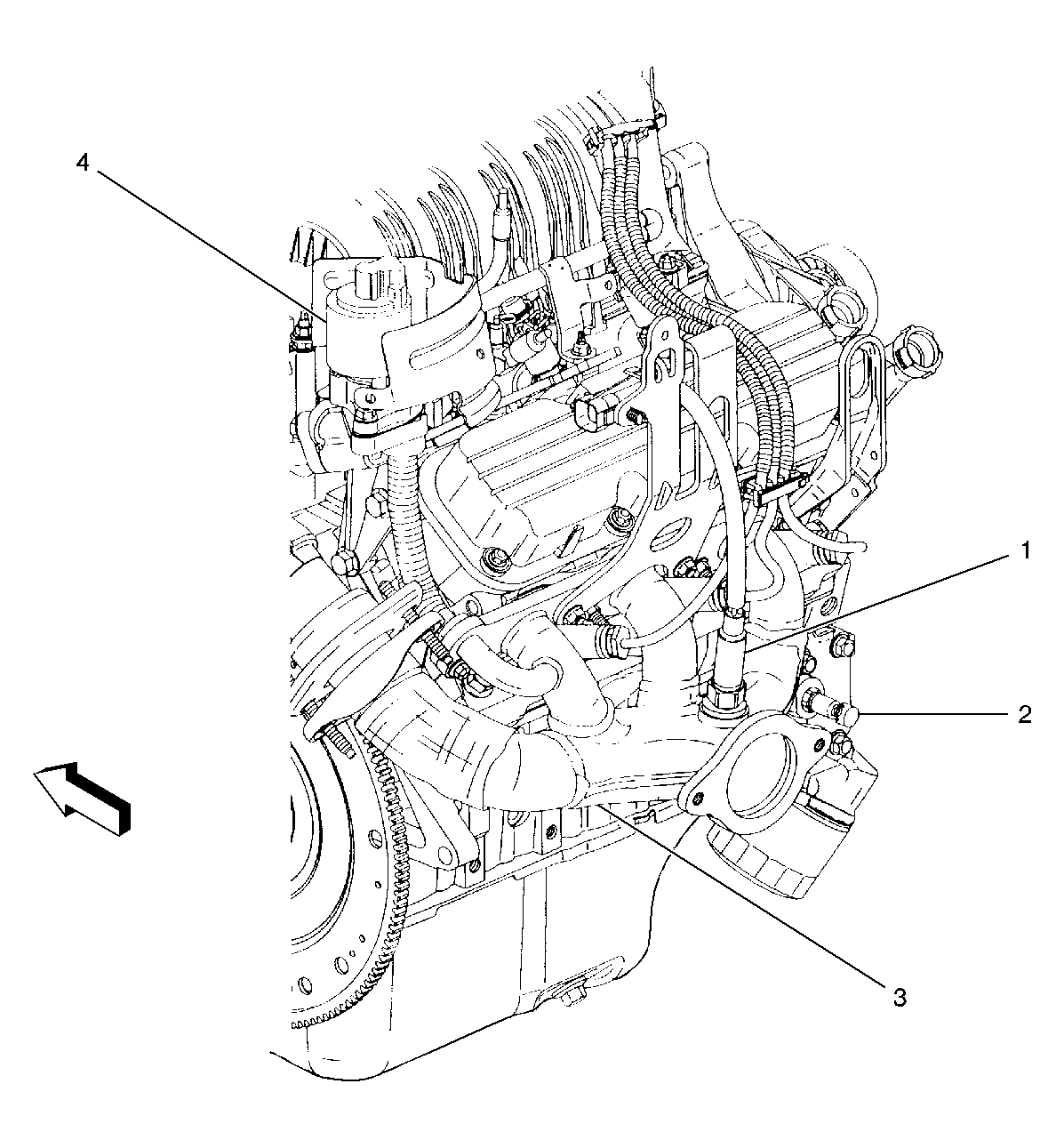

Fig 2: Identifying Components - VIN K (Rear View)
GM195601Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
2 Engine Oil Pressure (EOP) Switch
3 Knock Sensor (KS) Bank 2 (Behind Exhaust Manifold)
4 Exhaust Gas Recirculation (EGR) Valve

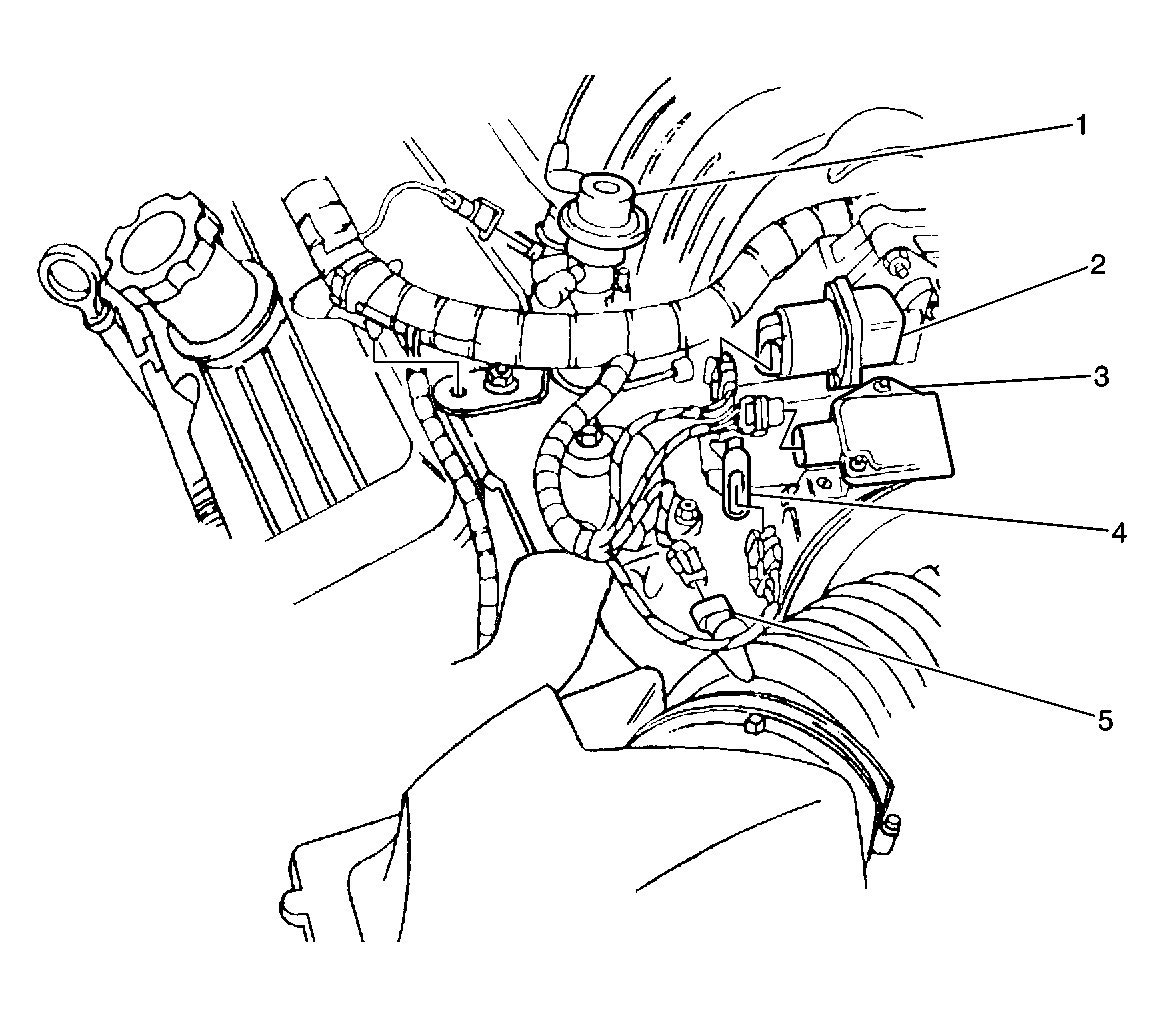

Fig 3: Identifying Components - VIN K Fuel Pressure Regulator, IAC Valve, MAF Sensor, TP Sensor, IAT Sensor
GM185427Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Pressure Regulator
2 Idle Air Control (IAC) Valve
3 Mass Air Flow (MAF) Sensor
4 Throttle Position (TP) Sensor
5 Intake Air Temperature (IAT) Sensor

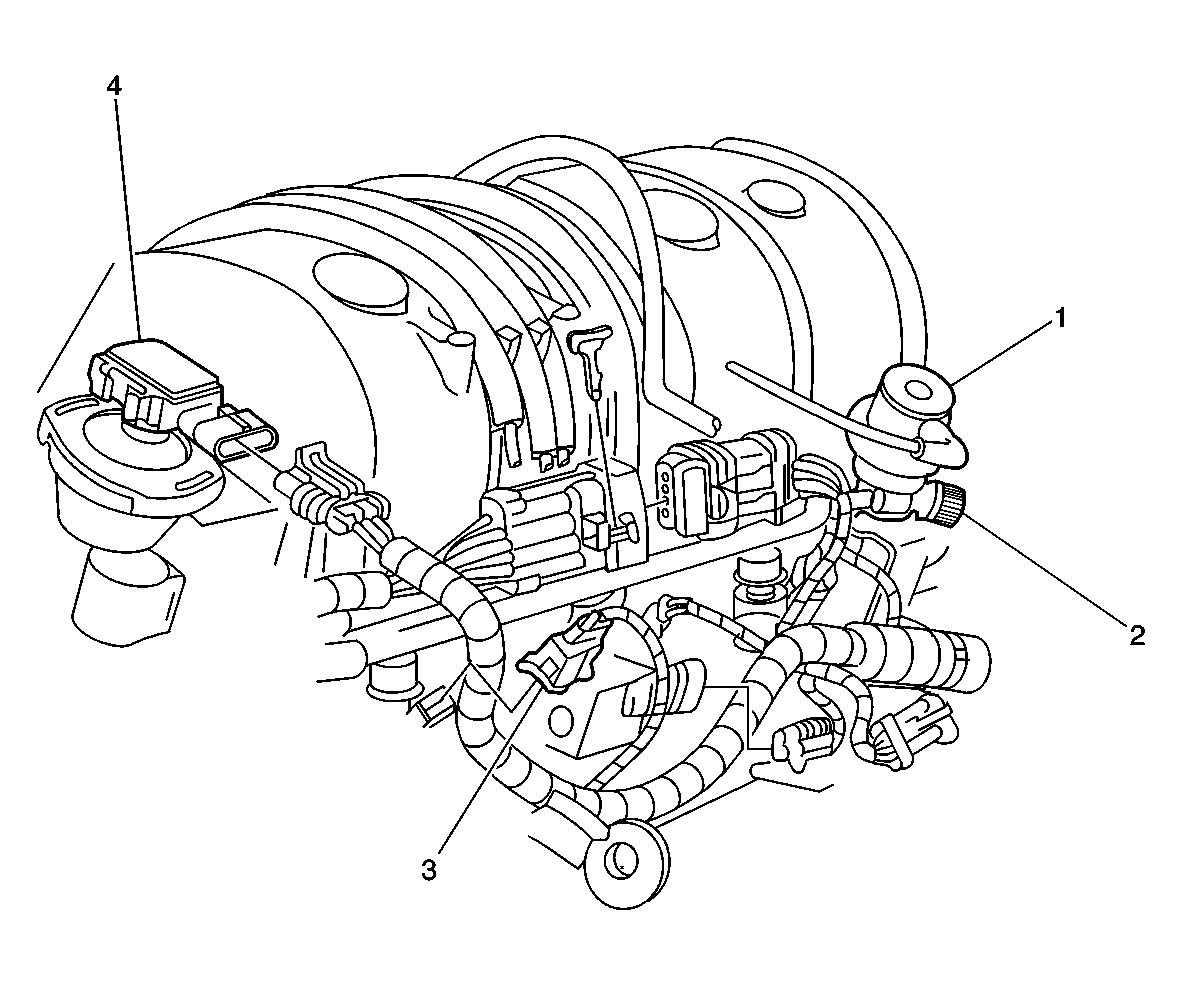

Fig 4: Identifying Components - VIN K Fuel Pressure Regulator, Fuel Pressure Connector, Fuel Injector Connector, MAP Sensor
GM185405Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Pressure Regulator
2 Fuel Pressure Connector
3 Fuel Injector Connector
4 Manifold Absolute Pressure (MAP) Sensor

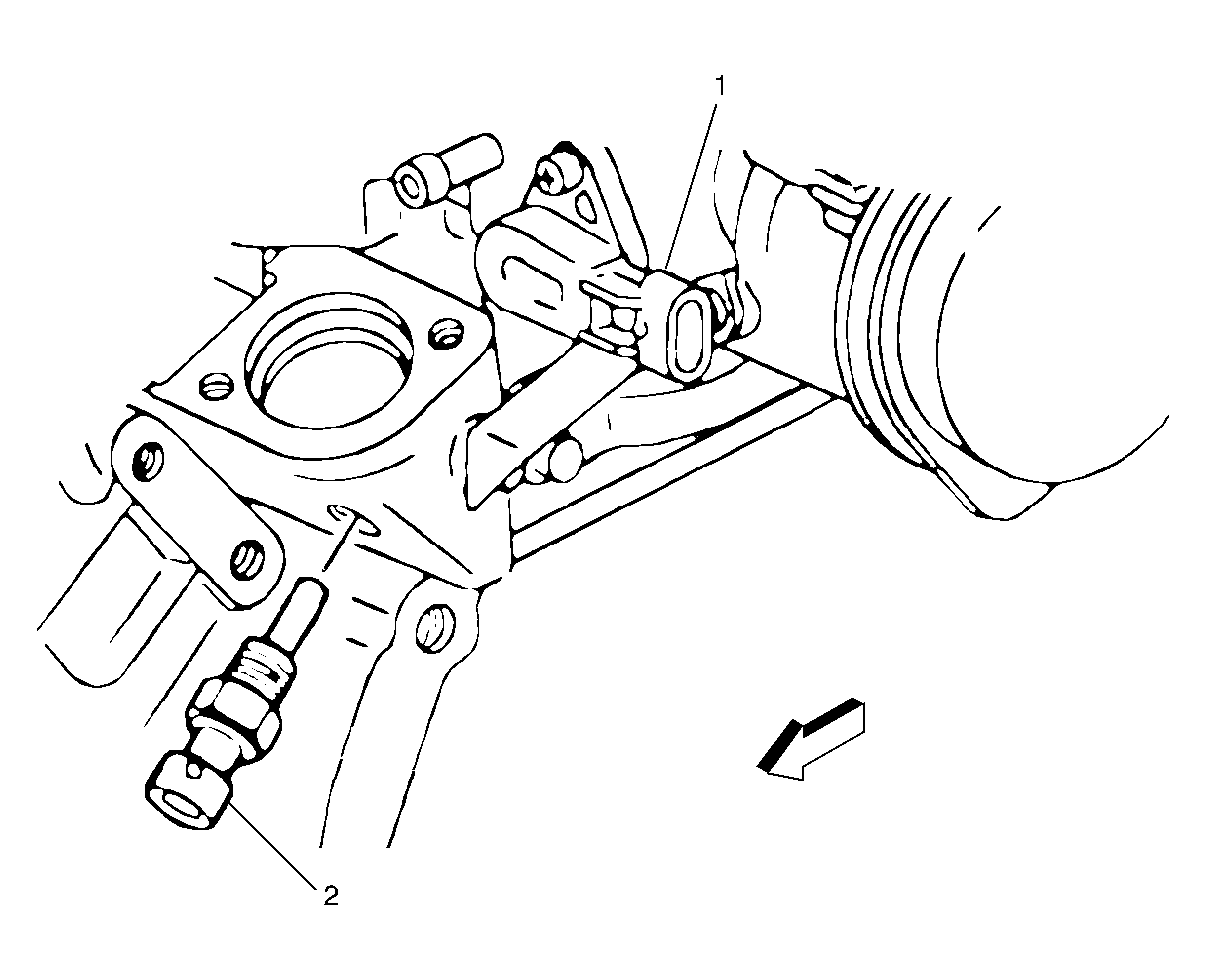

Fig 5: Identifying Components - VIN K TP Sensor, ECT Sensor
GM215942Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Throttle Position (TP) Sensor
2 Engine Coolant Temperature (ECT) Sensor

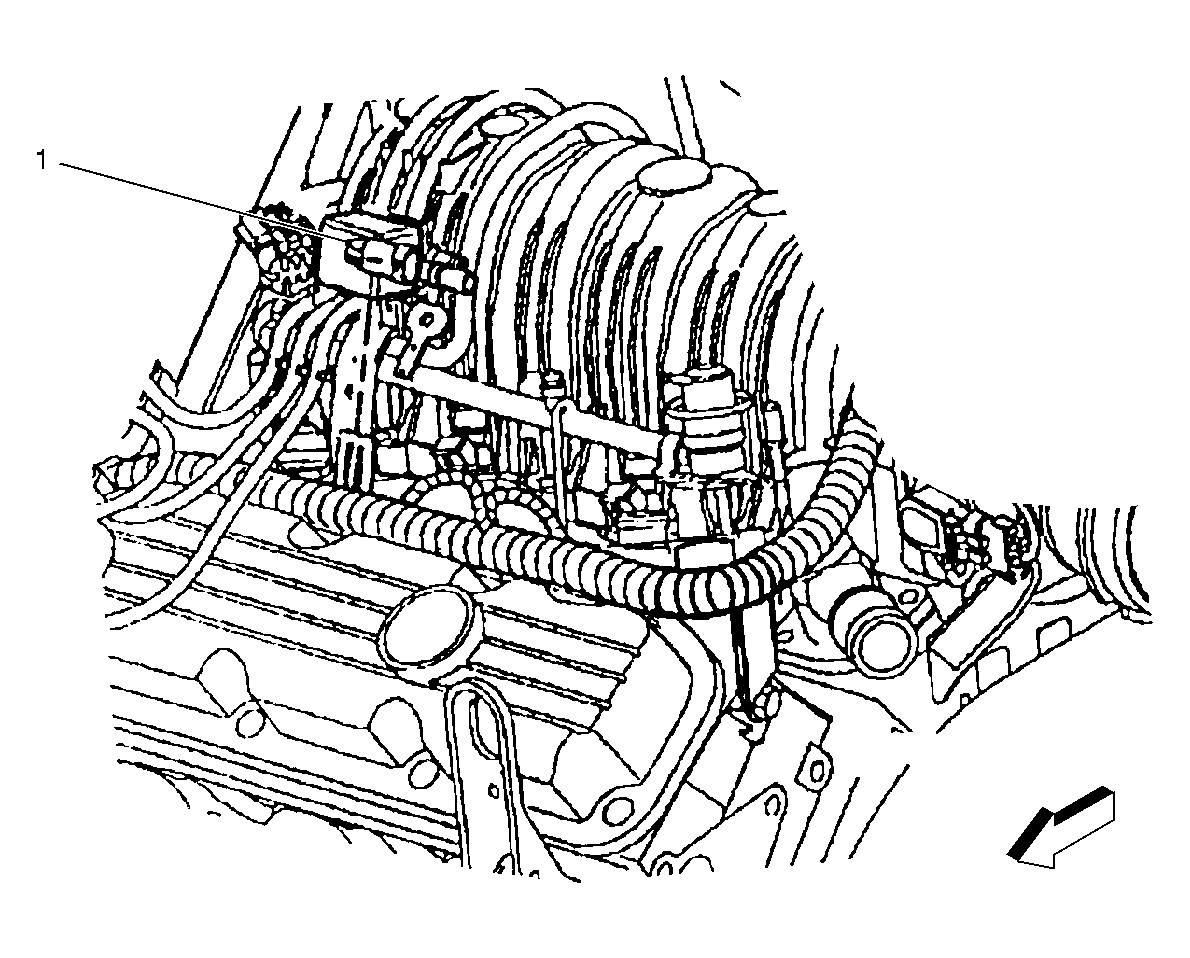

Fig 6: Identifying Components - VIN K EVAP Canister Purge Valve
GM215925Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Evaporative Emissions (EVAP) Canister Purge Solenoid

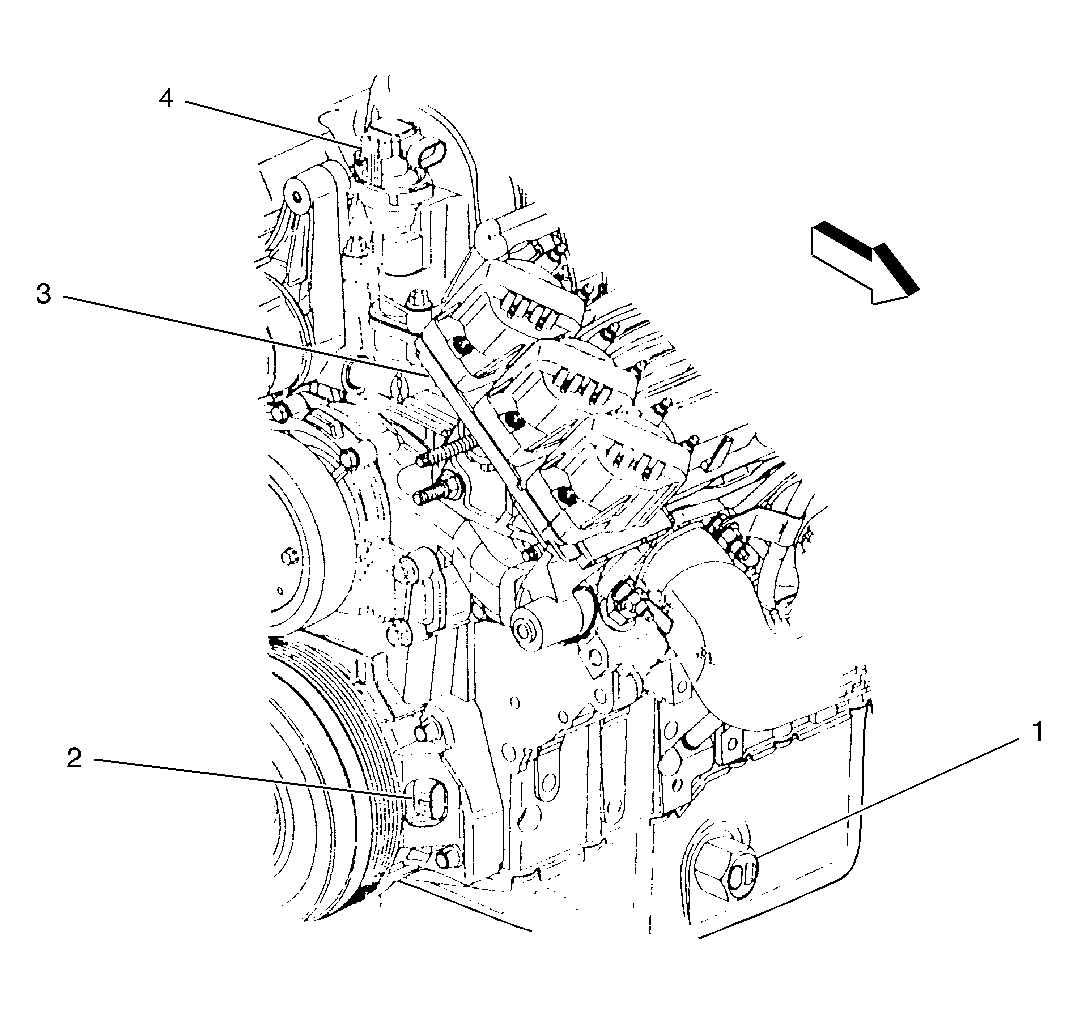

Fig 7: Identifying Components - VIN K Oil Level Sensor, 18X Crankshaft Sensor, Ignition Control Module and Coils, MAP Sensor
GM215941Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Oil Level Switch
2 Crankshaft Position (CKP) Sensor
3 Ignition Control Module (ICM) and Coils
4 Manifold Absolute Pressure (MAP) Sensor
Fig 8: Identifying Components - VIN K Cam Sensor
GM189375Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Camshaft Position (CMP) Sensor

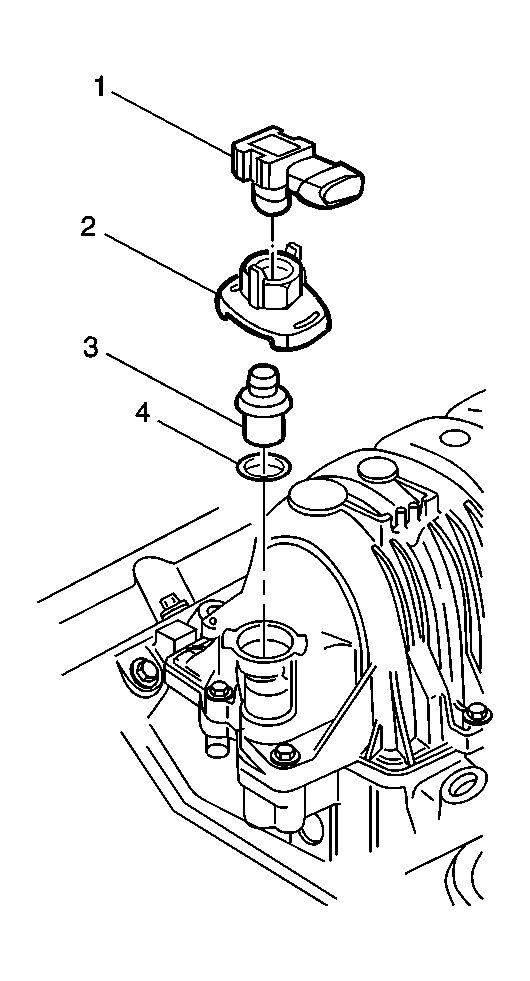

Fig 9: Identifying PVC Valve & Related Components
GM12315Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Manifold Absolute Pressure (MAP) Sensor
2 PCV Valve Cover
3 PCV Valve
4 O-ring

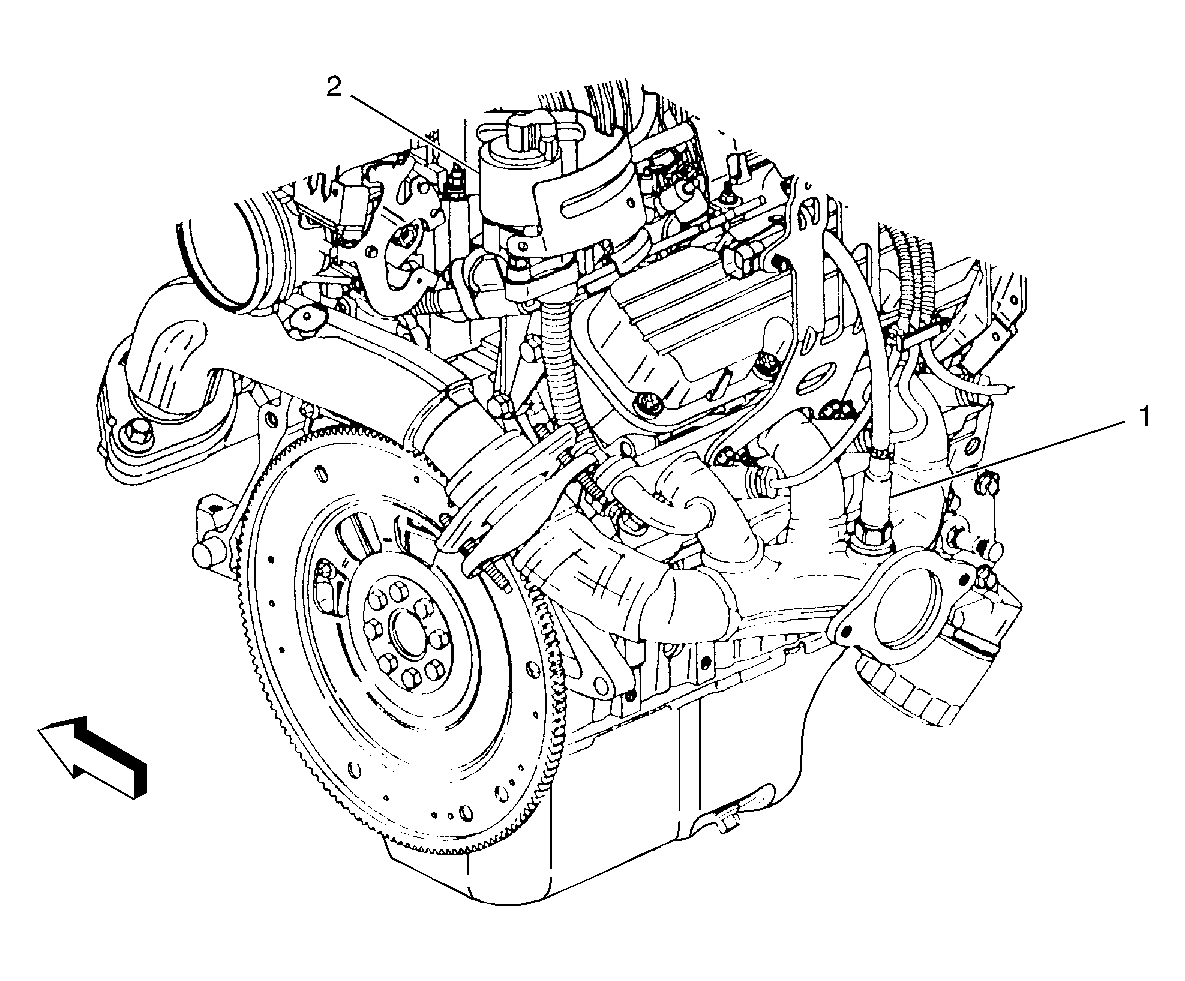

Fig 10: Identifying Components - VIN K HO2S1, EGR Valve
GM215940Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
2 Exhaust Gas Recirculation (EGR) Valve

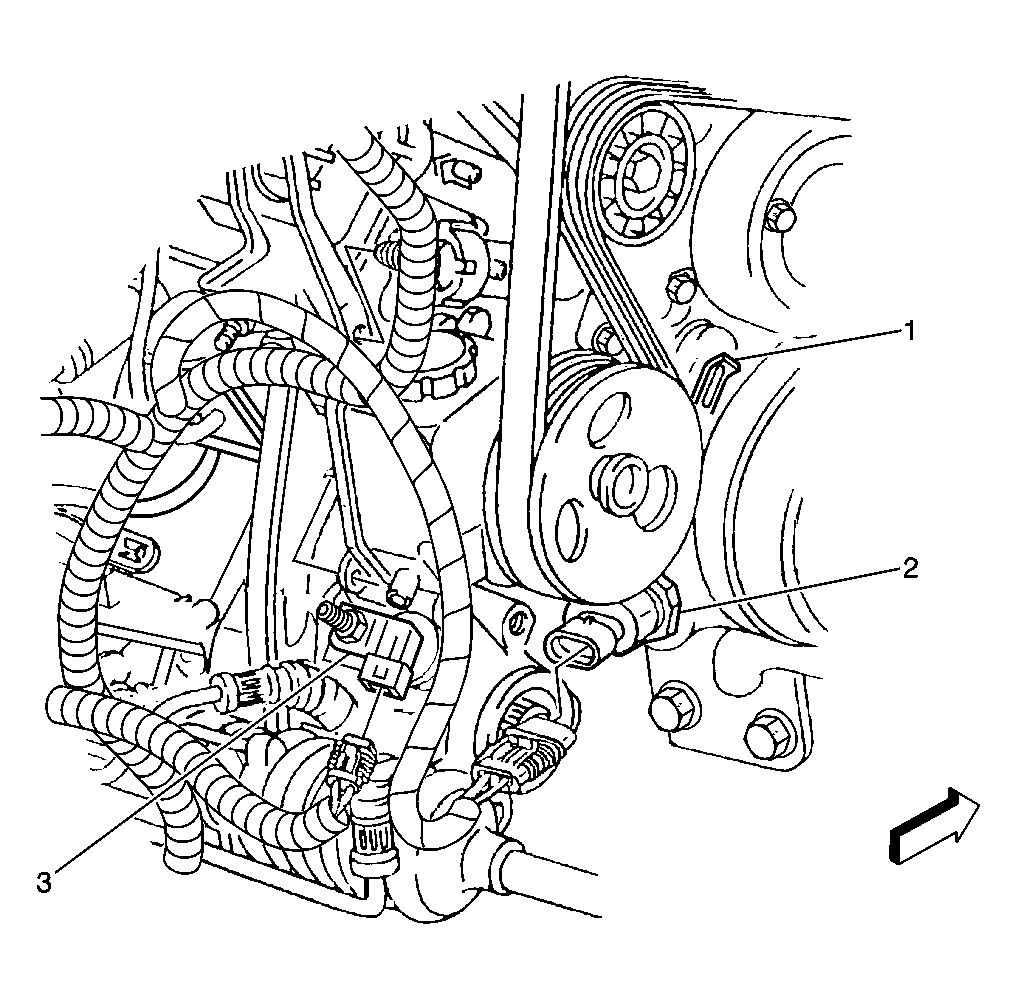

Fig 11: Identifying Components - VIN K Cam Sensor, Oil Pressure Sensor, VSS Sensor
GM189628Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Camshaft Position (CMP) Sensor
2 Engine Oil Pressure (EOP) Switch
3 Vehicle Speed Sensor (VSS)
Fig 12: Identifying Components - Knock Sensor 1
GM394455Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Knock Sensor (KS) Bank 1
2 Knock Sensor (KS) Bank 1 Electrical Connector
Fig 13: Identifying Components - Knock Sensor 2
GM190969Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Knock Sensor (KS) Bank 2

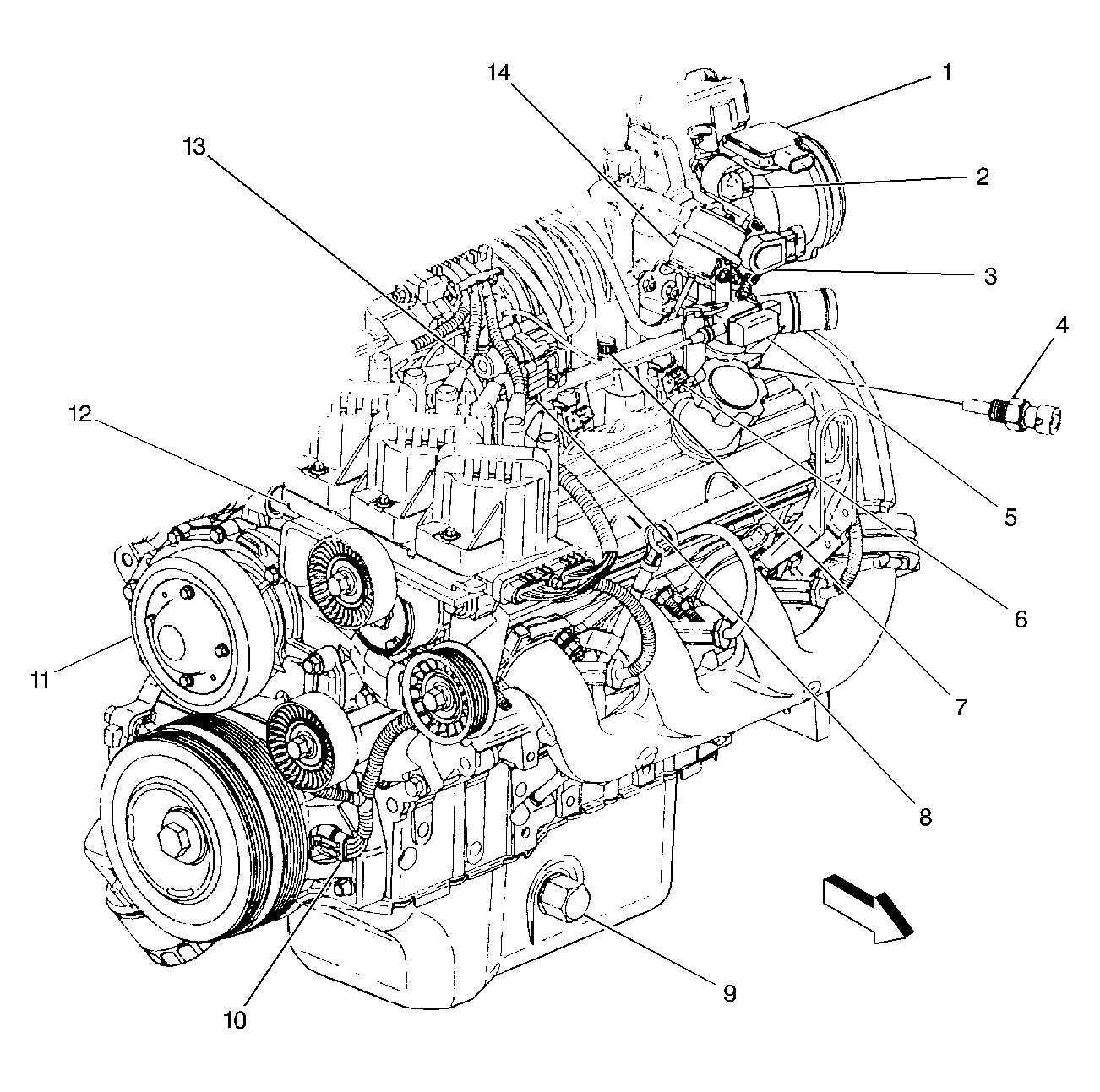

Fig 14: Identifying Components - VIN 1 Front View
GM215555Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Mass Air Flow (MAF) Sensor
2 Idle Air Control (IAC) Valve
3 Throttle Position (TP) Sensor
4 Engine Coolant Temperature (ECT) Sensor
5 Superchager Boost Control Solenoid
6 Fuel Injector
7 Fuel Pressure Test Connector
8 Fuel Injector Harness Connector
9 Engine Oil Level Switch
10 Crankshaft Position (CKP) Sensor
11 Camshaft Position (CMP) Sensor (Behind Water Pump Pulley)
12 Ignition Control Module (ICM) and Coils
13 Fuel Pressure Regulator
14 Boost Control Actuator

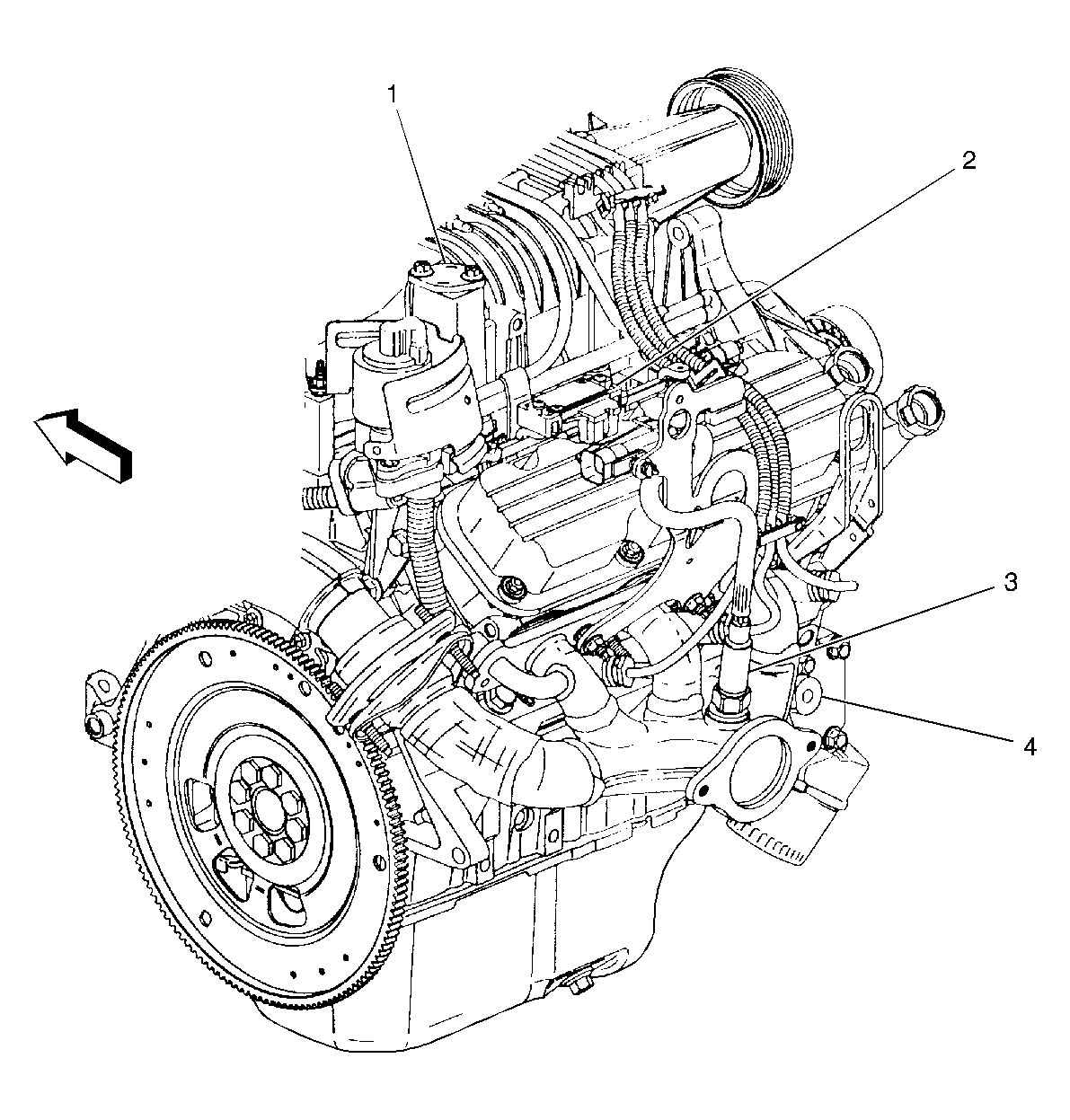

Fig 15: Identifying Components - VIN 1 Rear View
GM215563Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Positive crankcase ventilation (PCV) Valve
2 Manifold Absolute Pressure (MAP) Sensor
3 Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
4 Oil Pressure (EOP) Switch

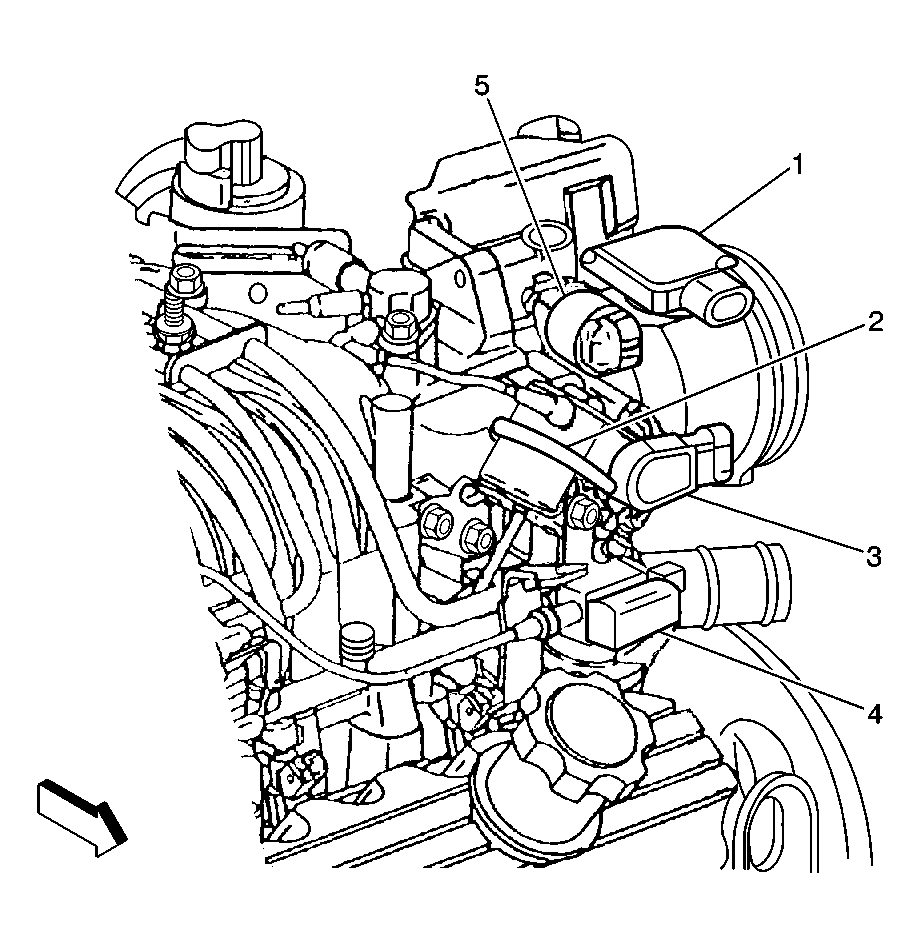

Fig 16: Identifying Components - VIN 1 MAF Sensor, By-Pass Actuator, TP Sensor, Boost Control Solenoid, IAC Valve
GM189351Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Mass Air Flow (MAF) Sensor
2 By-Pass Actuator
3 Throttle Position (TP) Sensor
4 Supercharger Boost Control Solenoid
5 Idle Air Control (IAC) Valve

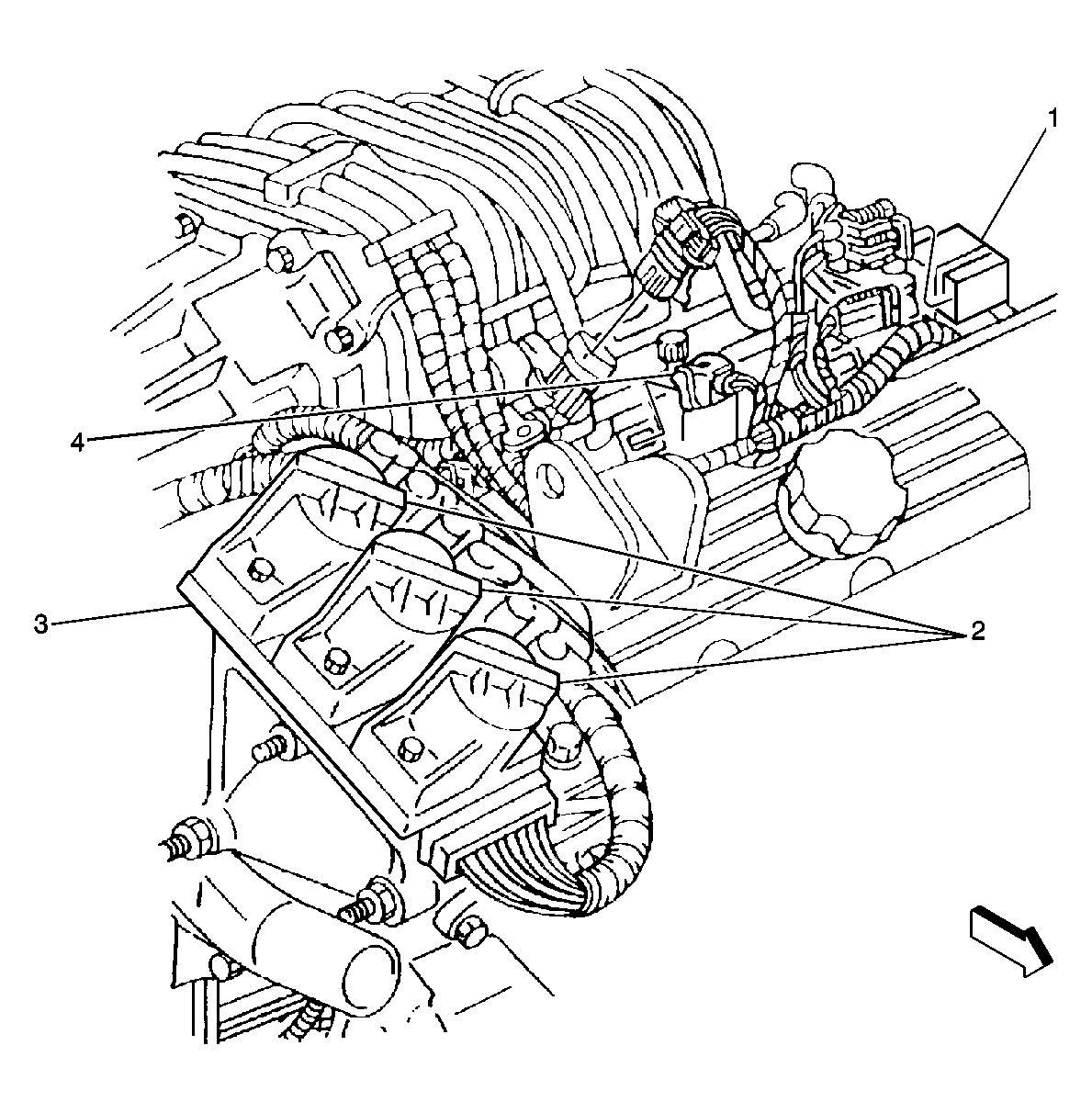

Fig 17: Identifying Components - VIN 1 Boost Solenoid, IC Coils, IC Module, Bypass Valve Actuator
GM185424Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Supercharger Boost Control Solenoid
2 Ignition Coils
3 Ignition Control Module (ICM)
4 Fuel Injector

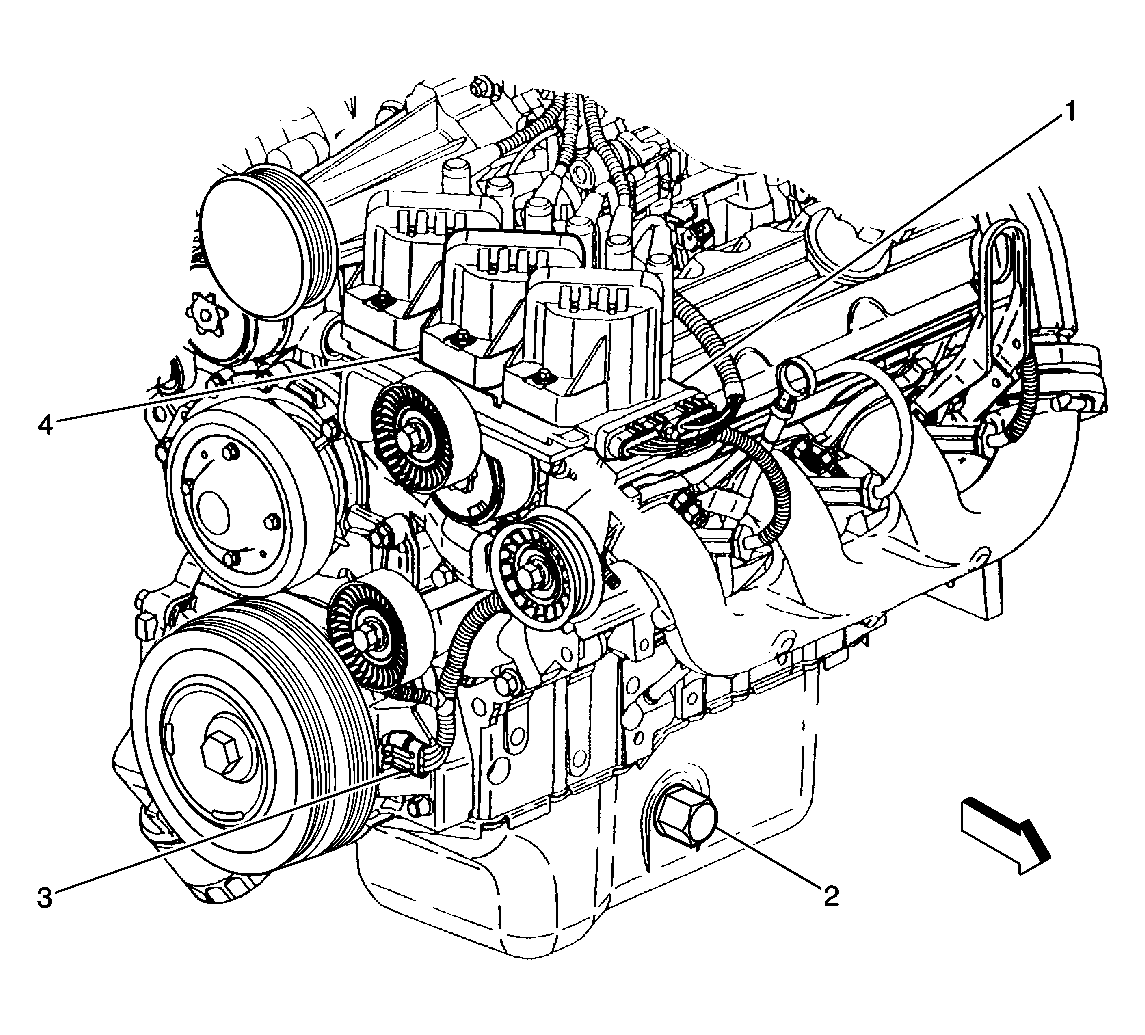

Fig 18: Identifying Components - VIN 1 IC Module, Oil Level Sensor, CRK Sensor, Ignition Coils
GM189424Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Control Module (ICM)
2 Engine Oil Level Switch
3 Crankshaft Position (CKP) Sensor
4 Ignition Coil

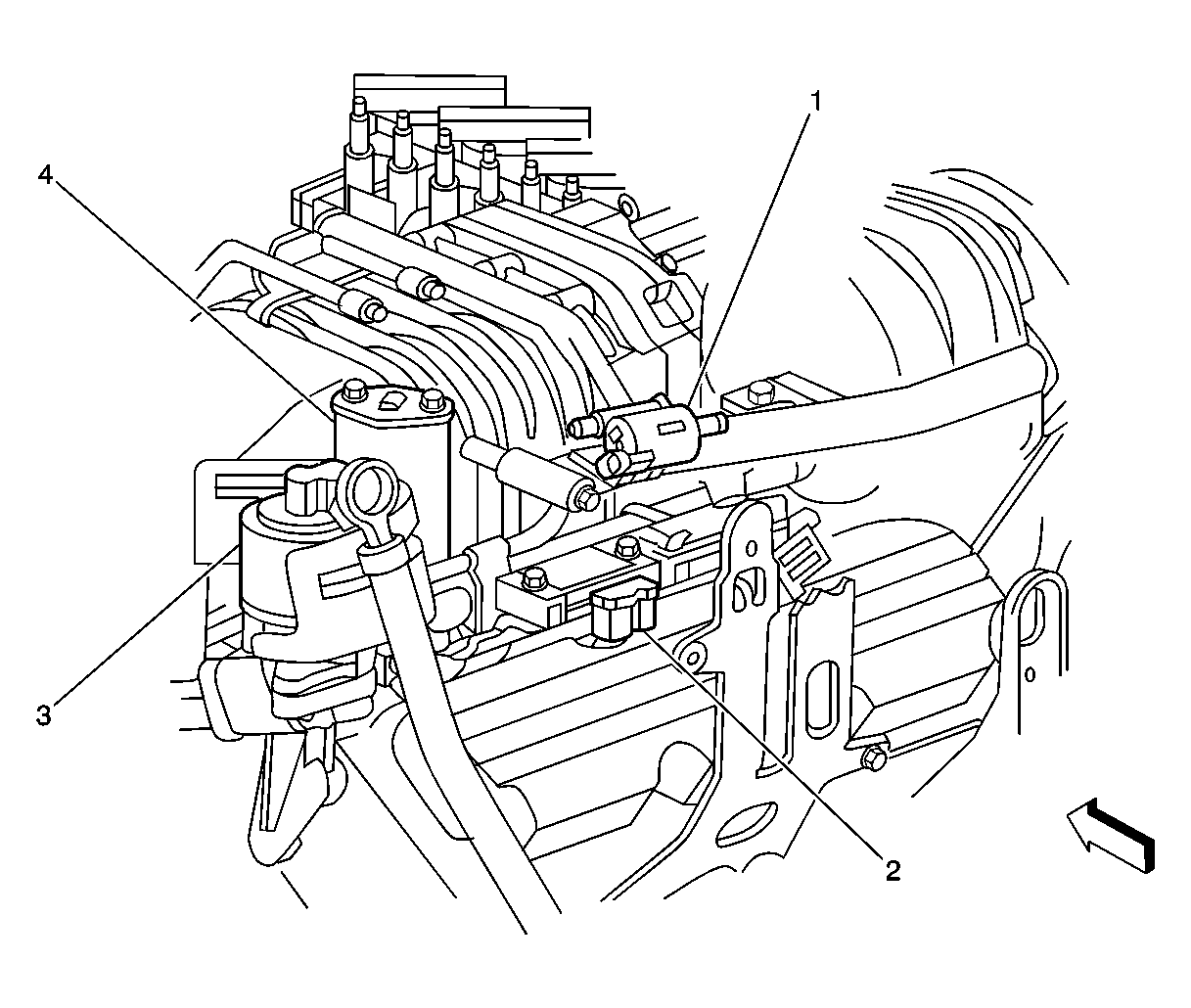

Fig 19: Identifying Components - VIN 1 EVAP Canister Purge Valve, MAP Sensor, EGR Valve, PCV Valve
GM394441Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Evaporative Emission (EVAP) Canister Purge Solenoid
2 Manifold Absolute Pressure (MAP) Sensor
3 Exhaust gas recirculation (EGR) Valve
4 Positive crankcase ventilation (PCV) Valve (Hidden)

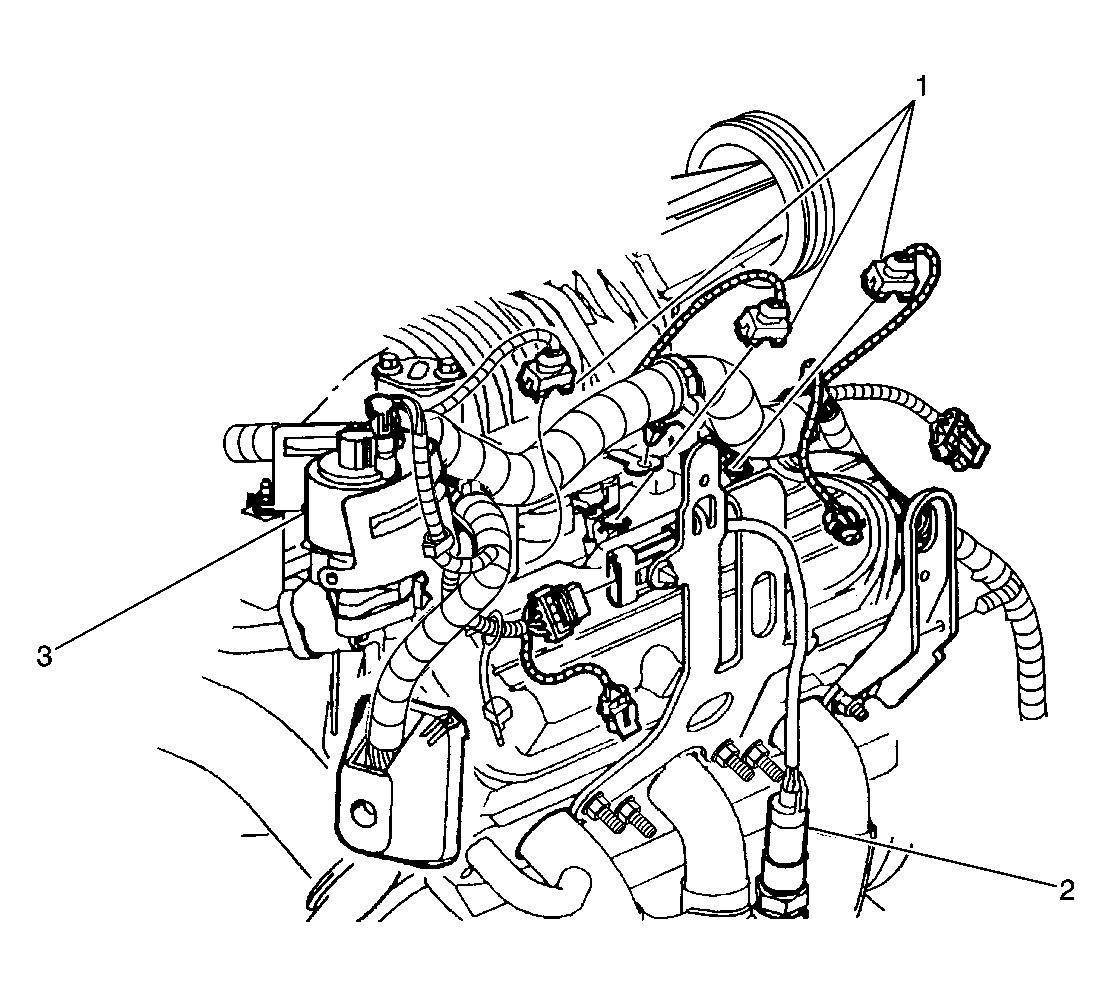

Fig 20: Identifying Components - VIN 1 Fuel Injector Connector, Heated Oxygen Sensor 1 (HO2S1), EGR Valve
GM185434Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Injector Connectors
2 Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
3 Exhaust Gas Recirculation (EGR) Valve

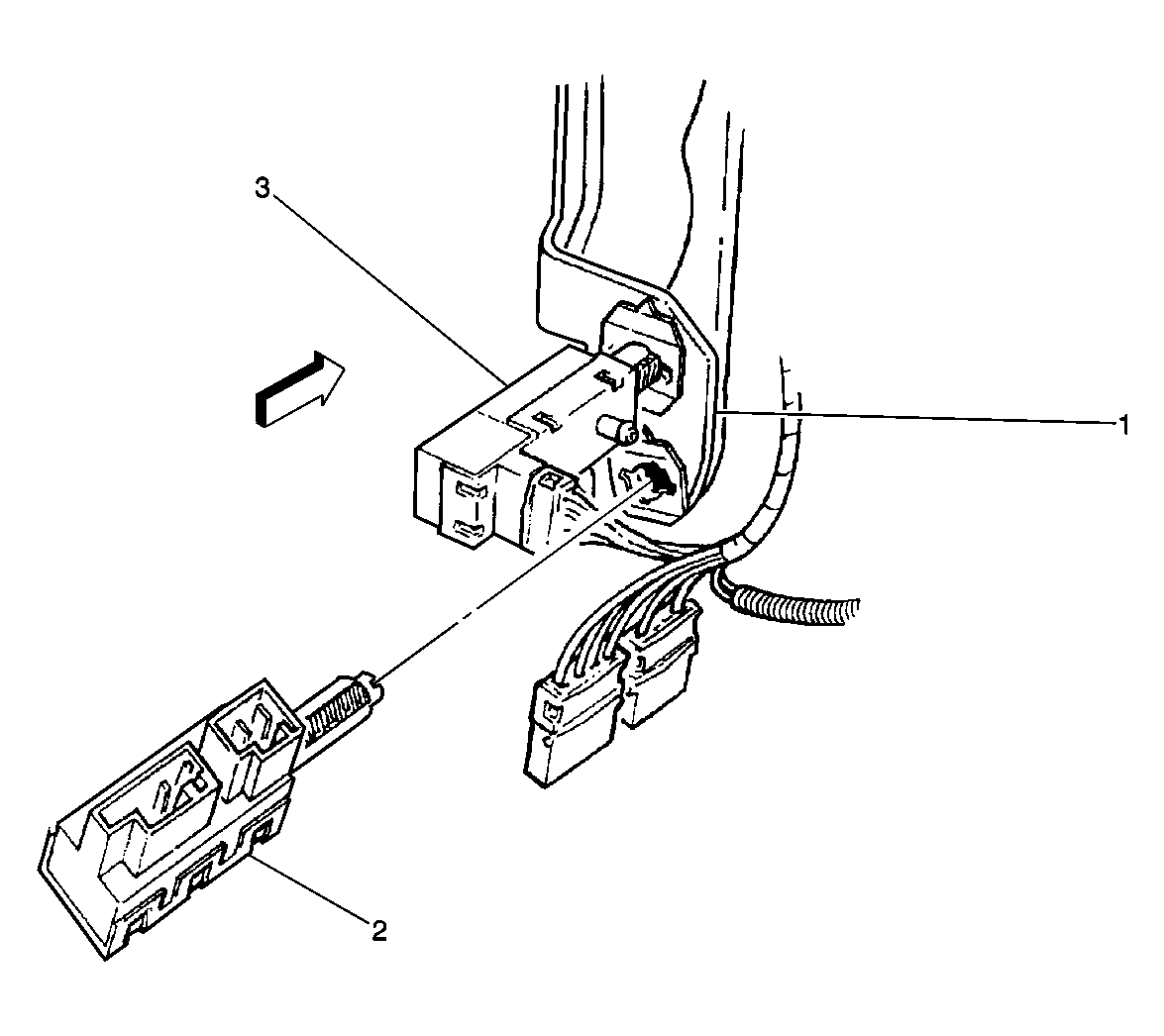

Fig 21: Identifying Components Located Under Left Side Of Instrument Panel
GM317603Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Brake Pedal Support Bracket
2 Stop Lamp/ AT Shift Lock Control Switch
3 Stop Lamp Switch

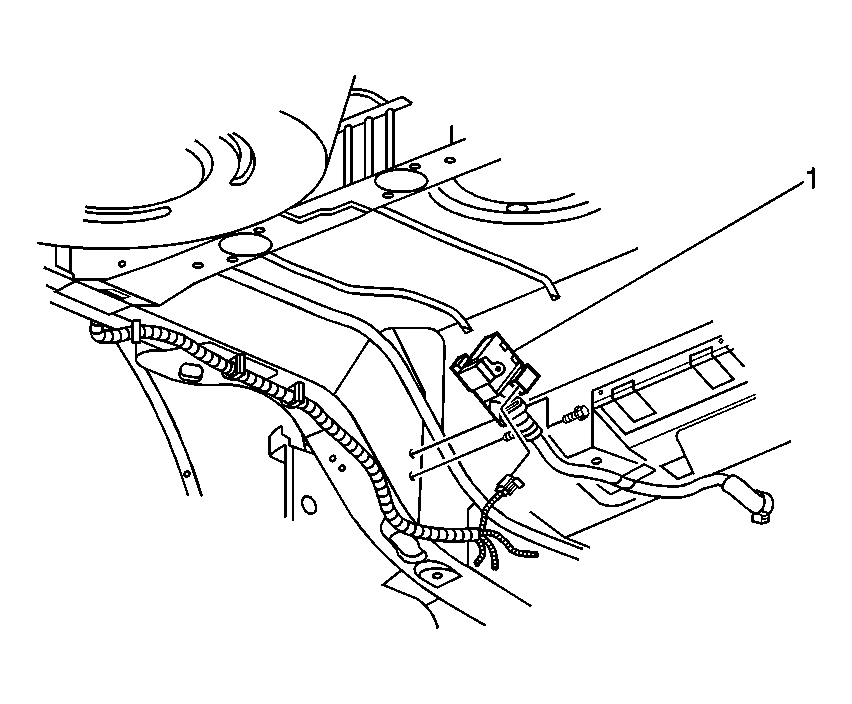

Fig 22: Identifying Components - EVAP Canister Vent Valve
GM725454Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Evaporative Emissions (EVAP) Canister Vent Solenoid

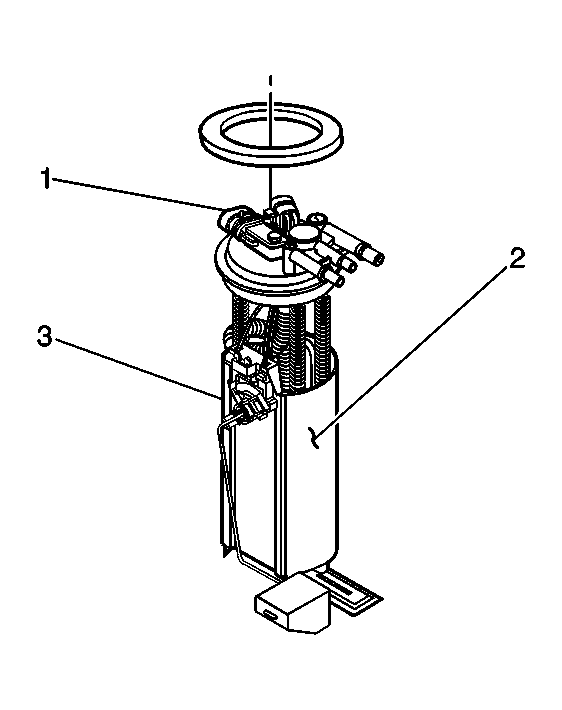

Fig 23: Identifying Components - Fuel Pump and Sender Assembly
GM726838Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Tank Pressure (FTP) Sensor
2 Fuel Pump (inside housing)
3 Fuel Sender

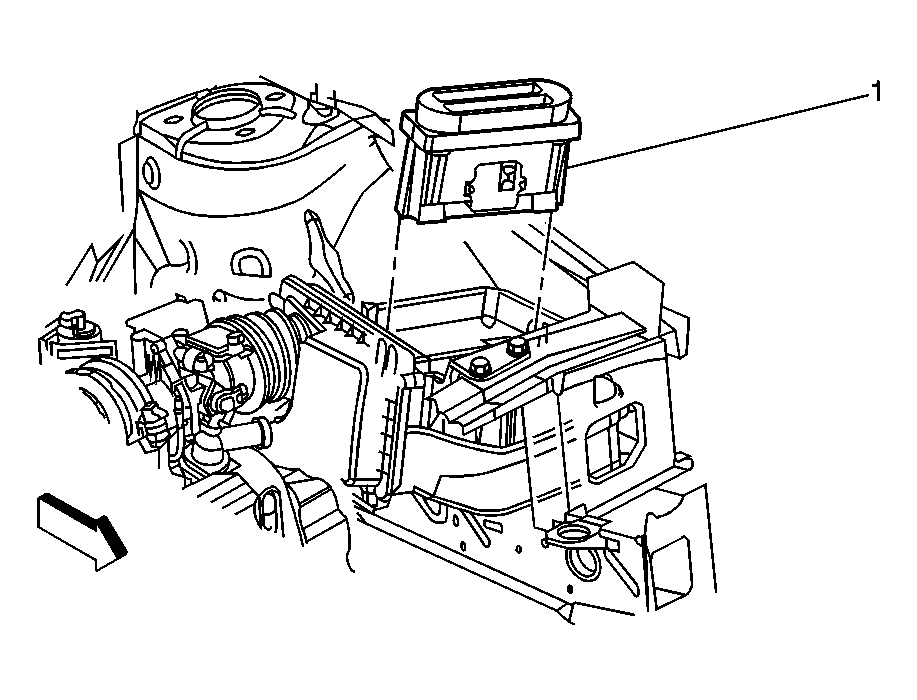

Fig 24: Identifying Components - PCM
GM731355Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Powertrain control module (PCM)
