Automatic Transmission Shift Lock Control Schematics

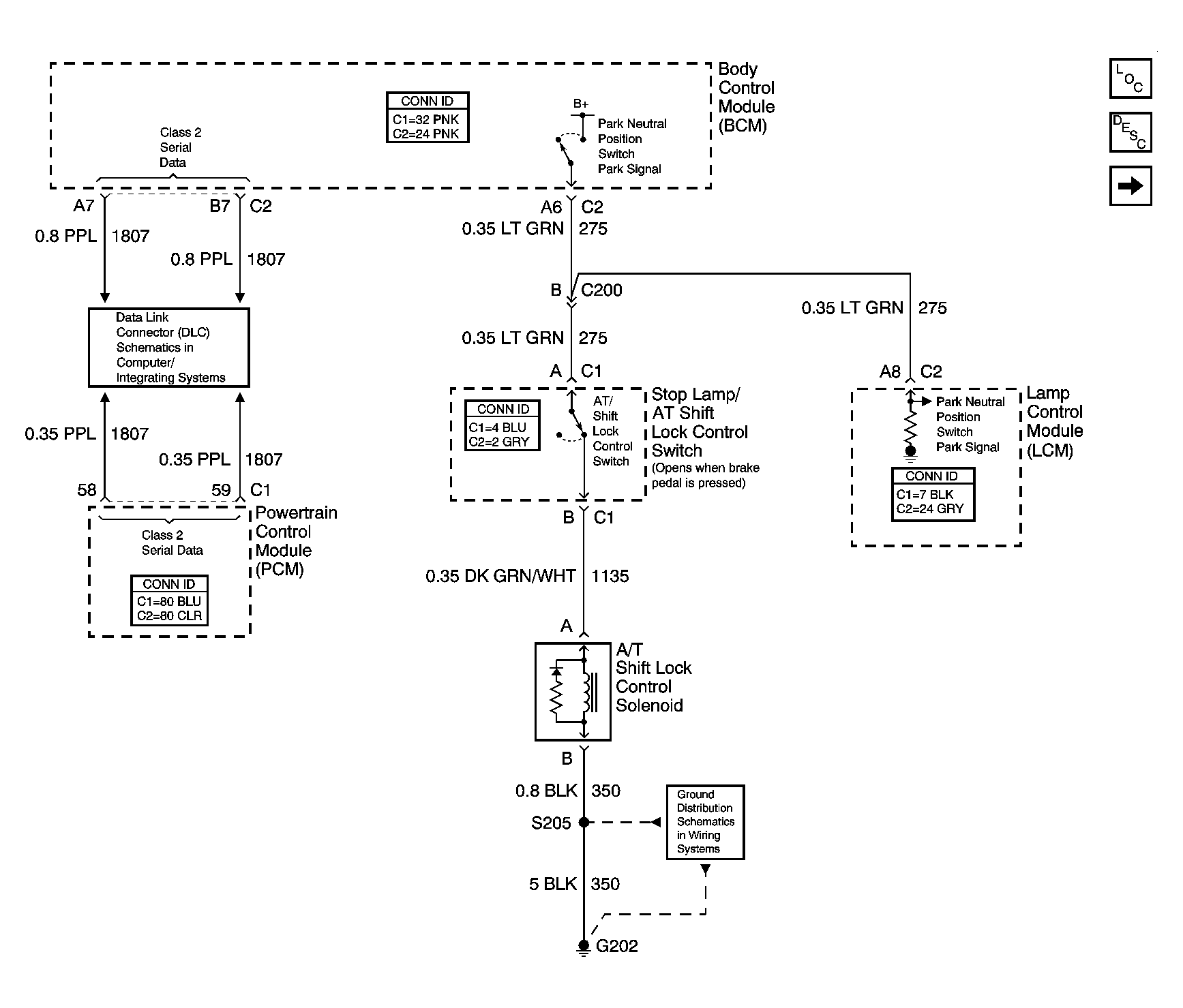

Fig 1: A/T Shift Lock Control Solenoid Schematics
GM1479890Courtesy of GENERAL MOTORS CORP.

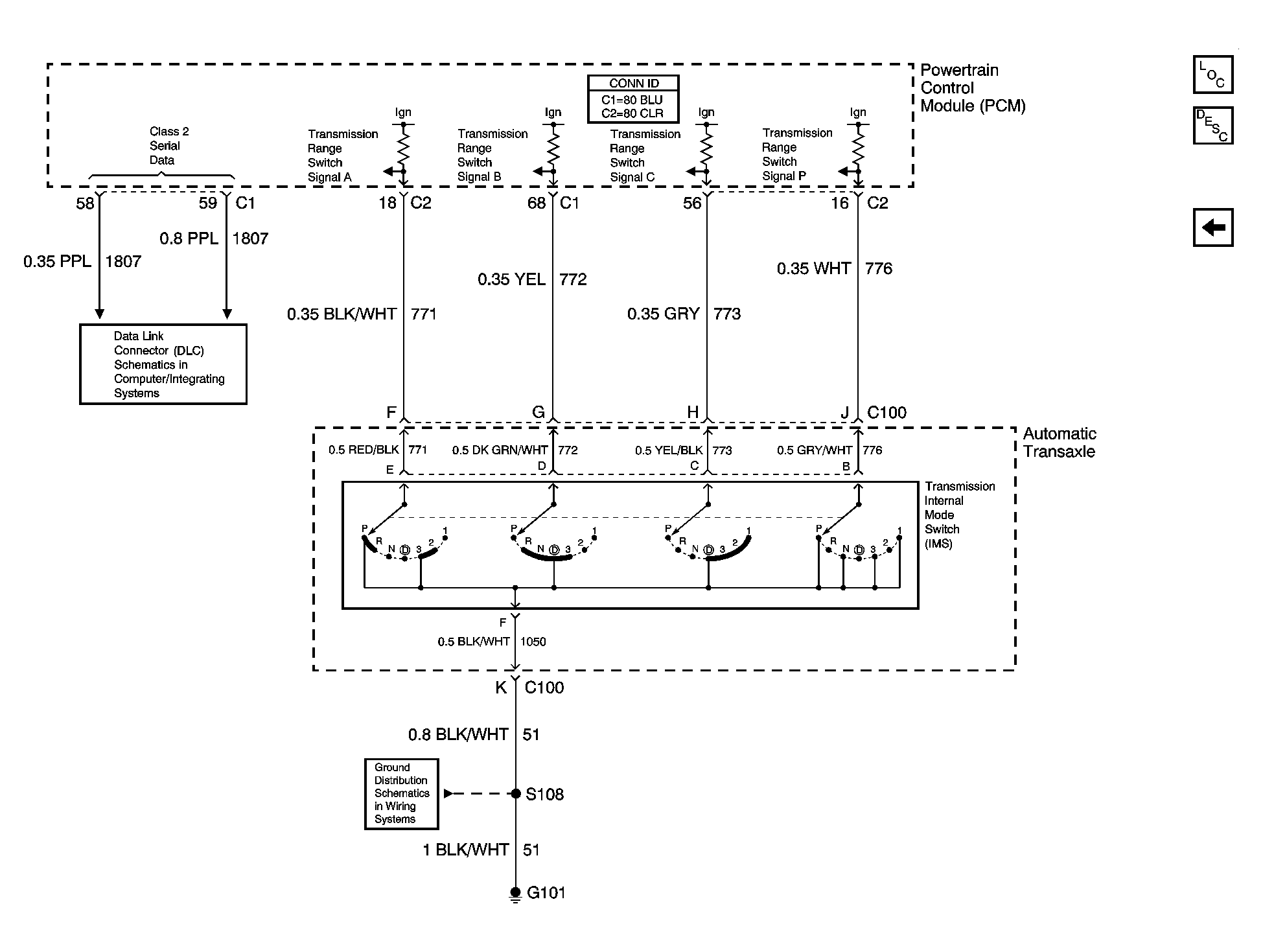

Fig 2: IMS Schematics
GM1441047Courtesy of GENERAL MOTORS CORP.
