Scan Tool Normal Data Values
SCAN TOOL DATA LIST
BCM:

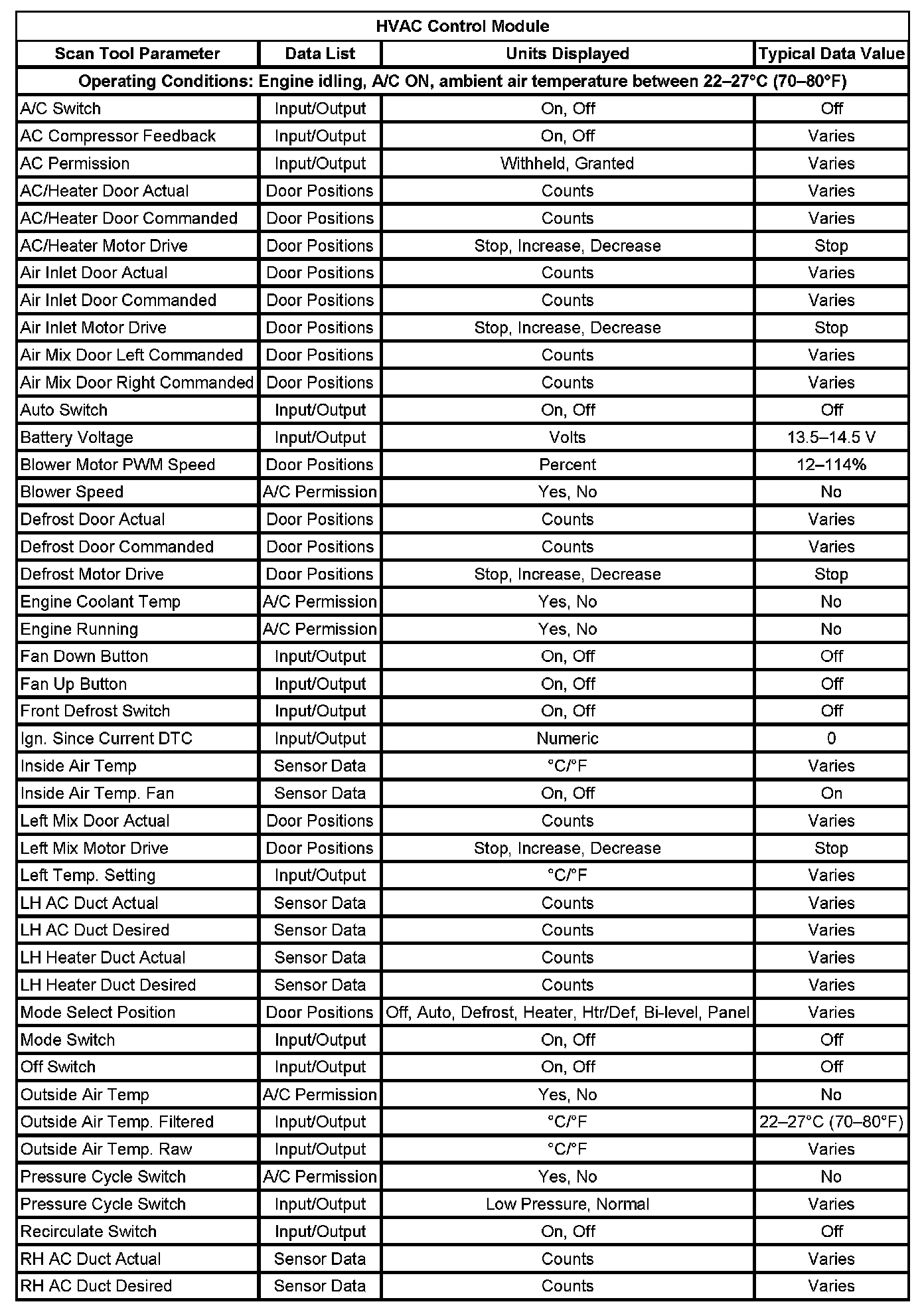

HVAC Control Module:
HVAC Control Module:
Rear HVAC/RSA (VIN 3):

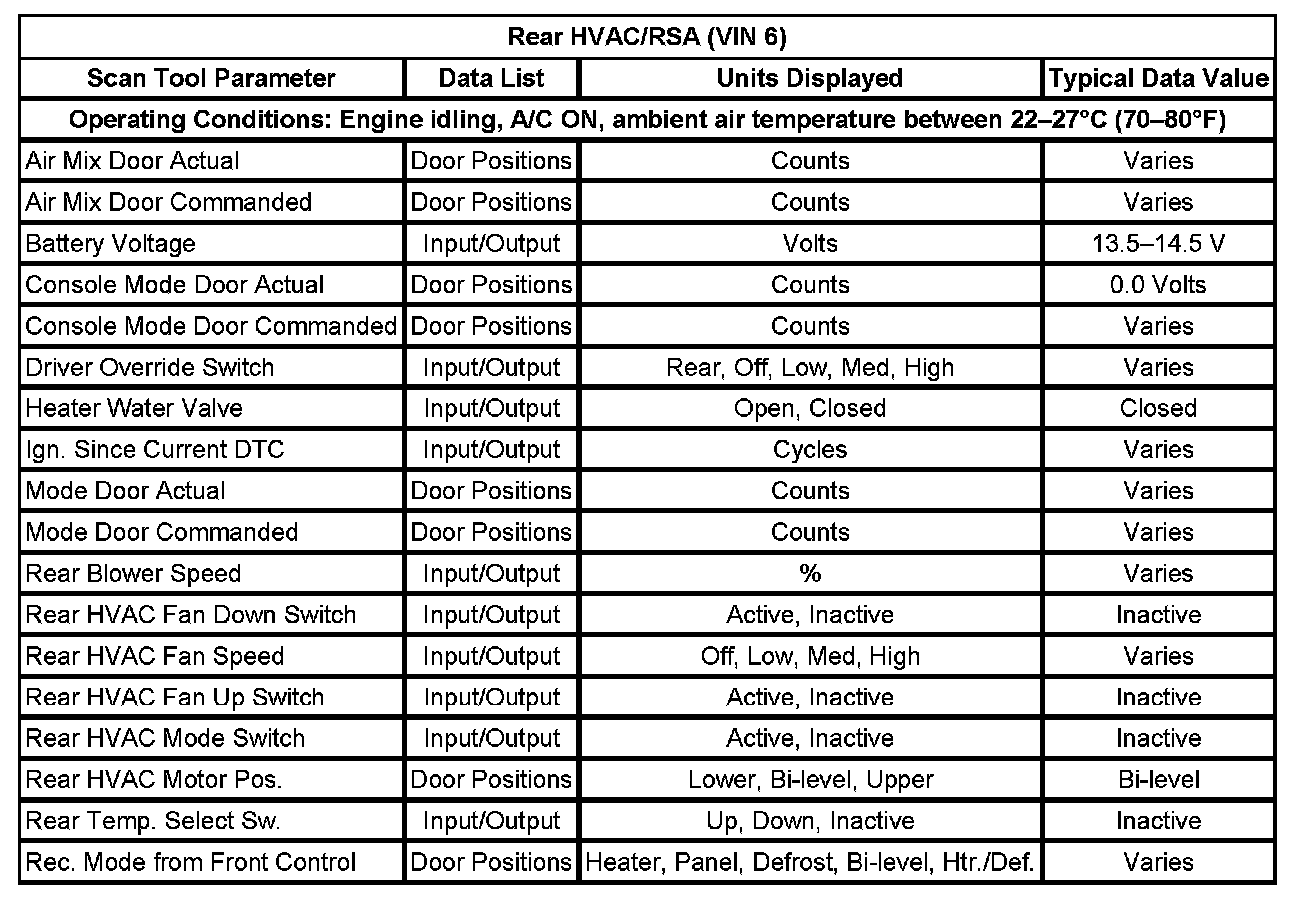

Rear HVAC/RSA (VIN 6):
PCM:
