Installation Procedure

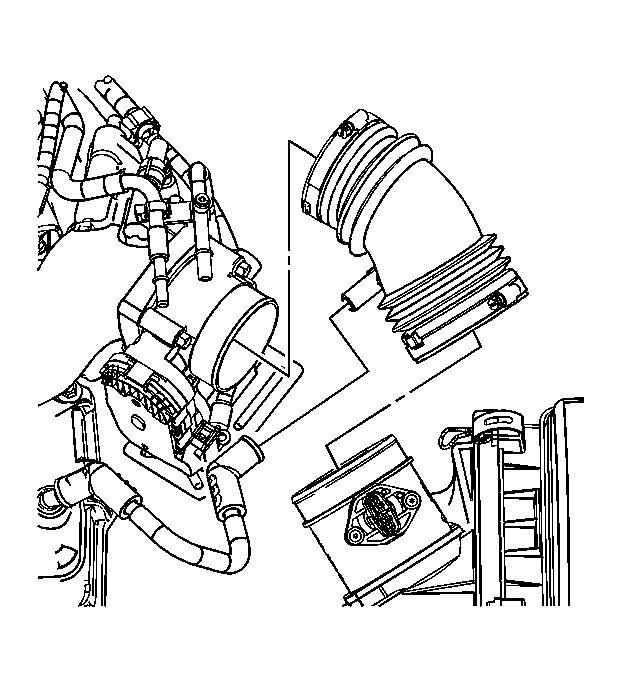

    Fig 1: Locating Intake Air Duct
    GM1404636Courtesy of GENERAL MOTORS CORP.
  1. Install the air intake duct to the MAF sensor.
  2. Install the air cleaner intake duct to the throttle body.
  3. Connect the PCV tube to the air intake duct.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Tighten the air intake air duct clamps.

    Tighten:  Tighten the clamps to 2 N.m (18 lb in).
