Installation Procedure

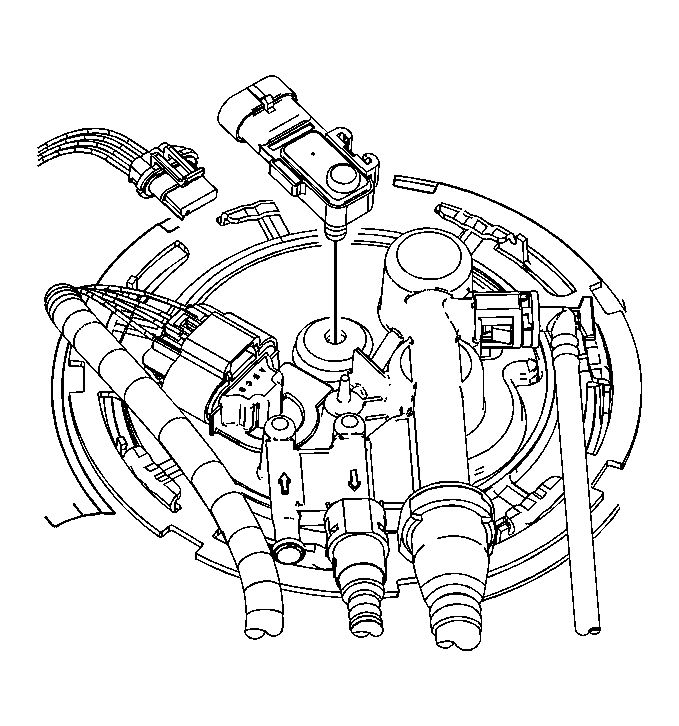

    Fig 1: View Of Fuel Tank Pressure Sensor
    GM1404558Courtesy of GENERAL MOTORS CORP.
  1. Install the new fuel tank pressure sensor to the fuel sender.

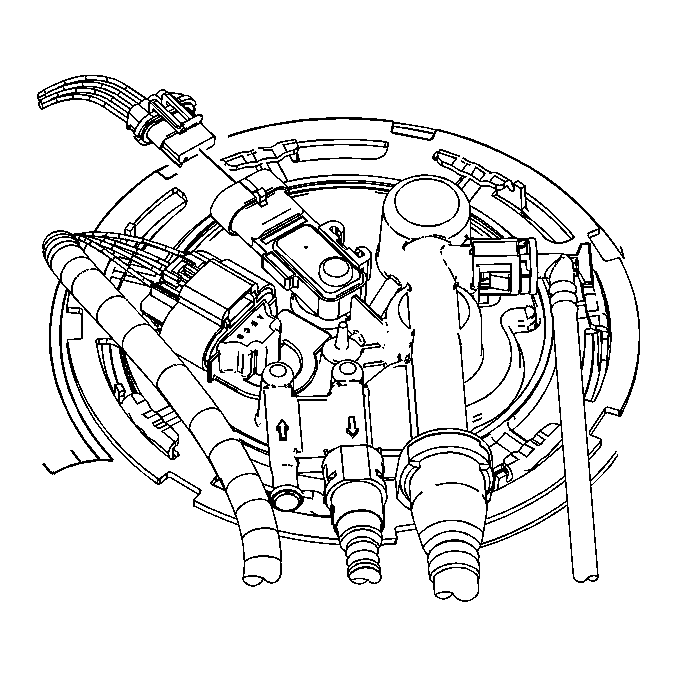

    2. Fig 2: Identifying Electrical Connector From The Fuel Tank Vapor Pressure Sensor
    GM1404551Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to fuel tank vapor pressure sensor.
  3. Install the fuel tank. Refer to Fuel Tank Replacement .
