Installation Procedure

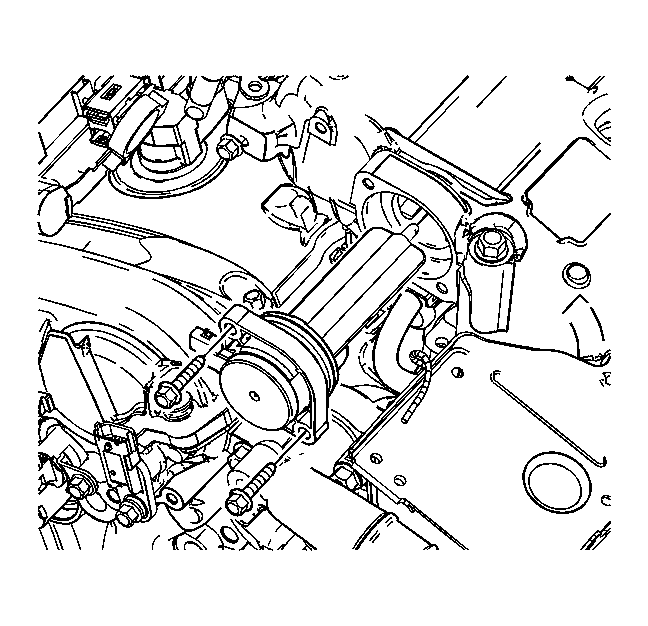

Fig 1: View Of Intake Manifold Runner Control Solenoid

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the intake manifold runner control solenoid bolts.
Tighten: Tighten the intake manifold runner control solenoid bolts to 10 N.m (89 lb in).
Connect the electrical connector to the control module for the intake manifold runner.
Install the power steering fluid reservoir. Refer to Remote Power Steering Fluid Reservoir Replacement (LY7) in Power Steering System.
