Control Assembly: Service and Repair

HVAC CONTROL MODULE REPLACEMENT

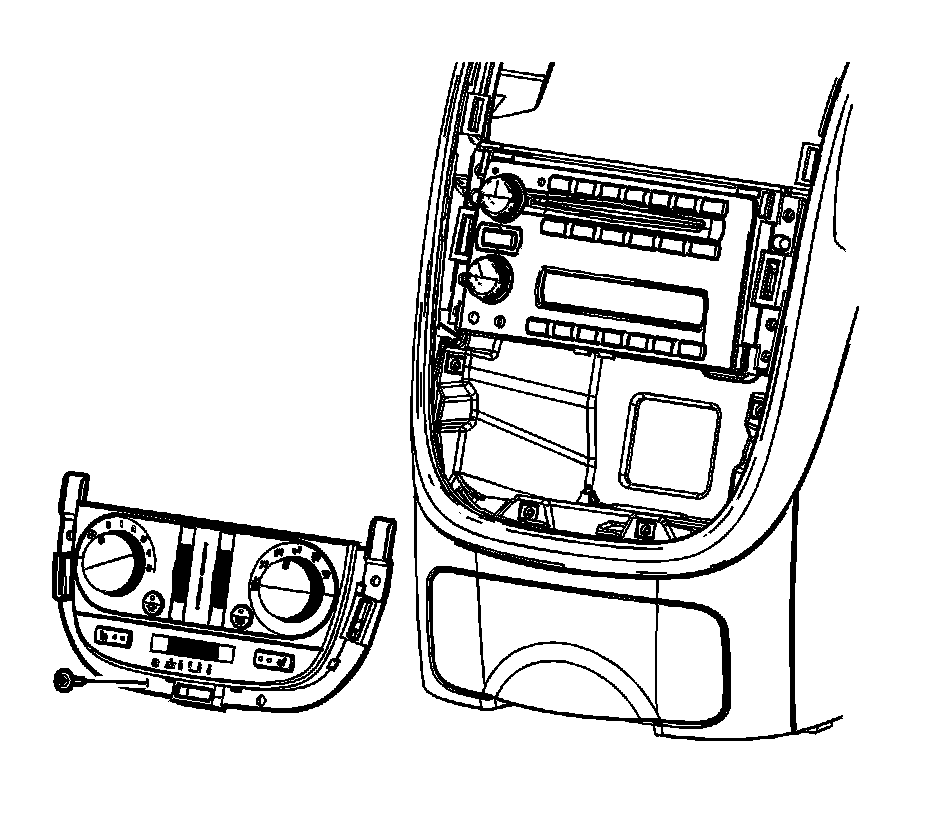

REMOVAL PROCEDURE




1. Remove the instrument panel (I/P) accessory trim plate.
2. Remove the heating, ventilation, and air conditioning (HVAC) control module bolts/screws.
3. Pull the HVAC control module straight out from the I/P.
4. Disconnect the HVAC control module electrical connectors.

INSTALLATION PROCEDURE




1. Connect the HVAC control module electrical connectors.
2. Install the HVAC control module into the I/P opening.
3. Install the HVAC control module bolts/screws.

Tighten the bolts/screws to 2.5 N.m (22 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

4. Install the I/P accessory trim plate.
5. Re-calibrate the actuators. Refer to Re-Calibrating Actuators.
