Fuse Block - I/P - Bottom View

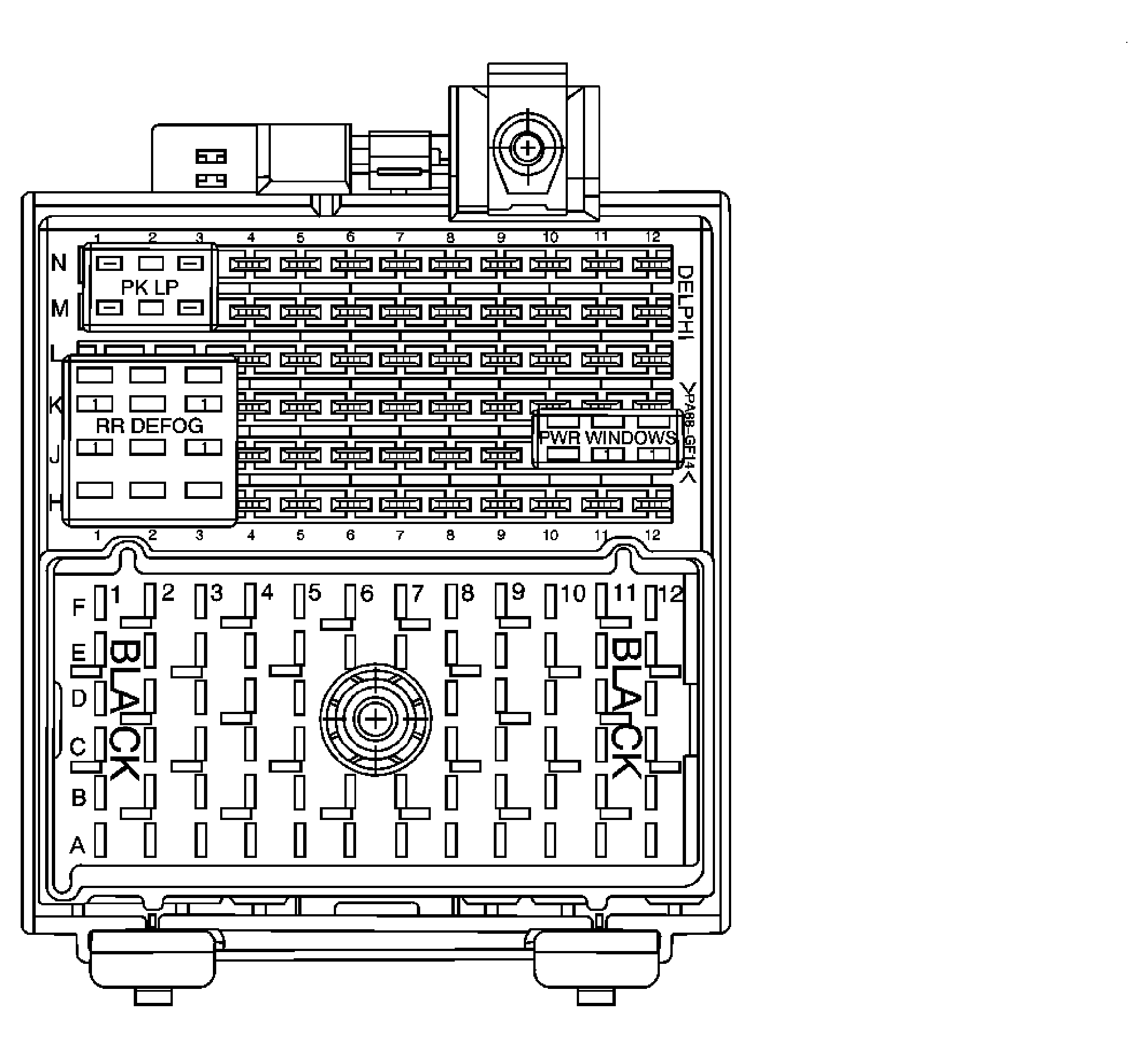

Fig 1: Bottom View Of I/P Fuse Block
GM1306416Courtesy of GENERAL MOTORS CORP.
Fuse Block - I/P - C1

GM684967Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15356602
  • Service: See Catalog
  • 68-Way F Metri-Pack 280 Series, Flexlock (BK)
Pin Wire Color Circuit No. Function
A1 PU 1589 Fuel Level Sensor Signal
A2 YE 1860 Front Center Speaker Output (+) (U88)
A3 - - Not Used
A4 PU 2232 Antenna Signal
A5 TN 927 Amplifier Control (U88)
A6 YE 1139 Ignition 1 Voltage
YE 1139 Ignition 1 Voltage
A7 WH 1310 EVAP Canister Vent Solenoid Control
A8 - - Not Used
A9 BK/WH 351 Ground (UE1)
BK/WH 351 Ground
A10 - - Not Used
A11 D-GN 2308 Passenger Air Bag OFF Indicator Control
A12 GY 118 Left Front Speaker Output (-) (UW6)
D-GN 1947 Left Front Low Level Audio Signal (-) (U88)
B1 BK 2759 Low Reference
B2 L-BU 1960 Front Center Speaker Output (-) (U88)
B3 D-BU 1778 Strobe Signal (U68)
B4 OG 2540 Battery Positive Voltage
B5 GY 120 Fuel Pump Supply Voltage
B6 BN 1779 Compass Data (U68)
B7 - - Not Used
B8 D-BU 46 Right Rear Speaker Output (+) (UW6)
D-BU 546 Right Rear Low Level Audio Signal (+) (U88)
B9 TN 201 Left Front Speaker Output (+) (UW6)
TN 511 Left Front Low Level Audio Signal (+) (U88)
B10 OG 2340 Battery Positive Voltage (UE1)
OG 2340 Battery Positive Voltage
B11 D-BU 2307 Passenger Air Bag ON Indicator Control
B12 L-GN 200 Right Front Speaker Output (+) (UW6)
L-GN/WH 512 Right Front Low Level Audio Signal (+) (U88)
C1 D-GN 890 Fuel Tank Pressure Sensor Signal
C2 WH 1080 Park Lamp Relay Control
C3 - - Not Used
C4 GY 8 Instrument Panel Lamps Dimmer Switch Signal
C5 OG 1240 Battery Positive Voltage
C6-C7 - - Not Available
C8 L-BU 115 Right Rear Speaker Output (-) (UW6)
BK 1946 Right Rear Low Level Audio Signal (-) (U88)
C9 GY/BK 690 Courtesy Lamp Supply Voltage
GY/BK 690 Courtesy Lamp Supply Voltage
C10 L-GN 117 Right Front Speaker Output (-) (UW6)
L-GN 1948 Right Front Low Level Audio Signal (-) (U66)
C11 BN 1999 Left Rear Low Level Audio Signal (-) (U88)
YE 116 Left Rear Speaker Output (-) (UW6)
C12 BN/WH 599 Left Rear Low Level Audio Signal (+) (U88)
BN 199 Left Rear Speaker Output (+) (UW6)
D1 GY 2709 5-Volt Reference
D2-D3 - - Not Used
D4 D-BU 1128 SDM Class 2 Serial Data
D5 - - Not Used
D6-D7 - - Not Available
D8 - - Not Used
D9 GY/BK 690 Courtesy Lamp Supply Voltage
D10 OG 1732 Courtesy Lamps Supply Voltage
OG 1732 Courtesy Lamps Supply Voltage
D11 PK 739 Ignition 1 Voltage (CJ2)
PK 739 Ignition 1 Voltage
D12 BK 707 RAP Relay Coil Supply Voltage
E1 - - Not Used
E2 BN 9 Park Lamp Supply Voltage
E3 GY/BK 1458 Instrument Panel Lamp Supply Voltage 4
E4 - - Not Used
E5 OG 340 Battery Positive Voltage
E6 OG 240 Battery Positive Voltage
E7 - - Not Used
E8 OG 5240 Battery Positive Voltage
E9 - - Not Used
E10 D-GN 389 Vehicle Speed Signal
E11 - - Not Used
E12 PK 1539 Ignition 1 Voltage (UK3)
F1-F2 - - Not Used
F3 RD 742 Battery Positive Voltage
F4 - - Not Used
F5 RD 642 Battery Positive Voltage
F6 OG 1040 Battery Positive Voltage
F7 RD 242 Battery Positive Voltage
F8 - - Not Used
F9 OG 2040 Battery Positive Voltage
F10 RD 642 Battery Positive Voltage
F11-F12 - - Not Used
Fuse Block - I/P - C2

GM697044Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15356603
  • Service: See Catalog
  • 68-Way F Metri-Pack 280 Series, Flexlock (L-GY)
Pin Wire Color Circuit No. Function
A1 GY 118 Left Front Speaker Output (-) (UW6)
GY 118 Left Front Speaker Output (-) (UW6)
D-GN 1947 Left Front Low Level Audio Signal (-) (U88)
A2 D-GN 2308 Passenger Air Bag OFF Indicator Control
A3 OG 2840 Battery Positive Voltage
A4 BK/WH 351 Ground (U88)
BK/WH 351 Ground (U2K)
A5 OG 440 Battery Positive Voltage
A6 WH 1310 EVAP Canister Vent Solenoid Control
A7 YE 1139 Ignition 1 Voltage
YE 1139 Ignition 1 Voltage
A8 TN 927 Amplifier Control (U88)
A9 PU 2232 Amplifier Present Signal (UW6)
PU 2232 Amplifier Present Signal (U88)
PU 2232 Amplifier Present Signal (U88)
A10 GY/BK 2334 Amp Sense (U88)
A11 YE 1860 Front Center Speaker Output (+) (U88)
A12 PU/WH 1589 Fuel Level Sensor Signal
B1 L-GN 200 Right Front Speaker Output (+) (UW6)
L-GN 200 Right Front Speaker Output (+) (UW6)
L-GN/WH 512 Right Front Low Level Audio Signal (+) (U88)
B2 D-BU 2307 Passenger Air Bag ON Indicator Control
B3 - - Not Used
B4 TN 201 Left Front Speaker Output (+) (UW6)
TN 201 Left Front Speaker Output (+) (UW6)
TN 511 Left Front Low Level Audio Signal (+) (U88)
B5 D-BU 46 Right Rear Speaker Output (+) (UW6)
D-BU 546 Right Rear Low Level Audio Signal (+) (U88)
B6 YE 743 Accessory Voltage
B7 BN 1779 Trip Data
B8 GY 120 Fuel Pump Supply Voltage
B9 OG 2540 Battery Positive Voltage
B10 D-BU 1778 Trip Clock
B11 L-BU 1960 Front Center Speaker Output (-) (U88)
B12 BK 2759 Low Reference
C1 BN 199 Left Rear Speaker Output (+) (UW6)
BN/WH 599 Left Rear Low Level Audio Signal (+) (U88)
C2 YE 116 Left Rear Speaker Output (-) (UW6)
BN 1999 Left Rear Low Level Audio Signal (-) (U88)
C3 D-GN 117 Right Front Speaker Output (-) (UW6)
D-GN 117 Right Front Speaker Output (-) (UW6)
L-GN 1948 Right Front Low Level Audio Signal (-) (U88)
C4 GY/BK 690 Courtesy Lamp Supply Voltage
C5 L-BU 115 Right Rear Speaker Output (-) (UW6)
BK 1946 Right Rear Low Level Audio Signal (-) (U88)
C6-C7 - - Not Available
C8 - - Not Used
C9 GY 8 Instrument Panel Lamps Dimmer Switch Signal
C10 OG 1140 Battery Positive Voltage (AY1)
C11 - - Not Used
C12 D-GN 890 Fuel Tank Pressure Sensor Signal
D1 - - Not Used
D2 PK 739 Ignition 1 Voltage (UD7)
PK 739 Ignition 1 Voltage
D3 OG 1732 Courtesy Lamps Supply Voltage
OG 1732 Courtesy Lamps Supply Voltage
D4-D5 - - Not Used
D6-D7 - - Not Available
D8 - - Not Used
D9 D-BU 1128 Class 2 Serial Data
D-BU 1128 Class 2 Serial Data (U2K)
D10 OG 1140 Battery Positive Voltage
D11 WH 193 Rear Defog Relay Control
WH 193 Rear Defog Relay Control
D12 GY 2709 5-Volt Reference
E1 - - Not Used
E2 YE 143 Accessory Voltage
E3 D-GN 389 Vehicle Speed Signal (UD7)
E4 OG 2040 Battery Positive Voltage (U88)
E5-E8 - - Not Used
E9 OG 1440 Battery Positive Voltage (KA1)
E10 - - Not Used
E11 BN 9 Park Lamp Supply Voltage
E12 OG 840 Battery Positive Voltage
F1 YE 643 Accessory Voltage (CF5)
F2 YE 143 Accessory Voltage
F3-F4 - - Not Used
F5 OG 640 Battery Positive Voltage (AU0/AU6/U2L/U2K)
OG 640 Battery Positive Voltage
F6-F8 - - Not Used
F9 OG 1440 Battery Positive Voltage (KA1)
F10 - - Not Used
F11 BK 1927 Rear Window Defog Control Module Supply Voltage
F12 OG 267 Heated Mirror Element Supply Voltage (DK2)
OG 267 Heated Mirror Element Supply Voltage (DK2)
