Engine Controls Component Views

Fig 1: View Of Right Side of Engine-Engine Front (L26)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Exhaust Gas Recirculation (EGR) Valve
2	Manifold Absolute Pressure (MAP) Sensor
3	Throttle Actuator Control (TAC) Module
4	Ignition Coil/Module
5	Crankshaft Position (CKP) Sensor
6	Engine Oil Pressure (EOP) Sensor
7	Camshaft Position (CMP) Sensor
8	Heated Oxygen Sensor (HO2S) 1

Fig 2: View Of Rear Of Engine (L26)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Evaporative Emission (EVAP) Canister Purge Solenoid Valve
2	Throttle Actuator Control (TAC) Module
3	Exhaust Gas Recirculation (EGR) Valve
4	Fuel Injector 6
5	Fuel Injector 4
6	Fuel Injector 2
7	Manifold Absolute Pressure (MAP) Sensor
8	Camshaft Position (CMP) Sensor
9	Engine Oil Pressure (EOP) Sensor
10	Knock Sensor (KS) 2
11	Heated Oxygen Sensor (HO2S) 1

Fig 3: View Of Front Of Engine (L26)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Coil Module
2	Manifold Absolute Pressure (MAP) Sensor
3	Fuel Injector 1
4	Fuel Injector 3
5	Fuel Injector 5
6	Exhaust Gas Recirculation (EGR) Valve
7	Throttle Actuator Control (TAC) Module
8	Engine Coolant Temperature (ECT) Sensor
9	Starter Solenoid
10	Starter
11	Engine Oil Level Switch
12	Knock Sensor (KS) 1

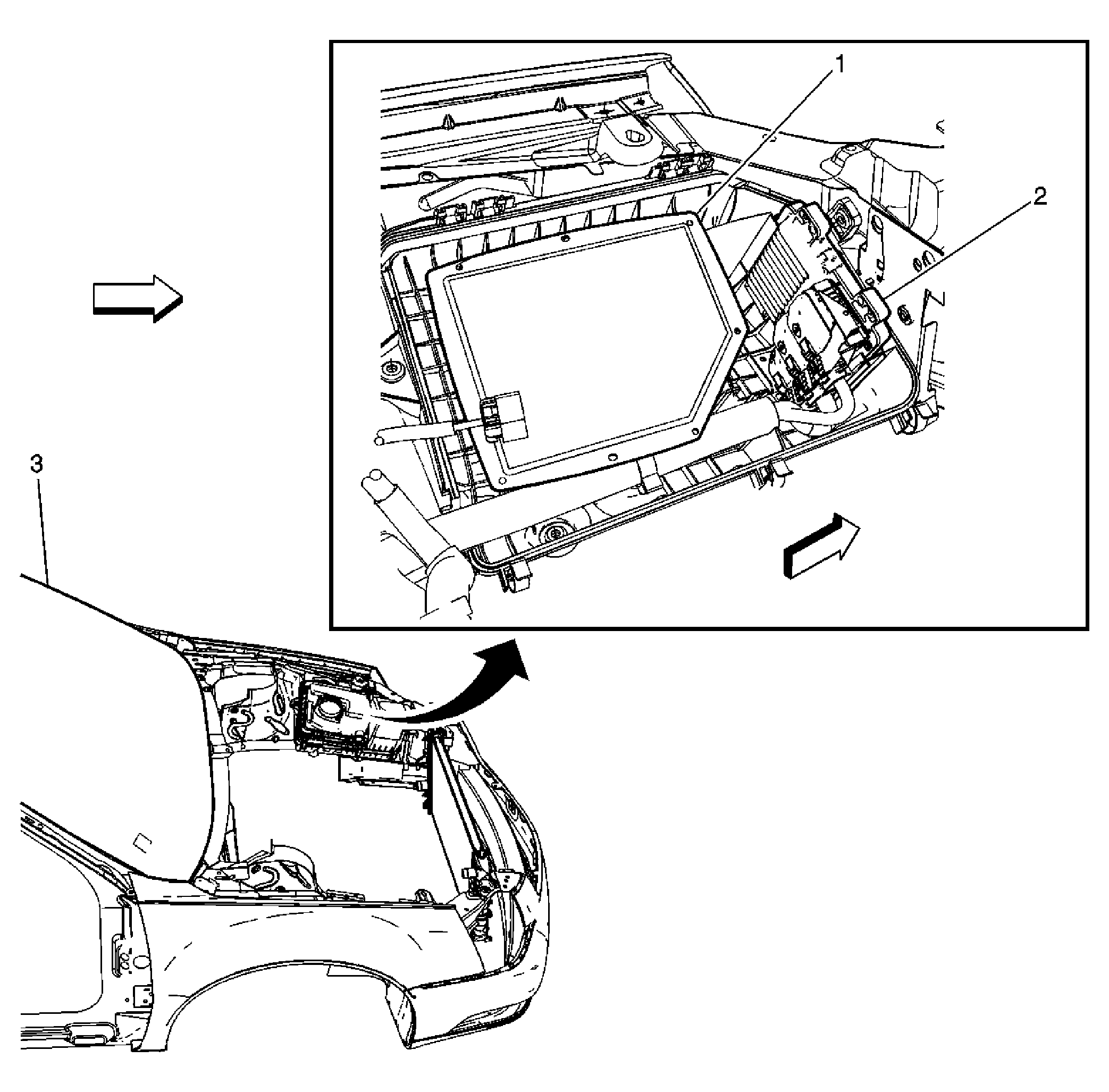

Fig 4: View Of Left Side Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Fig 5: View Of Lower Left Side Of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch
2	Brake Pedal Position Sensor
3	Accelerator Pedal Position (APP) Sensor

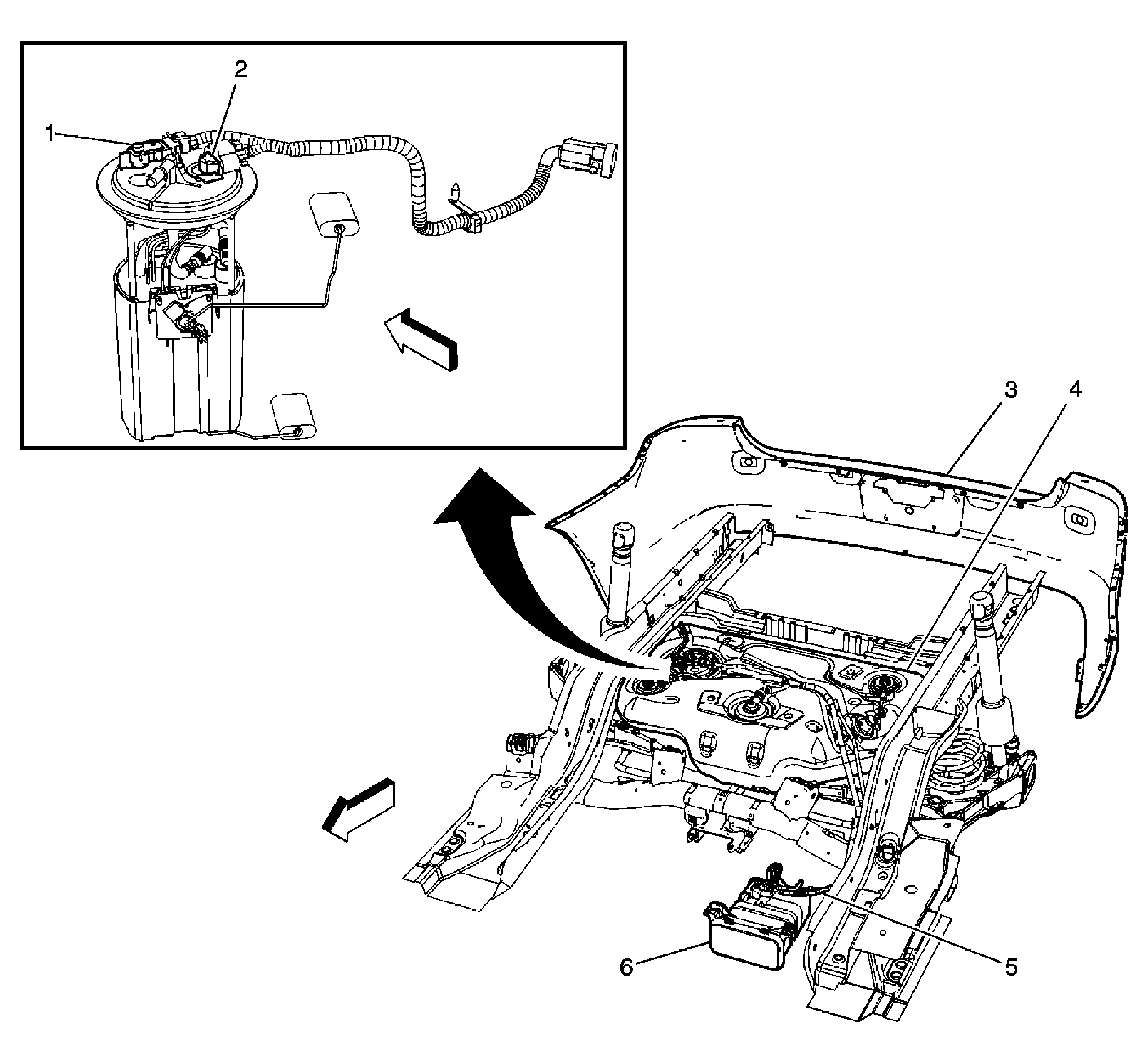

Fig 6: View Of Fuel Tank Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Tank Pressure (FTP) Sensor Connector
2	Fuel Pump and Sender Assembly
3	Rear Fascia
4	Fuel Tank
5	Body Harness
6	Evaporative Emission (EVAP) Canister Vent Solenoid Valve
