Child Restraint Tether Anchor Replacement

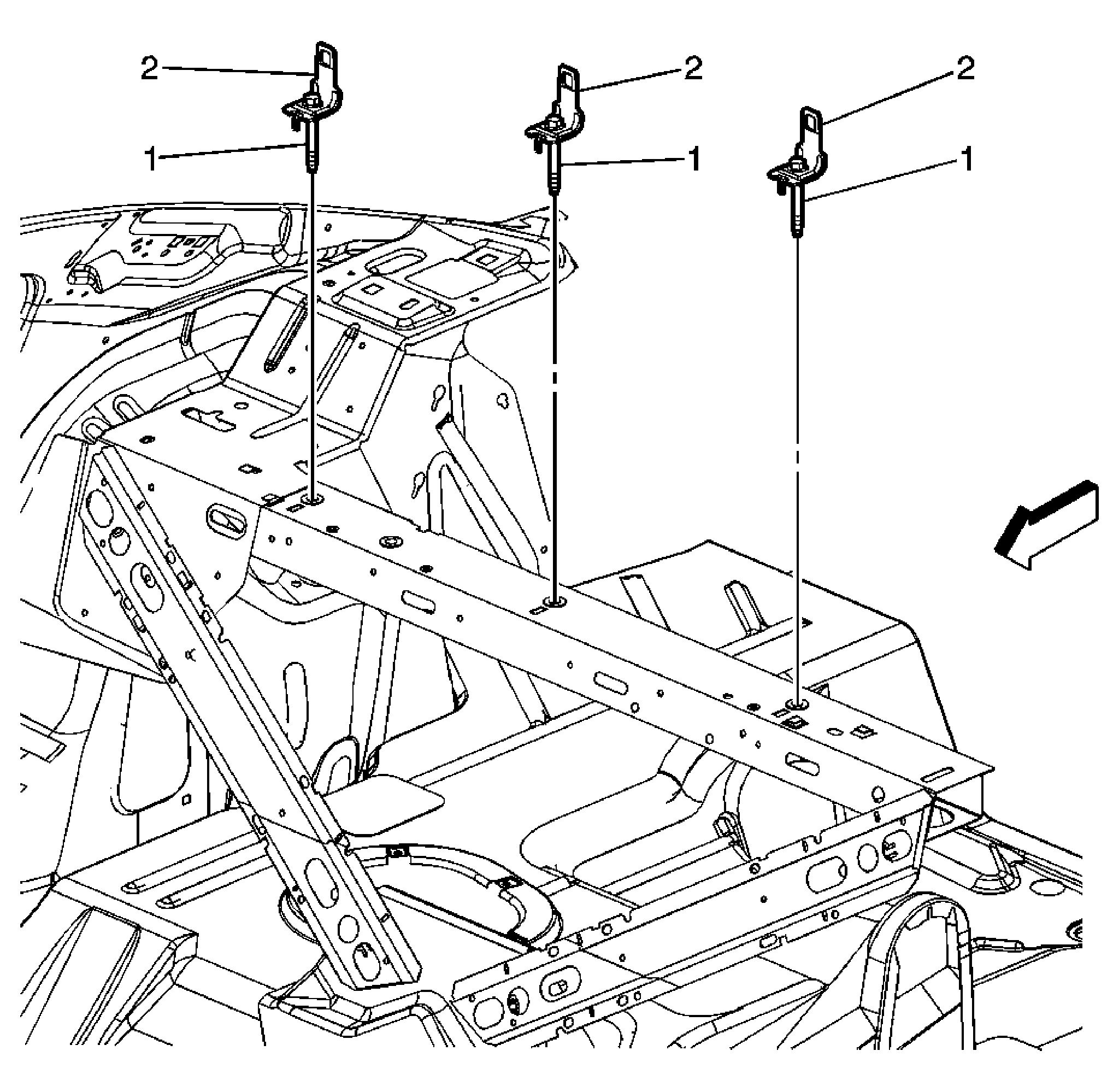

Fig 1: Removing/Installing Child Seat Tether Anchor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the trim panel, rear window shelf. Refer to Rear Window Shelf Trim Panel Replacement .
1	Child Restraint Tether Anchor Bolt (Qty: 3) Tighten: 30 N.m (22 lb ft)
2	Child Restraint Tether Anchor (Qty: 3)
