HVAC System - Automatic

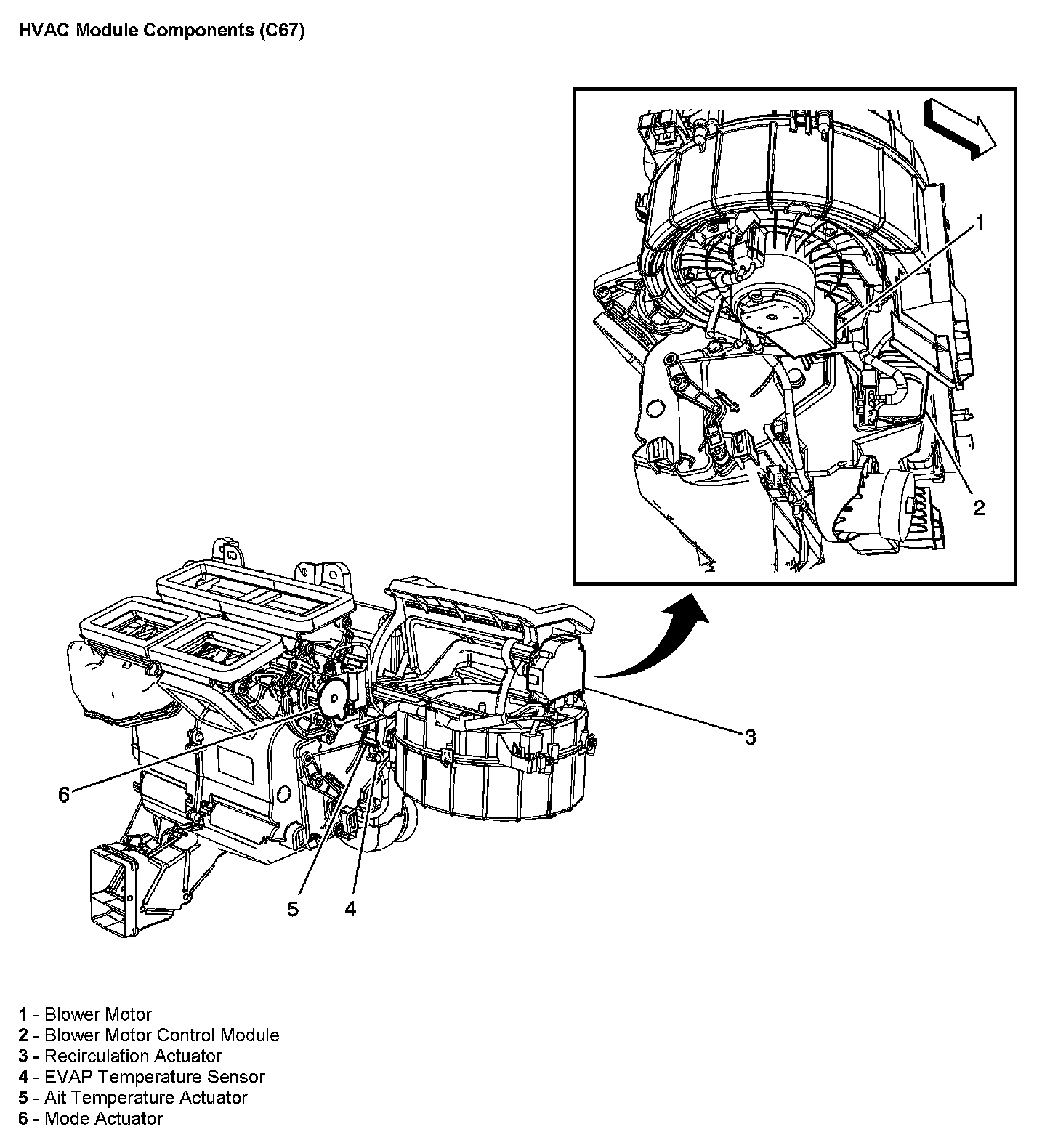

HVAC Module Components (With RPO Code C67):

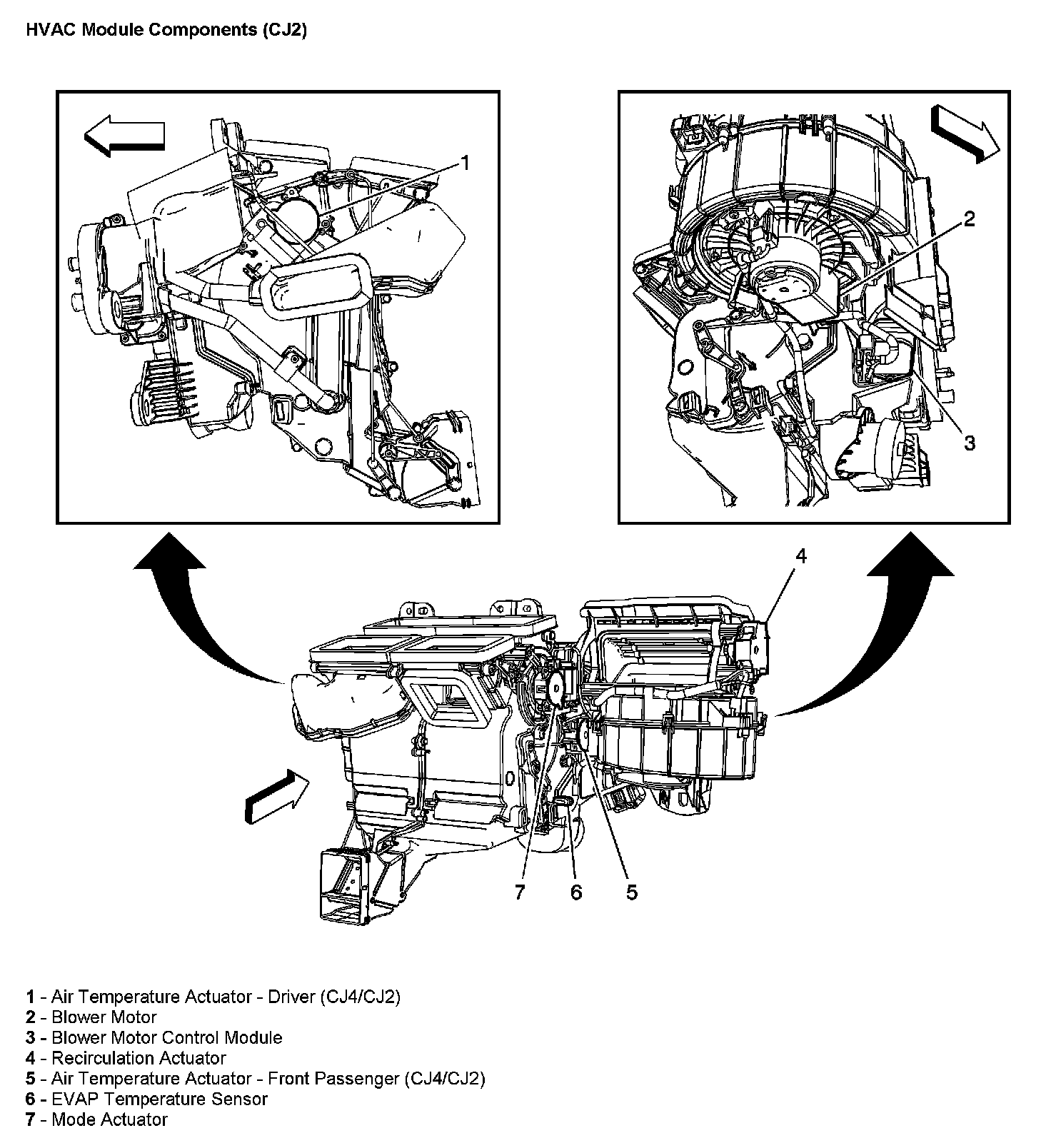

HVAC Module Components (With RPO Code CJ2):
