Engine Controls Schematics

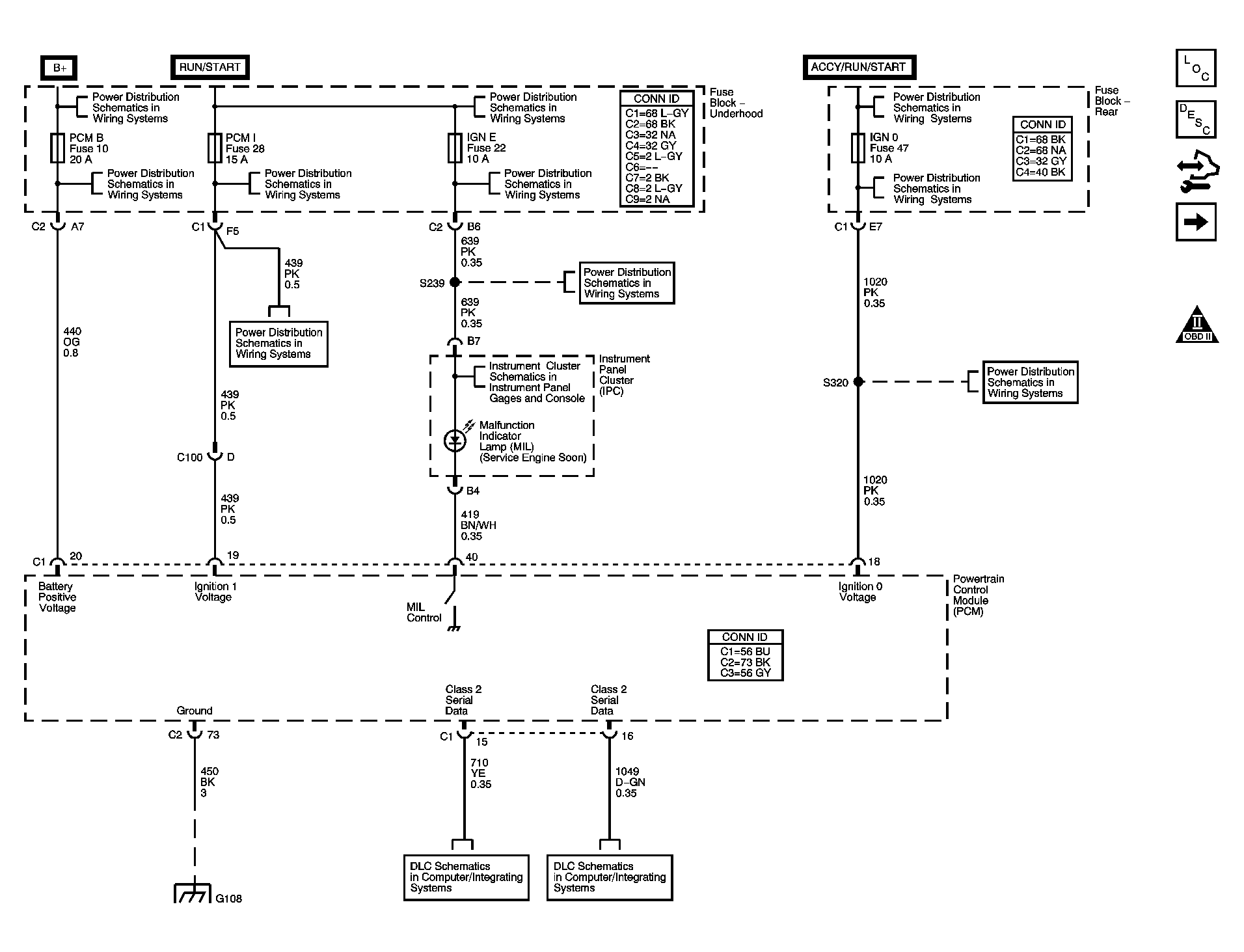

Fig 1: Module Power, Ground, Serial Data, and MIL

Courtesy of GENERAL MOTORS CORP.

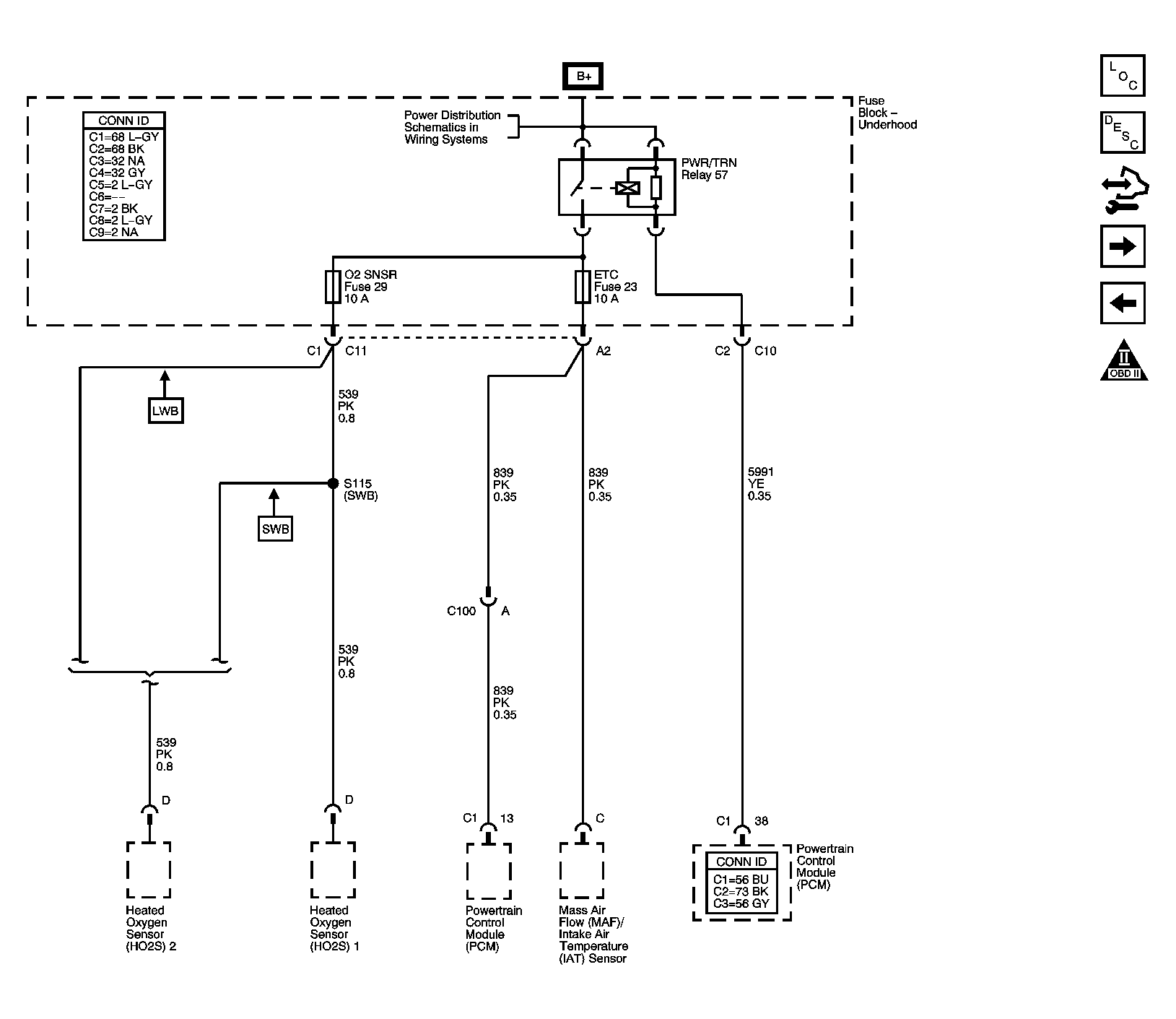

Fig 2: Underhood Fuse Block - PWR/TRN Relay

Courtesy of GENERAL MOTORS CORP.

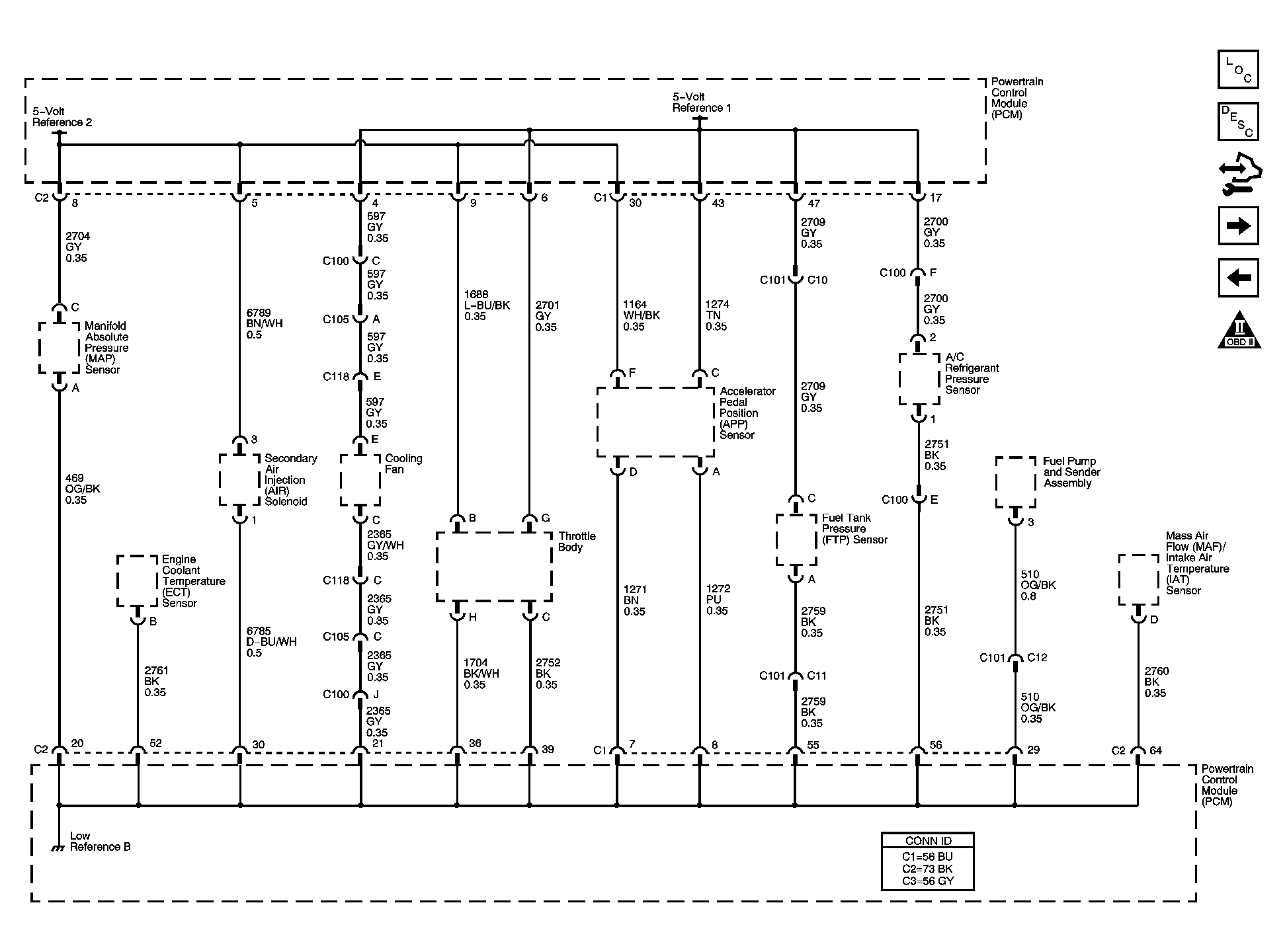

Fig 3: Engine Data Sensors - 5-Volt and Low Reference

Courtesy of GENERAL MOTORS CORP.

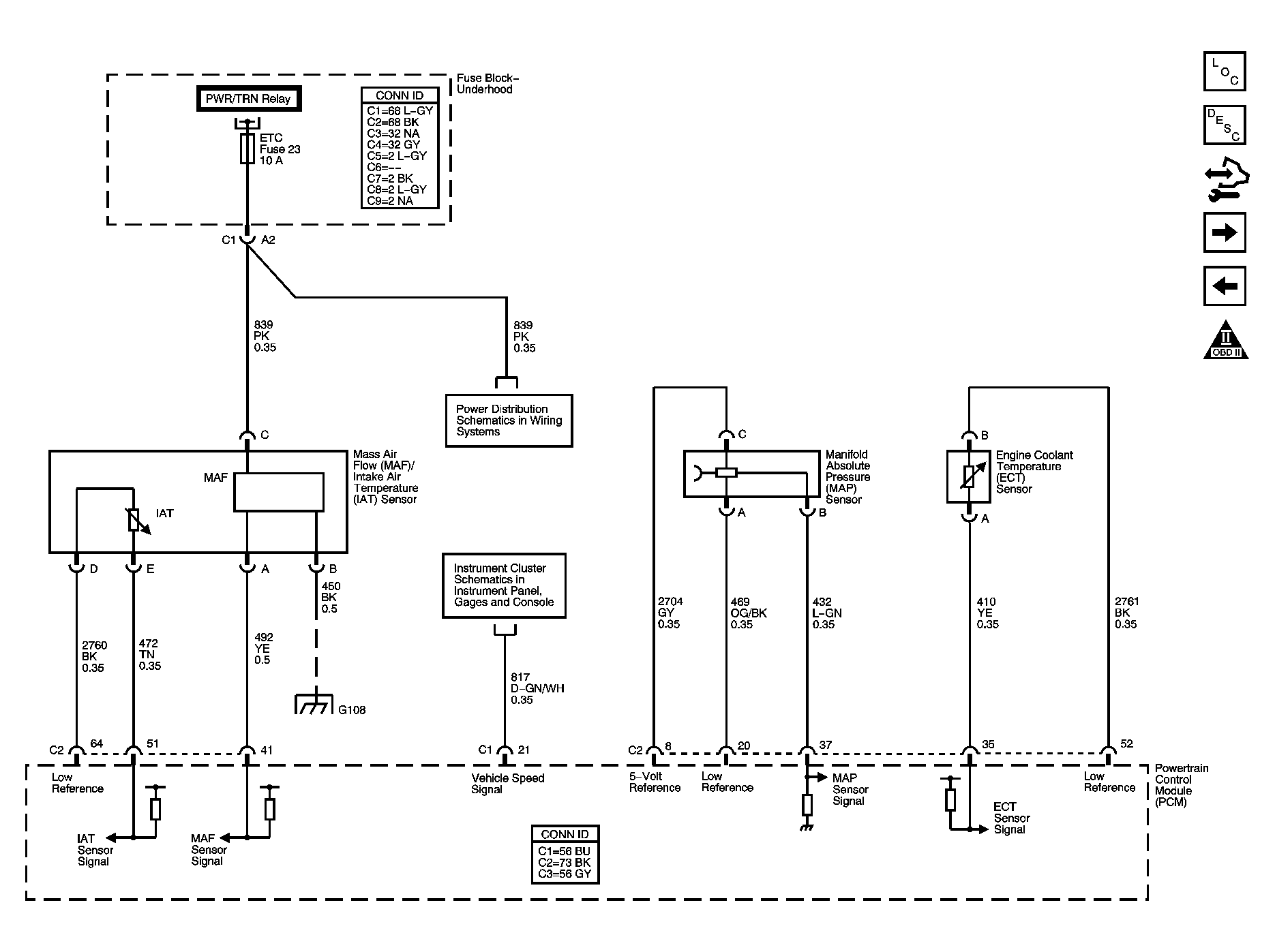

Fig 4: Engine Data Sensors - Pressure and Temperature

Courtesy of GENERAL MOTORS CORP.

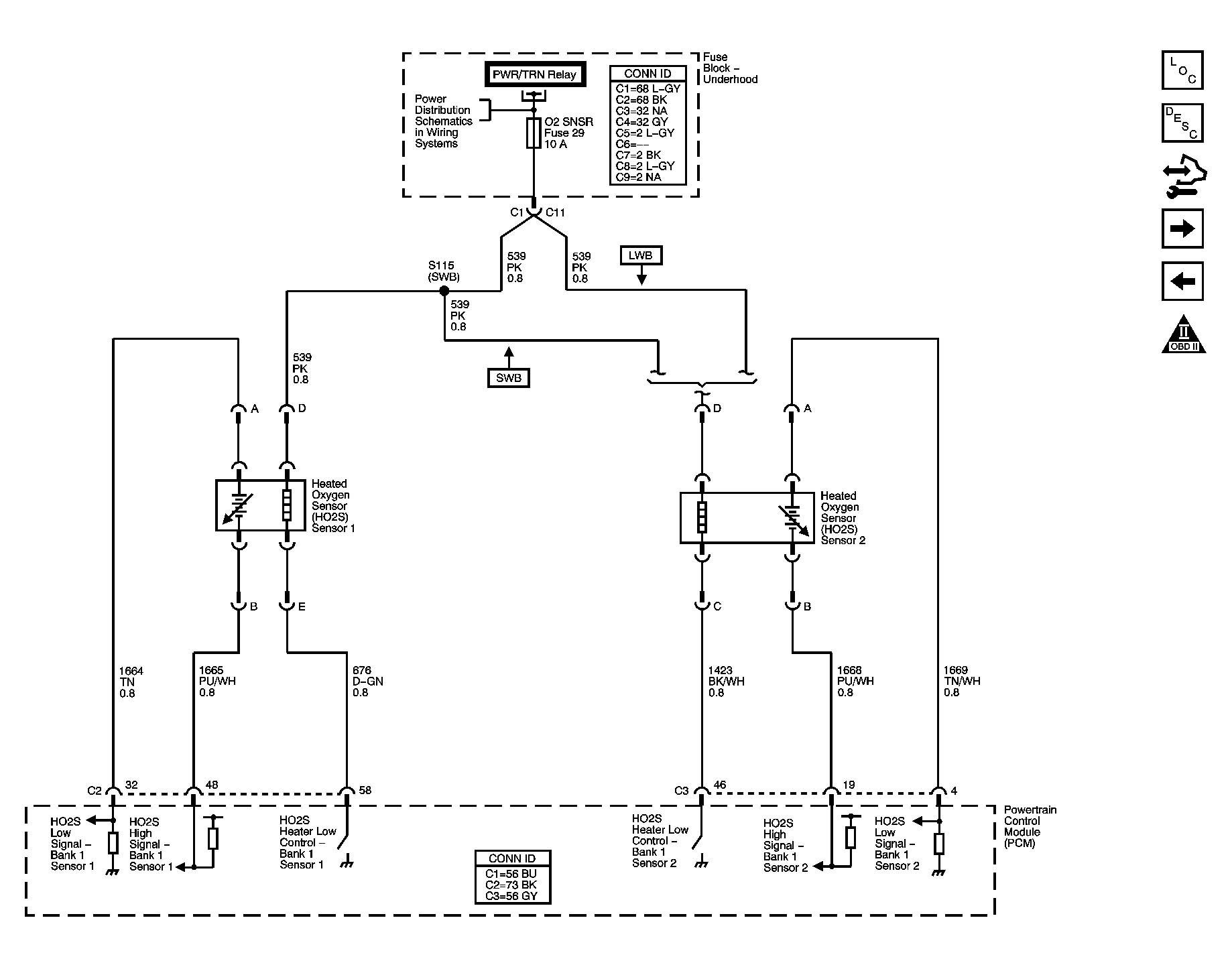

Fig 5: Engine Data Sensors - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

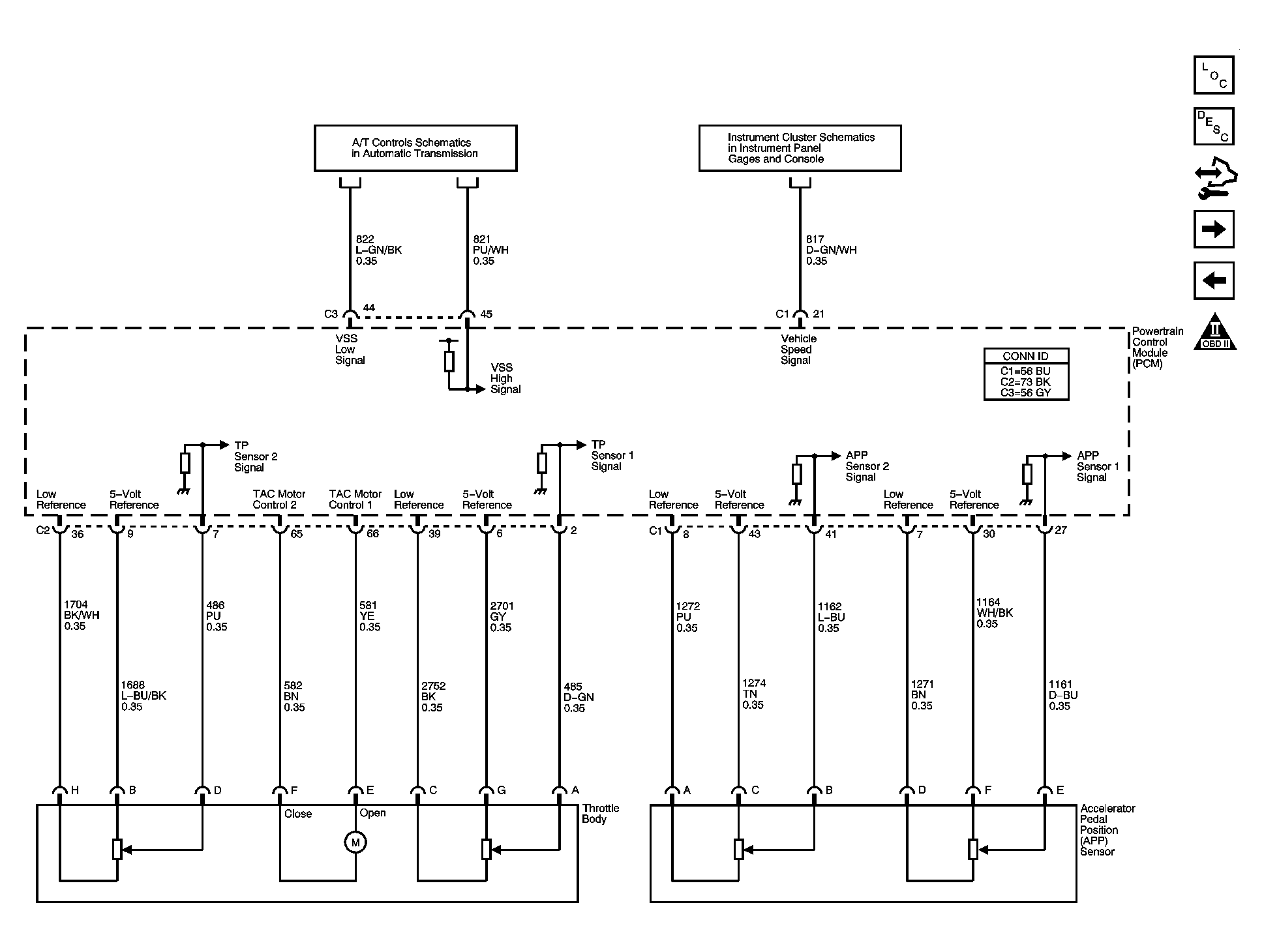

Fig 6: Engine Data Sensors - Throttle Actuator Controls and VSS

Courtesy of GENERAL MOTORS CORP.

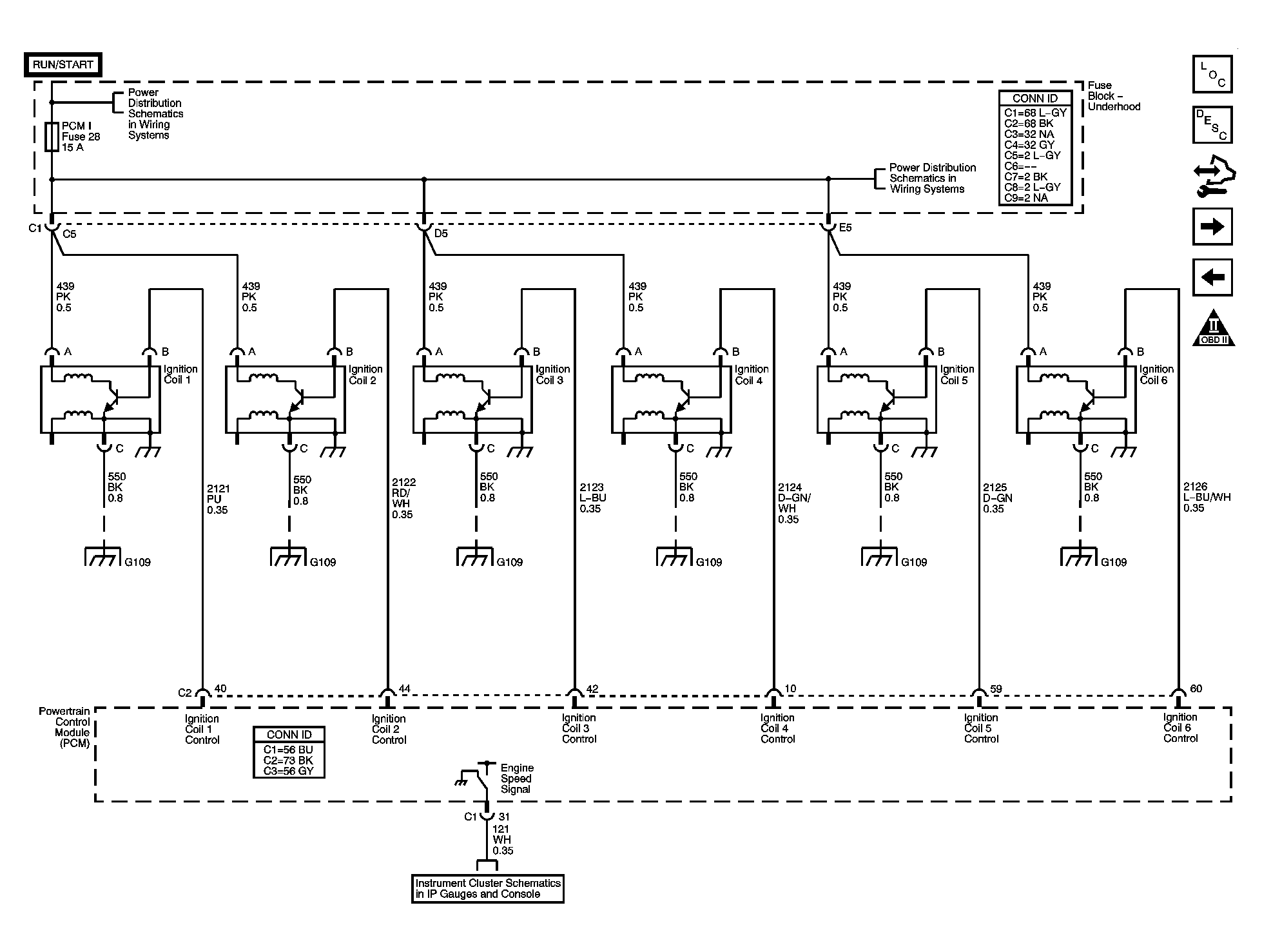

Fig 7: Ignition Controls - Ignition Coils

Courtesy of GENERAL MOTORS CORP.

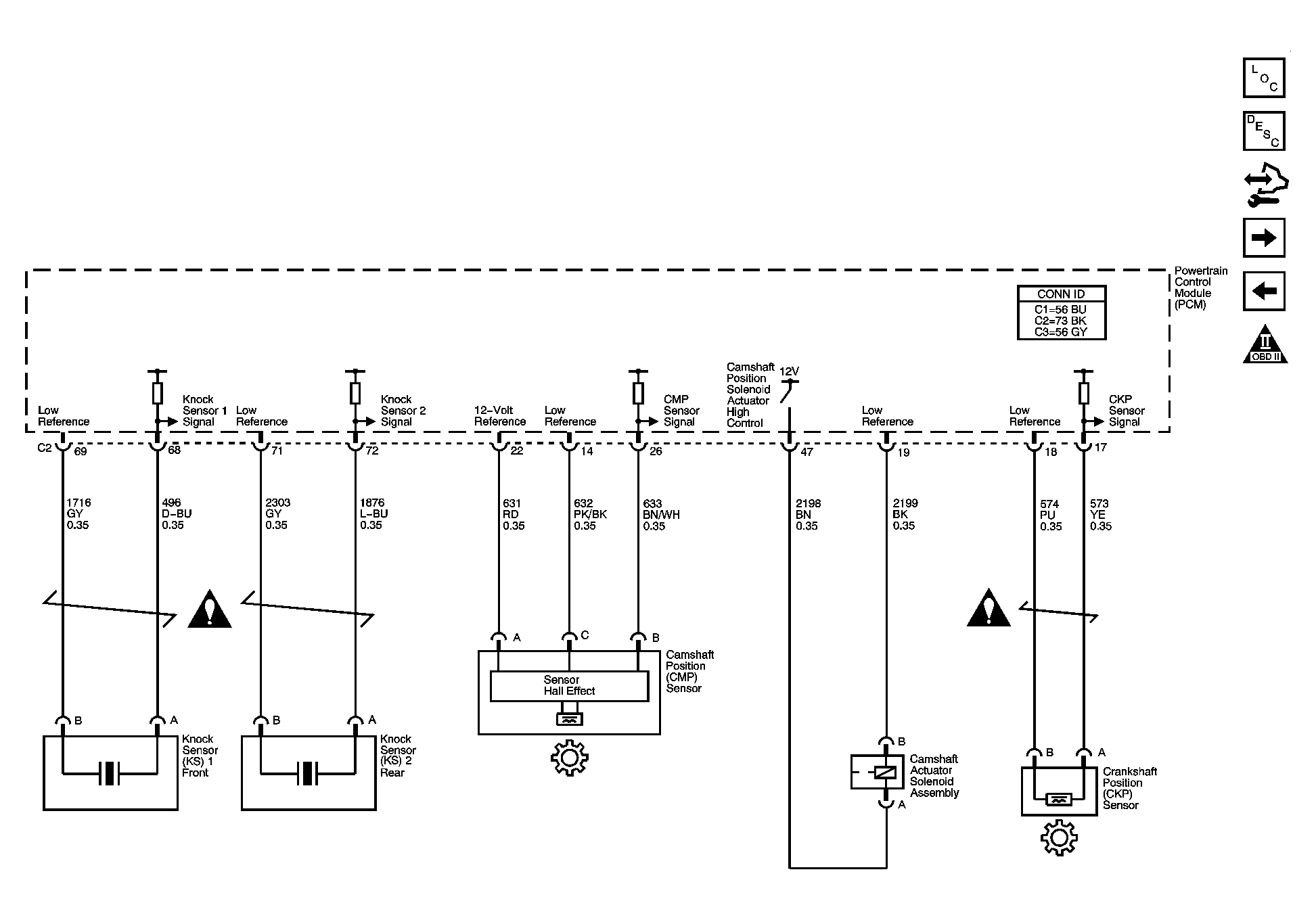

Fig 8: Ignition Controls - Sensors

Courtesy of GENERAL MOTORS CORP.

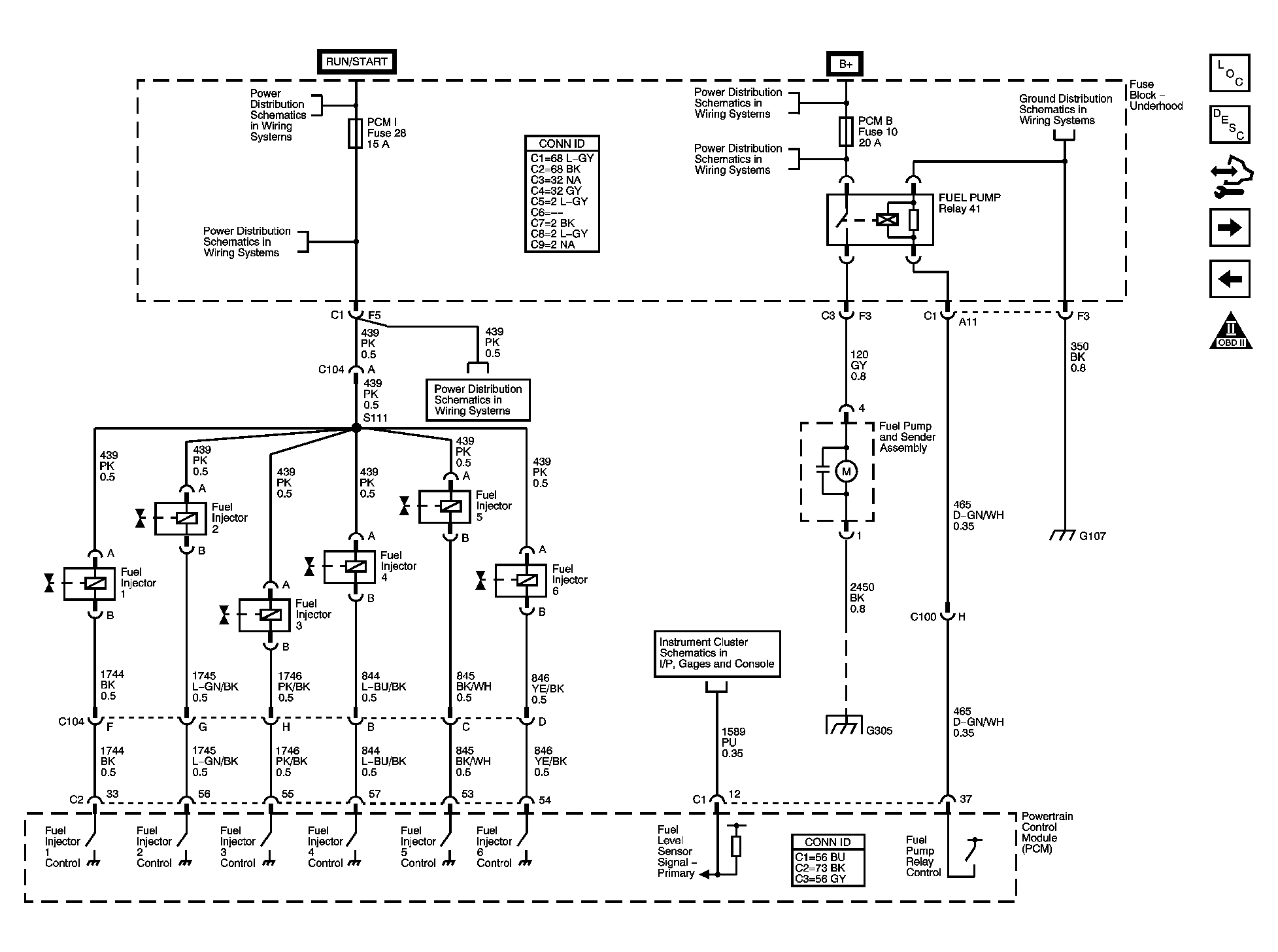

Fig 9: Fuel Controls - Fuel Pump and Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

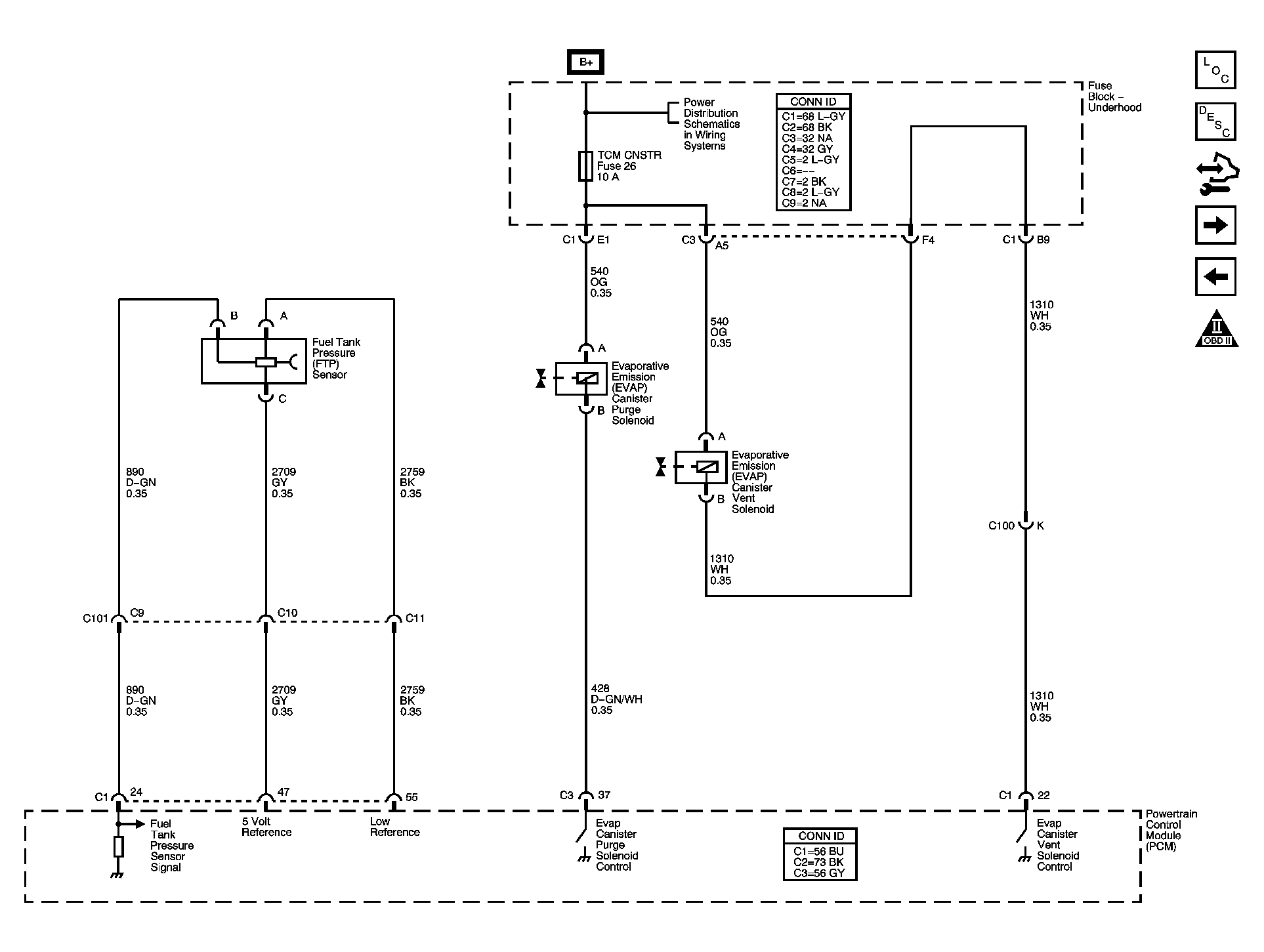

Fig 10: Fuel Controls - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

Fig 11: Device Controls - K18

Courtesy of GENERAL MOTORS CORP.

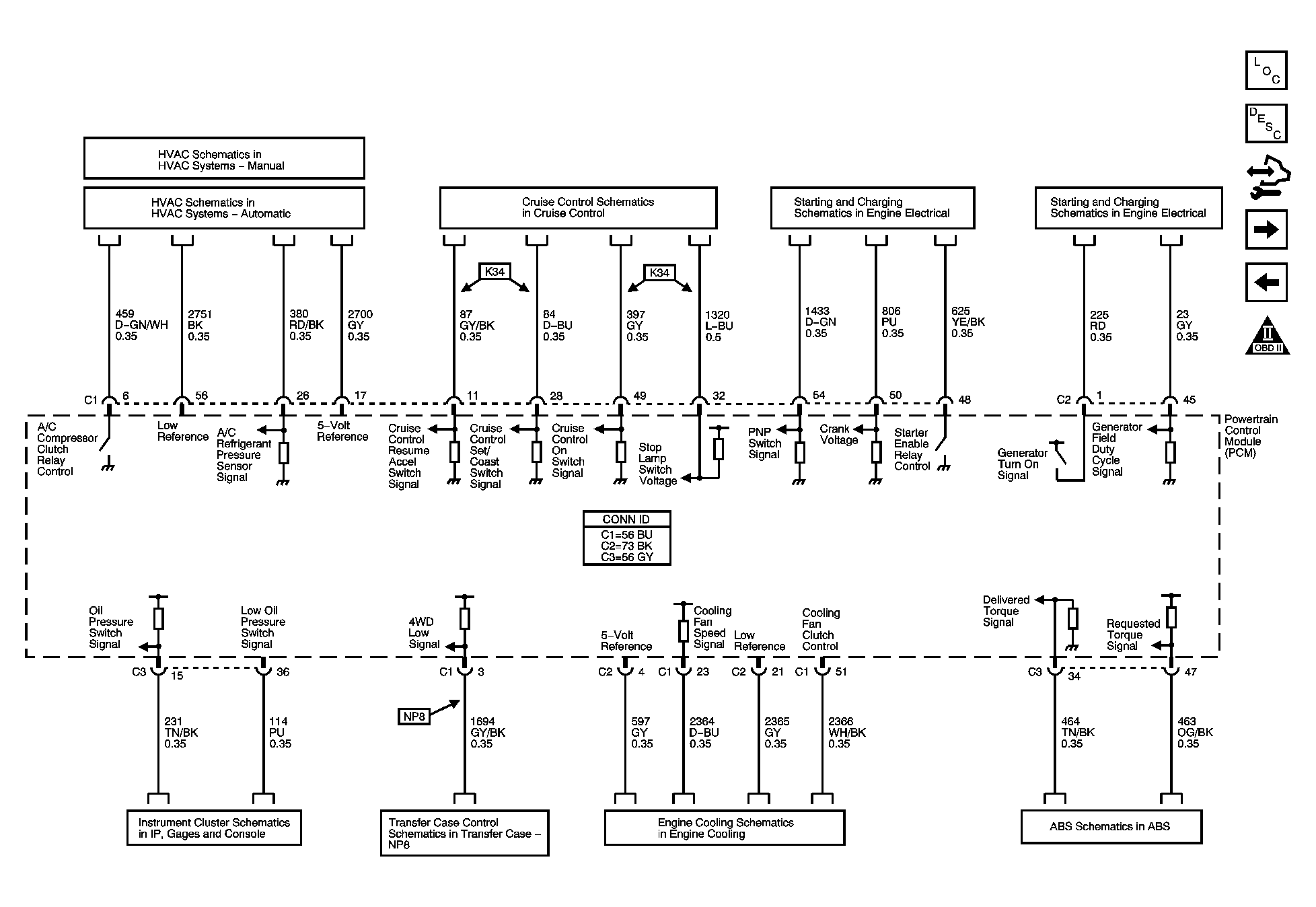

Fig 12: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.

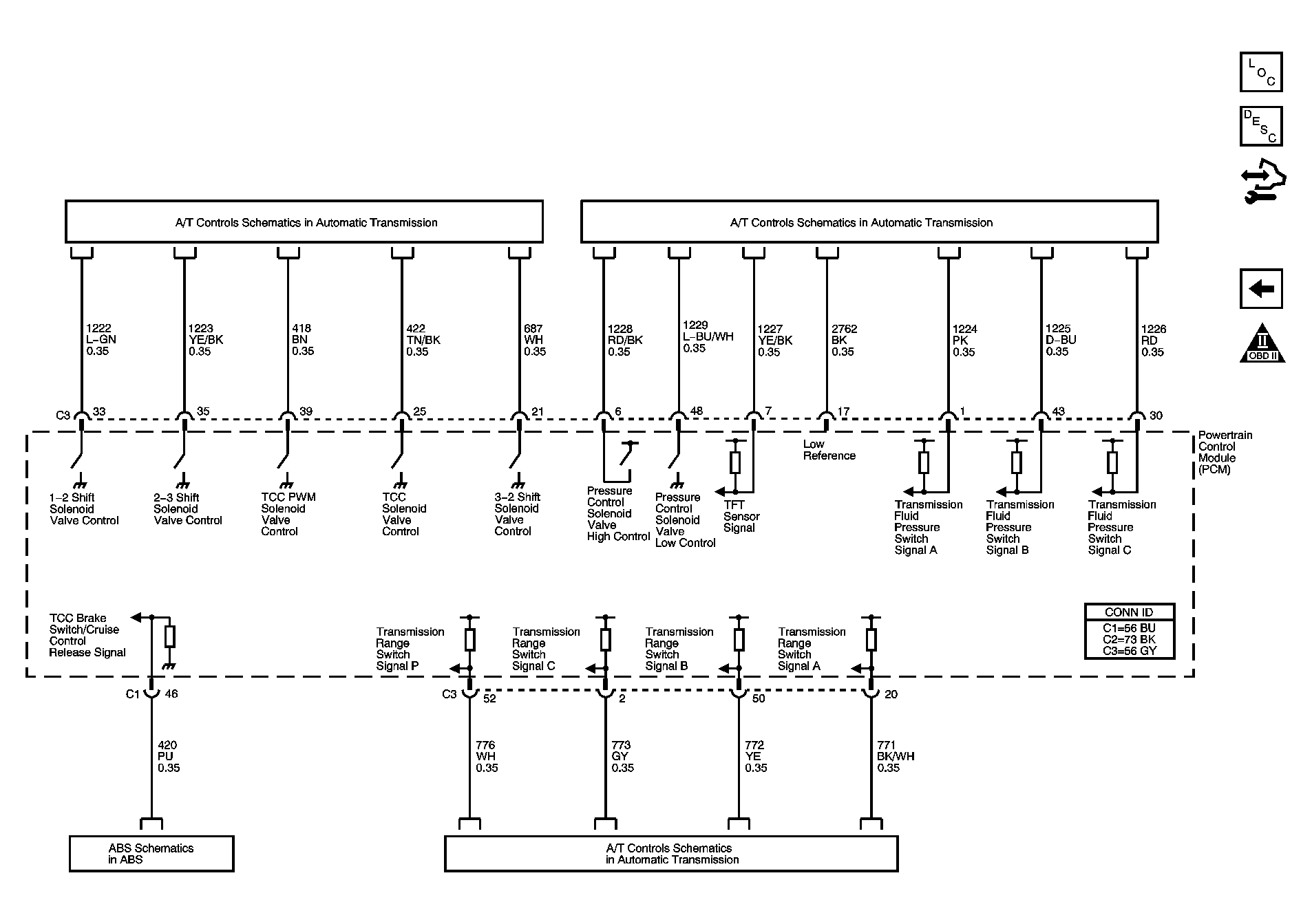

Fig 13: Transmission Control References - A/T

Courtesy of GENERAL MOTORS CORP.
