Memory Positioning Module: Diagrams

Memory Seat Module - Driver C1 (w/Memory):

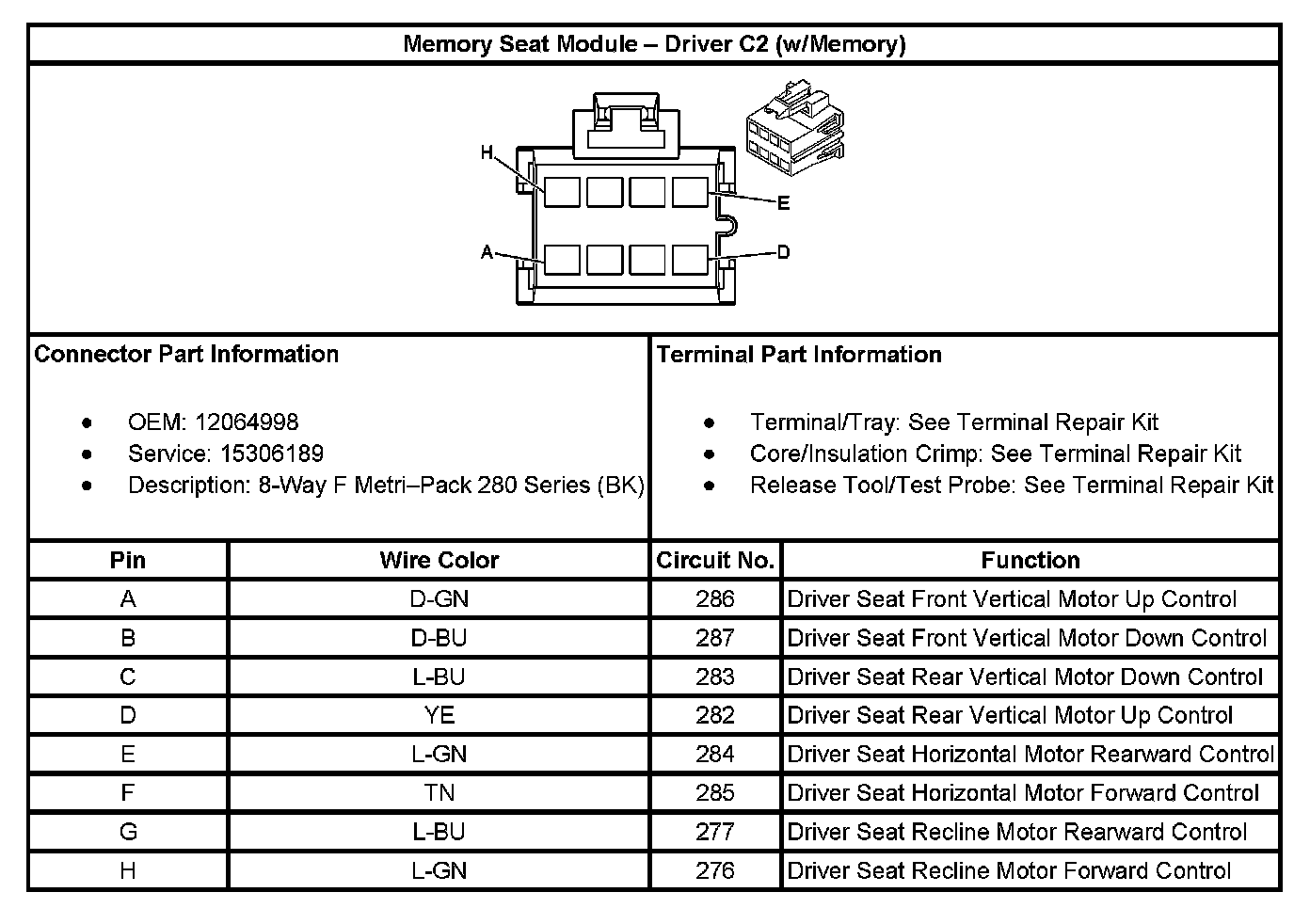

Memory Seat Module - Driver C2 (w/Memory):

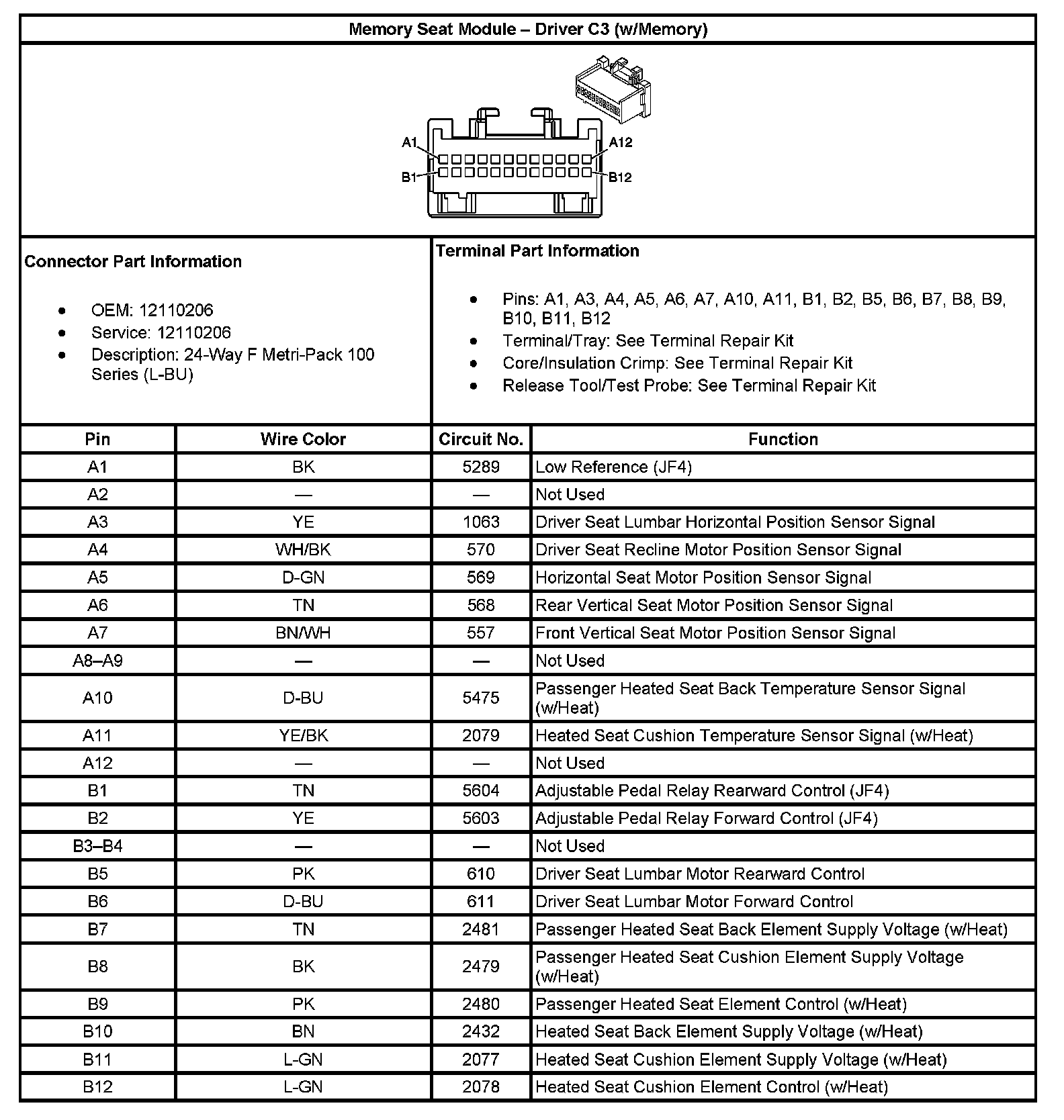

Memory Seat Module - Driver C3 (w/Memory):

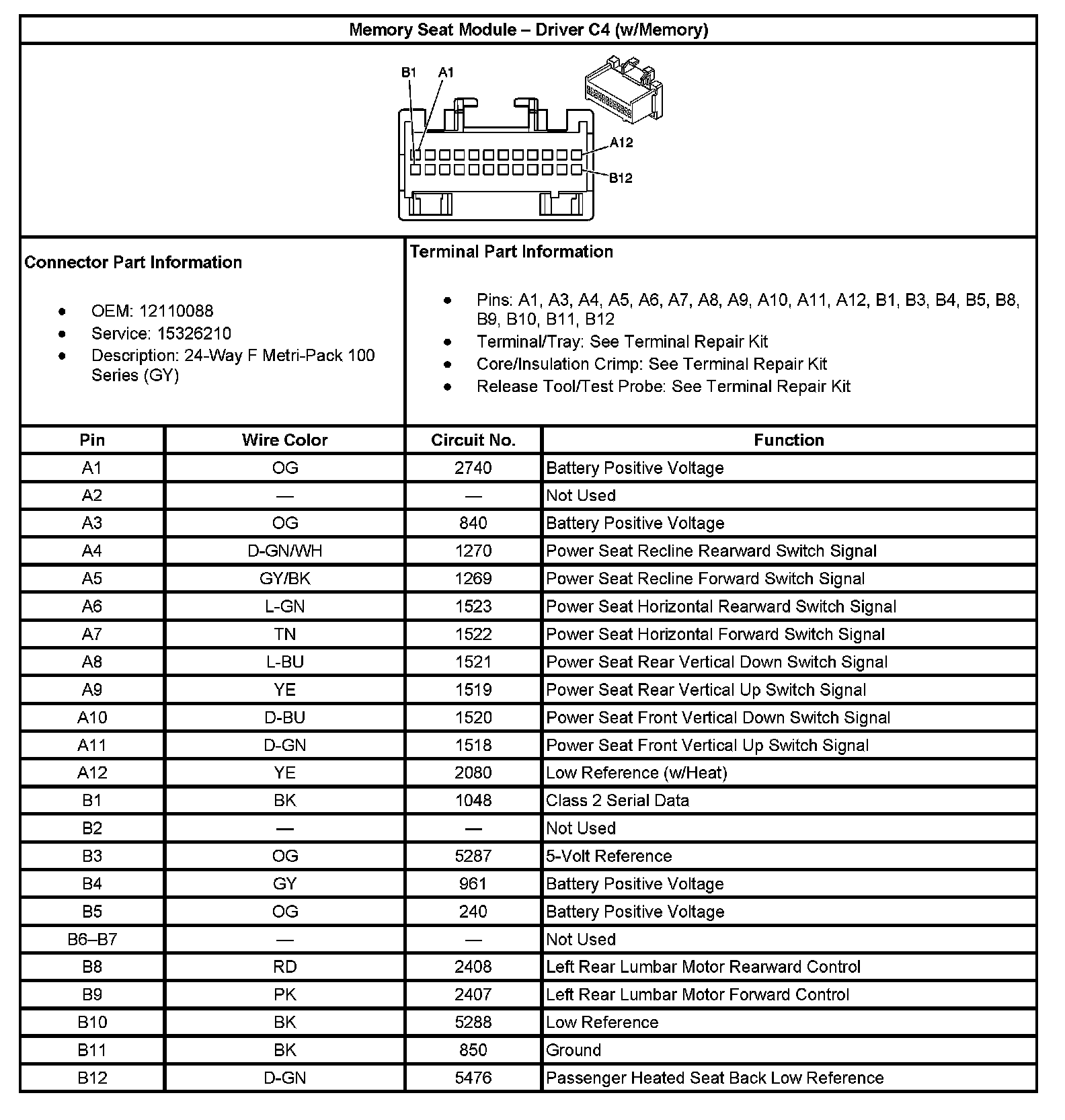

Memory Seat Module - Driver C4 (w/Memory):
