Engine Electrical Component Views

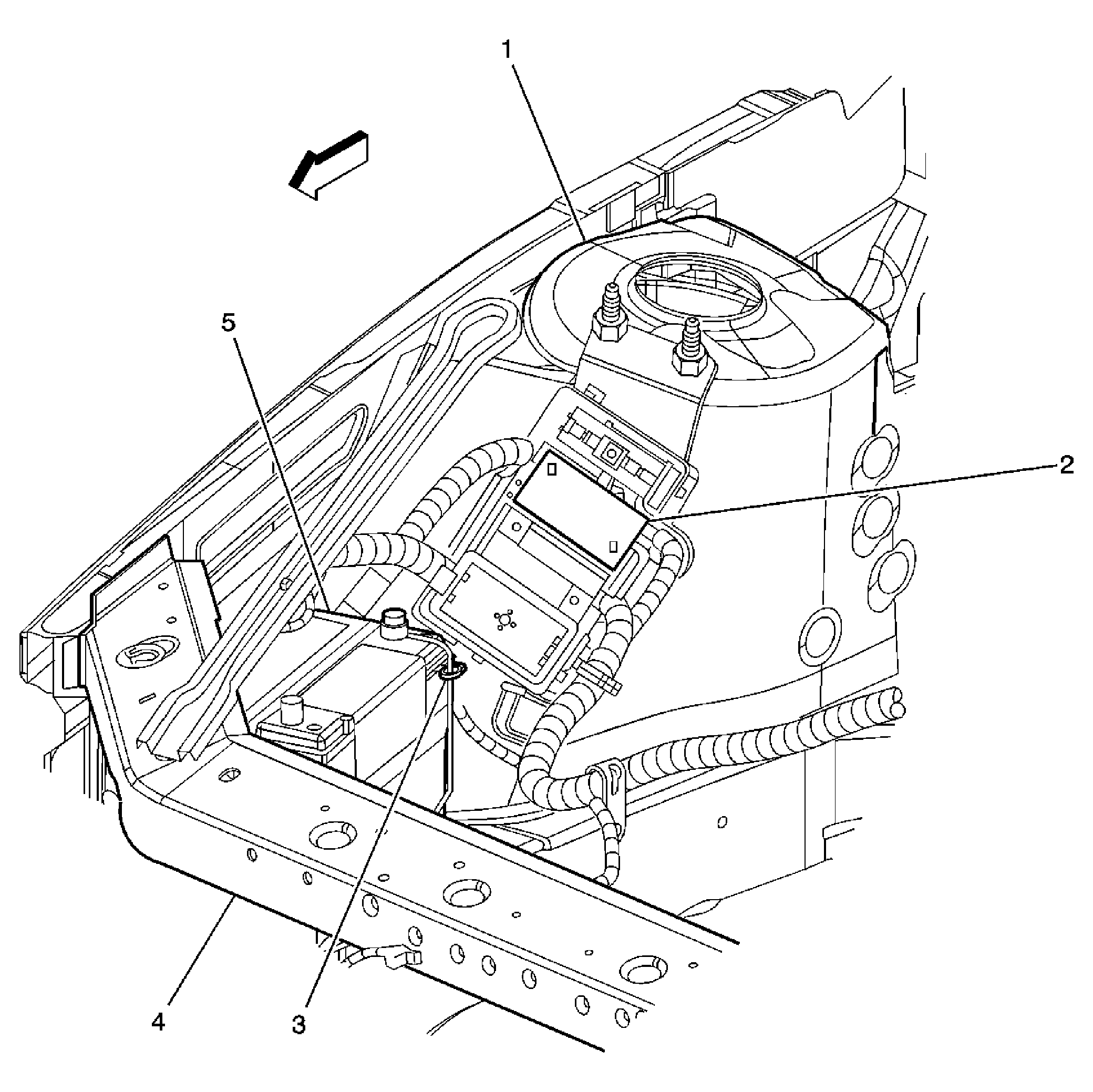

Fig 1: Engine Electrical Components (RF of Engine Compartment)
GM1507658Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 RF Strut Tower
2 Fuse Block - Underhood
3 Front Radiator Core Support
4 Front Radiator Core Support
5 Battery

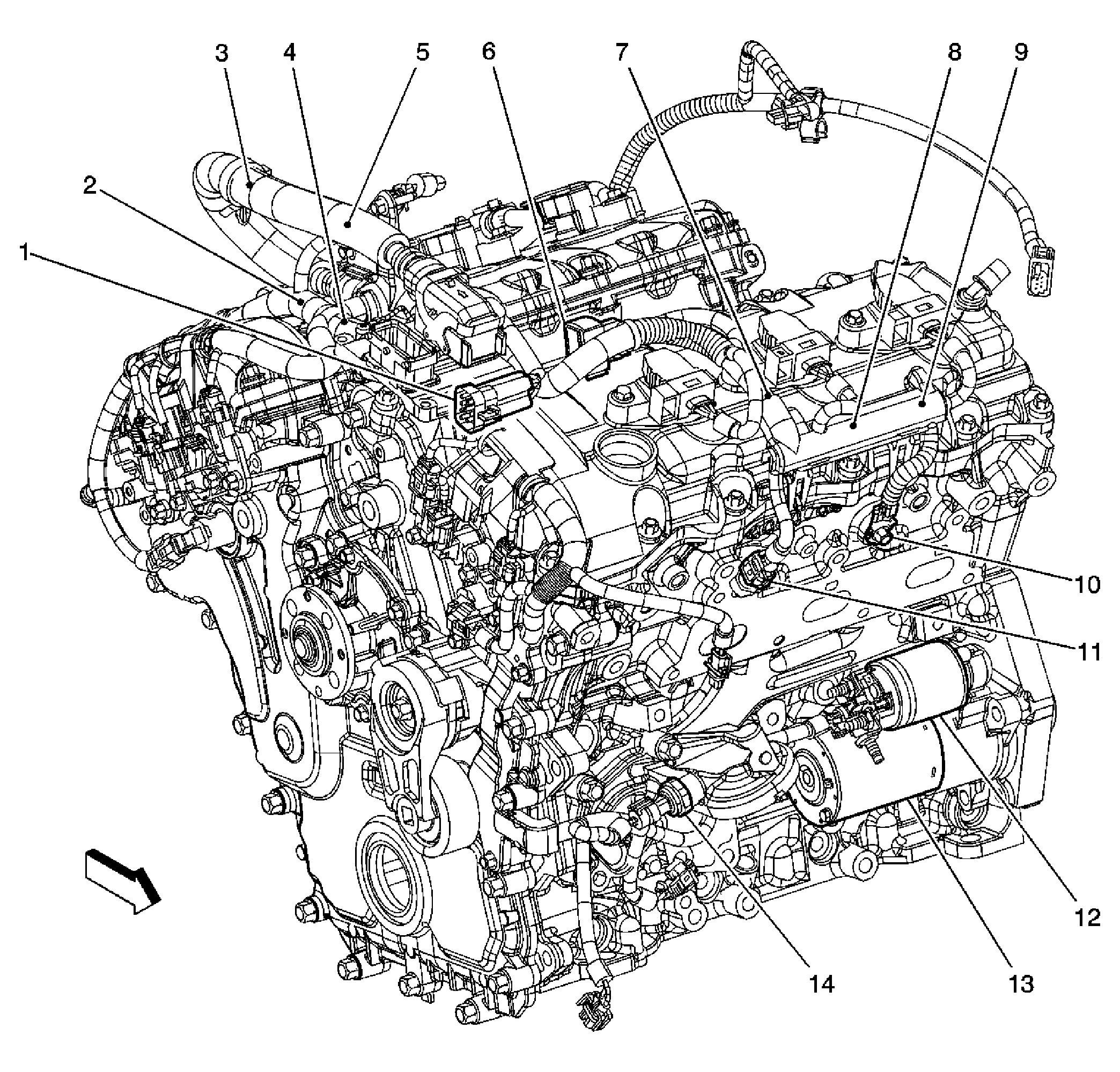

Fig 2: Engine Electrical Components (Front of Engine - 3.6L)
GM1517337Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C107
2 S121
3 S120
4 S110
5 S119
6 C109
7 S103
8 S131
9 S133
10 G131
11 Engine Coolant Temperature (ECT) Sensor
12 Starter Solenoid
13 Starter
14 Engine Oil Pressure (EOP) Sensor
