Window Systems Component Views

Fig 1: Driver Door

GM1707095

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Heated and Cooled Seat Switch - Driver (KA1, KB6, A45)
3	Outside Rearview Mirror - Driver
4	Speaker - LF Door
5	Driver Door Module (DDM)
6	Window Motor - Driver
7	Door Latch Assembly - Driver

Fig 2: Passenger Door

GM1707173

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	Door Frame
3	Door Latch Assembly - Front Passenger
4	Window Motor - Driver
5	Front Passenger Door Module (FPDM)
6	Speaker - RF Door
7	Heated and Cooled Seat Switch - Front Passenger (KA1, KB6)

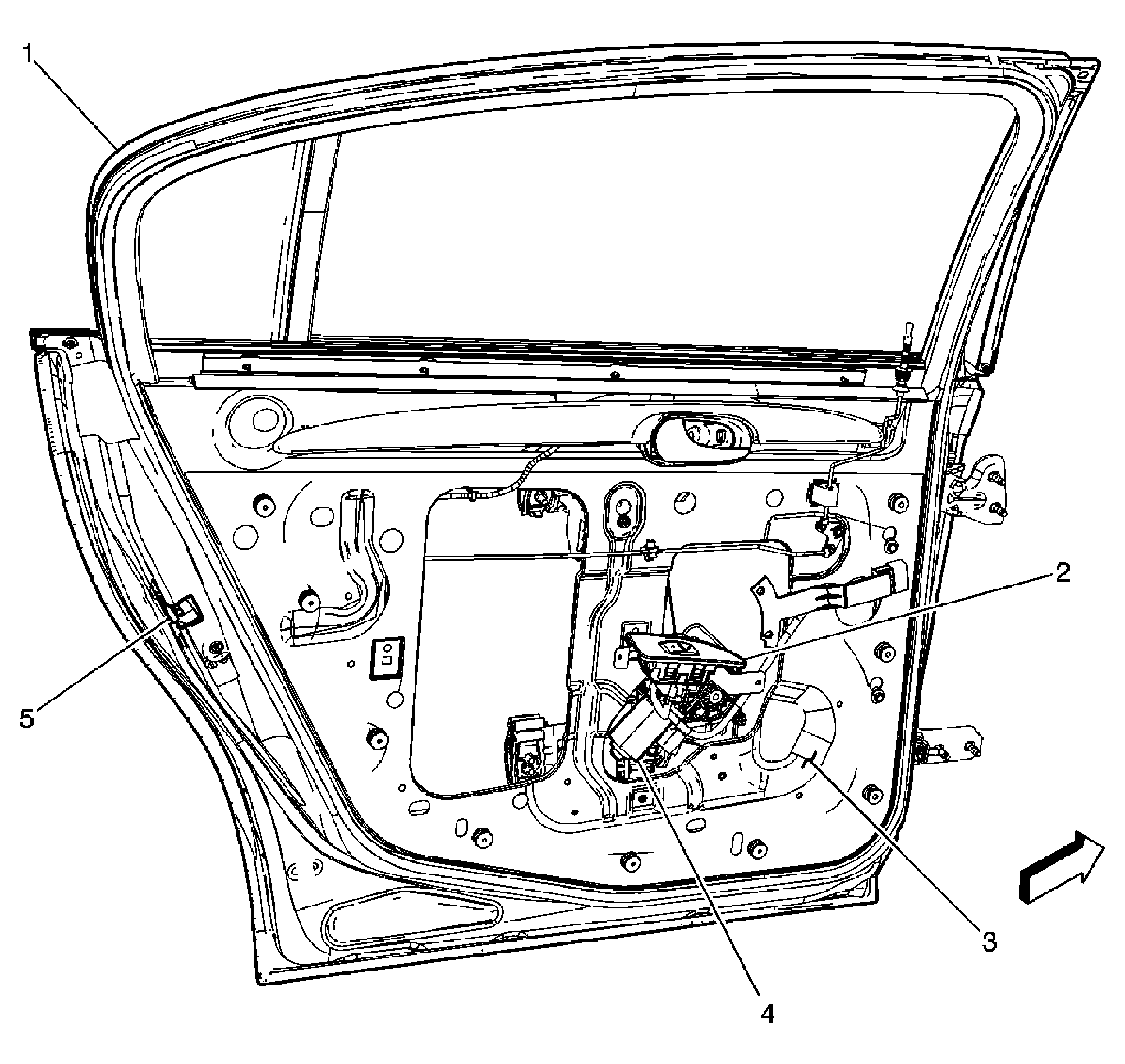

Fig 3: View Of Left Rear Door

GM1707170

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Door Window Switch - LR
3	Window Motor - LR
4	Door Latch Assembly - LR

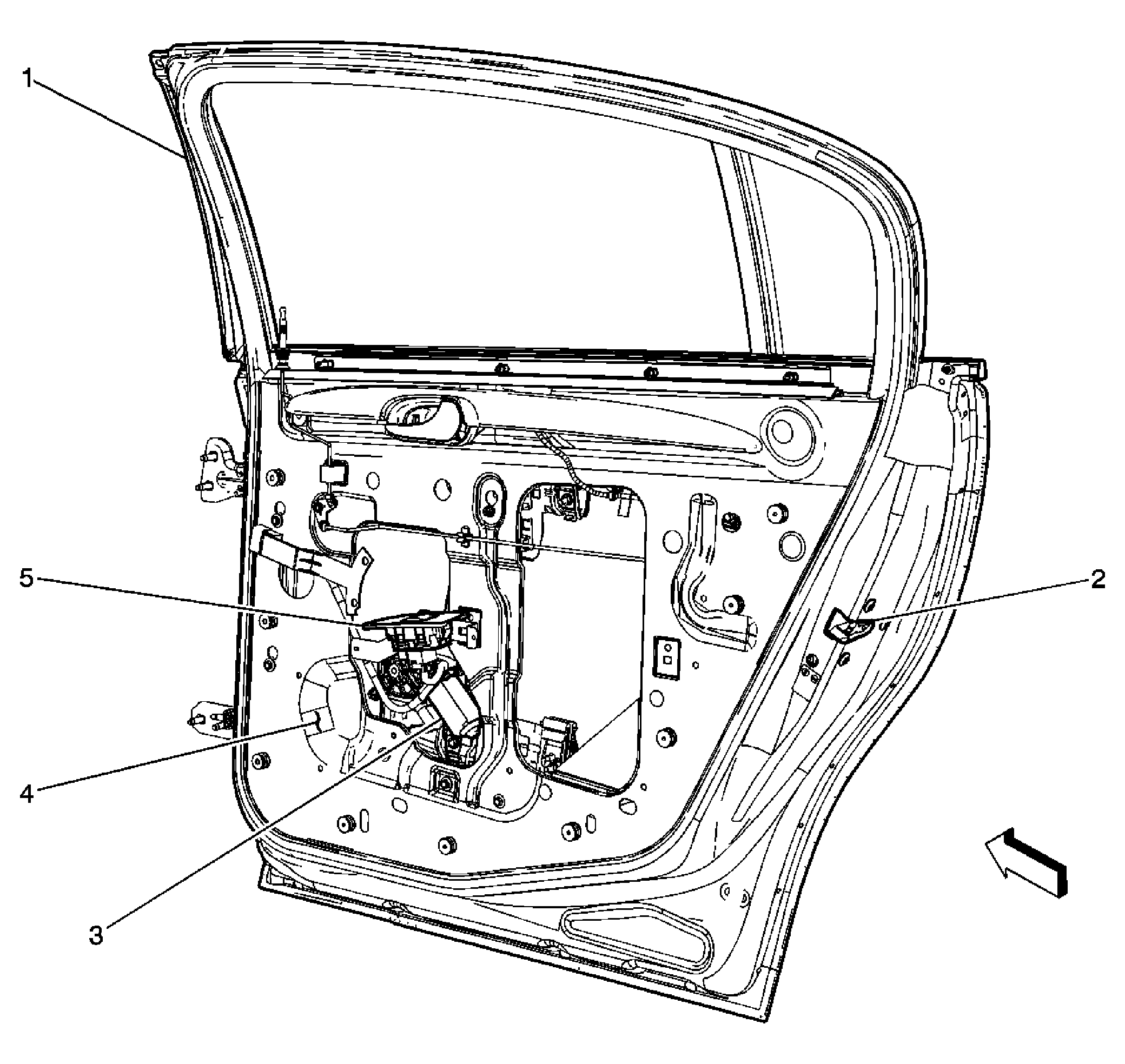

Fig 4: View Of Right Rear Door

GM1707171

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Door Latch Assembly - RR
3	Window Motor - RR
4	Door Window Switch - RR

Fig 5: Rear of Vehicle

GM1707116

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular Navigation (UE1) and Digital Radio Antenna (U2K)
2	Center High Mounted Stop Lamp (CHMSL)
3	Rear Window Defogger
4	Backup Lamp-RR
5	Tail Lamp-Right Auxiliary
6	Stop/Turn Signal Lamp-RR
7	Marker Lamp-RR
8	Object Alarm Sensor - RR Corner (UFR)
9	Object Alarm Sensor -RR Middle (UFR)
10	License Lamps
11	Object Alarm Sensor -LR Middle (UFR)
12	Object Alarm Sensor -LR Corner (UFR)
13	Marker Lamp-LR
14	Stop/Turn Signal Lamp-LR
15	Tail Lamp-Left Auxiliary
16	Backup Lamp-LR
17	Radio Rear Glass Antenna
