Power Outlet Component Views
| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Steering Wheel Module |
| 2 | Instrument Panel Cluster (IPC) |
| 3 | Sunload Twilight Sensor |
| 4 | Speaker - Front Center (UQA) |
| 5 | Hazard Switch |
| 6 | Inflatable Restraint I/P Module |
| 7 | Radio |
| 8 | HVAC Control Module |
| 9 | Auxiliary Power Outlet-Console (A51) / Cigar Lighter (DT4 w/A51) |
| 10 | Traction Control Switch |
| 11 | Steering Wheel Controls |
| 12 | Data Link Connector (DLC) |
| 13 | Air Temperature Sensor-Inside (CJ2) |
| 14 | Headlamp Switch |
| 15 | Turn Signal/Multifunction Switch |
| 16 | Driver Information Display Switch |

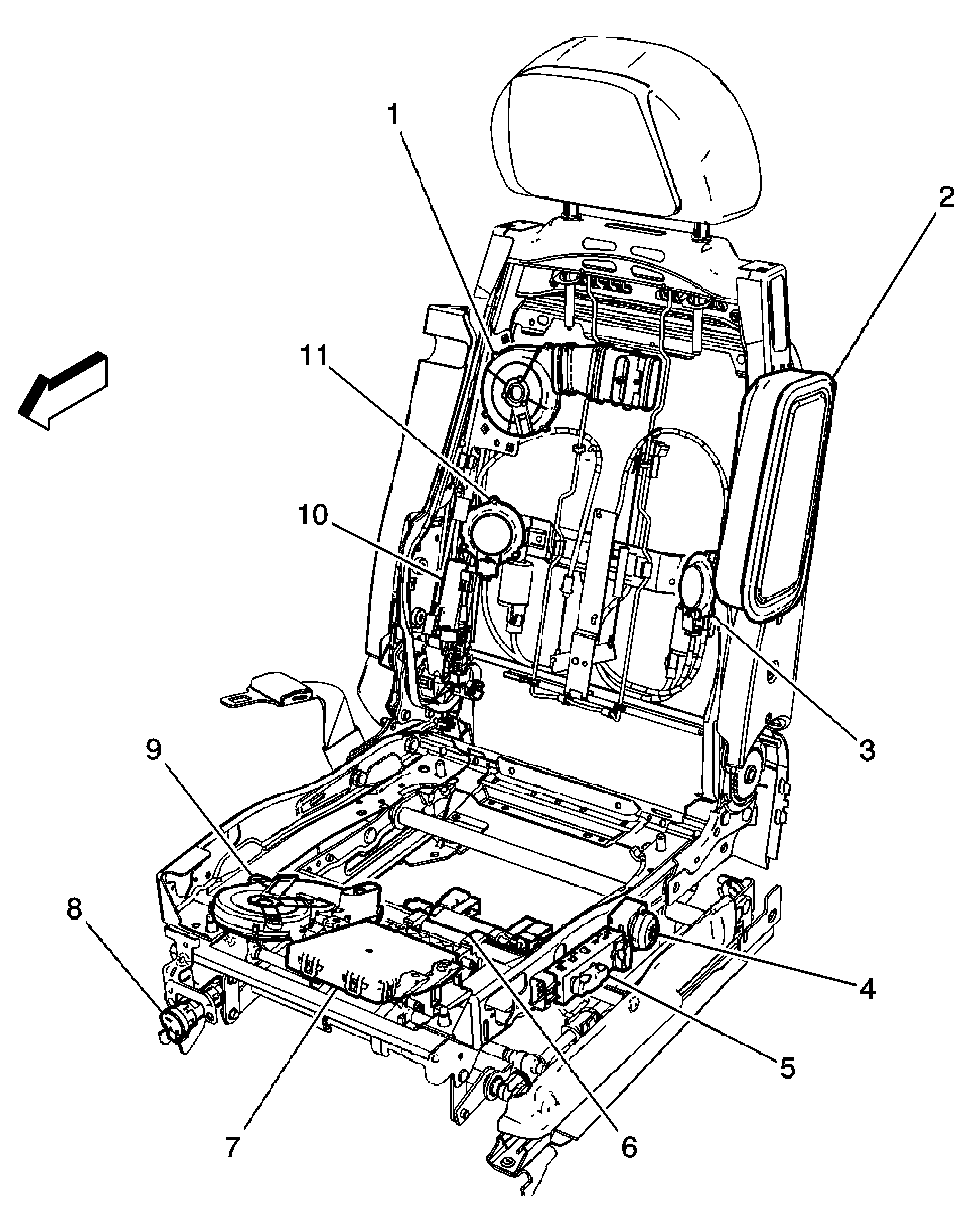

| Callout | Component Name |
|---|---|
| 1 | Seat Back Ventilation Heat & Cool Module - Driver (KB6) |
| 2 | Inflatable Restraint Side Impact Module - Left |
| 3 | Seat Lumbar Massage Motor - Driver (AM3) |
| 4 | Lumbar Adjuster Switch - Driver (AE8, A45) |
| 5 | Seat Adjuster Switch - Driver (AE8, A45) |
| 6 | Seat Adjuster Motor Assembly - Driver (AE8, A45) |
| 7 | Memory Seat Module (MSM) |
| 8 | Auxiliary Power Outlet |
| 9 | Seat Cushion Ventilation Heat & Cool Module - Driver (KB6) |
| 10 | Seat Recline Motor - Driver (AE8, A45) |
| 11 | Seat Lumbar Motor - Driver (AE8) |
| Callout | Component Name |
|---|---|
| 1 | A/T Shift Lock Control Solenoid (AN3) |
| 2 | Reverse Lockout Solenoid C1 (A51) |
| 3 | Reverse Lockout Solenoid (A51) |
| 4 | Reverse Lockout Solenoid C2 (A51) |
| 5 | Shifter Background Lamp |
| 6 | Auxiliary Power Outlet (A51) |
| 7 | Traction Control Switch |
| 8 | Cigar Lighter (DT4 w/A51) / Auxiliary Power Outlet (A51) |
