Front and Rear Object Alarm Module (UFR) C3

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

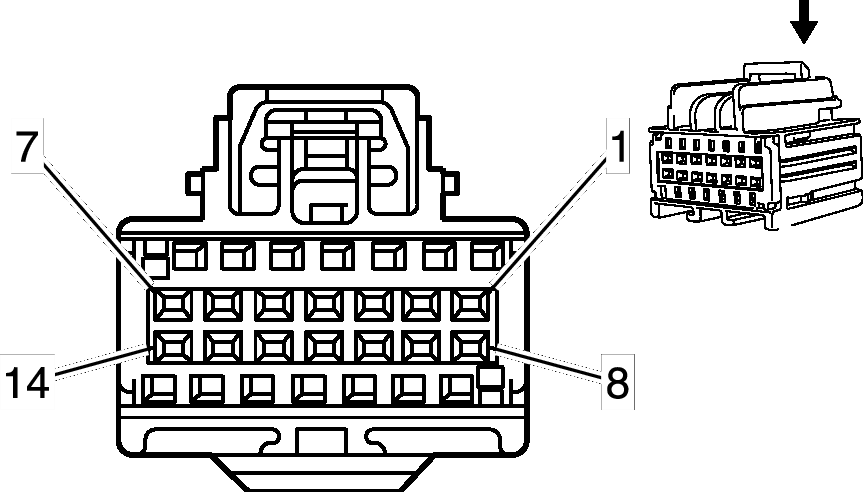

Fig 1: Front and Rear Object Alarm Module (UFR) C3 Connector End View
GM1664575Courtesy of GENERAL MOTORS CORP.
Front and Rear Object Alarm Module (UFR) C3 Connector & Terminal Parts Information

Connector Part Information
  • OEM: 7283-9068-90
  • Service: See Article
  • Description: 14-Way F (BU)
Terminal Part Information
  • Pins: 1, 4, 5, 6, 7, 8, 10, 11, 13
  • Terminal/Tray: 7116-4618-02/14
  • Core/Insulation Crimp: P/P
  • Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)
Front and Rear Object Alarm Module (UFR) C3 Terminal Identification

Pin Wire Color Circuit No. Function
1 BN 6581 Object Sensor Supply Voltage
2-3 - - Not Used
4 PU/WH 5215 LF Corner Object Sensor Signal
5 WH 5216 LF Middle Object Sensor Signal
6 GY/BN 7039 Left Amber Indicator Control
7 D-BU/TN 7041 Center Amber Indicator Control
8 OG/BK 5214 Object Sensor Low Reference
9 - - Not Used
10 PU/BK 5218 RF Middle Object Sensor Signal
11 BN/WH 5217 RF Corner Object Sensor Signal
12 - - Not Used
13 D-GN/TN 7042 Red Indicator Control
14 - - Not Used
