Telltale Assembly Info Center

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

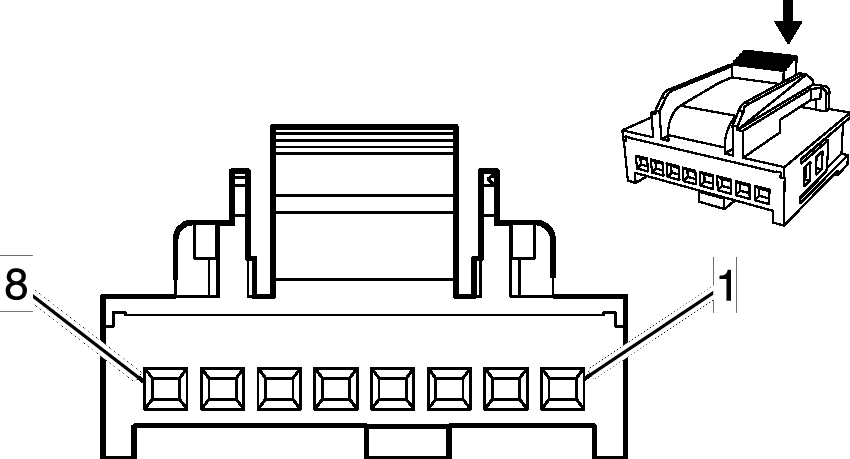

Fig 1: Telltale Assembly Info Center Connector End Views
GM1664614Courtesy of GENERAL MOTORS CORP.
Telltale Assembly Info Center Connector & Terminal Parts Information

Connector Part Information
  • OEM: 15499368
  • Service: See Article
  • Description: 8-Way F (BK)
Terminal Part Information
  • Pins: 1, 2, 3, 4, 5, 6, 7
  • Terminal/Tray: 7116-4618-02/14
  • Core/Insulation Crimp: P/P
  • Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)
Telltale Assembly Info Center Terminal Identification

Pin Wire Color Circuit No. Function
1 D-GN/TN 7042 Red Indicator Control
2 D-BU/TN 7041 Center Amber Indicator Control
3 GY/BN 7039 Left Amber Indicator Control
4 PU/WH 1382 Telltale Assembly Supply Voltage
5 L-GN 6997 Adaptive Cruise Vehicle Ahead Sensor
6 L-BU 6996 Adaptive Cruise Control Active Signal
7 L-GN/PU 7050 Adaptive Cruise Control Vehicle Alert Sensor
8 - - Not Used
