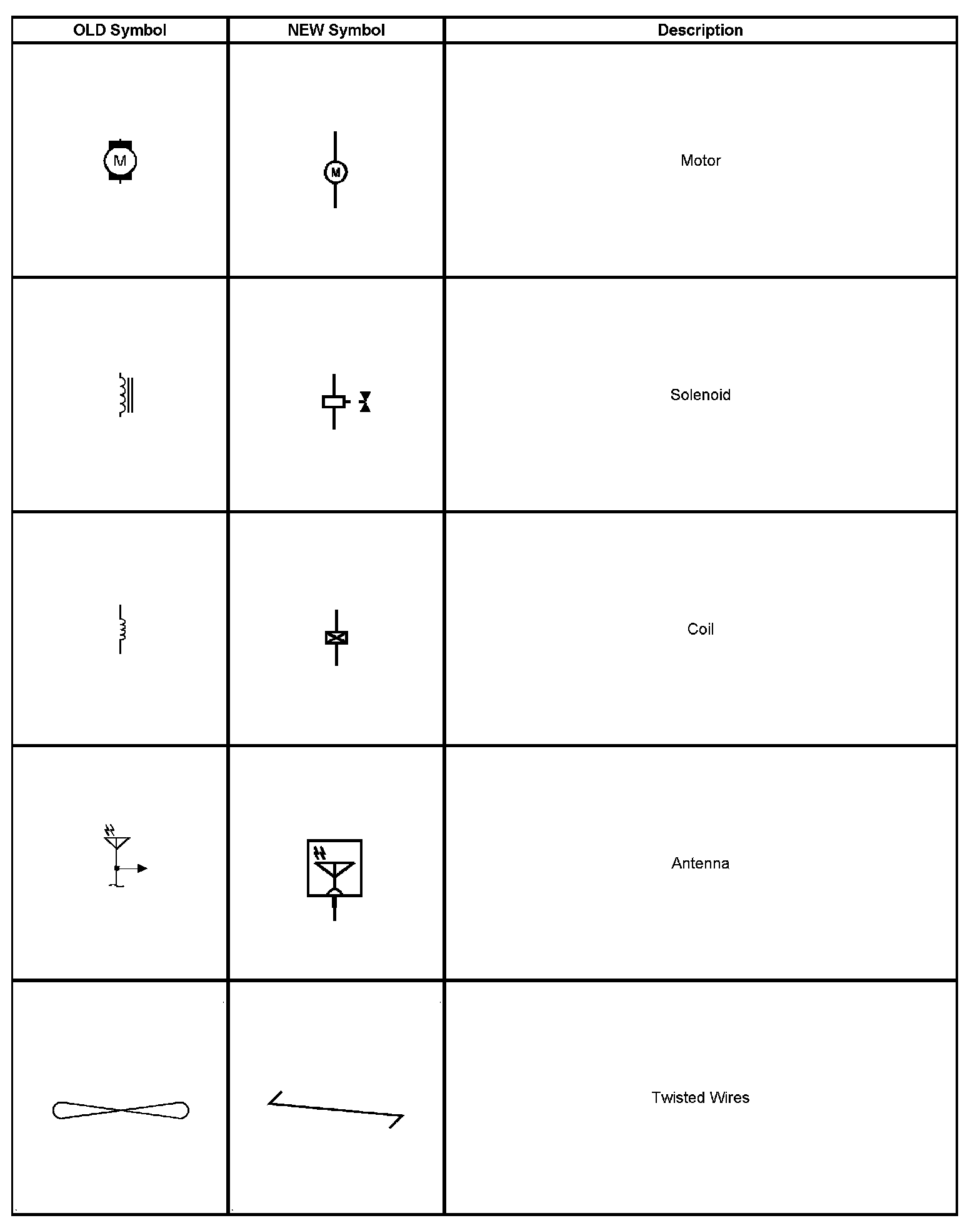

Electrical Symbols

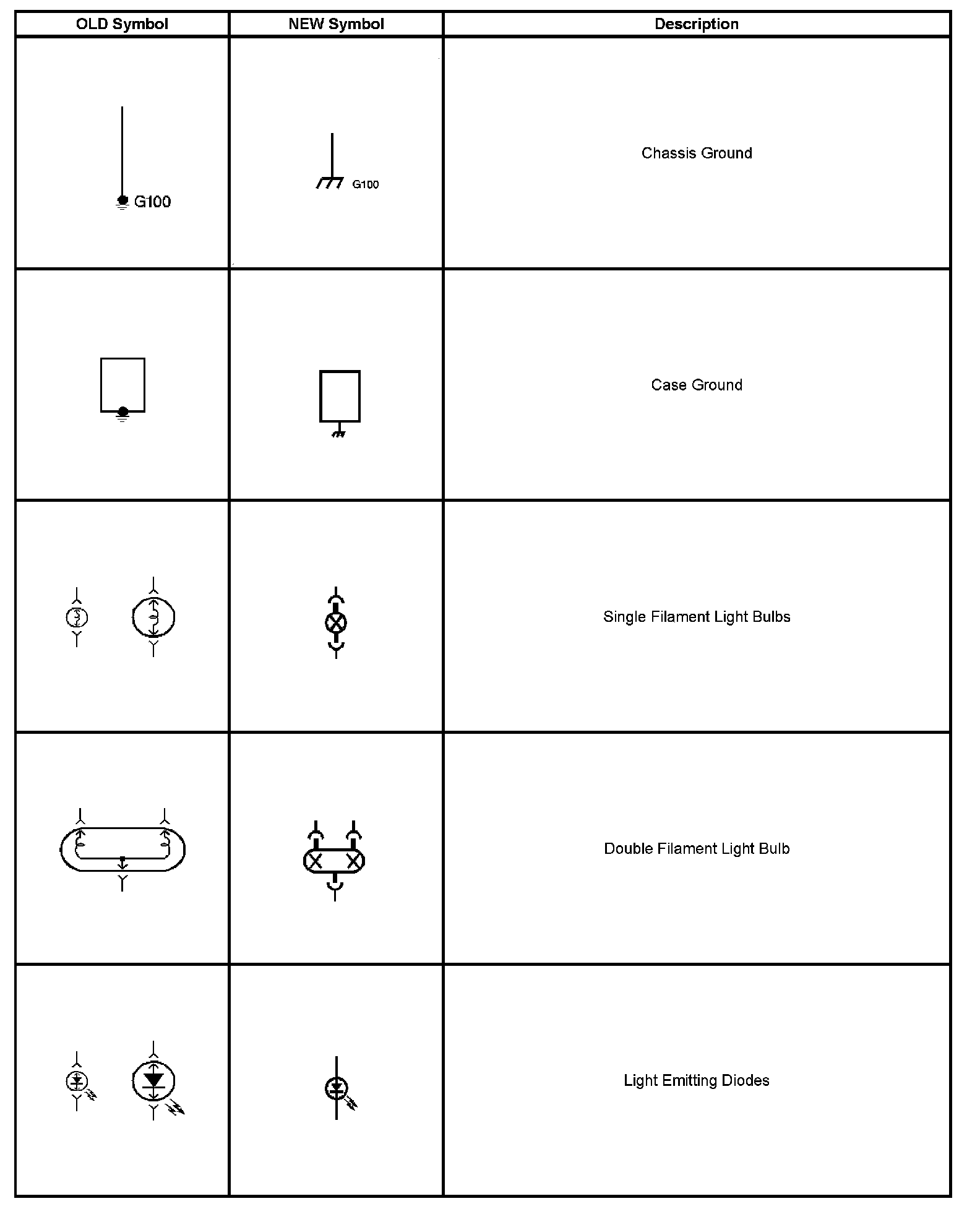

Electrical Symbols Part-2:

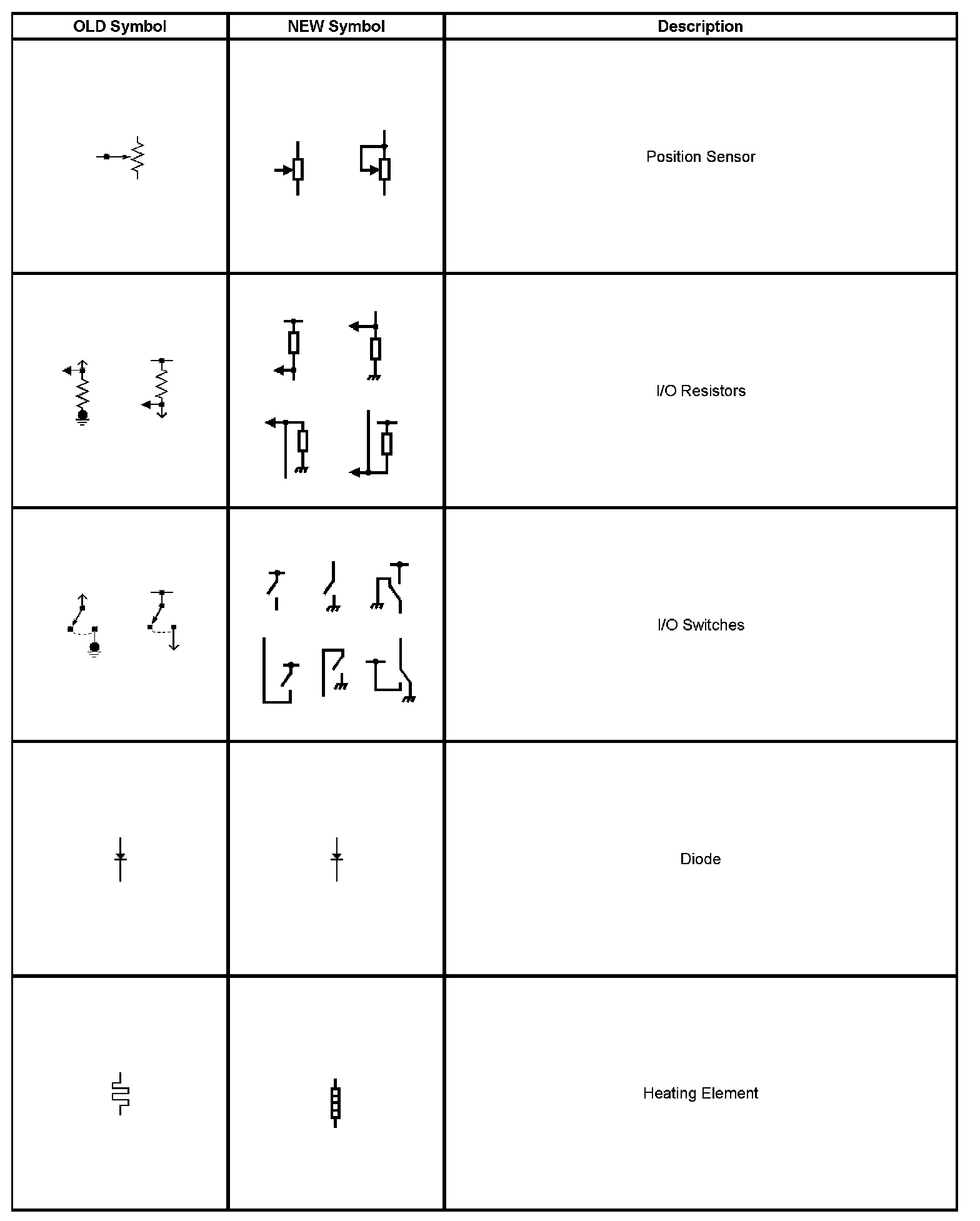

Electrical Symbols Part 3:

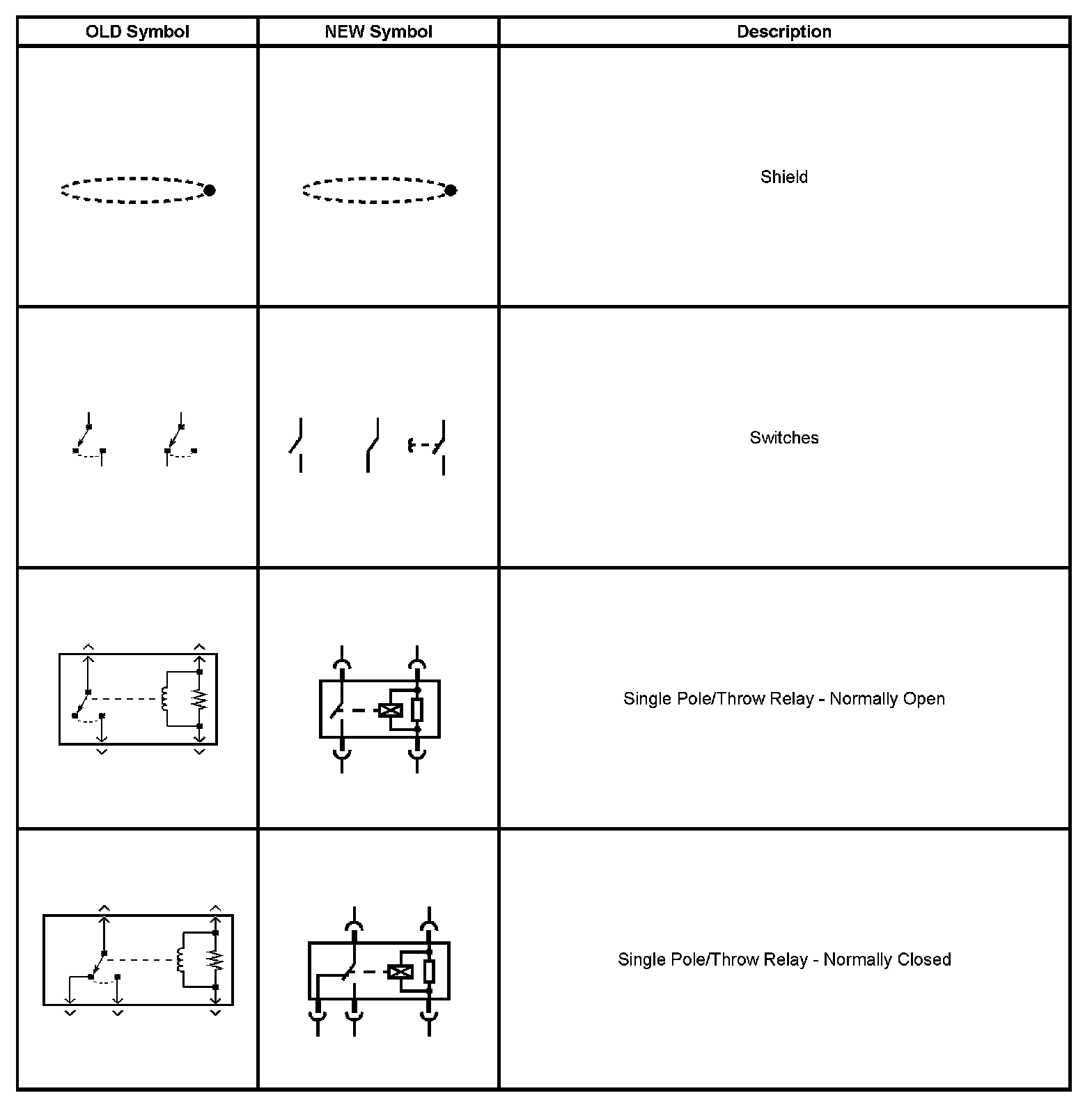

Electrical Symbols Part 4:

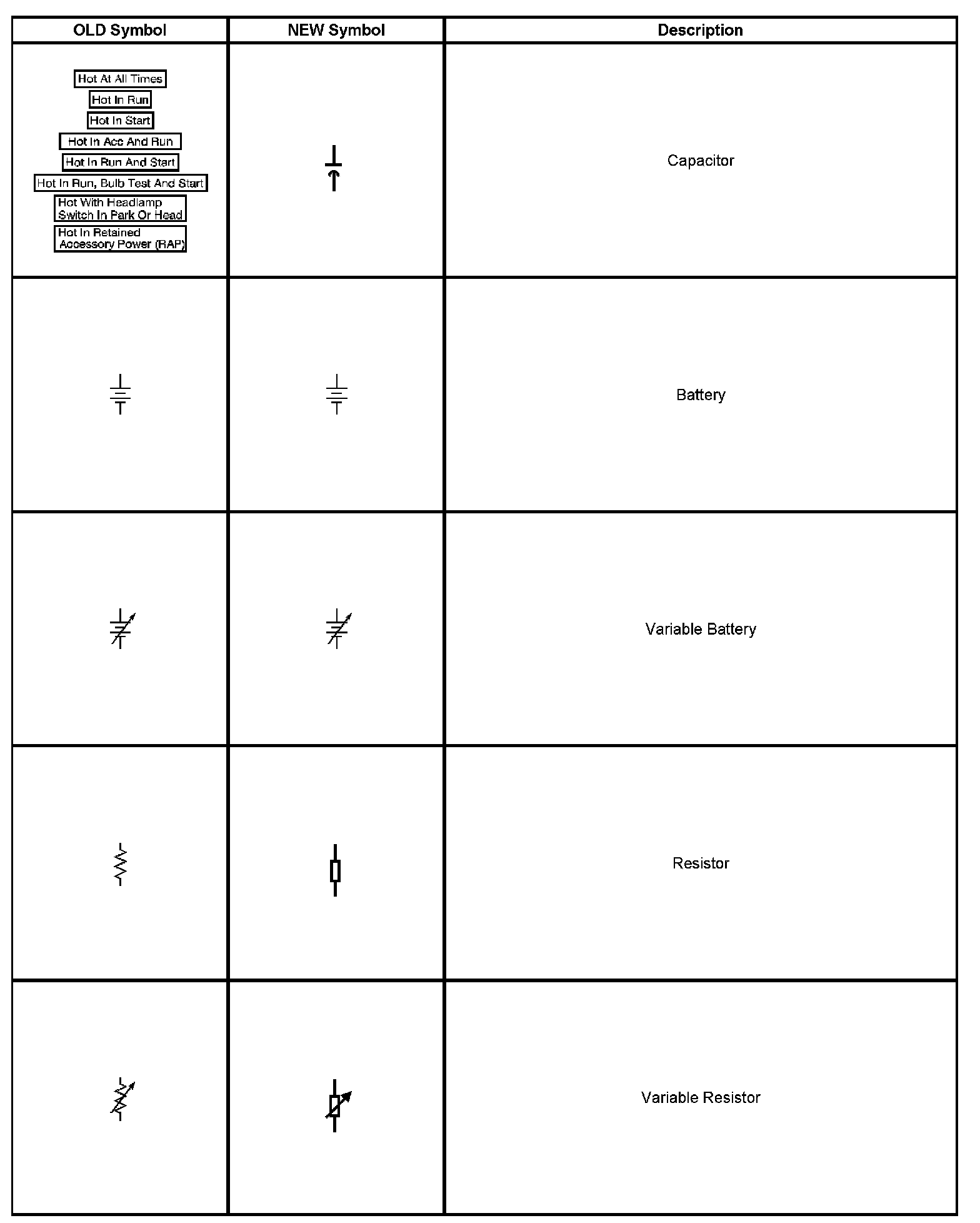

Electrical Symbols Part 5:

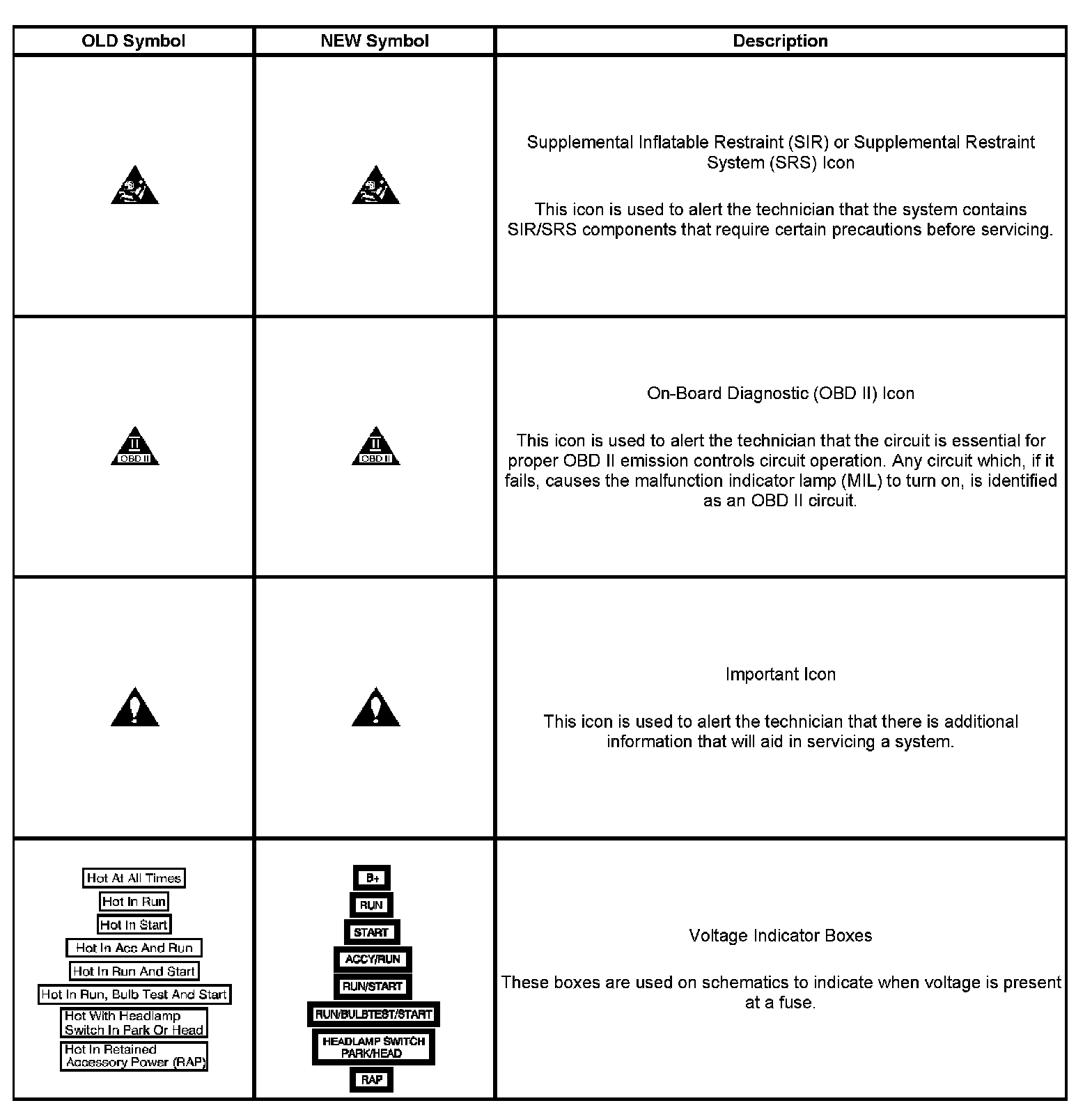

Electrical Symbols Part 6:

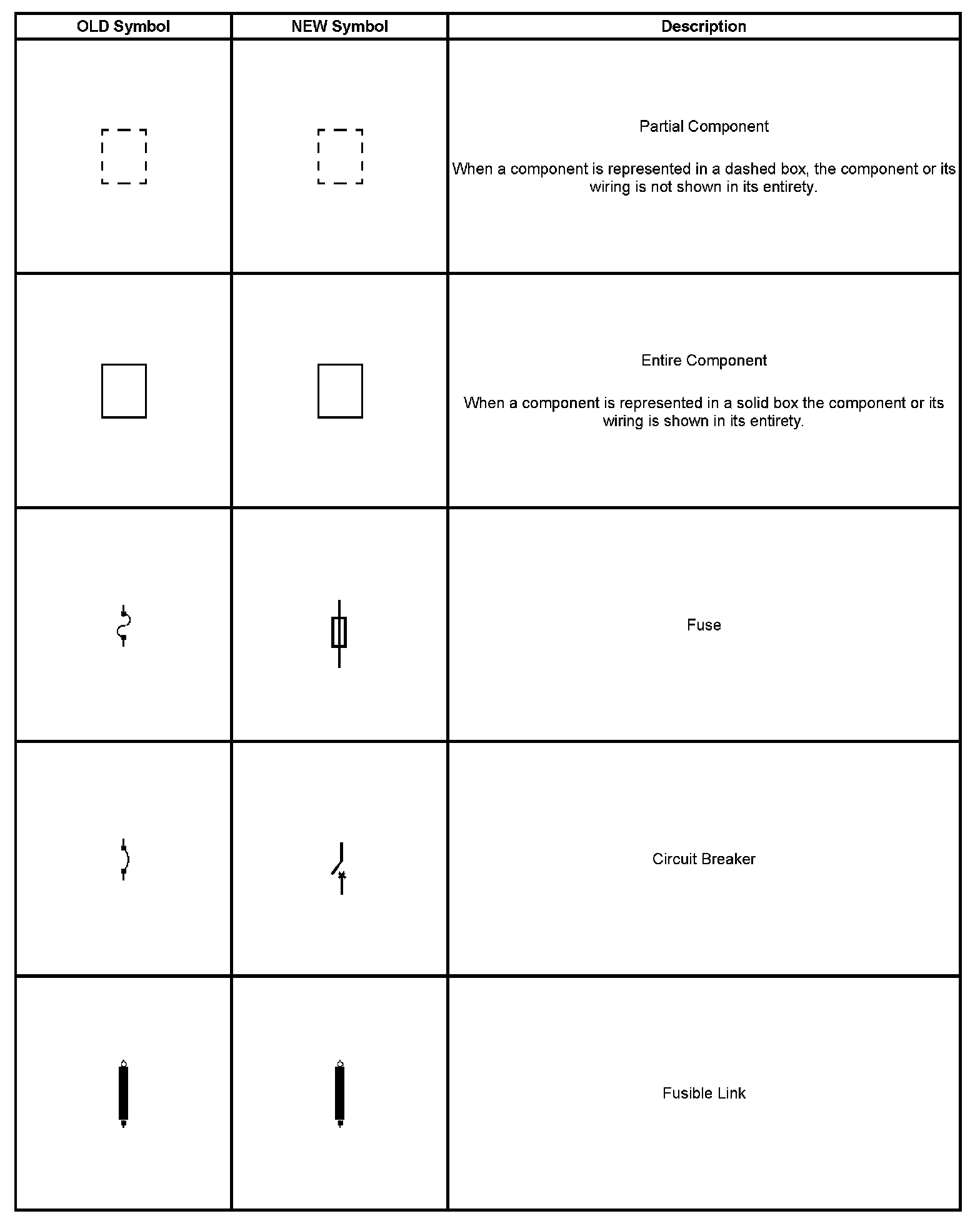

Electrical Symbols Part 7:

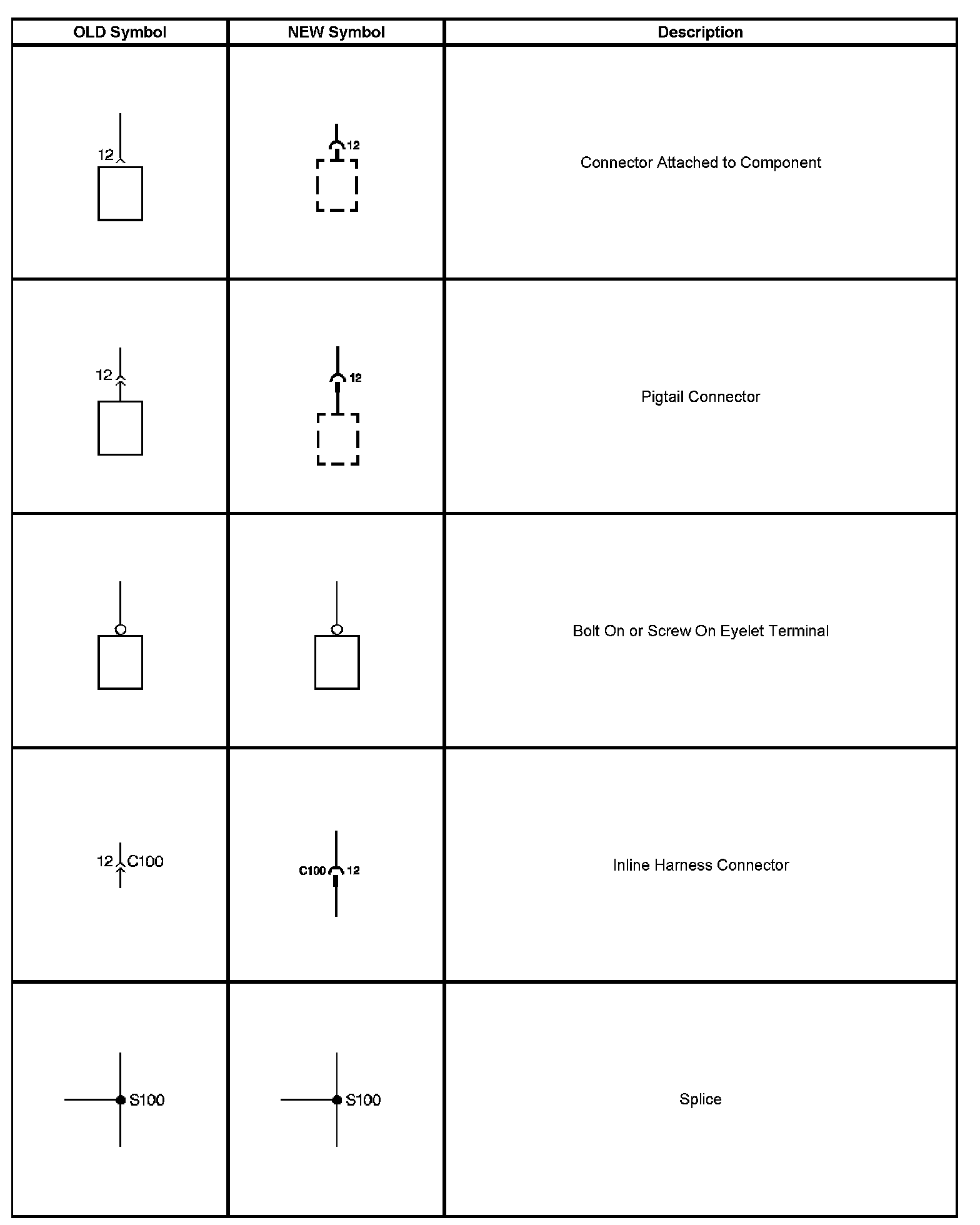

Electrical Symbols Part 8:
