Fuel Tank Pressure Sensor Replacement (With RPO Code NU6)

Fuel Tank Pressure Sensor Replacement (RPO NU6)

Removal Procedure




1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

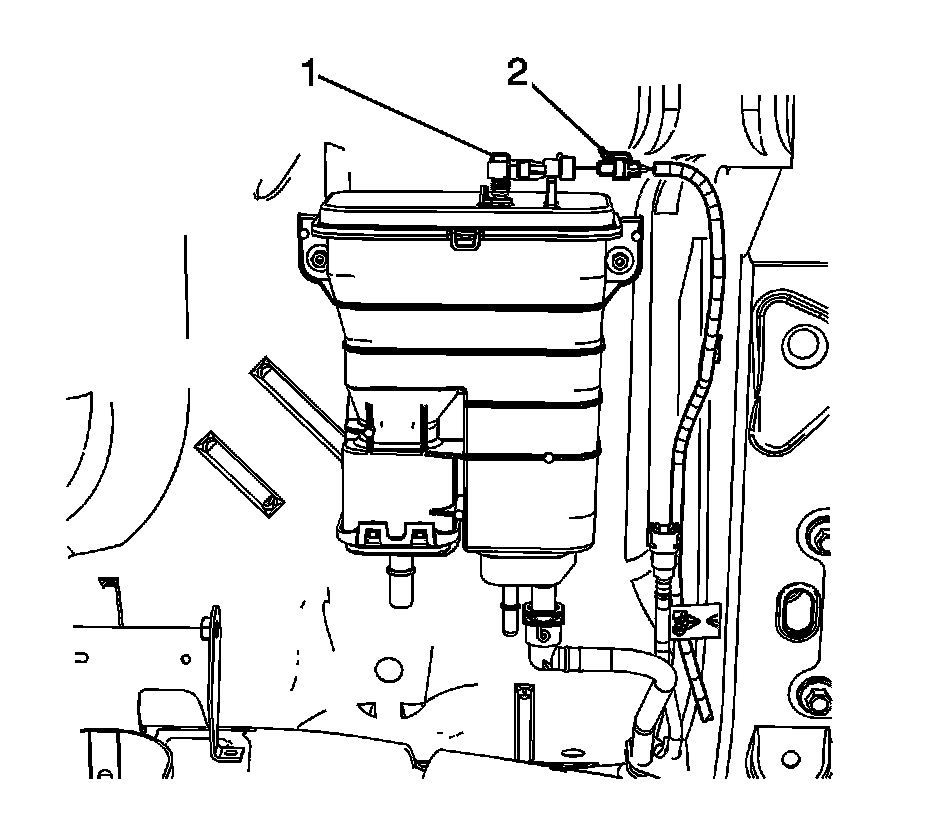

2. Disconnect the fuel tank wiring harness electrical connector (2) from the fuel tank pressure sensor.
3. Remove the fuel tank pressure sensor (1).

Installation Procedure




1. Install the fuel tank pressure sensor (1).
2. Connect the fuel tank wiring harness electrical connector (2) to the fuel tank pressure sensor.
3. Lower the vehicle.
