Auxiliary Heater and Air Conditioning Control Module Replacement

Auxiliary Heater and Air Conditioning Control Module Replacement

Removal Procedure

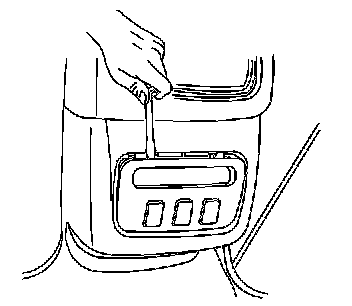

1. Using a flat bladed tool, carefully pry out on the top of the HVAC control-auxiliary.

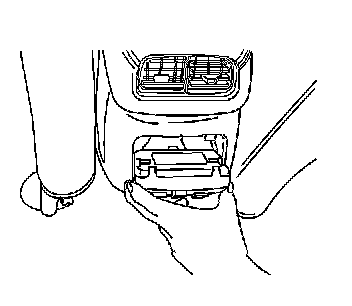

2. Remove the HVAC control-auxiliary from the center console/seat.

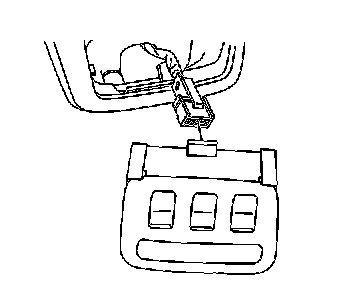

3. Disconnect the electrical connector.
4. Remove the HVAC control-auxiliary.

Installation Procedure




1. Connect the HVAC control-auxiliary electrical connector.




2. Install the HVAC control-auxiliary in the console bottom first.
3. Push in at the top of the HVAC control-auxiliary in order to engage the HVAC control-auxiliary in the console/seat.
