Body Views

Power and Grounding Component Views

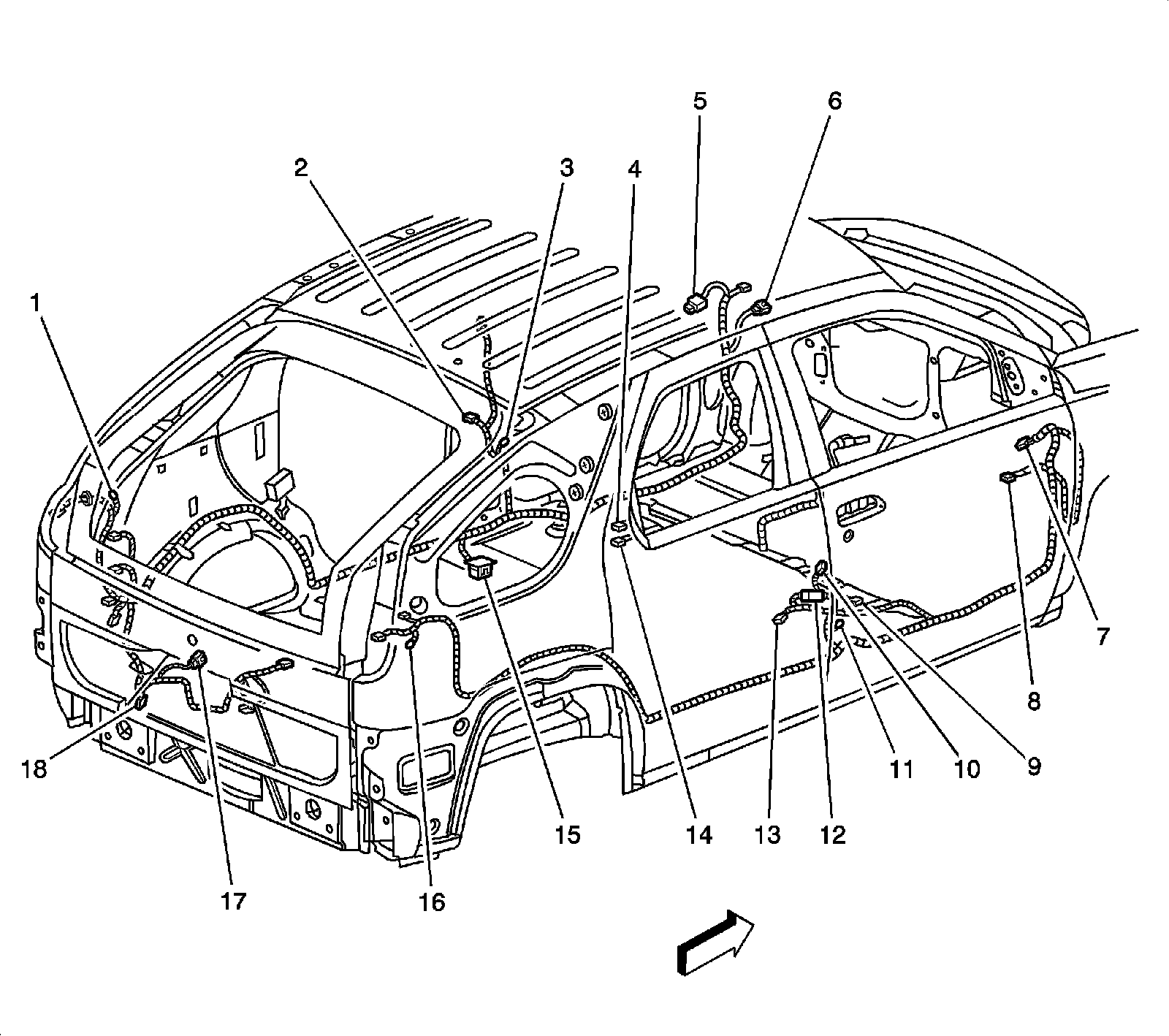

Body Harness




1 - G401
2 - C351
3 - G303
4 - C313, C317 (A43)
5 - C301 and C303
6 - C203
7 - C200
8 - C302
9 - C316 (AJ7)
10 - C352
11 - G302
12 - Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
13 - C314
14 - C319 (AJ7)
15 - C305
16 - G402
17 - C405 (G67)
18 - C420
