Rear Side Door Actuator Control Module Replacement (with RPO CodeE58)

Rear Side Door Actuator Control Module Replacement (with E58)

Removal Procedure

1. Remove the right rear quarter lower trim panel.




2. Disconnect the electrical connectors from the power sliding door (PSD) actuator control module.

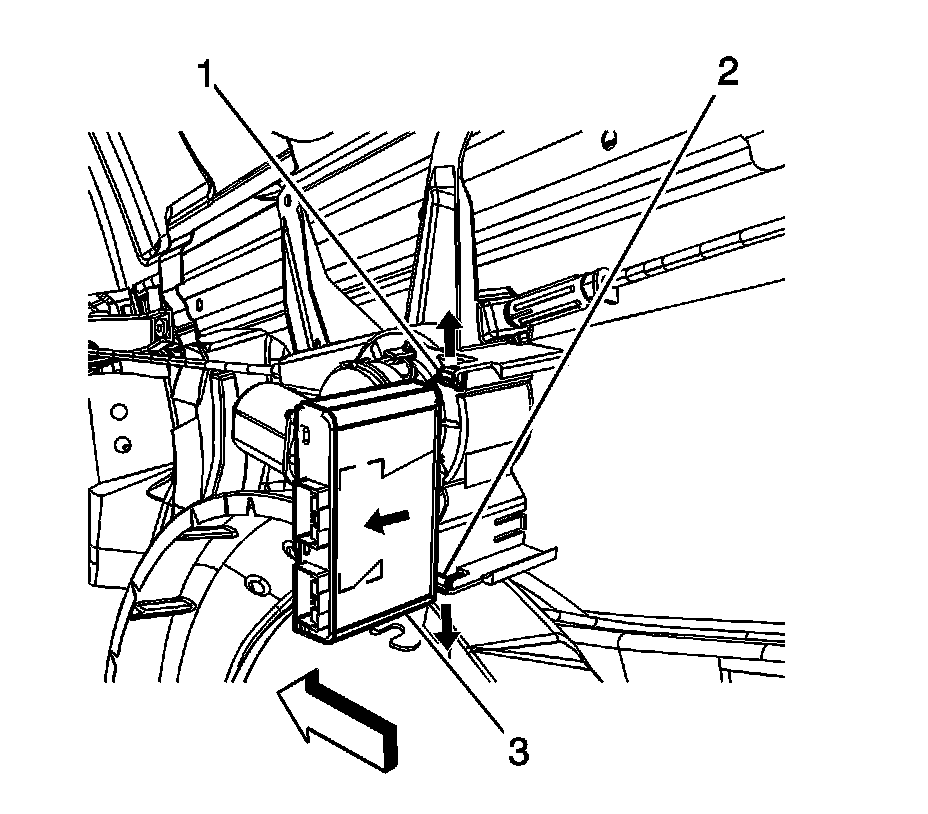

3. Release the integral clips (1, 2) securing the actuator module (3) at the rear motor bracket.
4. Pull the PSD actuator control module (3) inboard in order to release the control module from the actuator motor bracket.

Installation Procedure




1. Push the PSD actuator control module (3) outboard to secure the control module to the actuator motor bracket and retention clips (1, 2).
2. Connect the PSD actuator control module electrical connectors.
3. Perform the re-initialization procedure. refer to Control Module References for programming and setup information. Programming and Relearning
4. Install the right rear quarter lower trim panel.
