Engine Controls Schematics

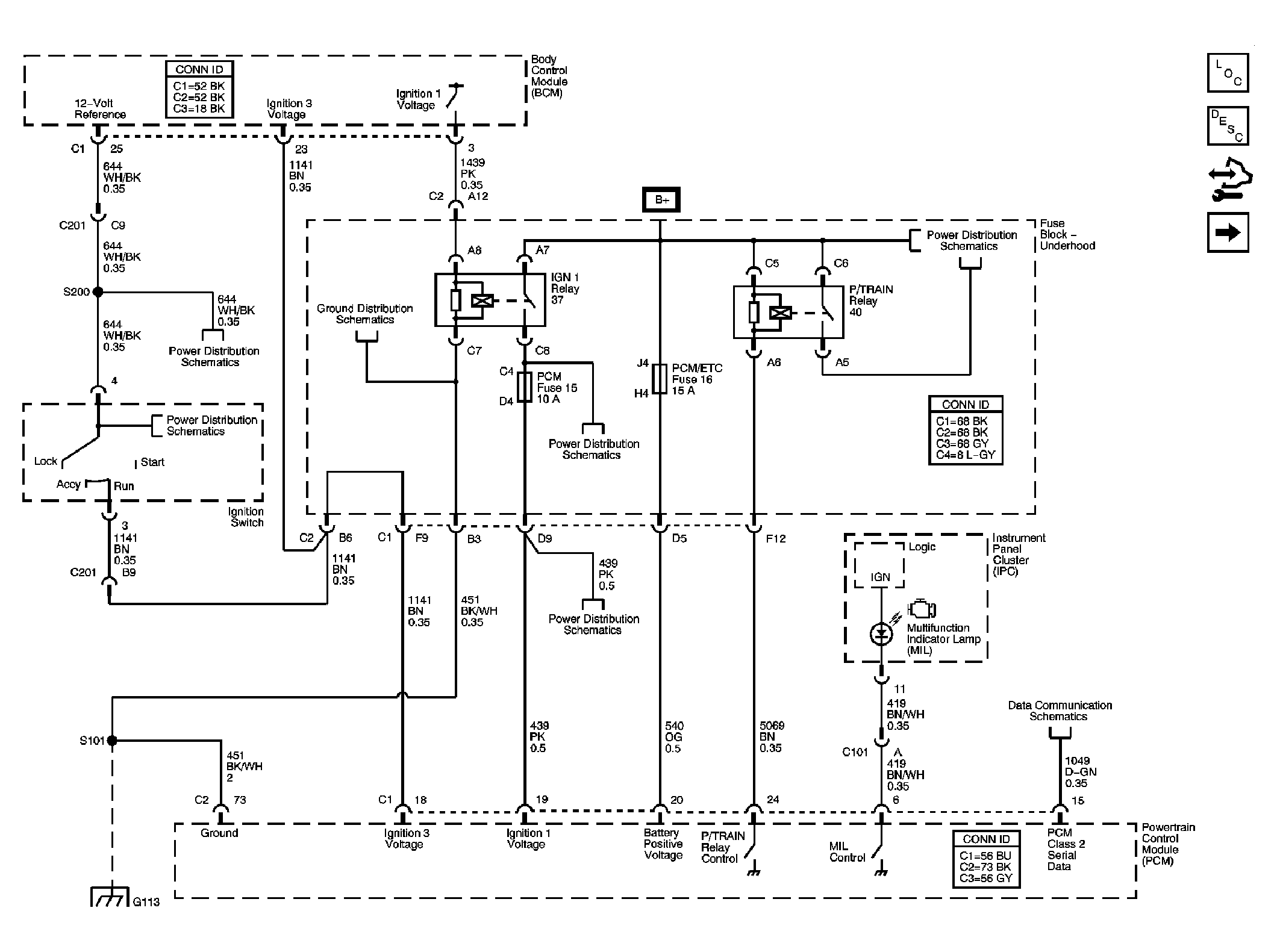

Fig 1: Module Power, Ground, Serial Data, and MIL Schematic
GM1889471Courtesy of GENERAL MOTORS CORP.

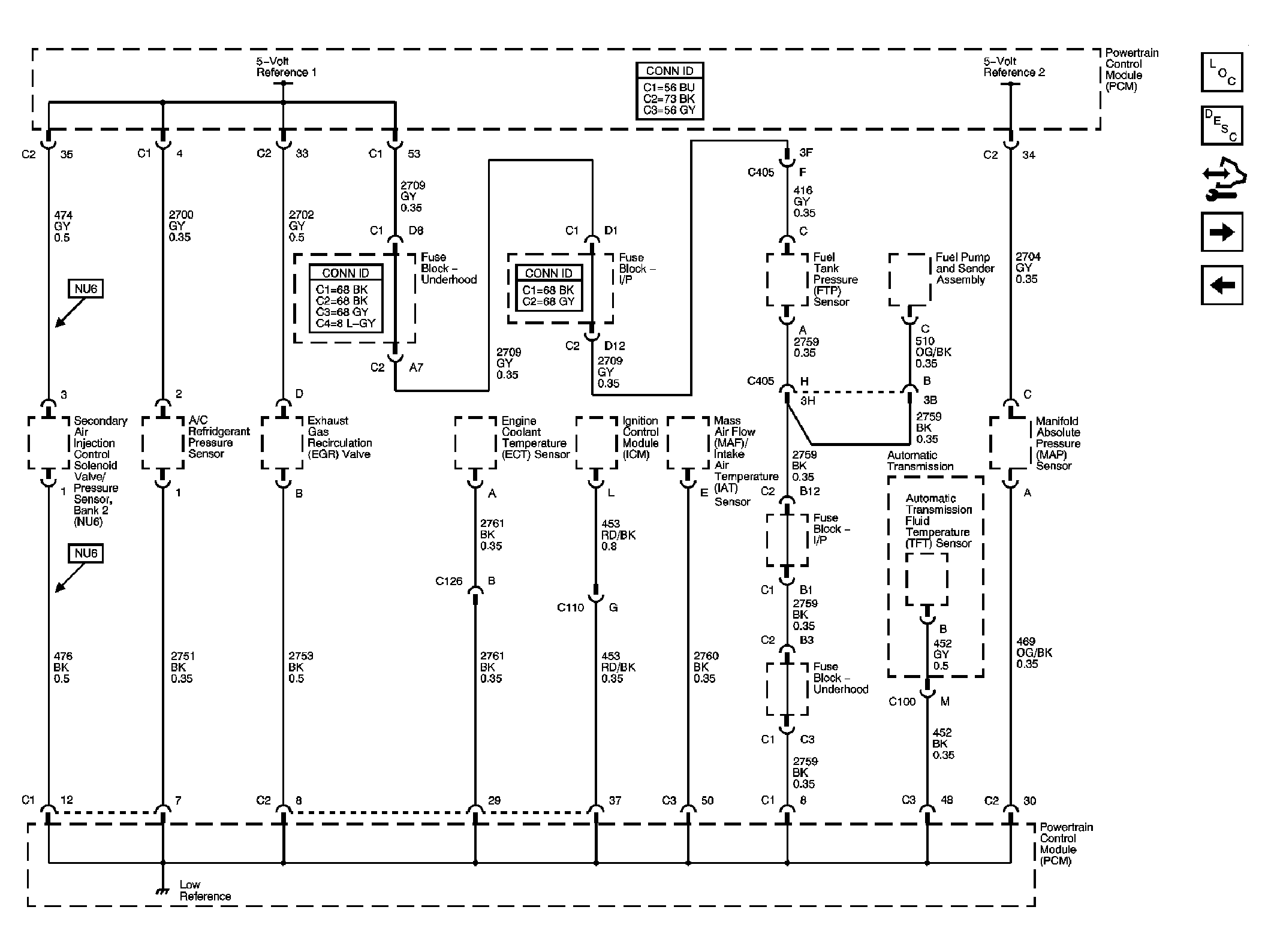

Fig 2: 5-Volt and Low Reference Schematic
GM1889474Courtesy of GENERAL MOTORS CORP.

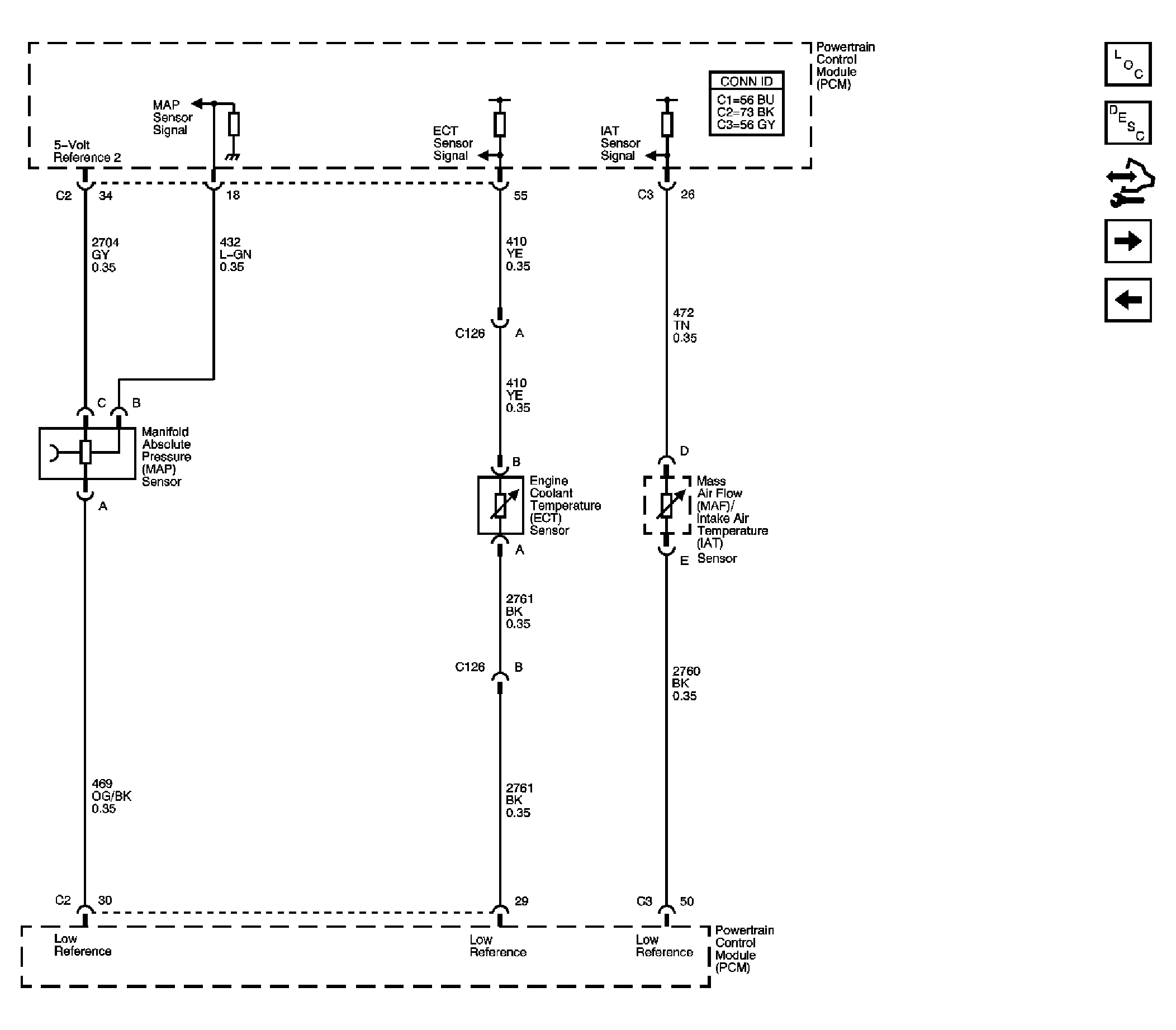

Fig 3: Pressure and Temperature Sensors Schematic
GM1889478Courtesy of GENERAL MOTORS CORP.

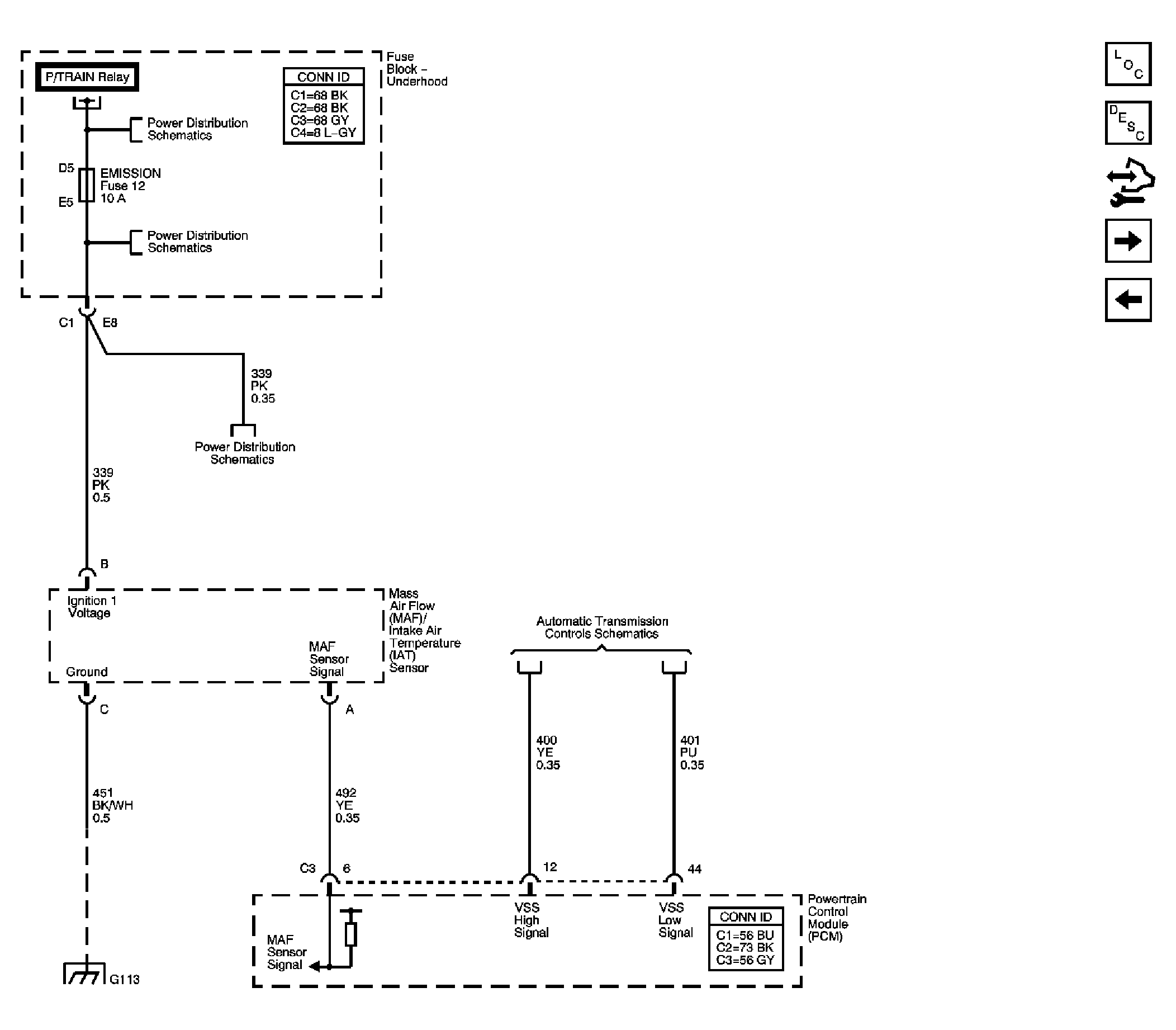

Fig 4: MAF, VSS
GM1889482Courtesy of GENERAL MOTORS CORP.

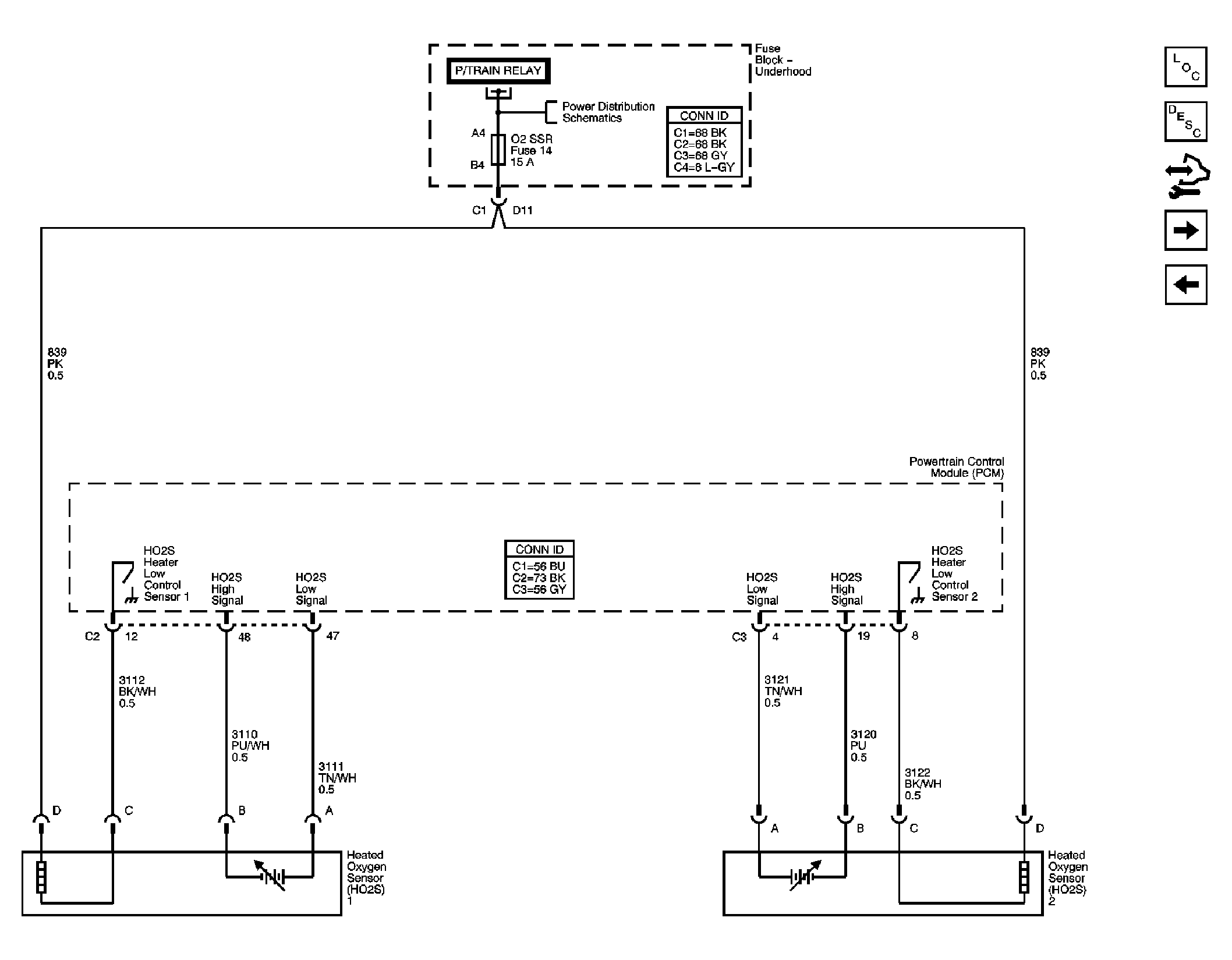

Fig 5: Oxygen Sensors Schematic
GM1889484Courtesy of GENERAL MOTORS CORP.

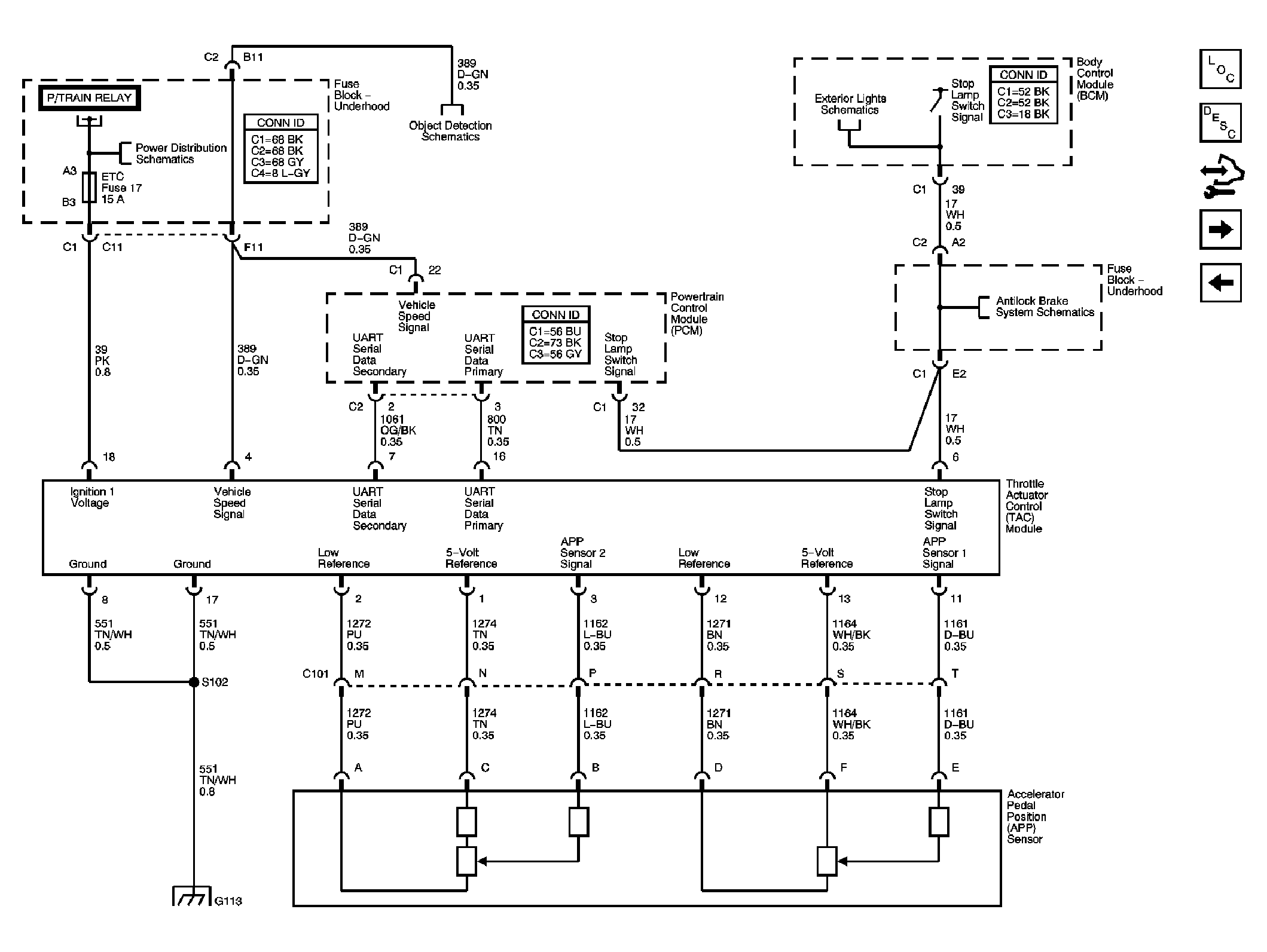

Fig 6: Electronic Throttle Controls Schematic
GM1889486Courtesy of GENERAL MOTORS CORP.

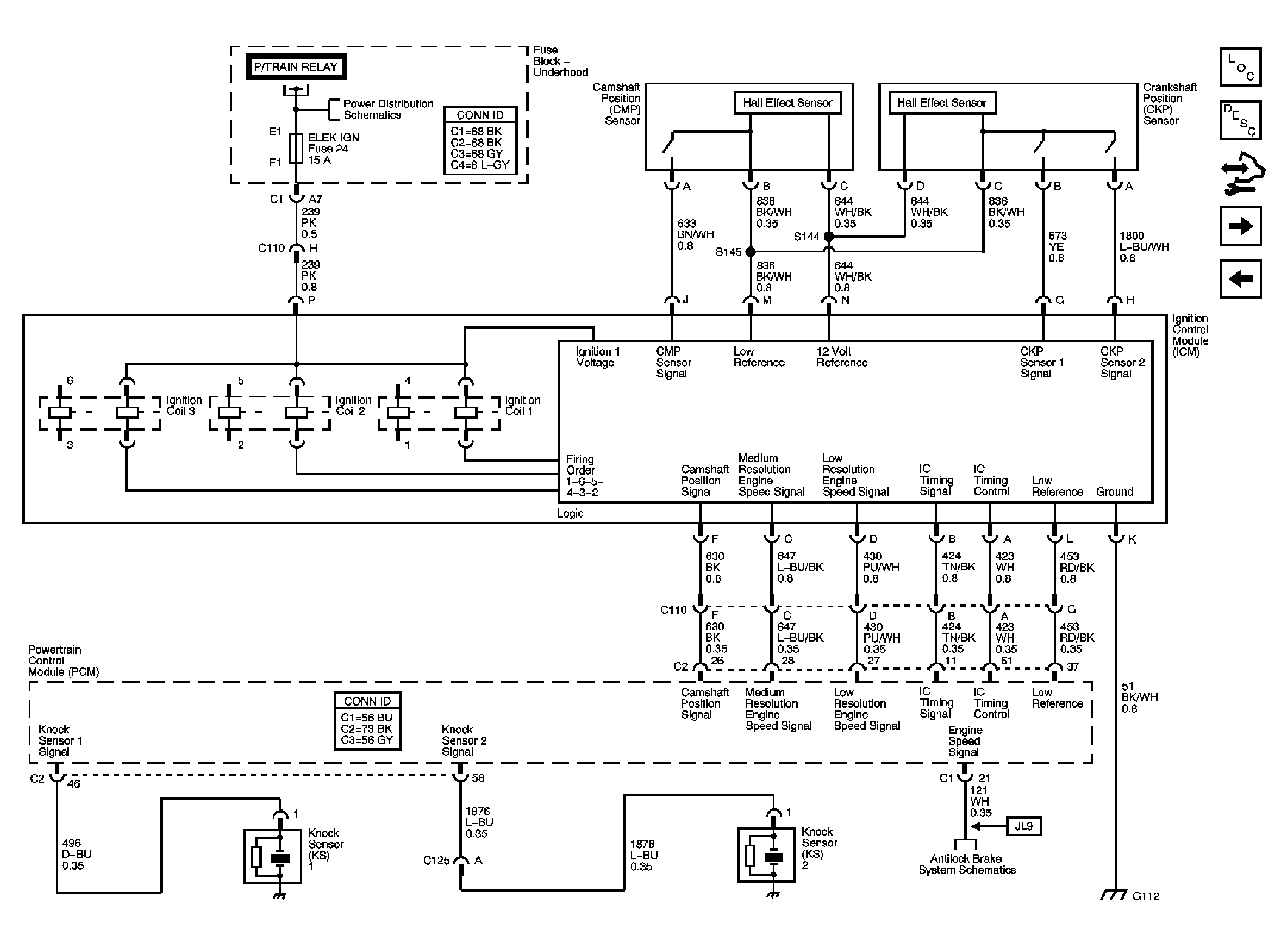

Fig 7: Ignition Controls Schematic
GM1889487Courtesy of GENERAL MOTORS CORP.

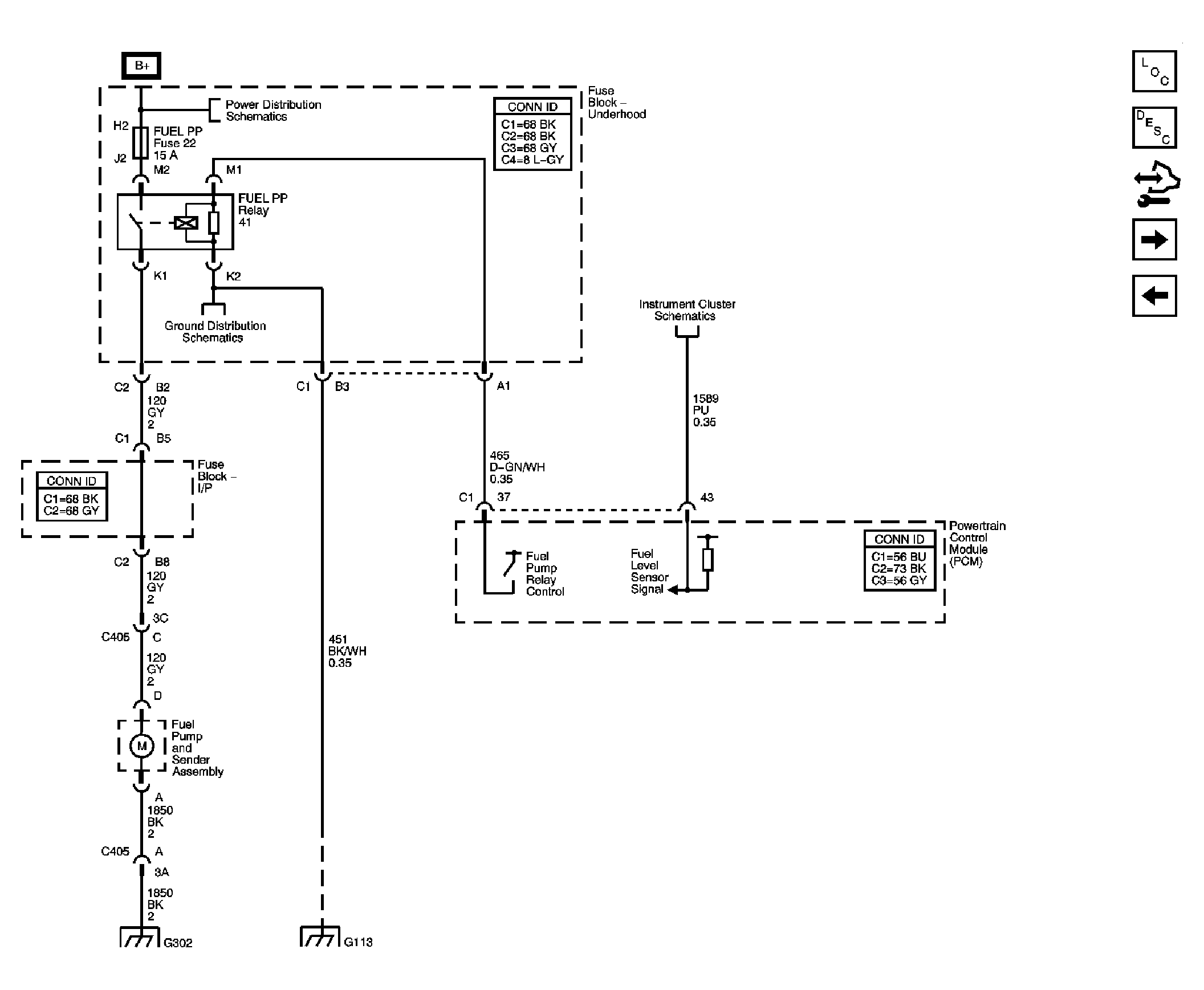

Fig 8: Fuel Pump Controls Schematic
GM1889488Courtesy of GENERAL MOTORS CORP.

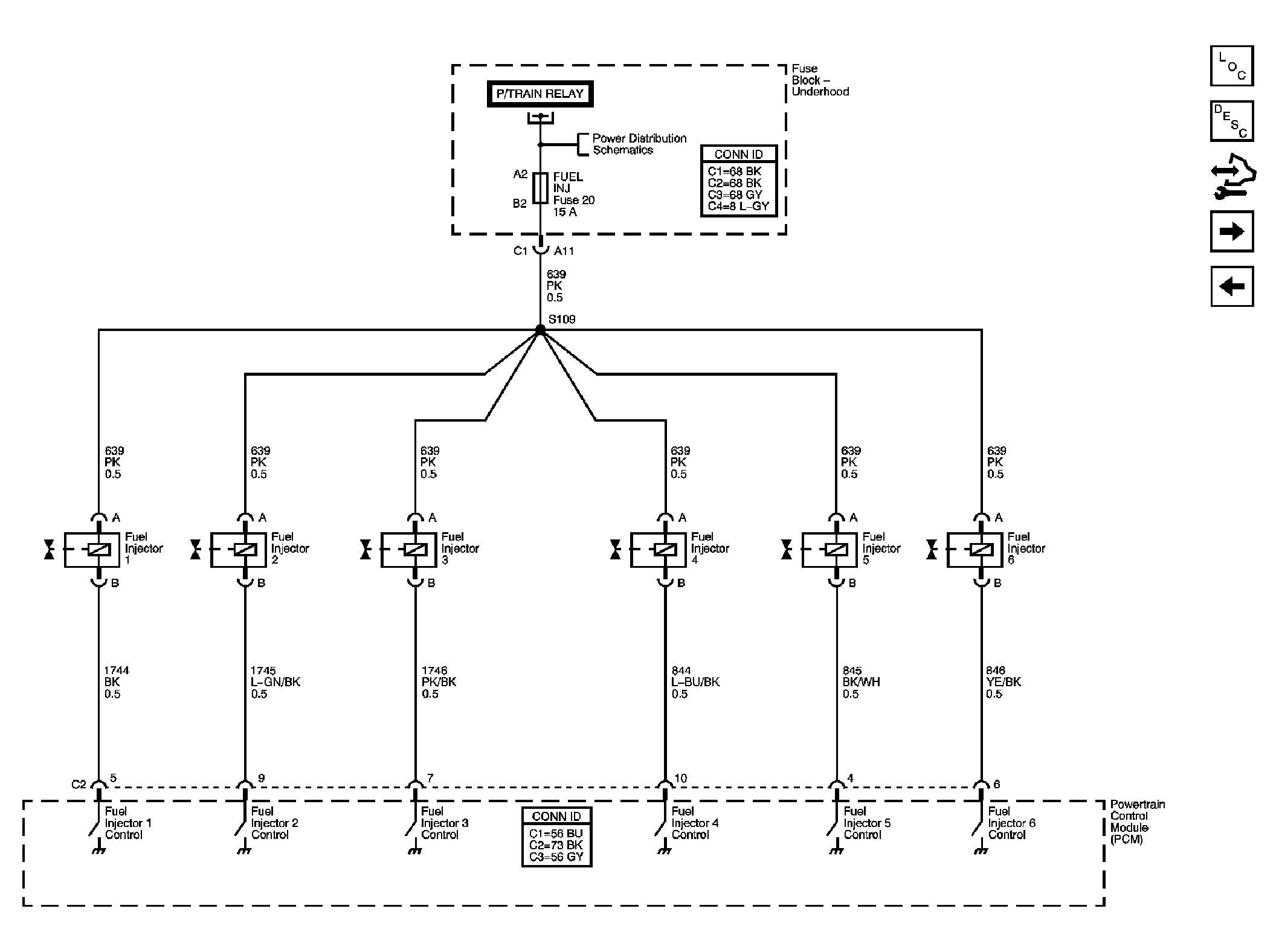

Fig 9: Fuel Injectors Schematic
GM1889490Courtesy of GENERAL MOTORS CORP.

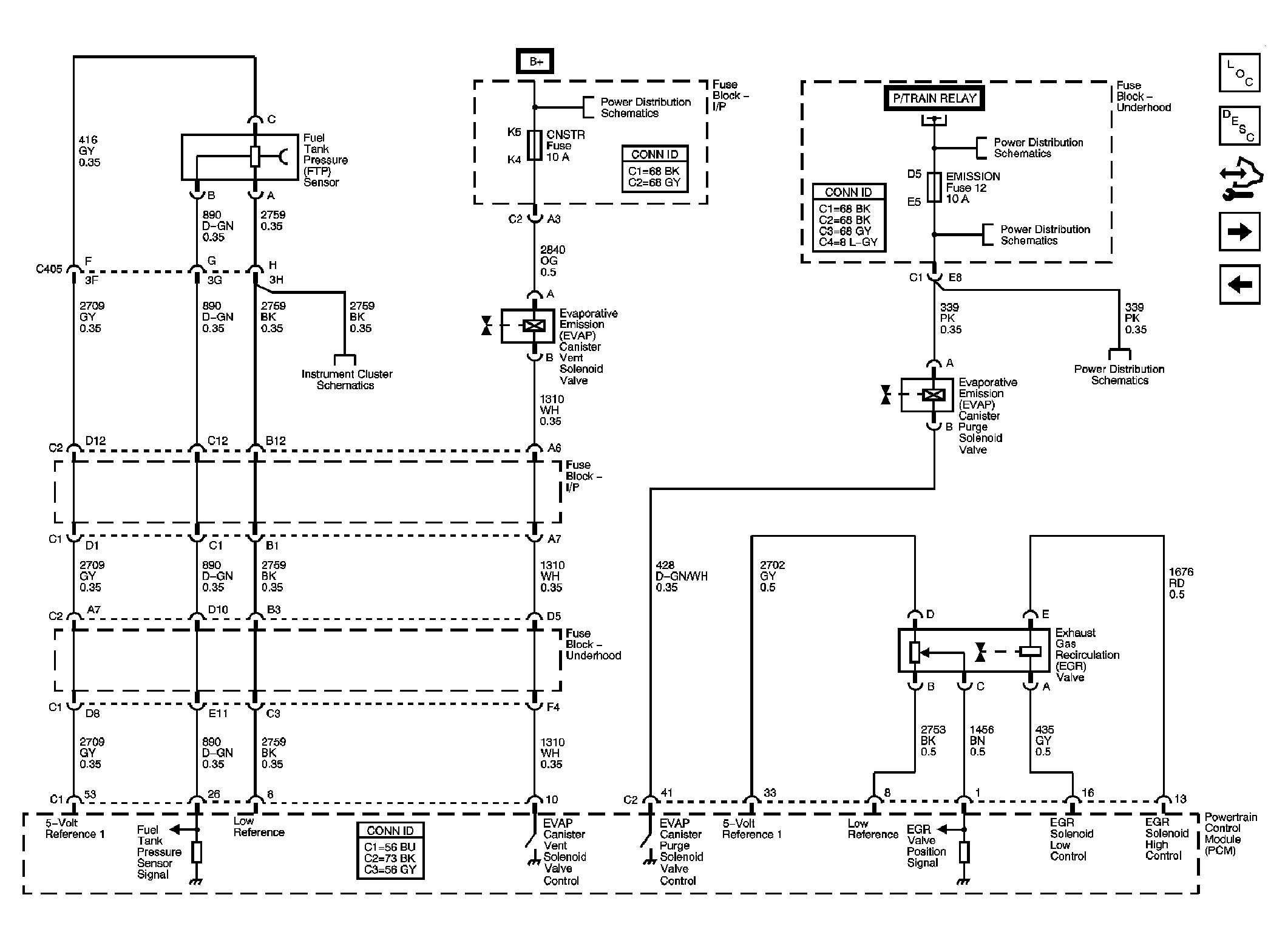

Fig 10: EVAP, EGR, and FTP Controls Schematic
GM1889492Courtesy of GENERAL MOTORS CORP.

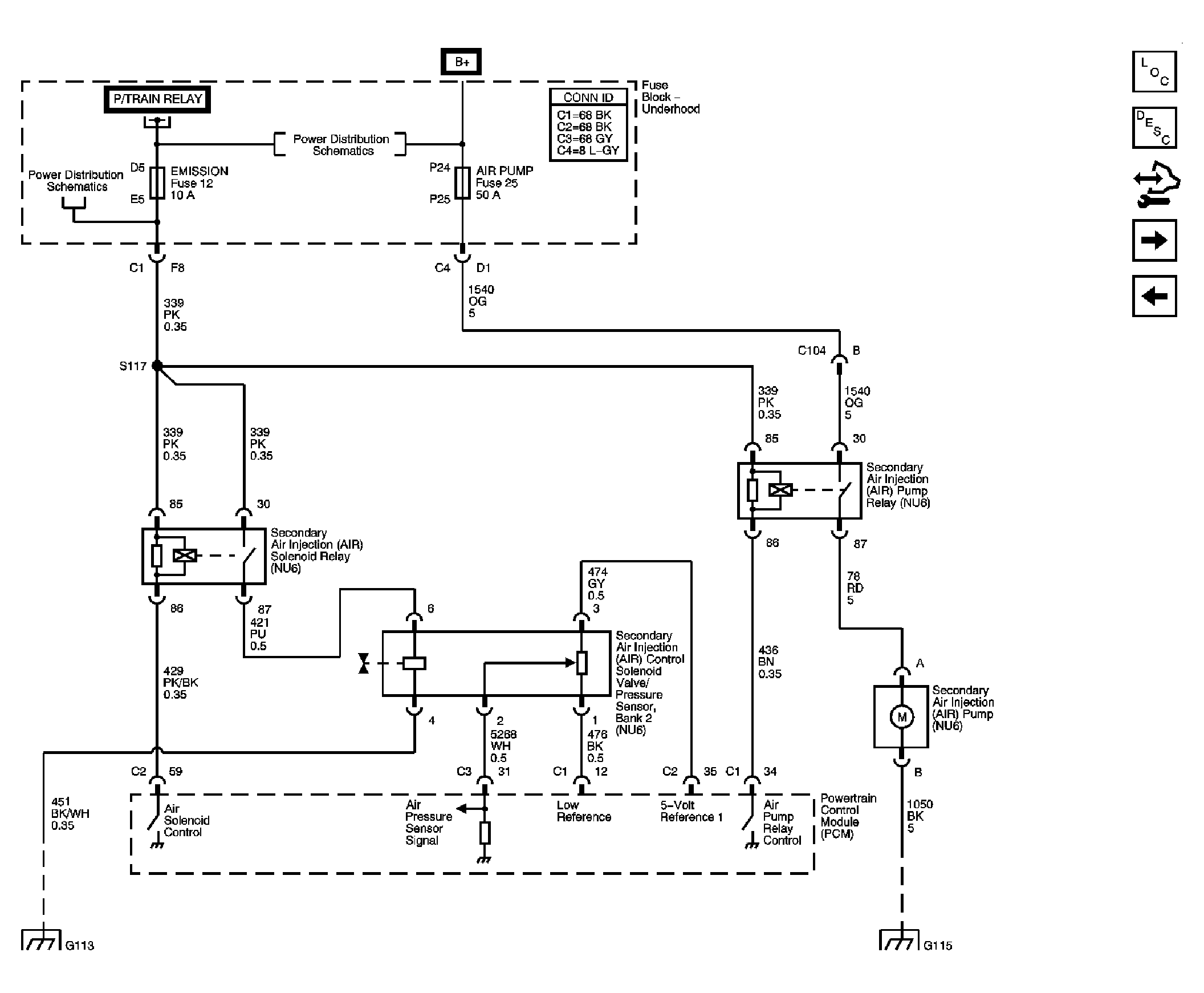

Fig 11: AIR Control Schematics - NU6
GM1889493Courtesy of GENERAL MOTORS CORP.

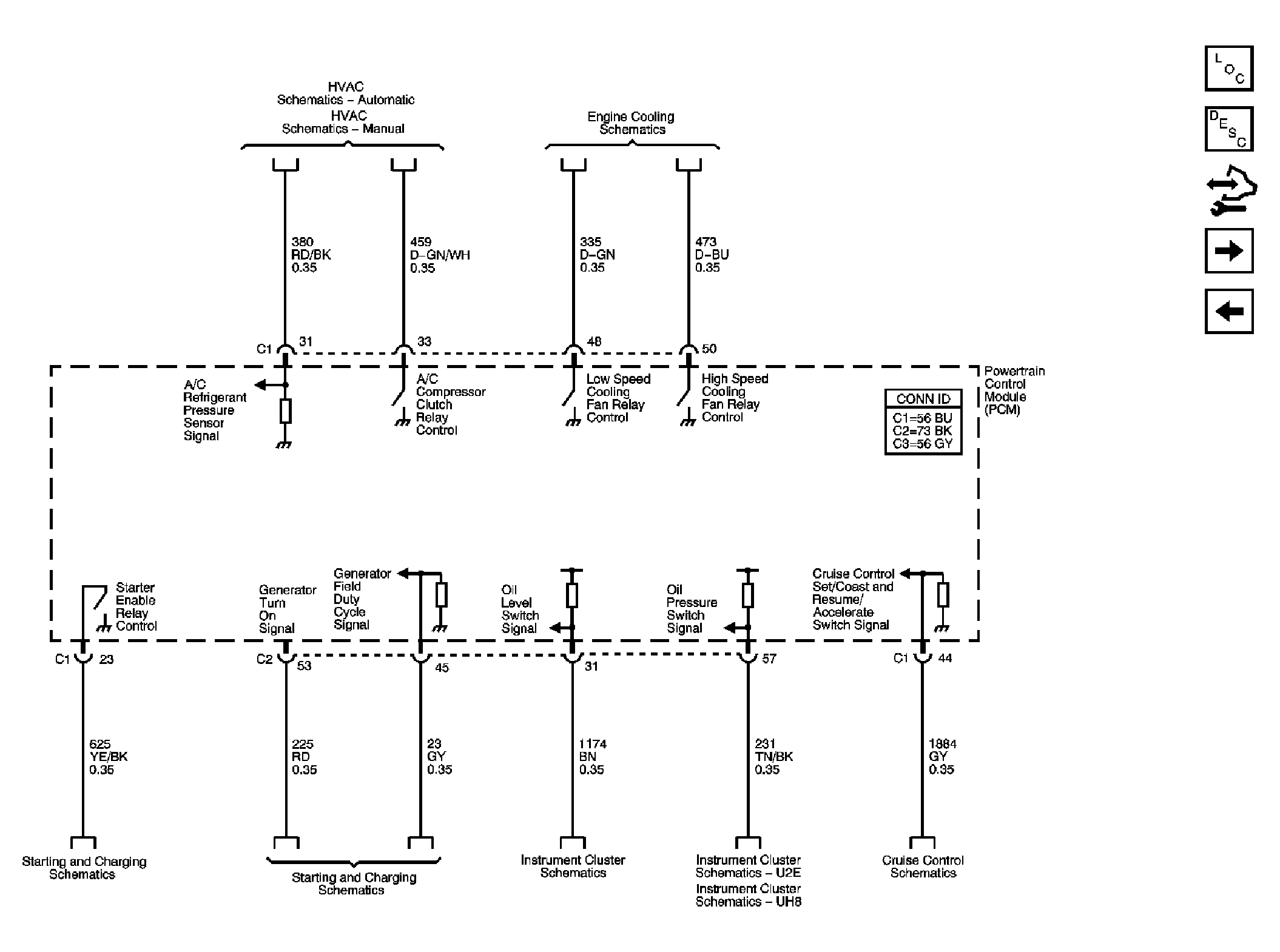

Fig 12: Controlled/Monitored Subsystem References Schematic
GM1889495Courtesy of GENERAL MOTORS CORP.

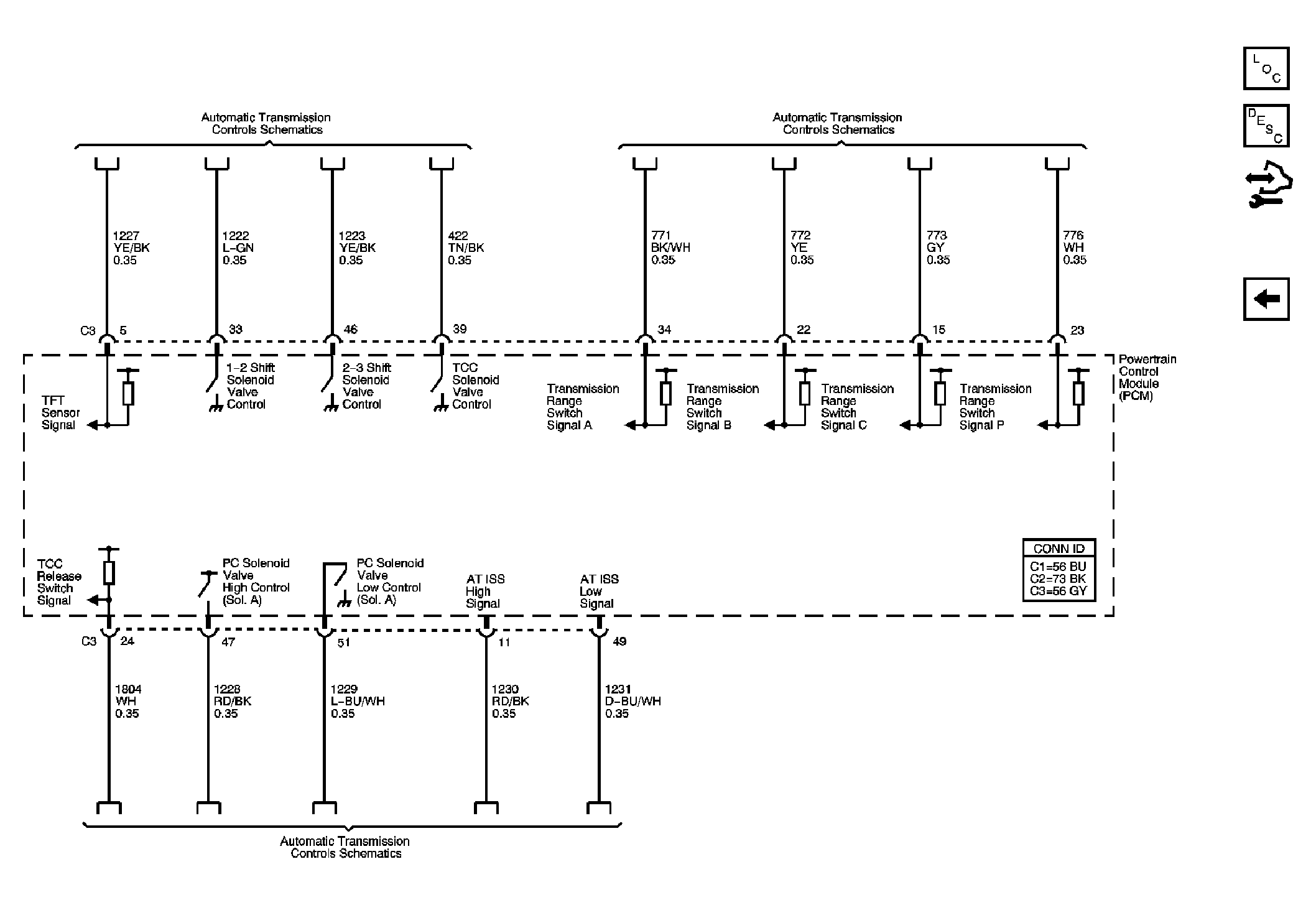

Fig 13: A/T Control References
GM1889498Courtesy of GENERAL MOTORS CORP.
