Electrical Diagrams



Automatic Transmission Controls Schematics

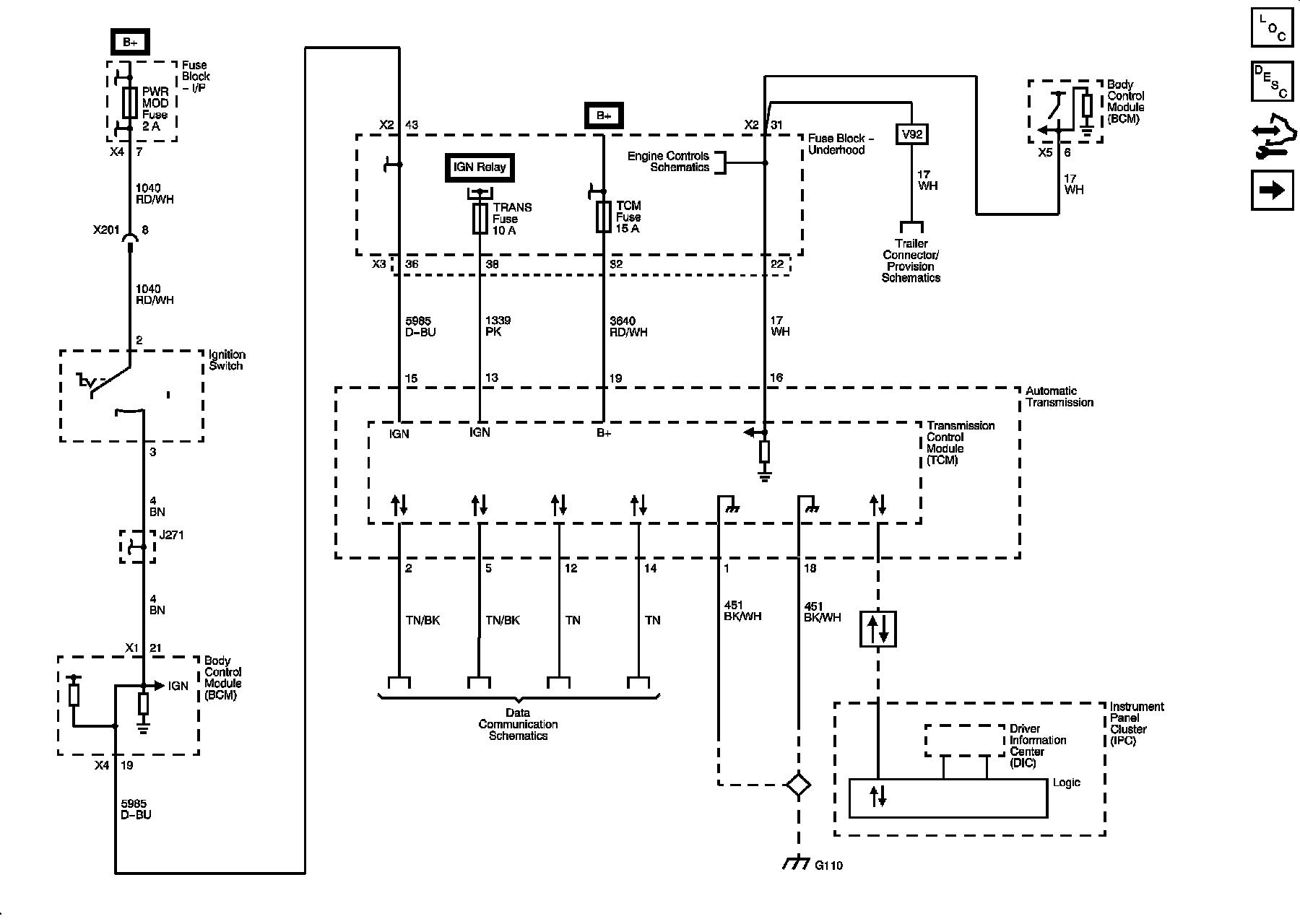

Module Power, Ground, Data Communication, MIL and Brake Applied Signal





Pressure Controls and Shift Controls





ISS, OSS, TFP, and TFT





IMS and Tap Up/Tap Down
