Front of Vehicle/Engine Compartment Component Views

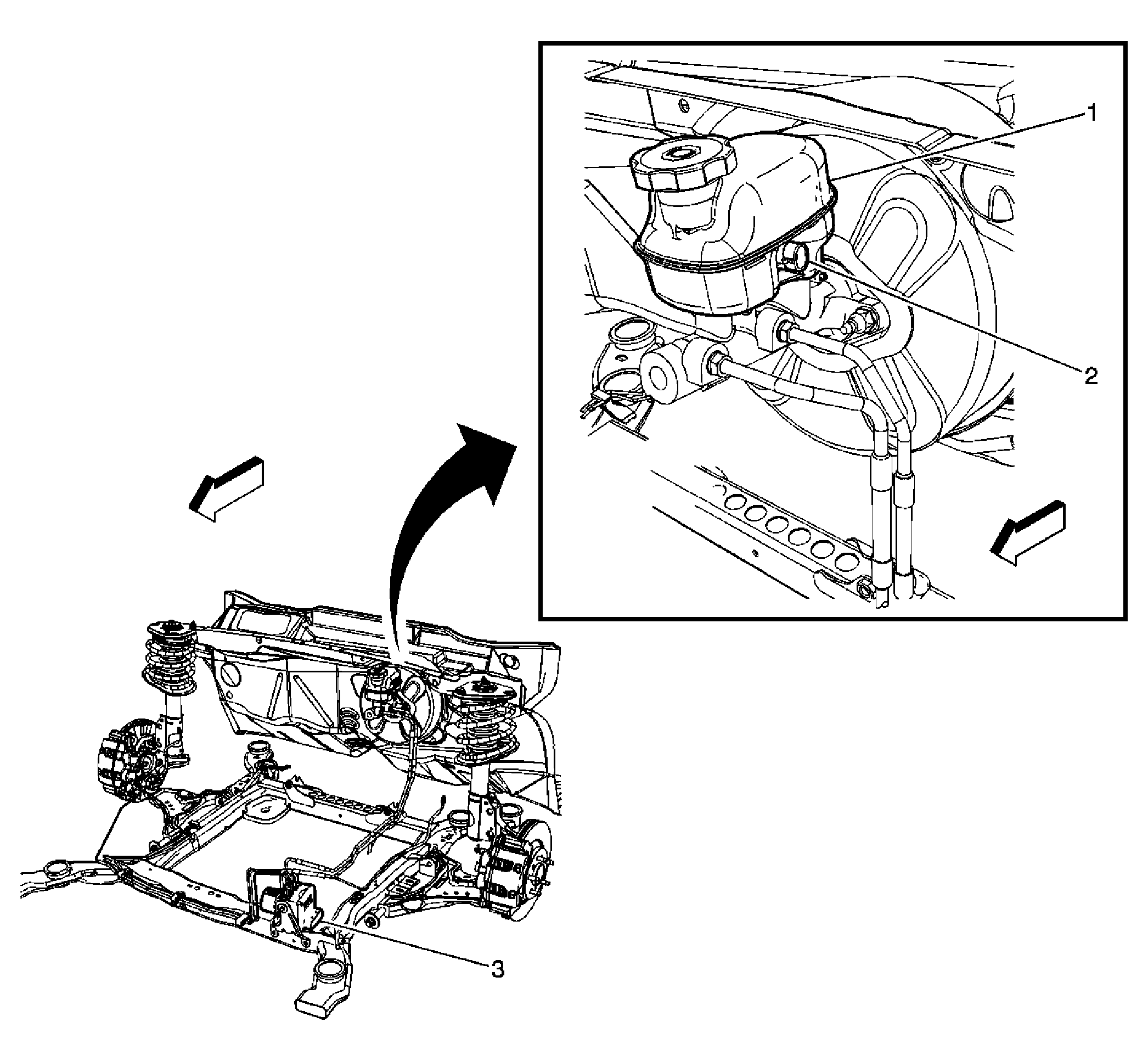

Fig 1: View Of Left Rear Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Master Cylinder Reservoir
2	Brake Fluid Level Switch
3	Electronic Brake Control Module (EBCM)

Fig 2: Front Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Compressor
2	A/C Condensor
3	A/C Compressor
4	A/C Refrigerant Pressure Sensor
5	A/C Compressor Clutch Connector

Fig 3: View Of Right Front Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

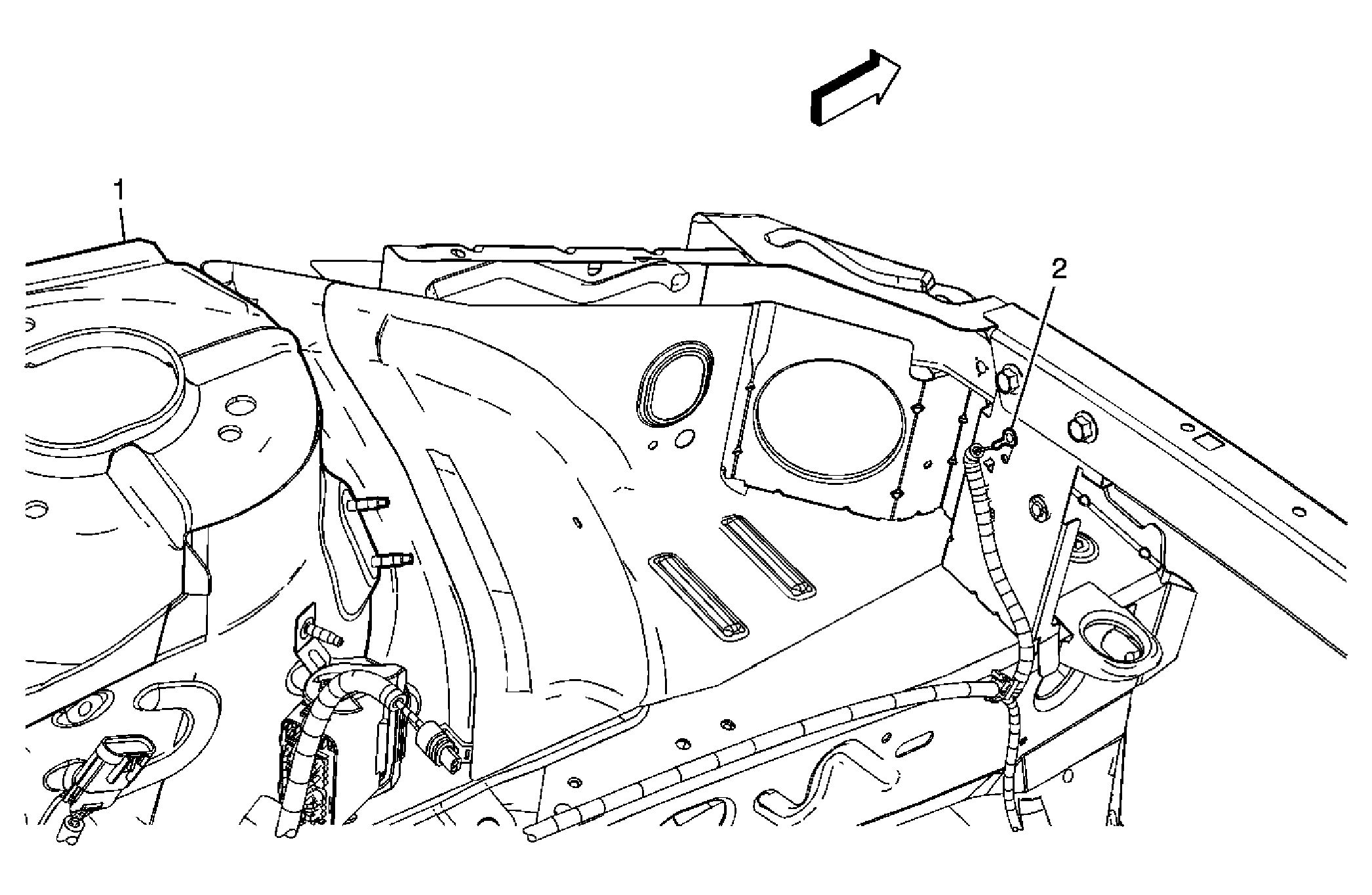

Fig 4: Locating G101

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Front Strut Tower
2	G101

Fig 5: Front Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front End Sensor - Left
2	Cooling Fan - Left
3	Cooling Fan - Right
4	Inflatable Restraint Front End Sensor - Right

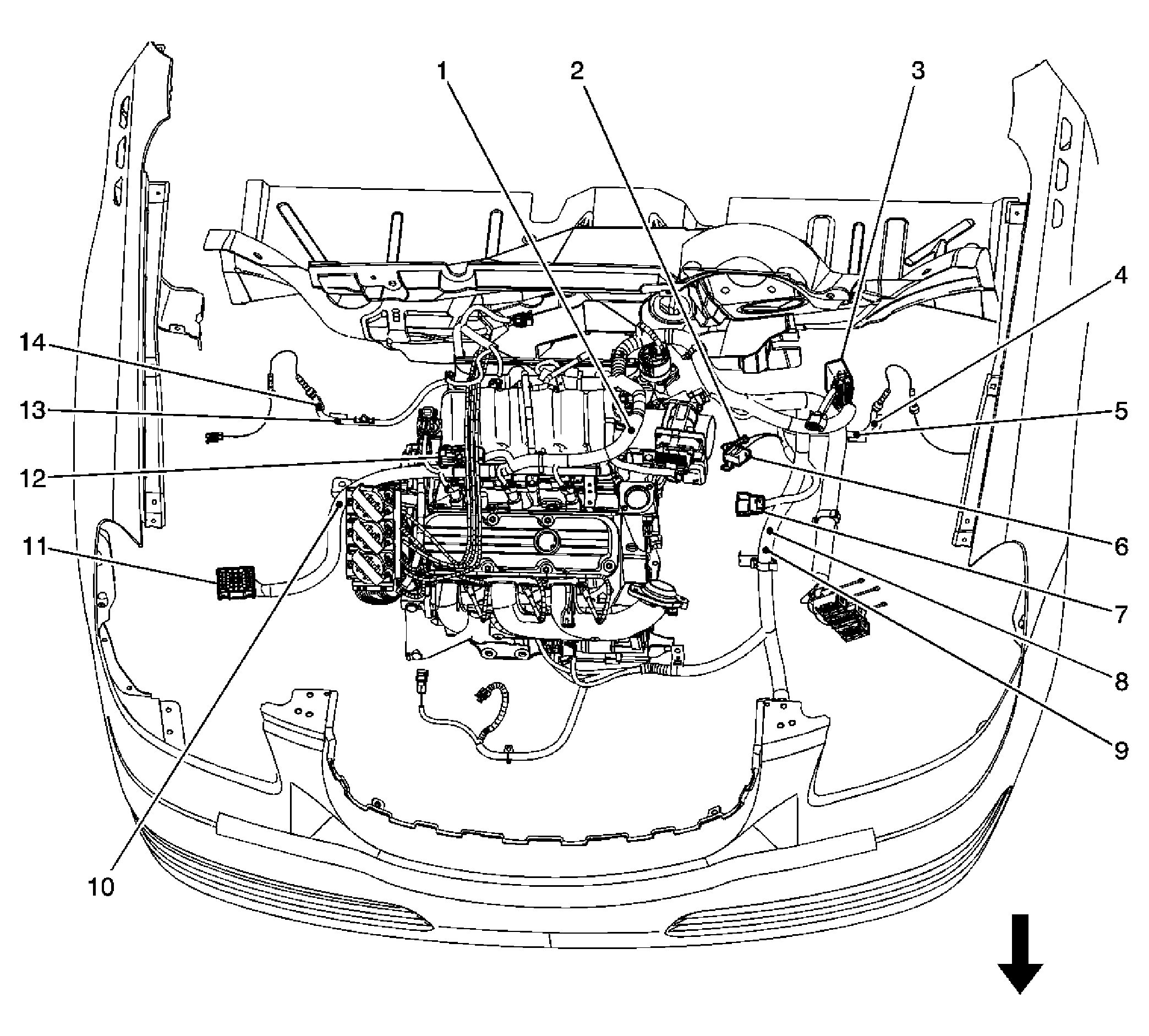

Fig 6: Engine Harness Routing (L26)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J109
2	G114
3	X111 Engine Harness to Body Harness
4	J114
5	J113
6	G100
7	Automatic Transmission Connector
8	J106
9	J108
10	J101
11	Fuse Block-Underhood X3
12	X110 Engine Harness to Ignition Control Module Harness
13	J115
14	J116

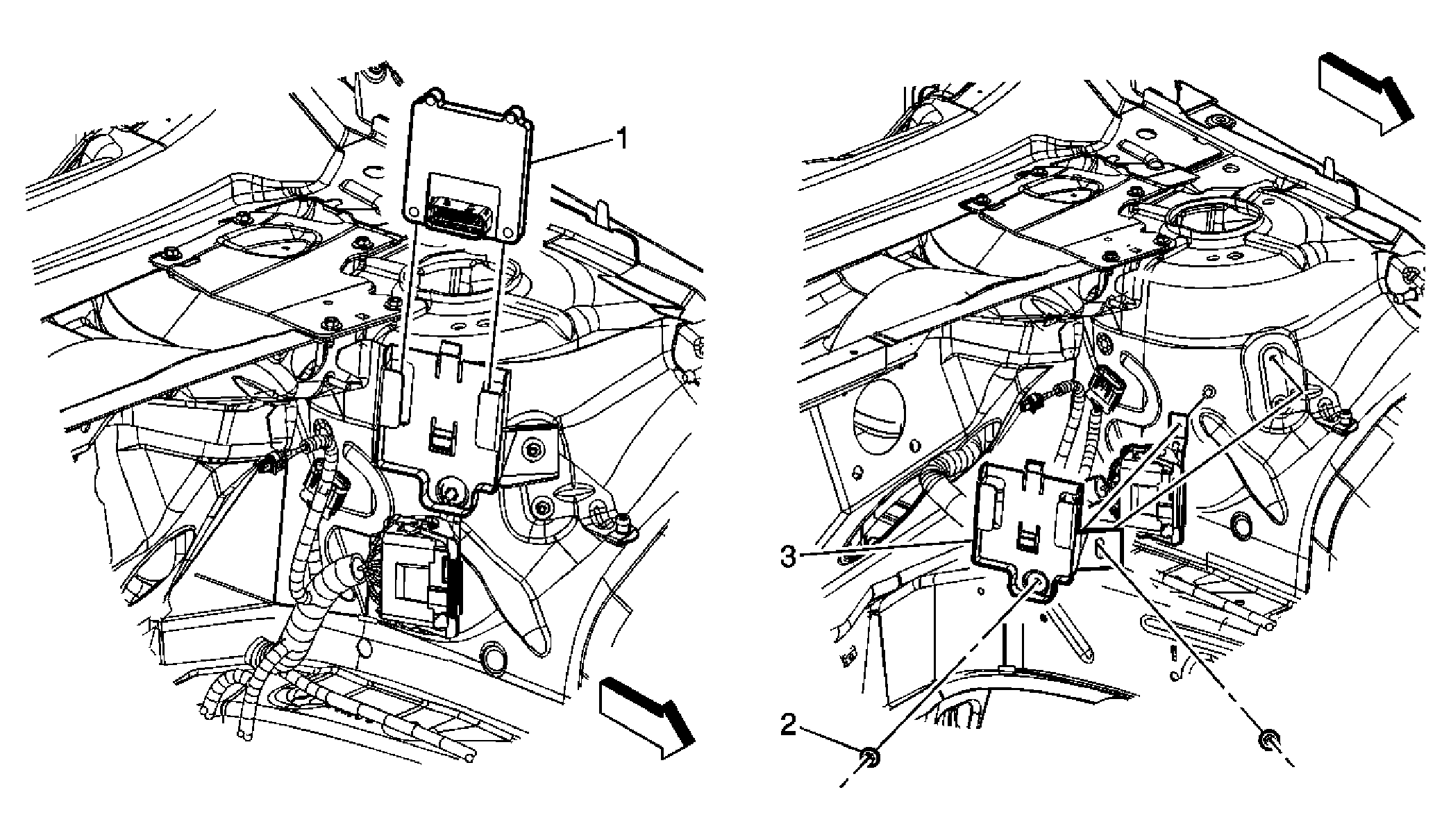

Fig 7: Engine Compartment - Left Rear (LD8/L37)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transmission Control Module (TCM)
2	Fasteners
3	Transmission Control Module (TCM) Bracket

Fig 8: View Of Front Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch (AP3 / AP8)

Fig 9: Identifying Wiper/Washer Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Container
2	Windshield Washer Fluid Pump
3	Windshield Washer Fluid Level Switch
4	Windshield Wiper Motor
5	Windshield Washer Fluid Container
6	Windshield Heated Washer Fluid Module (XA7)

Fig 10: View Of Front Of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park/Turn Signal Lamp - Left Front
2	Marker Lamp - Left Front
3	Cornering Lamp - Left (TUH)
4	Headlamp - High Beam - Left
5	Headlamp - Low Beam - Left
6	Fog Lamp - Left Front (T96)
7	Fog Lamp - Right Front (T96)
8	Headlamp - Low Beam - Right
9	Cornering Lamp - Right (TUH)
10	Marker Lamp - Right Front
11	Headlamp - High Beam - Right
12	Park/Turn Signal Lamp - Right Front

Fig 11: View Of Left Front Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Right Fender
2	Horn Assembly

Fig 12: Power Steering Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Angle Sensor (JL4)
2	Electronic Brake Control Module (EBCM)
3	Variable Effort Steering Actuator (LD8/L37)
4	Power Steering Rack
5	Steering Column Assembly

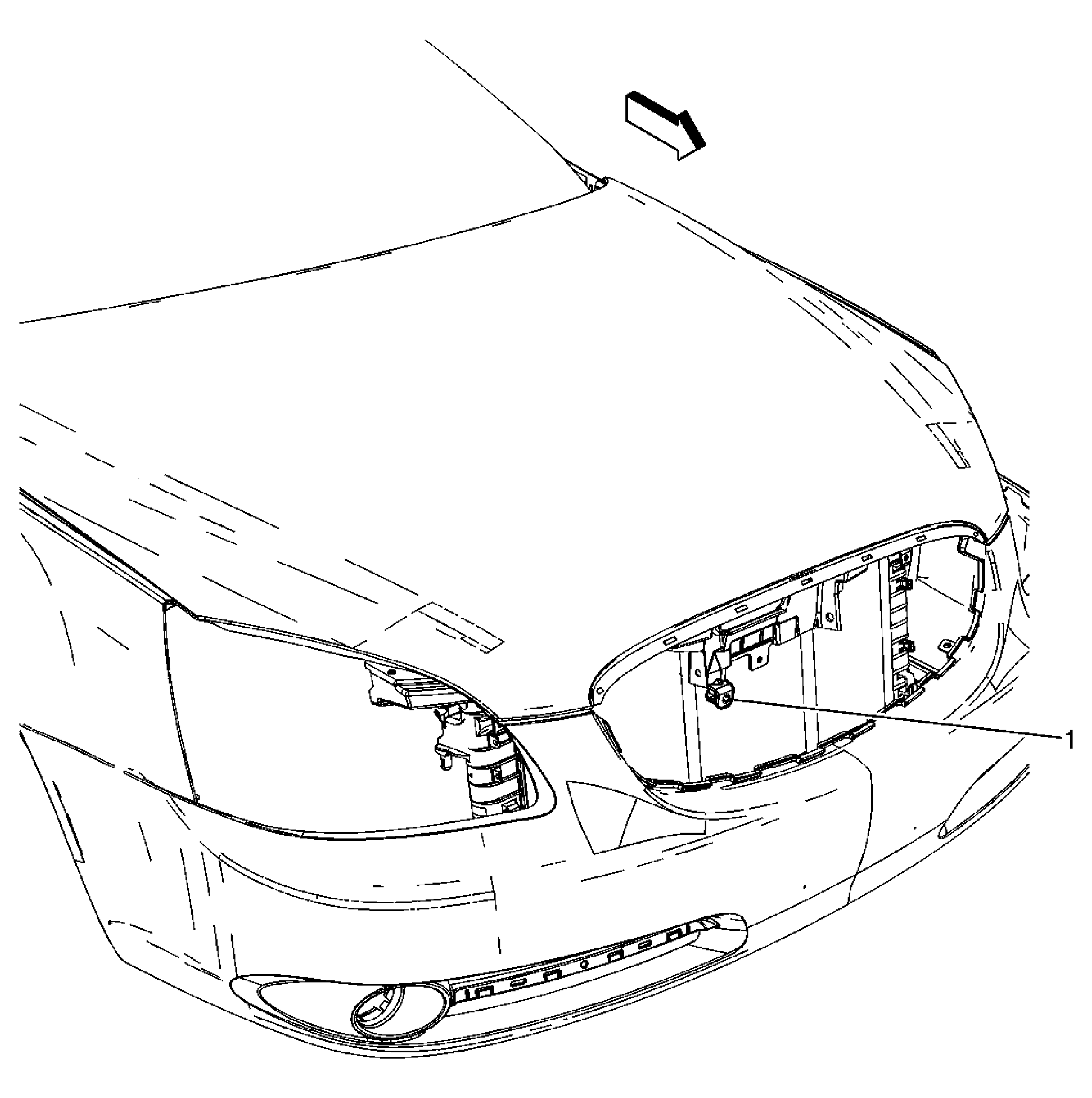

Fig 13: Identifying Components Behind Front Grille

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Air Temperature Sensor
