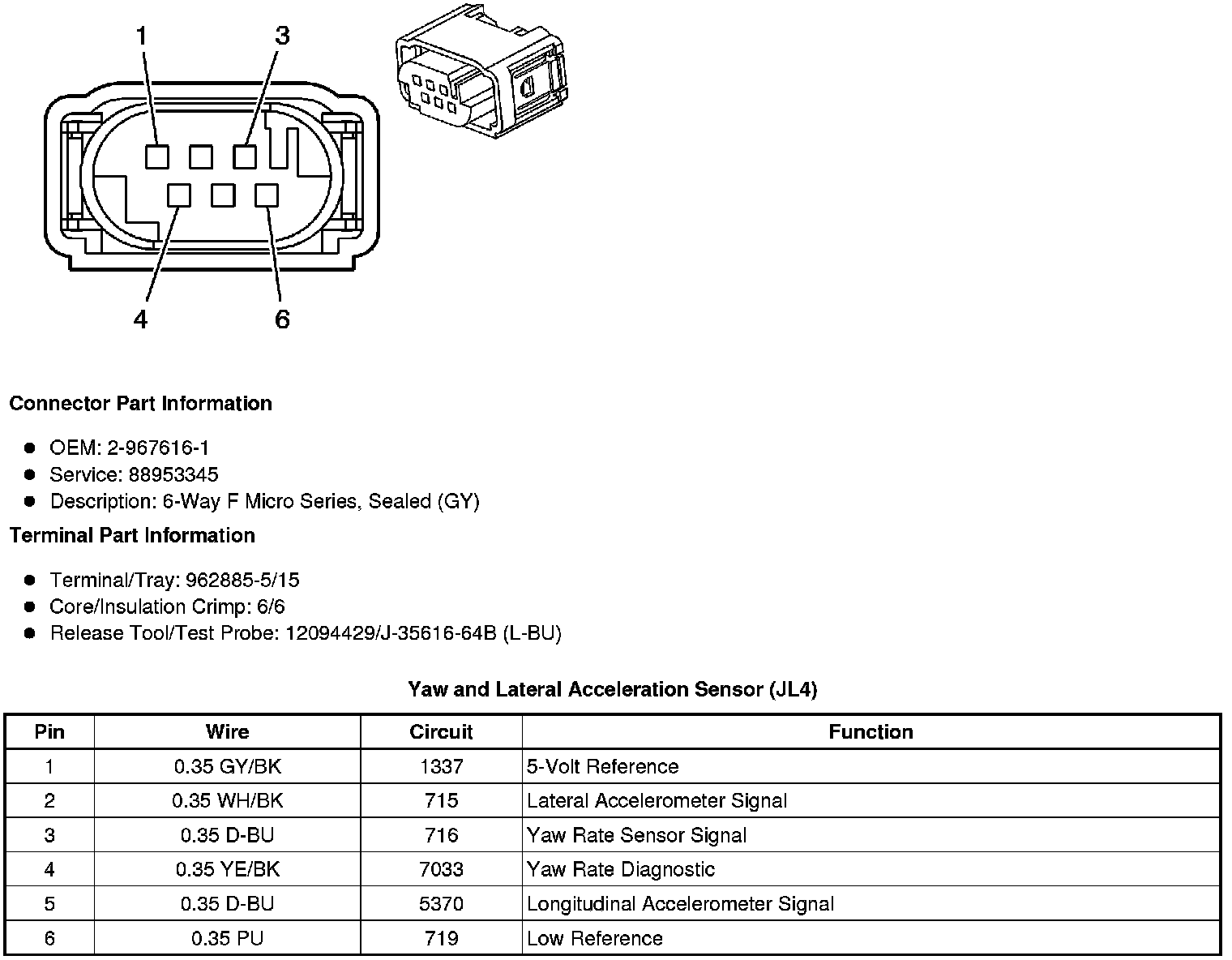

Acceleration/Deceleration Sensor
Component Connector End Views
Yaw and Lateral Acceleration Sensor (JL4)
