Restraint Systems
Component Connector End Views
Inflatable Restraint Front End Sensor - Left
Inflatable Restraint Front End Sensor - Right
Inflatable Restraint I/P Module X1
Inflatable Restraint I/P Module X2
Inflatable Restraint I/P Module Indicator
Inflatable Restraint Passenger Presence System (PPS) Module
Inflatable Restraint Passenger Presence System (PPS) Sensor
Inflatable Restraint Roof Rail Module - Left (AY0)
Inflatable Restraint Roof Rail Module - Right (AY0)
Inflatable Restraint Seat Belt Tension Sensor

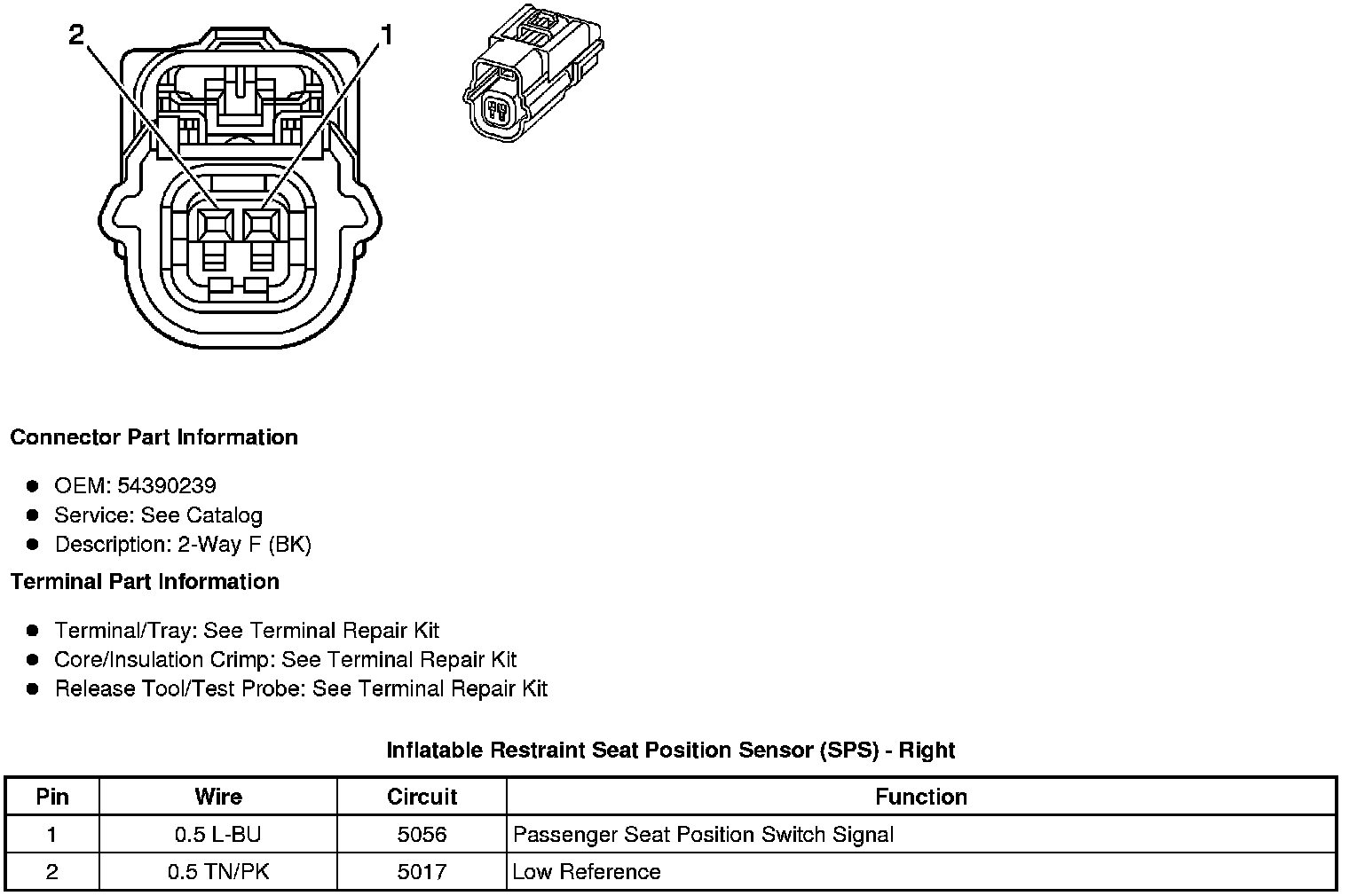

Inflatable Restraint Seat Position Sensor (SPS) - Right

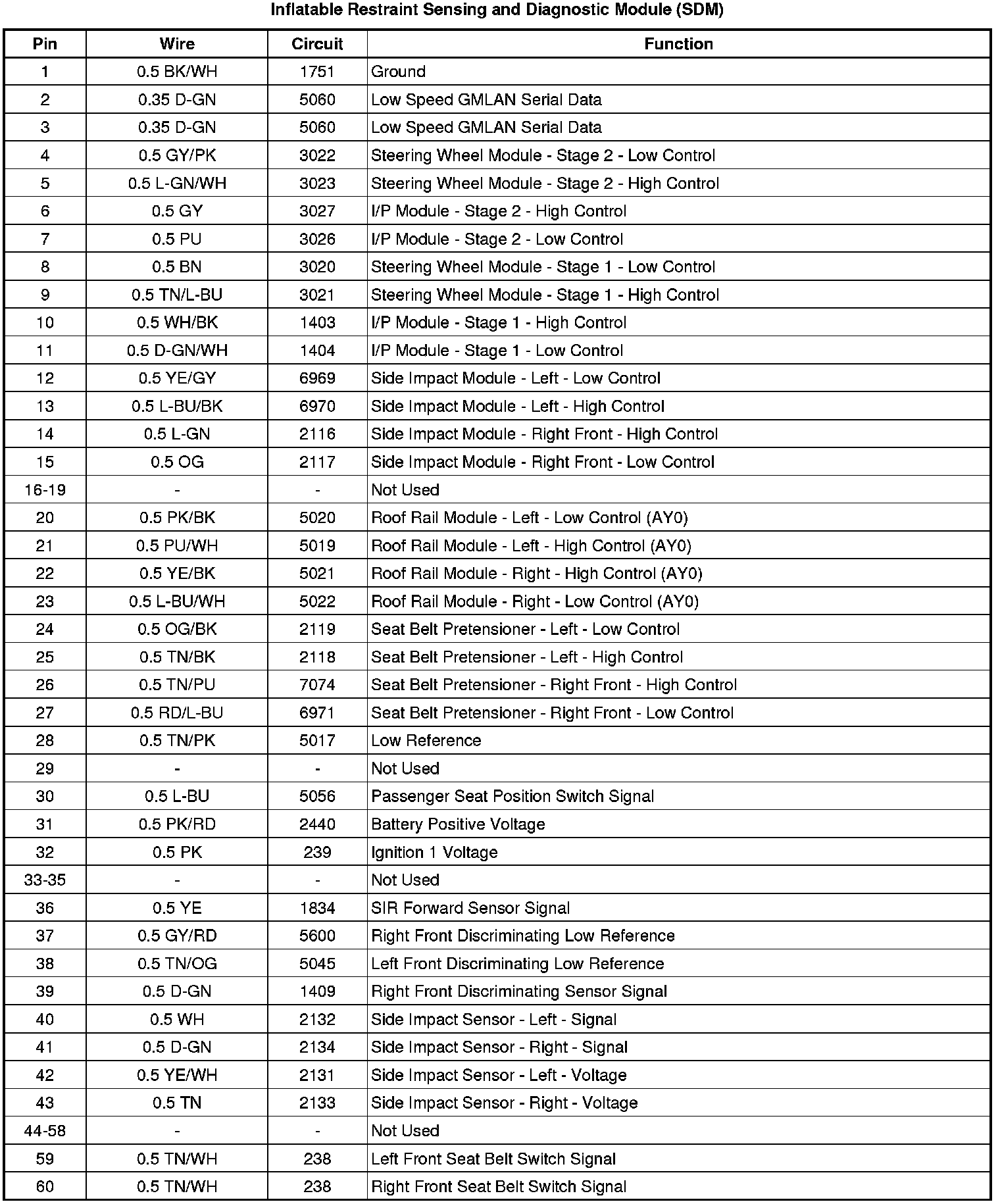

Inflatable Restraint Sensing and Diagnostic Module (SDM)
Inflatable Restraint Side Impact Module - Left
Inflatable Restraint Side Impact Module - Right
Inflatable Restraint Side Impact Sensor - Left
Inflatable Restraint Side Impact Sensor - Right

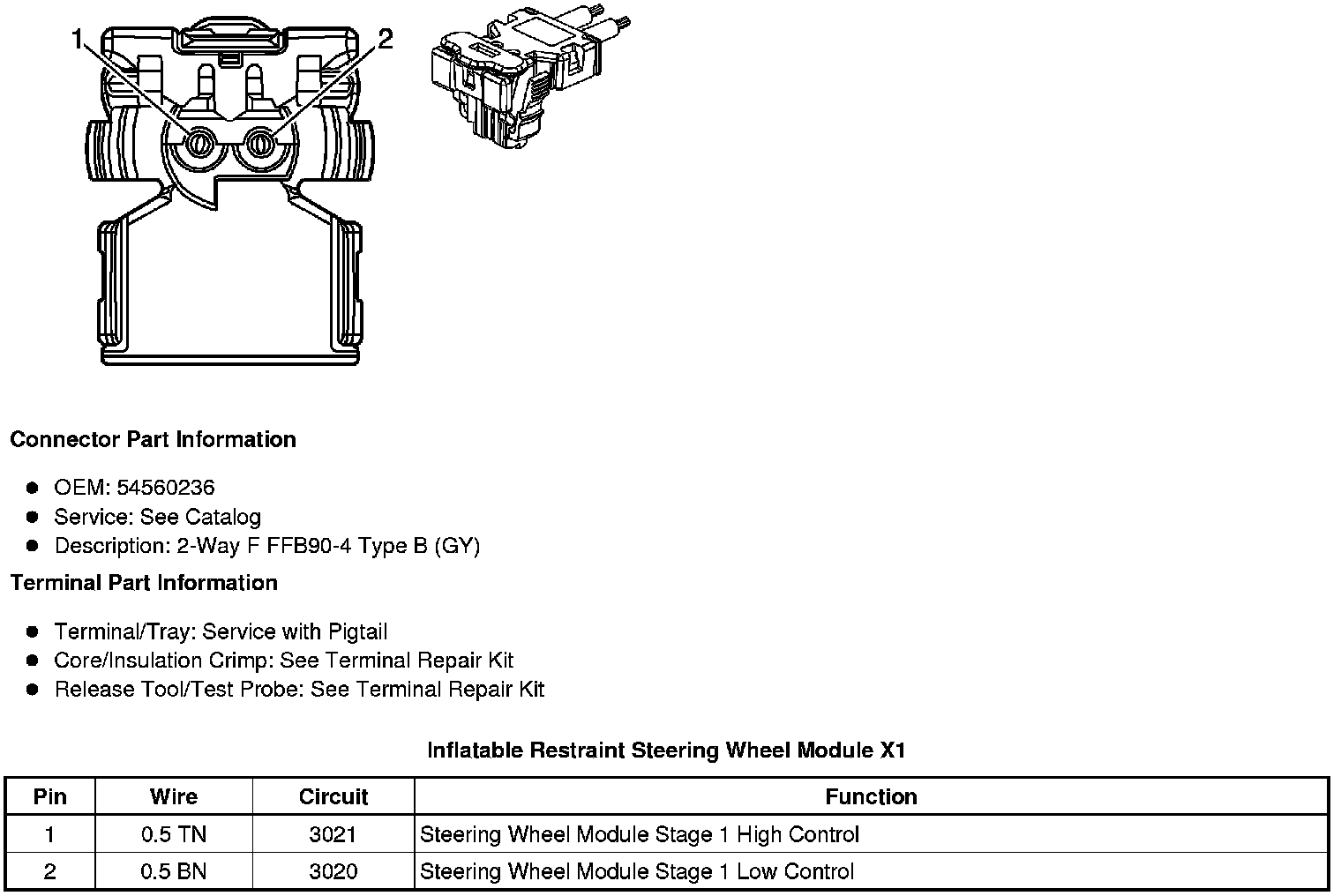

Inflatable Restraint Steering Wheel Module X1

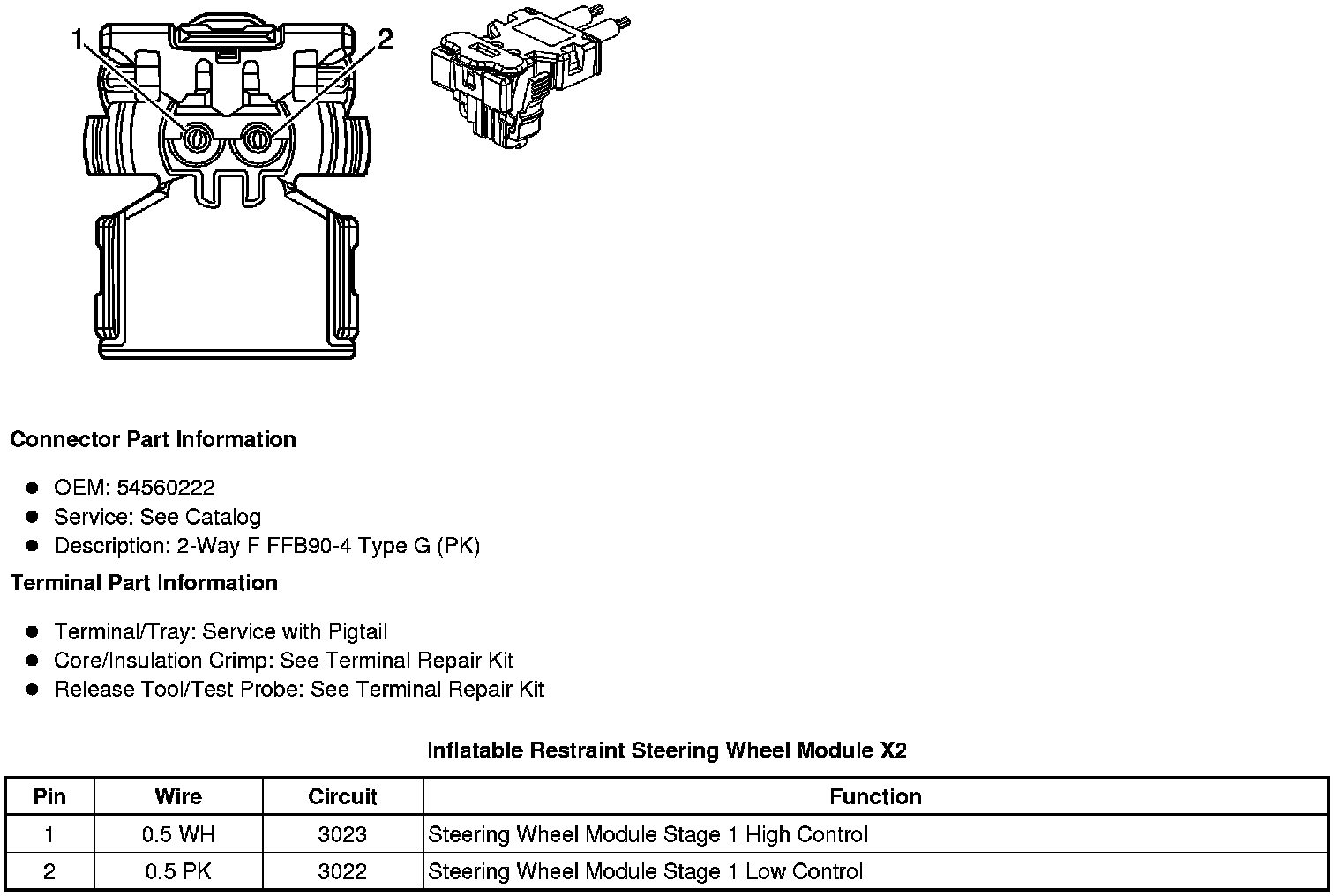

Inflatable Restraint Steering Wheel Module X2
Seat Belt Pretensioner - Left Front
Seat Belt Pretensioner - Right Front
Seat Belt Switch - Left
Seat Belt Switch - Right
