Power Seat Motor Position Sensor



Component Connector End Views

Seat Front Vertical Position Sensor - Driver (AE8/A45) (Part of Seat Adjuster Motor Assembly Driver)





Seat Lumbar Massage Motor Driver Horizontal Motor (Part of Seat Lumbar Massage Motor - Driver (A45/AE8)





Seat Lumbar Massage Motor Driver Vertical Motor (Part of Seat Lumbar Massage Motor - Driver (AE8/A45)

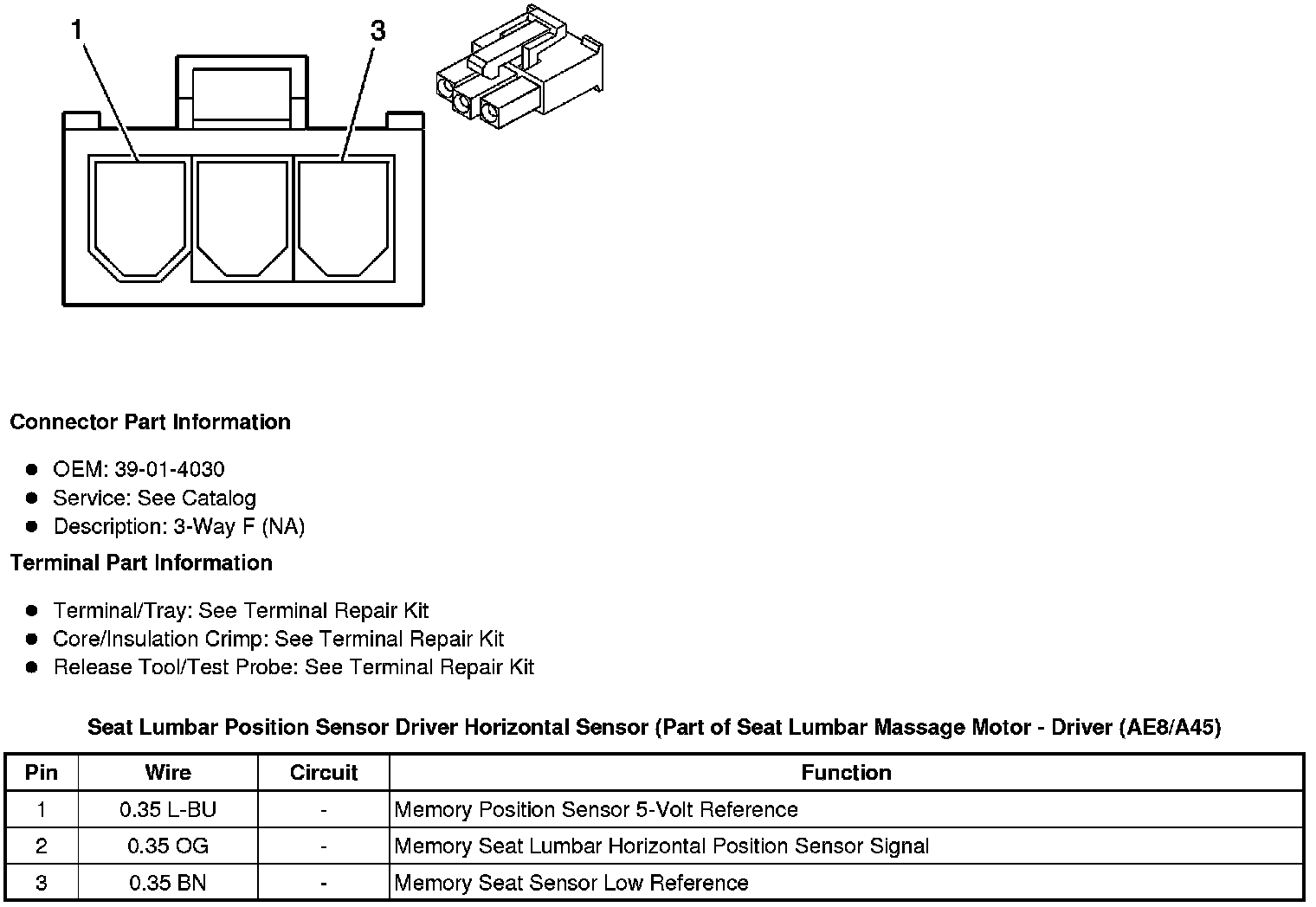

Seat Lumbar Position Sensor Driver Horizontal Sensor (Part of Seat Lumbar Massage Motor - Driver (AE8/A45)

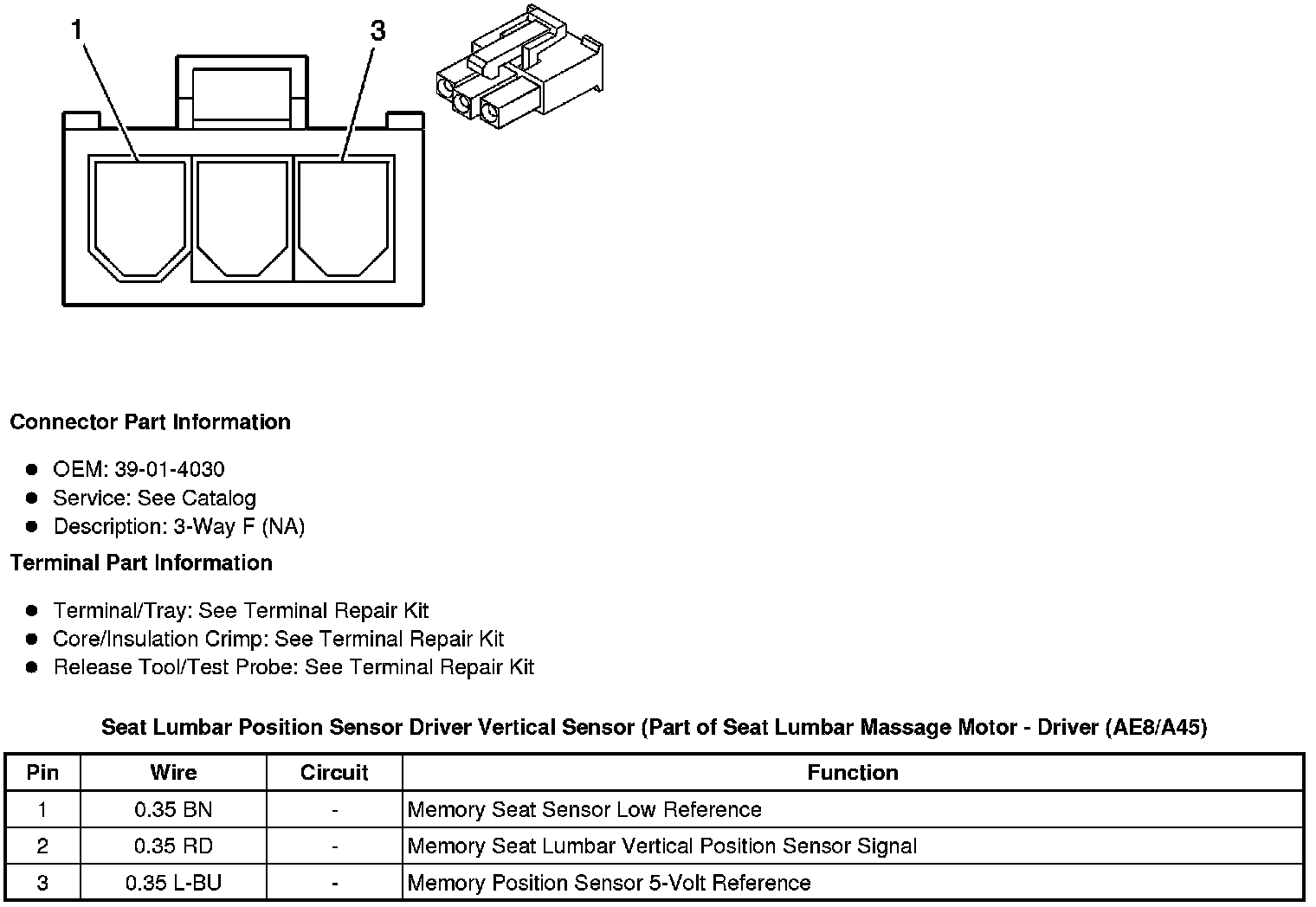

Seat Lumbar Position Sensor Driver Vertical Sensor (Part of Seat Lumbar Massage Motor - Driver (AE8/A45)





Seat Rear Horizontal Position Sensor - Driver (AE8/A45) (Part of Seat Adjuster Motor Assembly Driver)





Seat Rear Vertical Position Sensor - Driver (AE8/A45) (Part of Seat Adjuster Motor Assembly Driver)
