Seat Temperature Control Module



Component Connector End Views

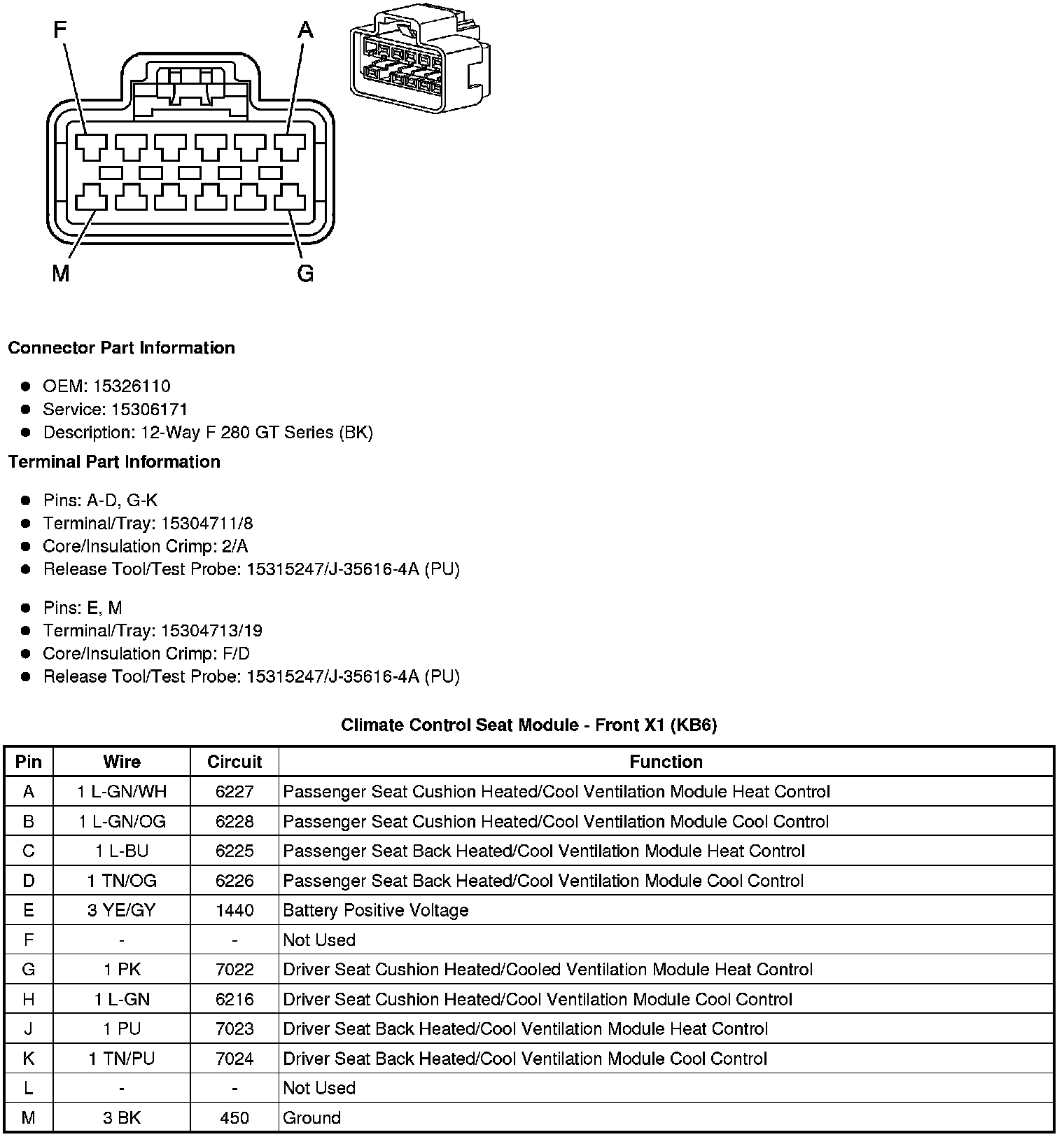

Climate Control Seat Module - Front X1 (KB6)

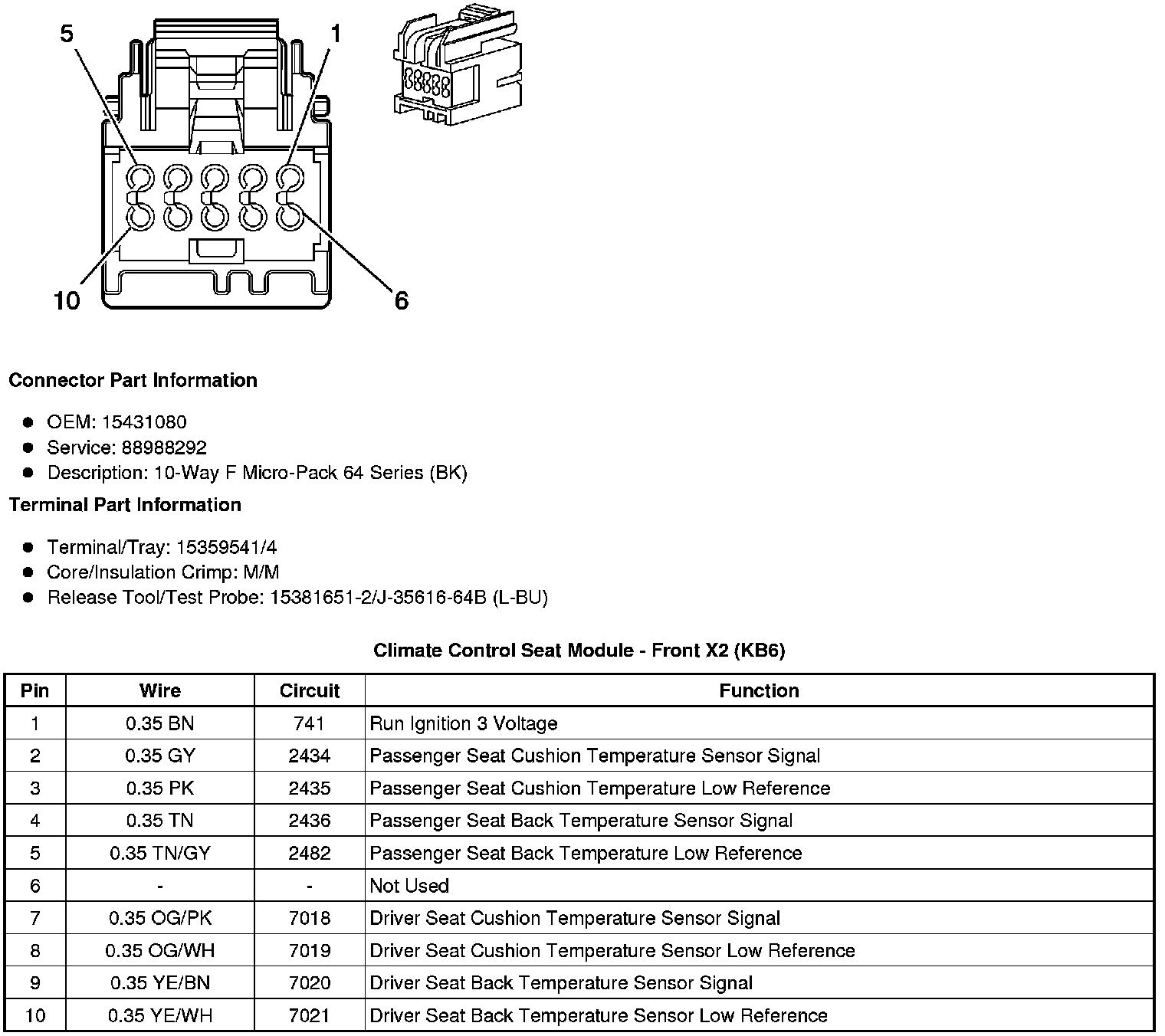

Climate Control Seat Module - Front X2 (KB6)

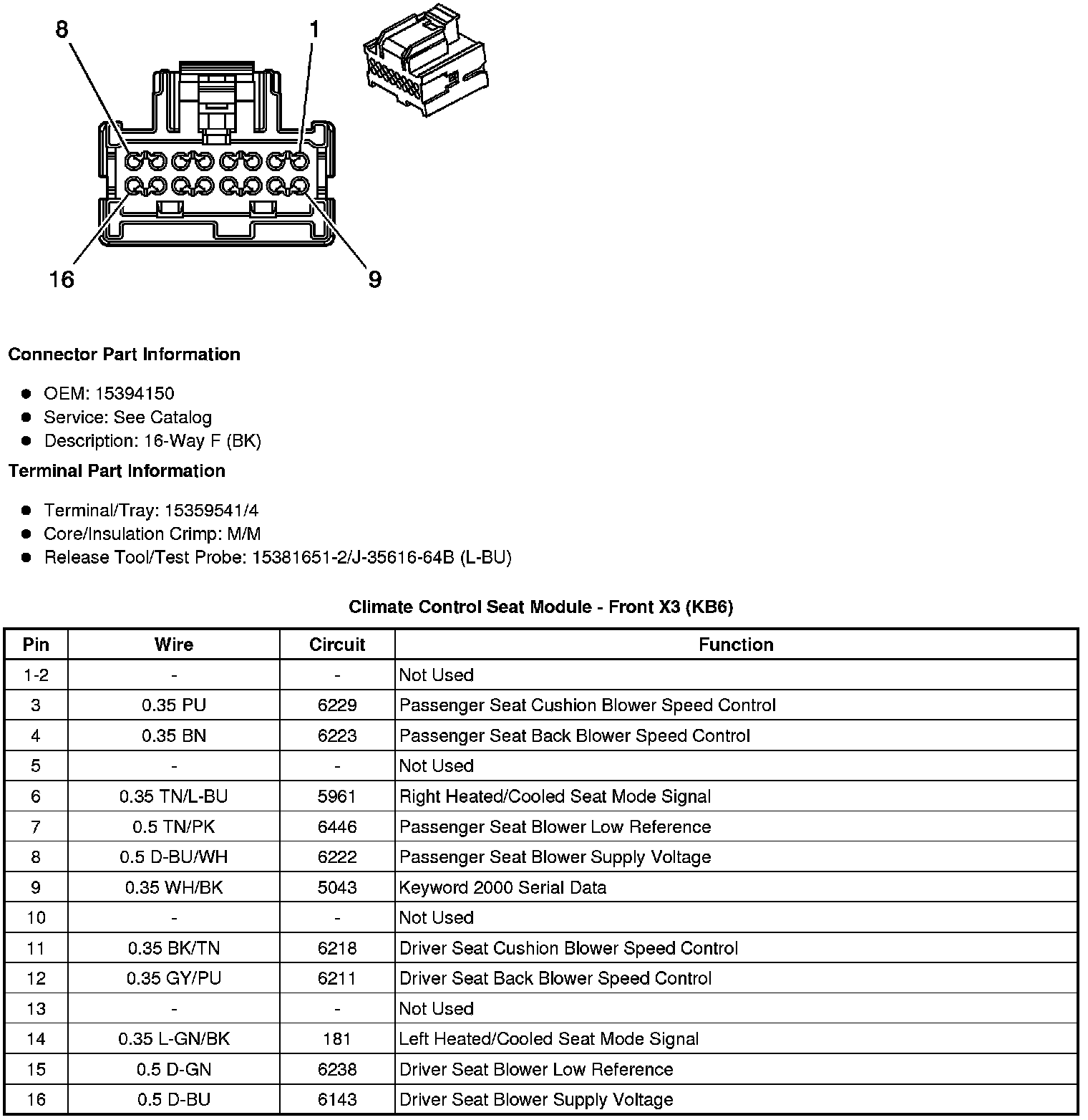

Climate Control Seat Module - Front X3 (KB6)
