Steering Wheel Control Switch Assembly Replacement

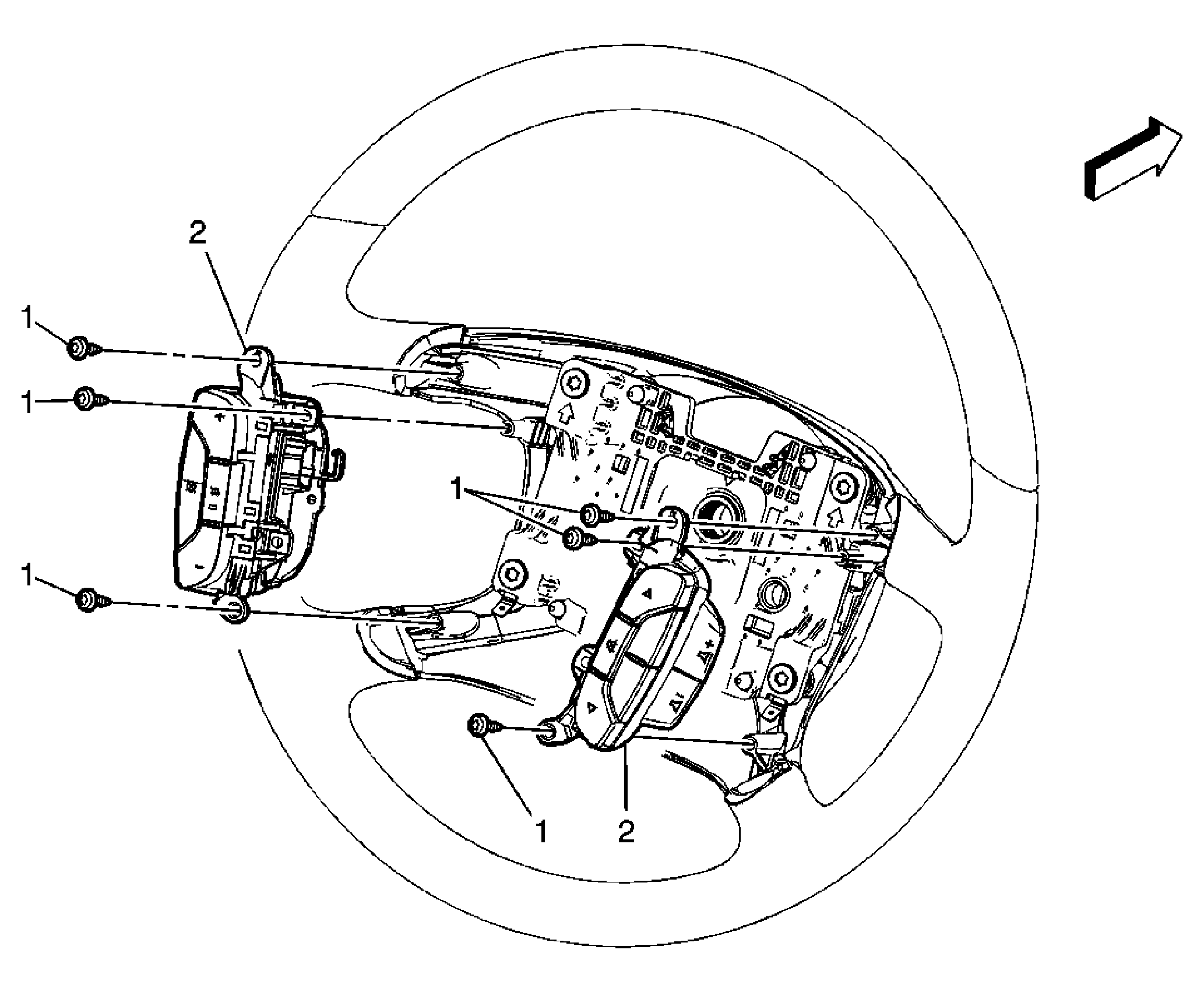

Fig 1: Identifying Steering Wheel Control Switch Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .
1	Steering Wheel Switch Screw (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten:  2 N.m (18 lb in)
2	Steering Wheel Control Switch Assembly (Qty: 2) Procedure:  Disconnect the electrical connector.
