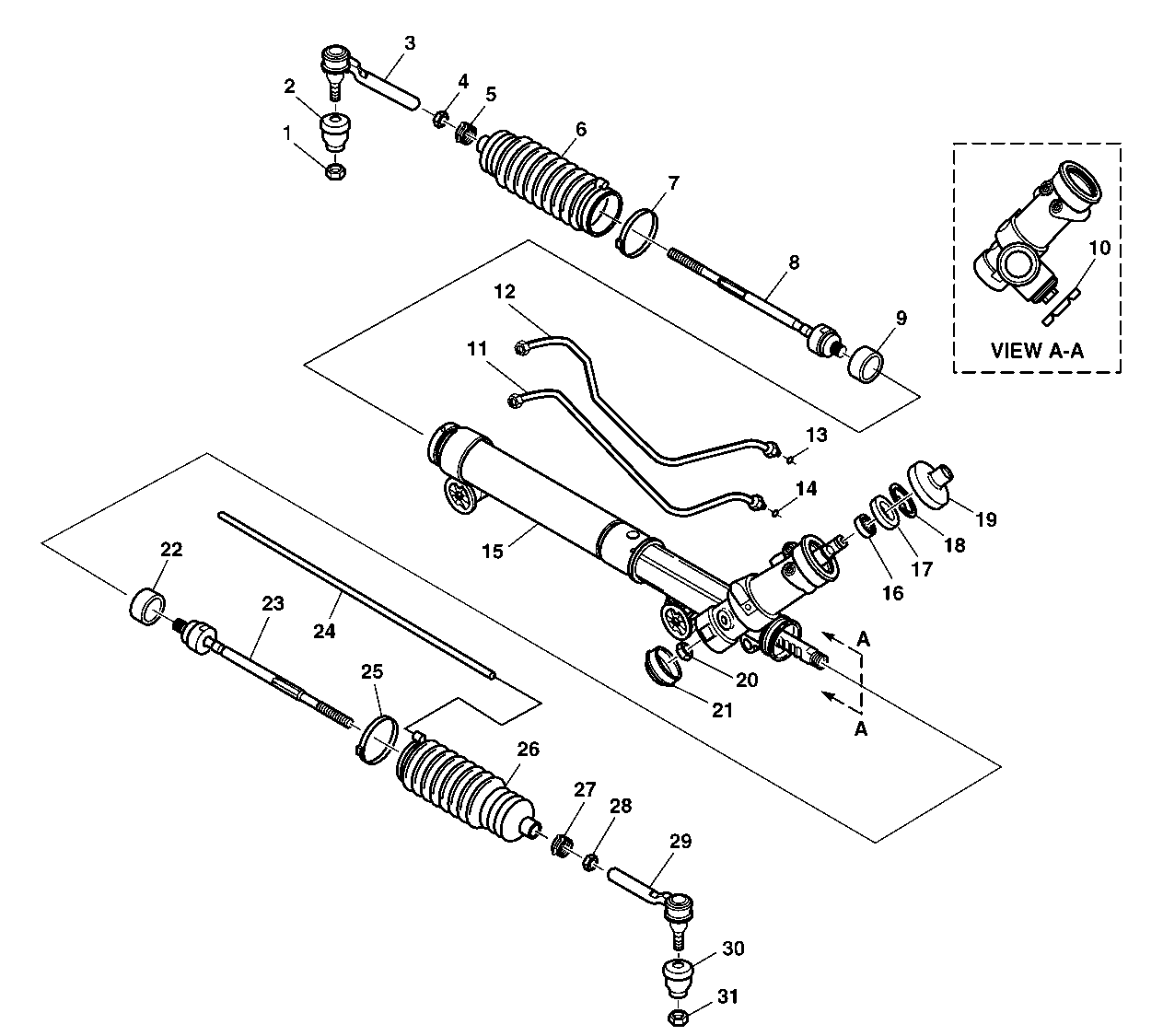

| 1 |
Hexagon Torque Prevailing Nut |
| 2 |
Tie Rod Seal |
| 3 |
Outer Tie Road Assembly |
| 4 |
Hexagon Jam Nut |
| 5 |
Tie Rod End Clamp |
| 6 |
Rack and Pinion Boot |
| 7 |
Boot Clamp |
| 8 |
Inner Tie Rod Assembly |
| 9 |
Shock Dampener Ring |
| 10 |
Adjuster Plug Lock Nut |
| 11 |
Cylinder Line Assembly (RH) |
| 12 |
Cylinder Line Assembly (LH) |
| 13 |
O-Ring Seal |
| 14 |
O-Ring Seal |
| 15 |
Rack and Pinion Gear Assembly (Partial) |
| 16 |
Needle Bearing Annulus Assembly |
| 17 |
Seal Adapter |
| 18 |
Retaining Ring |
| 19 |
Spool Shaft Seal |
| 20 |
Hexagon Lock Nut |
| 21 |
Dust Cover |
| 22 |
Shock Dampener Ring |
| 23 |
Inner Tie Rod Assembly |
| 24 |
Breather Tube |
| 25 |
Boot Clamp |
| 26 |
Rack and Pinion Boot |
| 27 |
Tie Rod End Clamp |
| 28 |
Hexagon Jam Nut |
| 29 |
Outer Tie Rod Assembly |
| 30 |
Tie Rod Seal |
| 31 |
Hexagon Torque Prevailing Nut |
