Remote Function Schematics

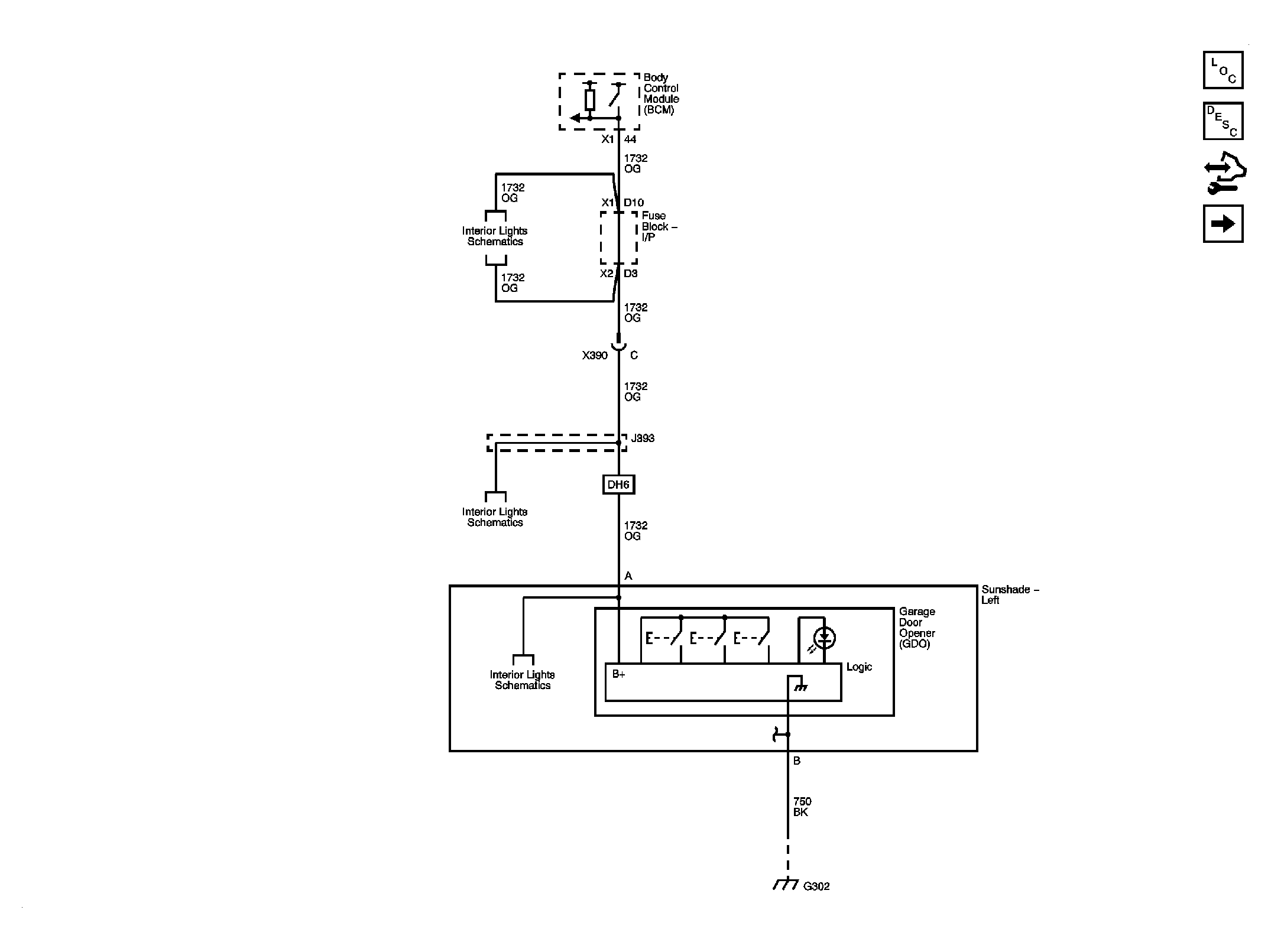

Fig 1: Garage Door Opener
GM2082276Courtesy of GENERAL MOTORS CORP.

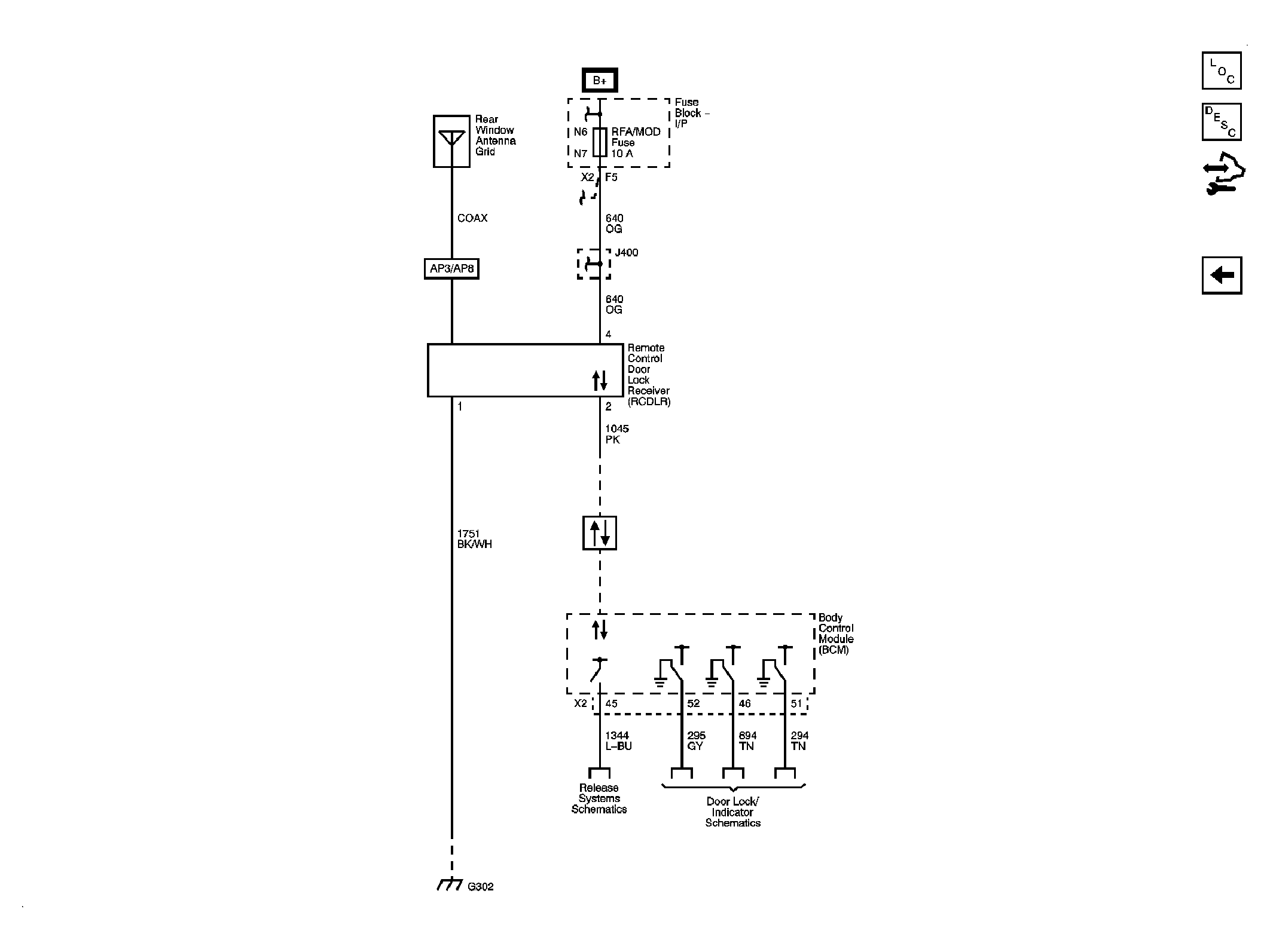

Fig 2: Keyless Door Entry
GM2082286Courtesy of GENERAL MOTORS CORP.
