Air Injection Control Valve

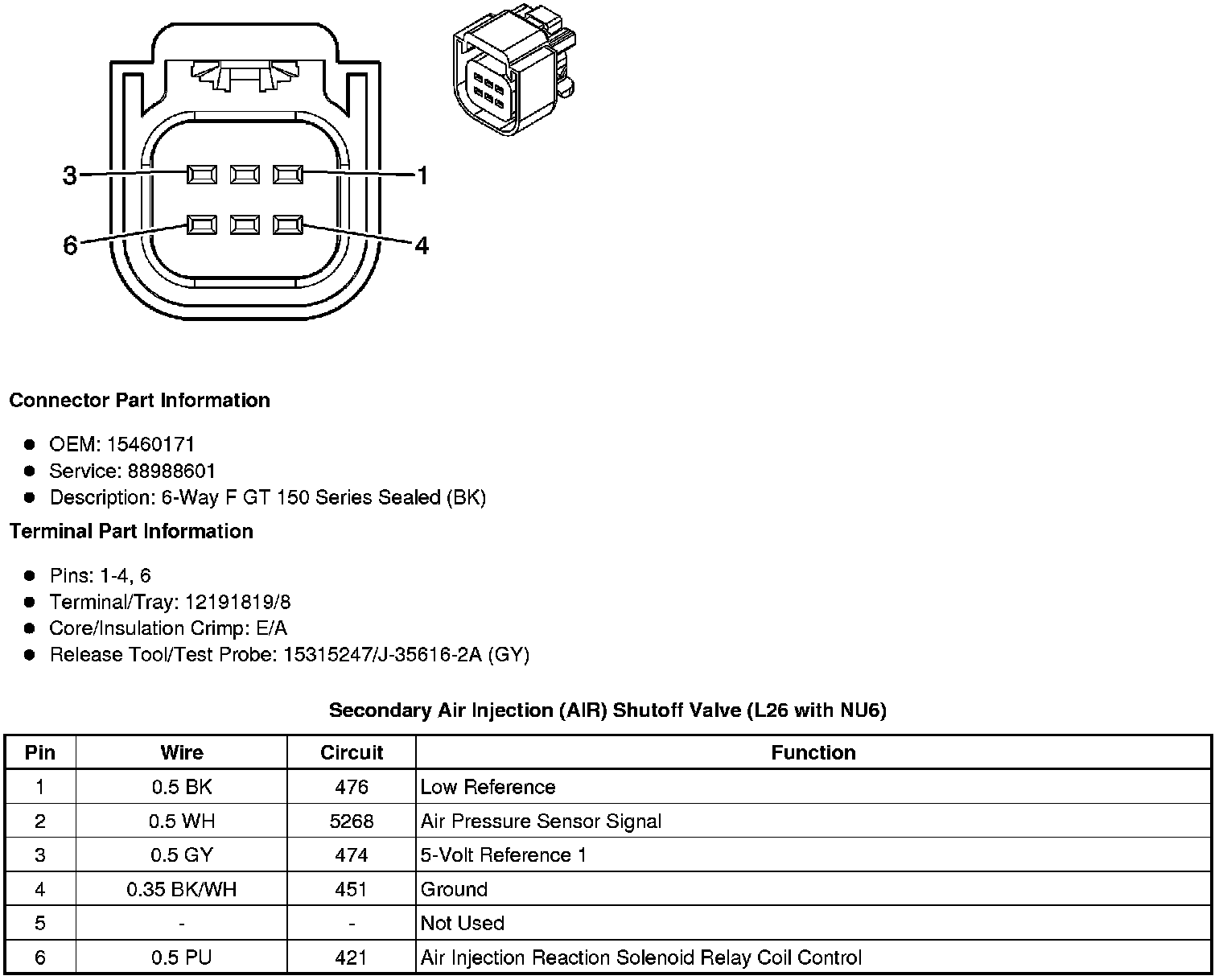

Component Connector End Views

Secondary Air Injection (AIR) Shutoff Valve (L26 with NU6)
