Parking Assist Control Module




Component Connector End Views

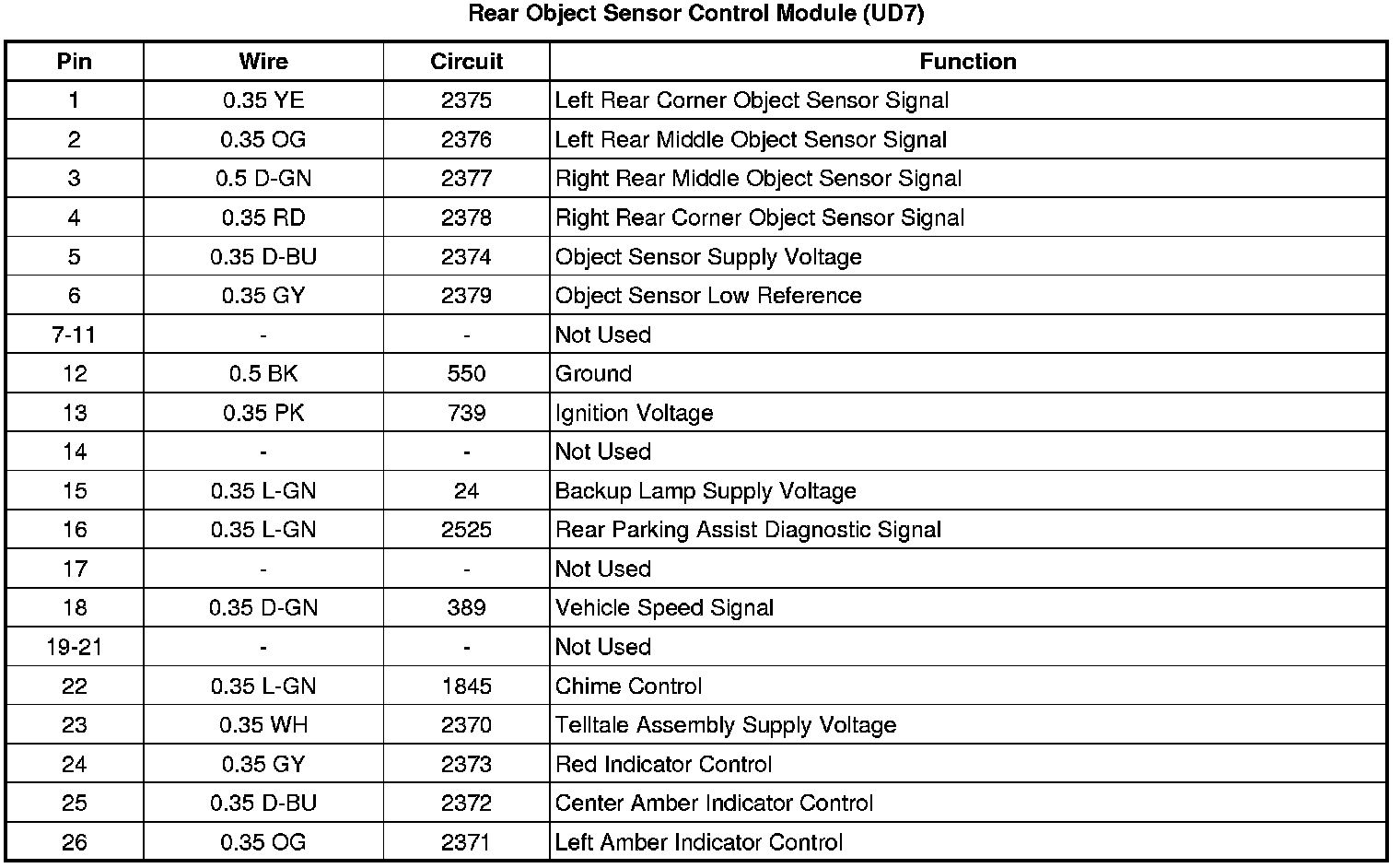

Rear Object Sensor Control Module (UD7)
