Fuel Tank Pressure Sensor: Locations




Wheels/Vehicle Underbody Component Views

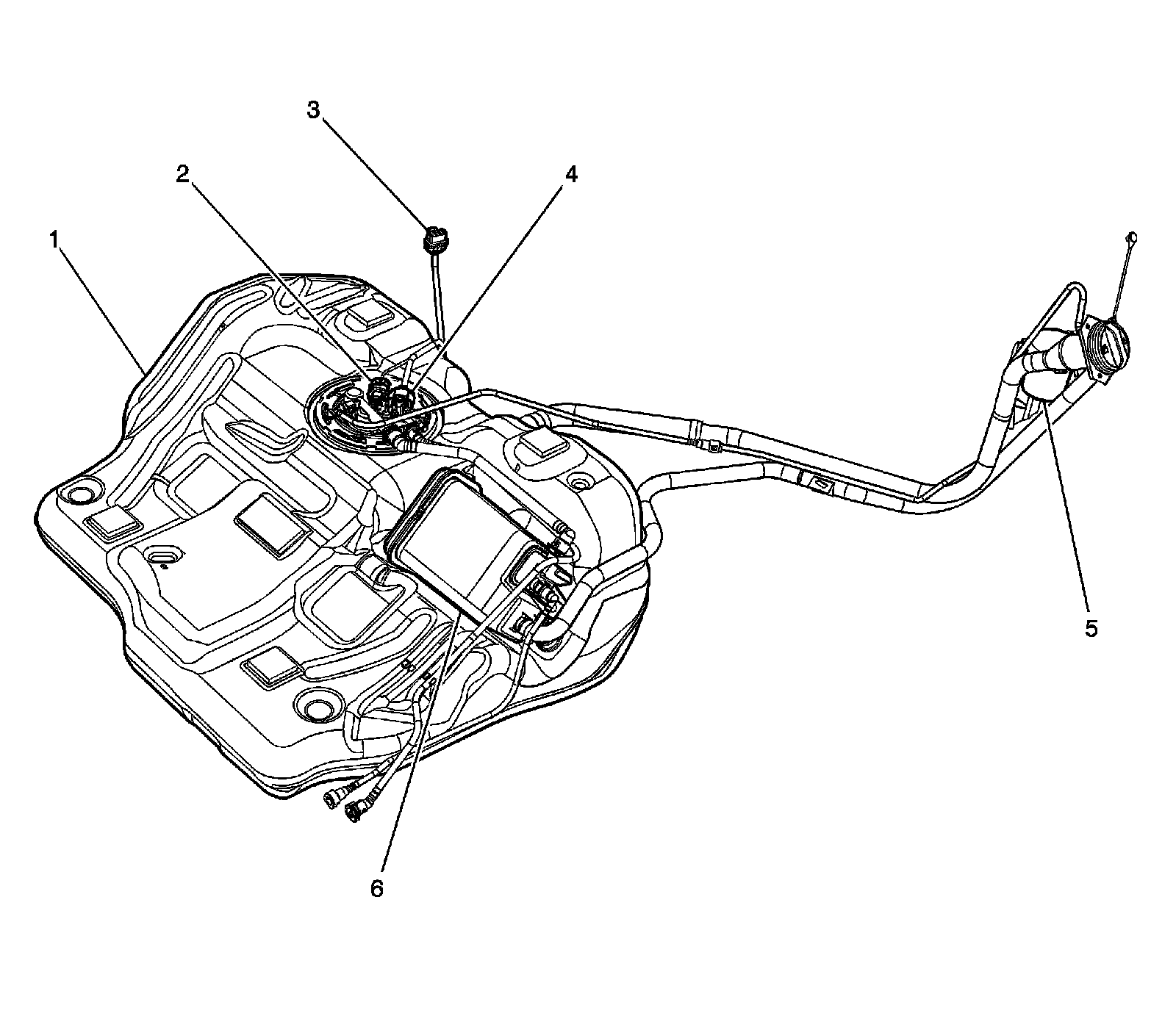

Fuel Tank Components




1 - Fuel Tank
2 - Fuel Tank Pressure (FTP) Sensor
3 - X405
4 - Fuel Pump and Sender Assembly
5 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
6 - EVAP Canister
