Knock Sensor: Diagrams




Component Connector End Views

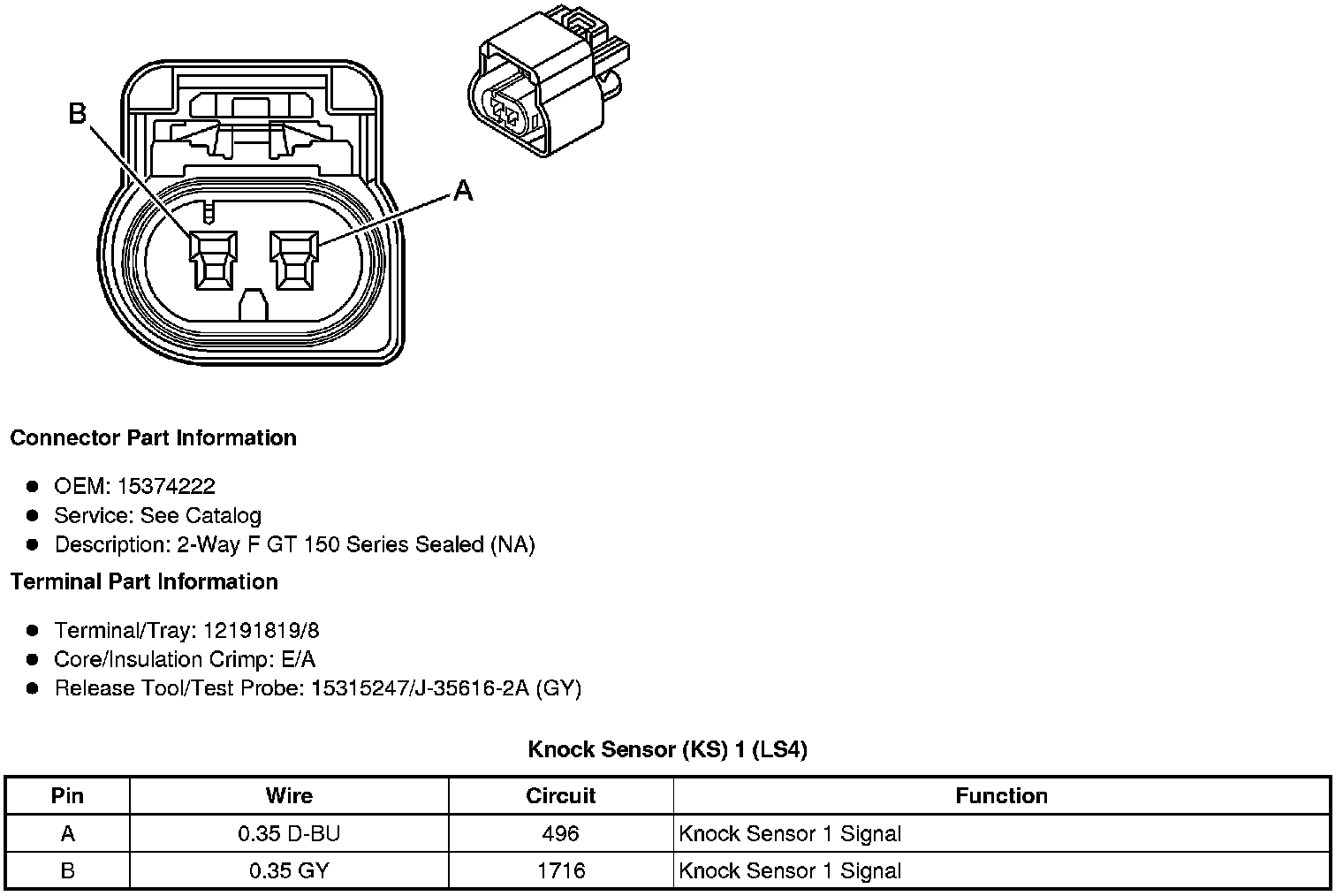

Knock Sensor (KS) 1 (LS4)






Knock Sensor (KS) 2 (LS4)
