Steering Wheel Secondary/Configurable Control Schematics

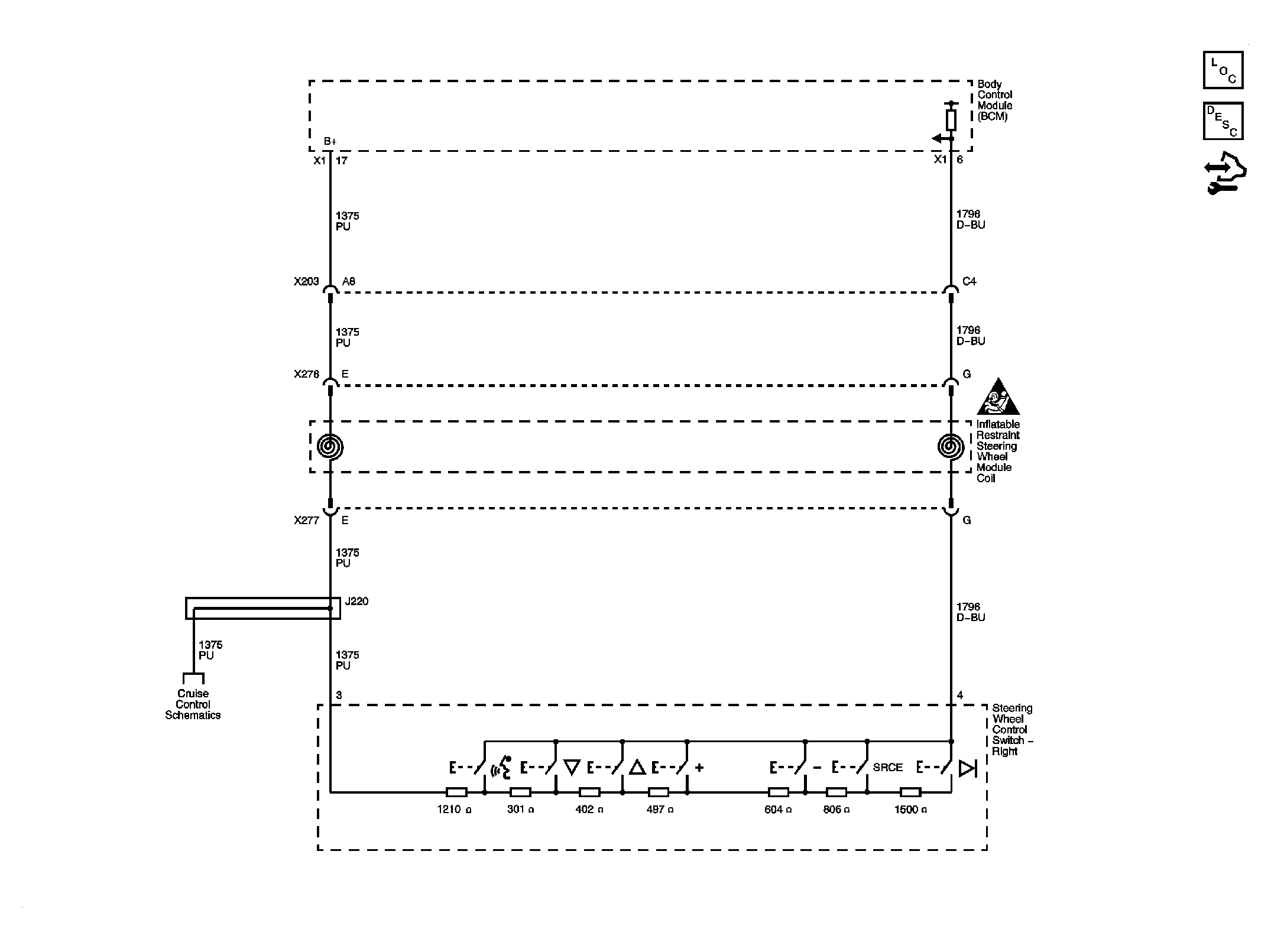

Fig 1: Steering Wheel Secondary/Configurable Control
GM2081841Courtesy of GENERAL MOTORS CORP.
