Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

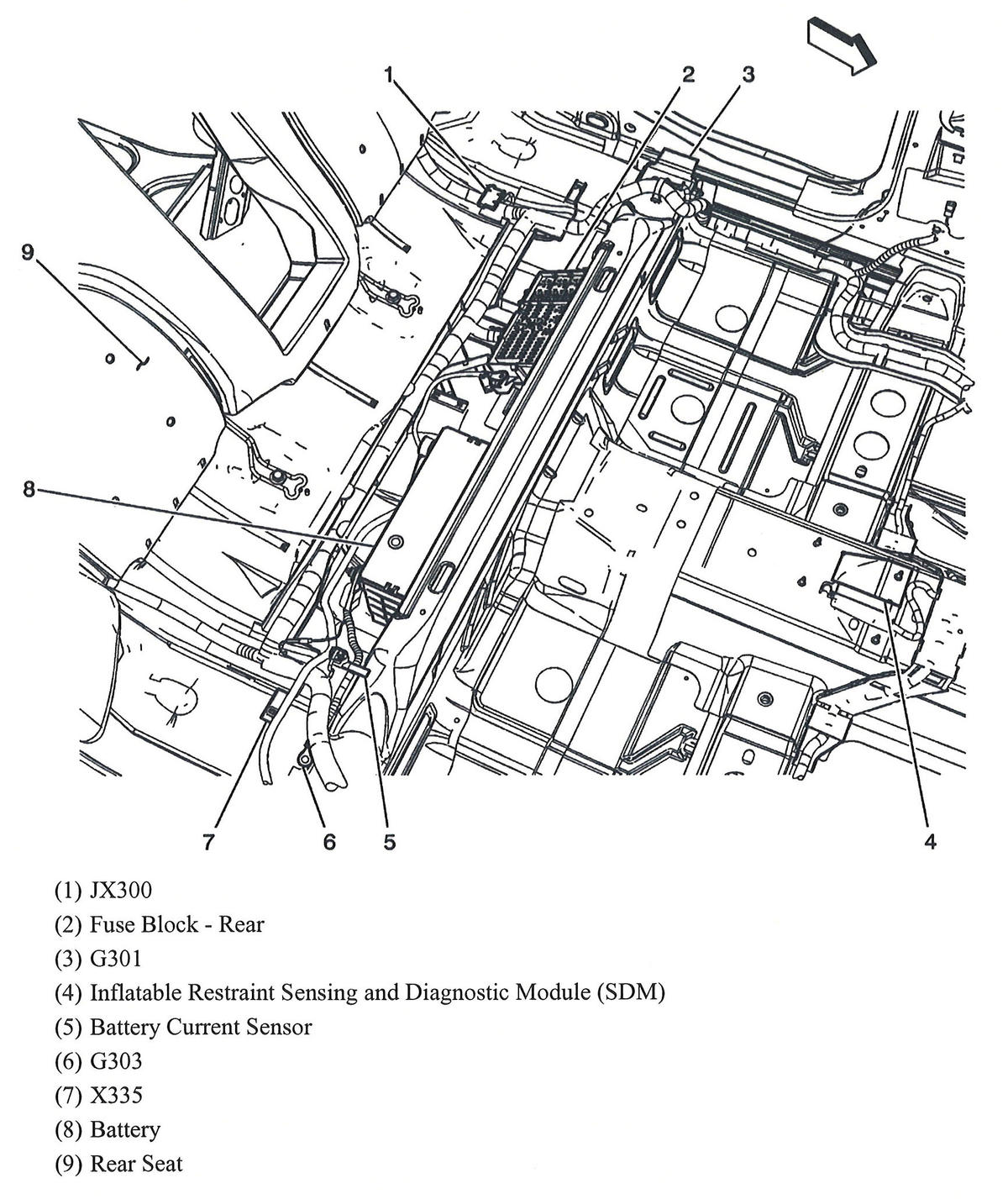

Fuse Block - Rear Below left side of rear seat. See Figure.

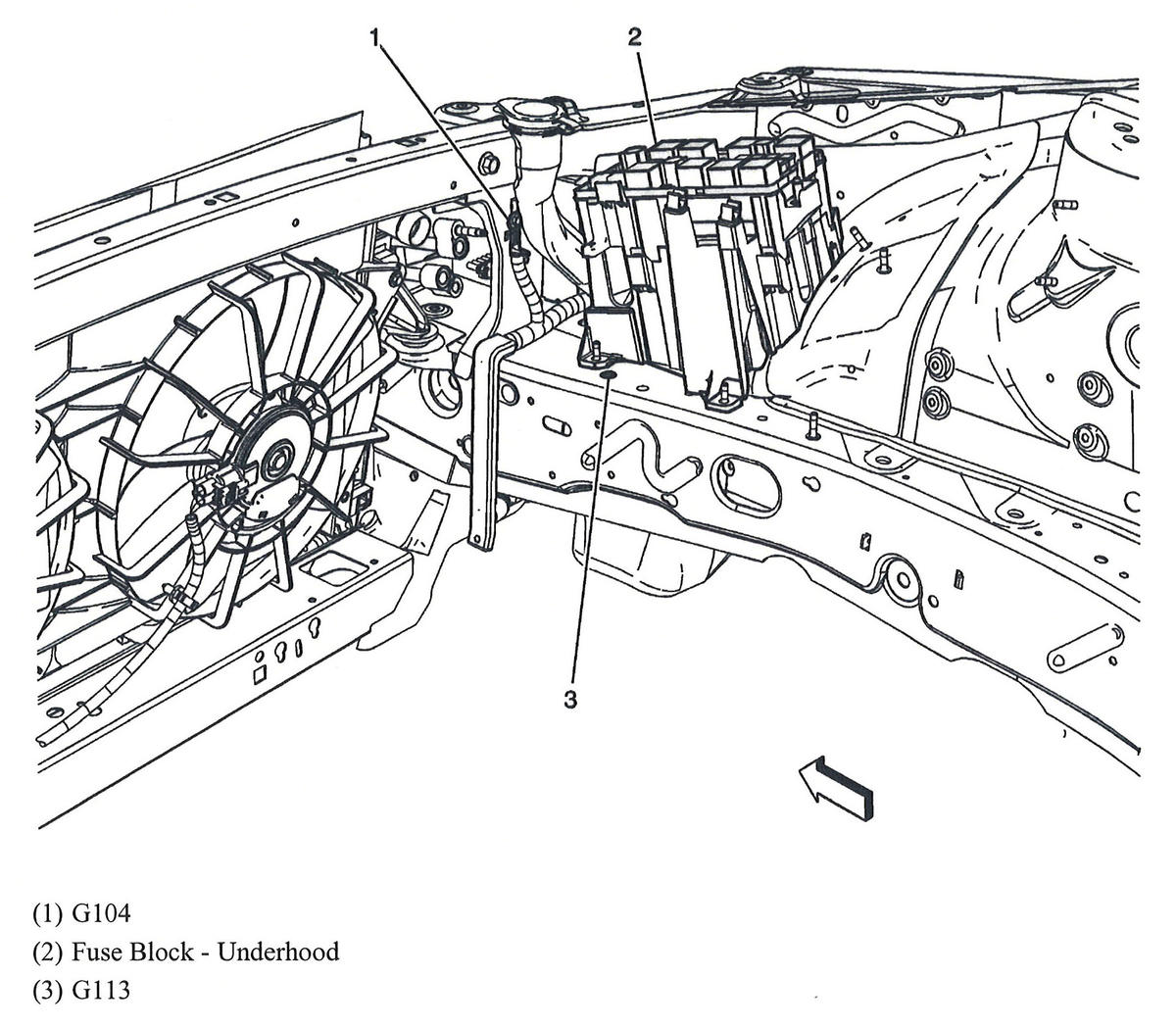

Fuse Block - Underhood On right front of engine compartment, forward of strut tower. See Figure.
