Steering Wheel Heater Control Module




Component Connector End Views

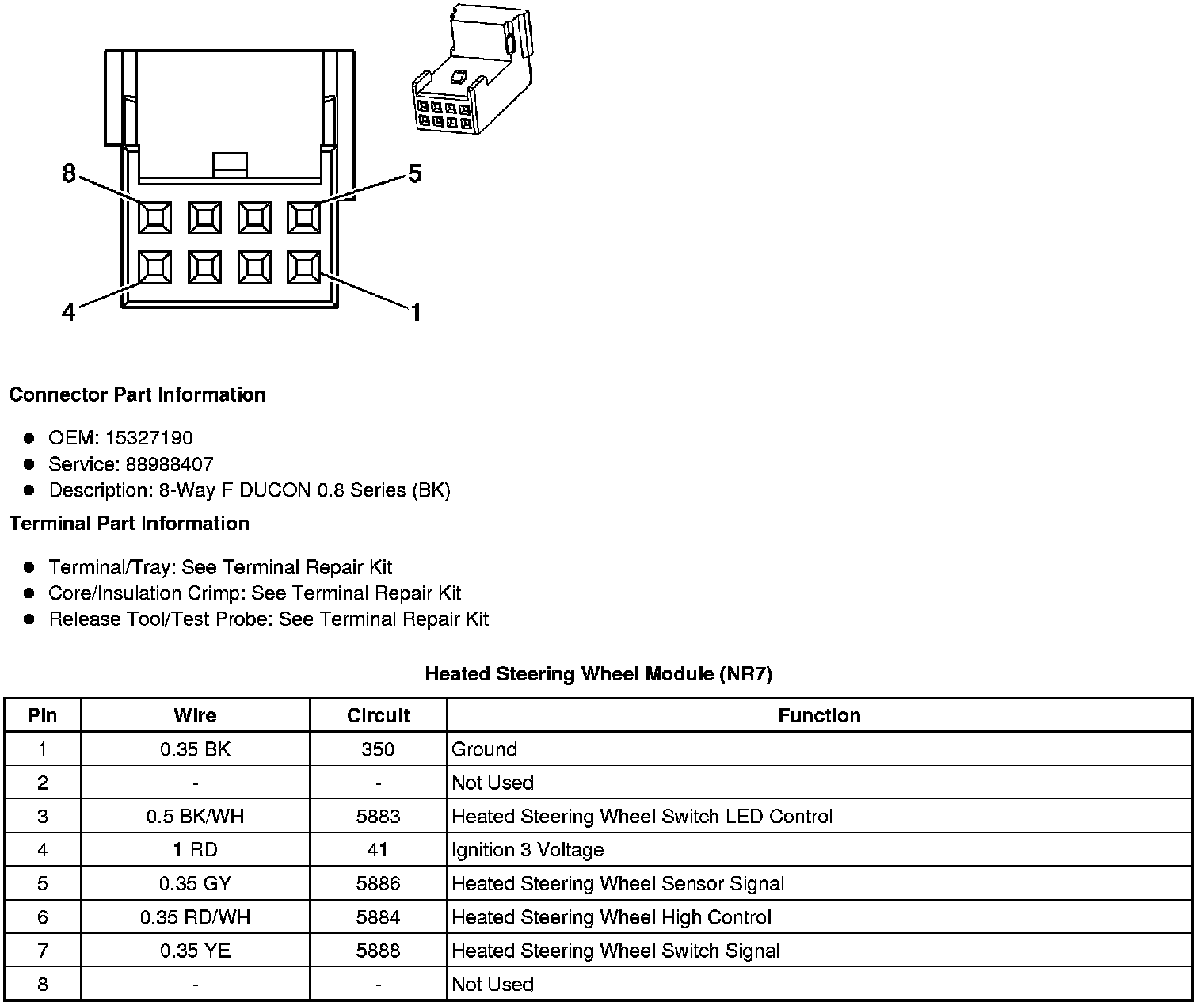

Heated Steering Wheel Module (NR7)

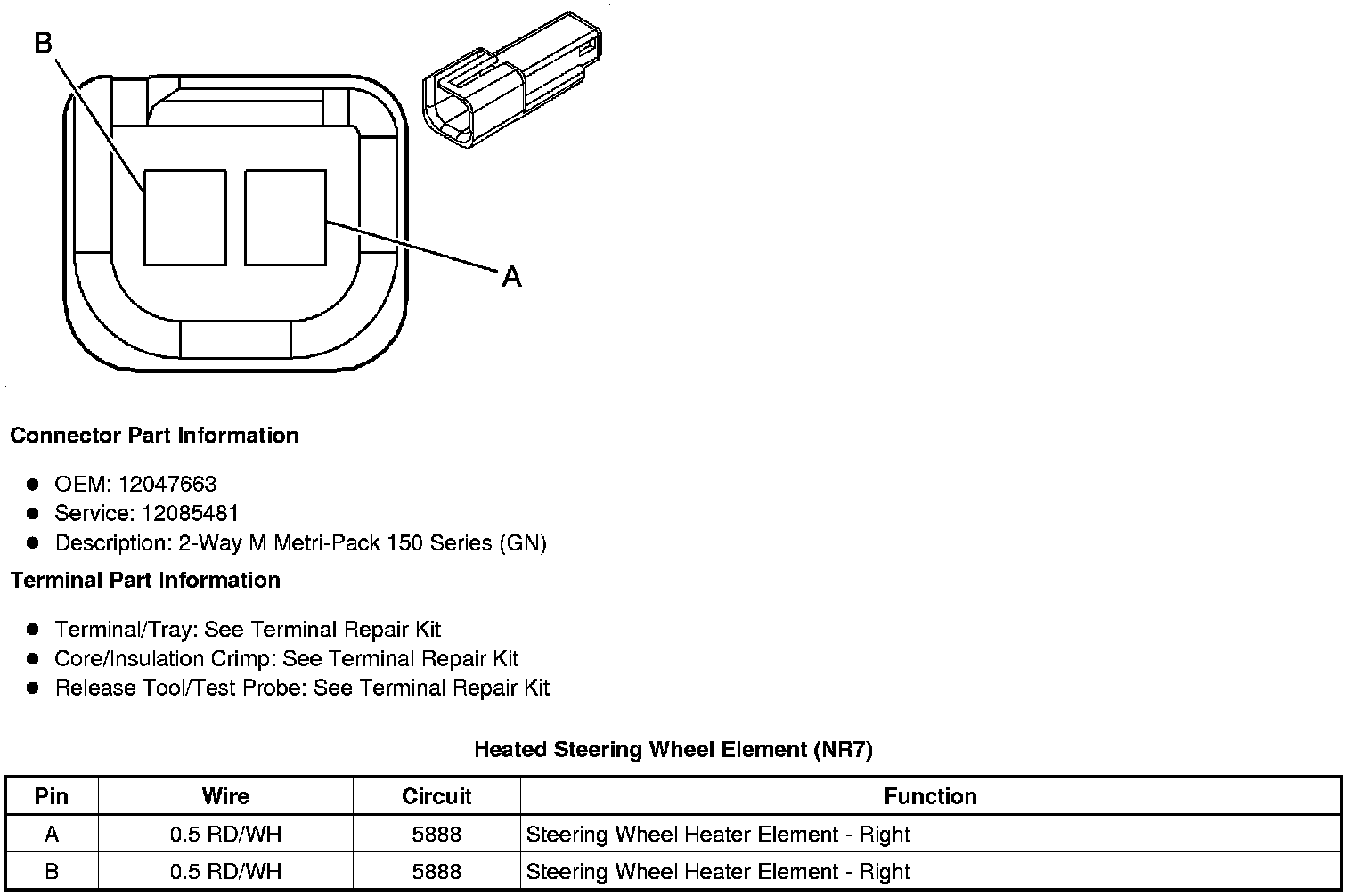

Heated Steering Wheel Element (NR7)
