Central Control Module




Component Connector End Views

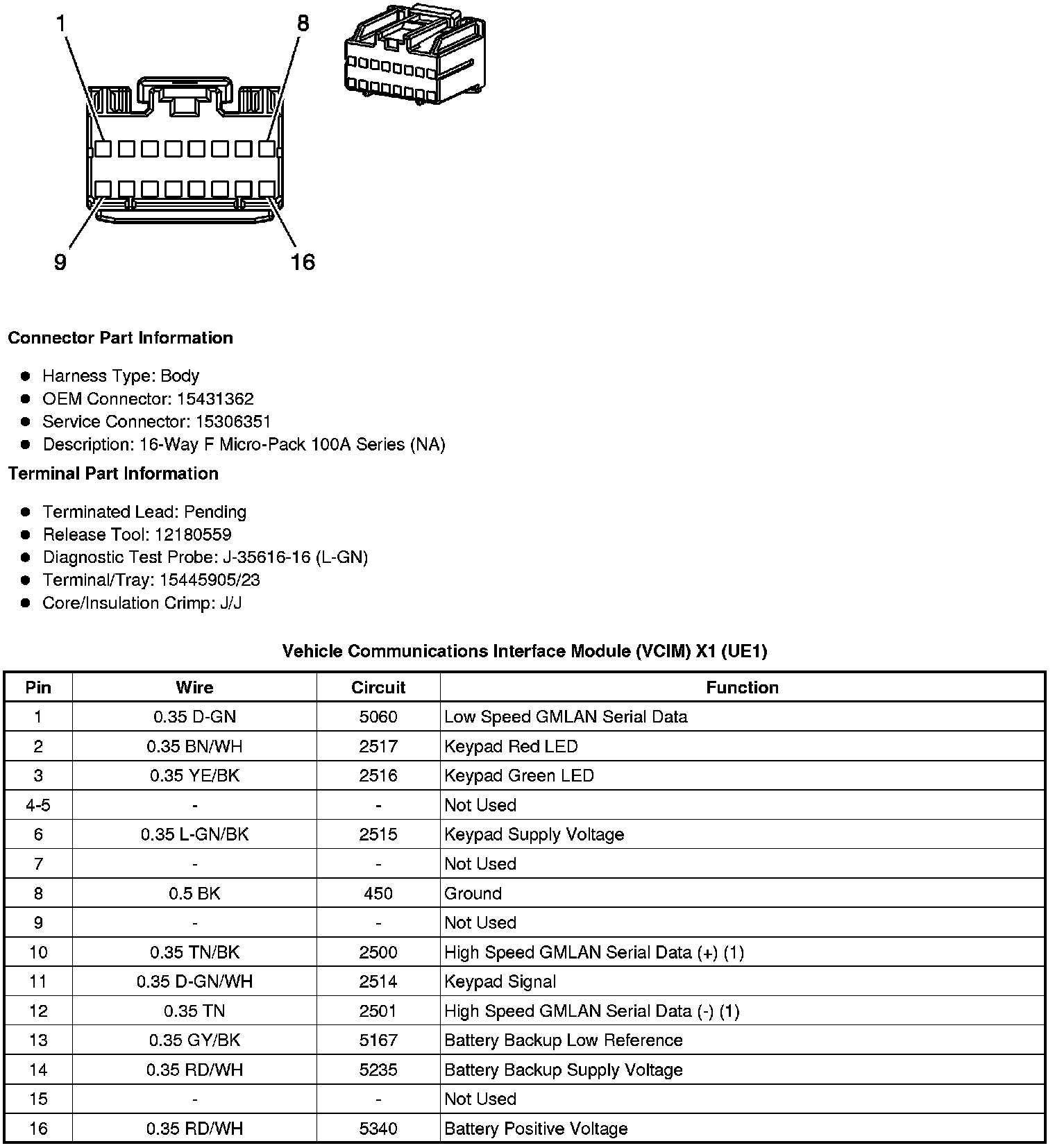

Vehicle Communications Interface Module (VCIM) X1 (UE1)

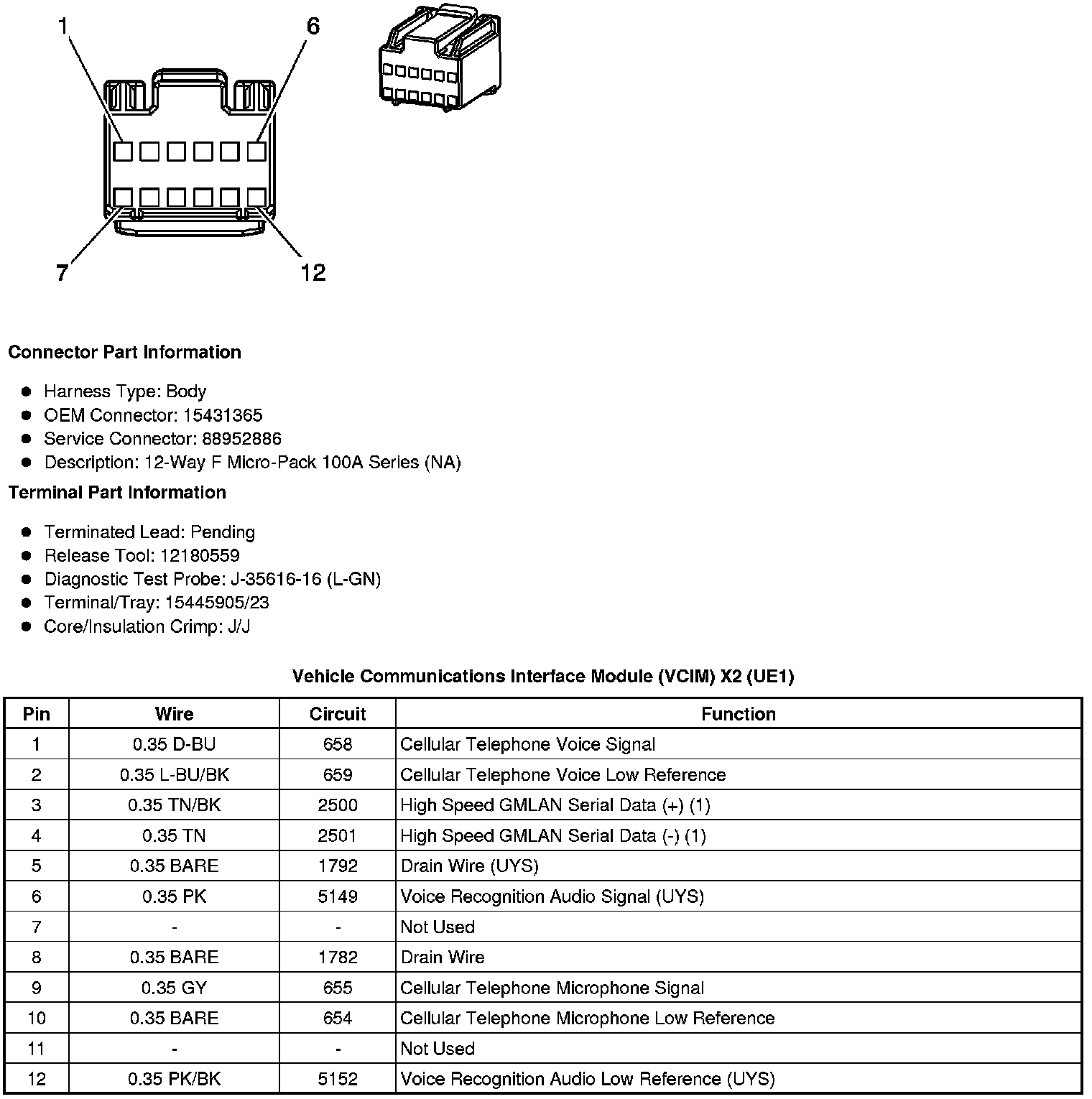

Vehicle Communications Interface Module (VCIM) X2 (UE1)
