Communications Control Module

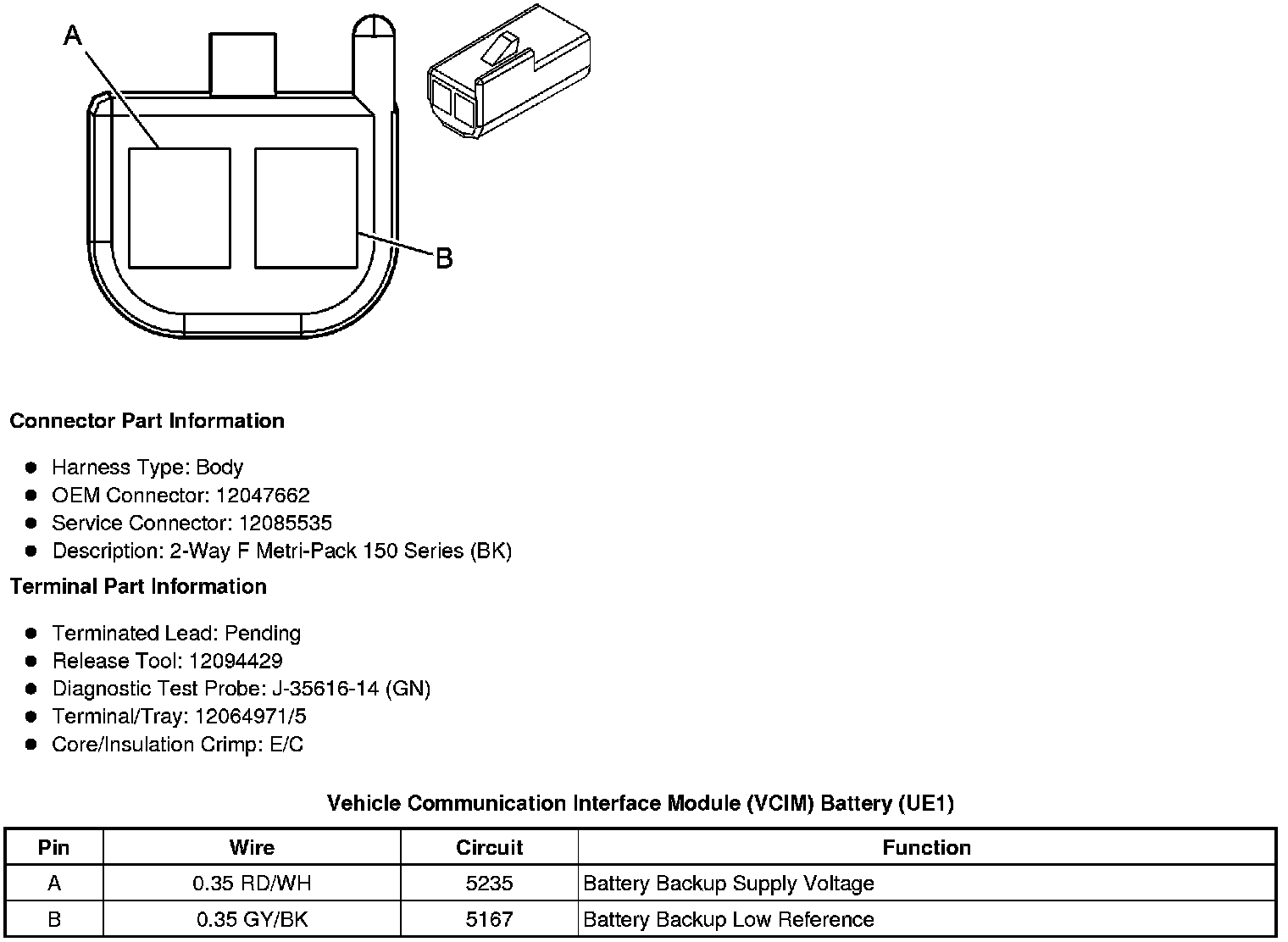

Component Connector End Views

C3 Telematics Communication Interface Control Module Battery (UE1)
