Control Unit, Differential Lock




Component Connector End Views

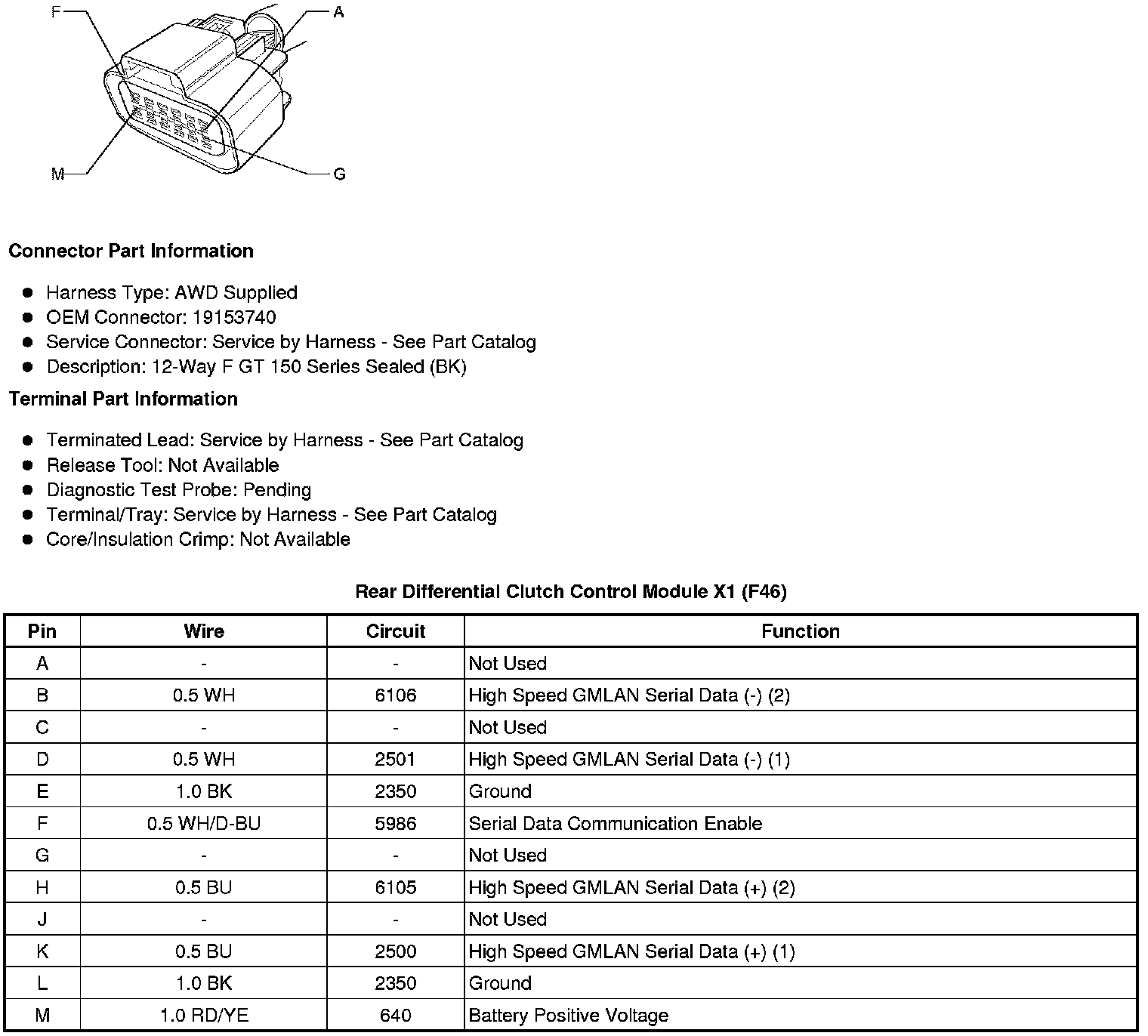

Rear Differential Clutch Control Module X1 (F46)

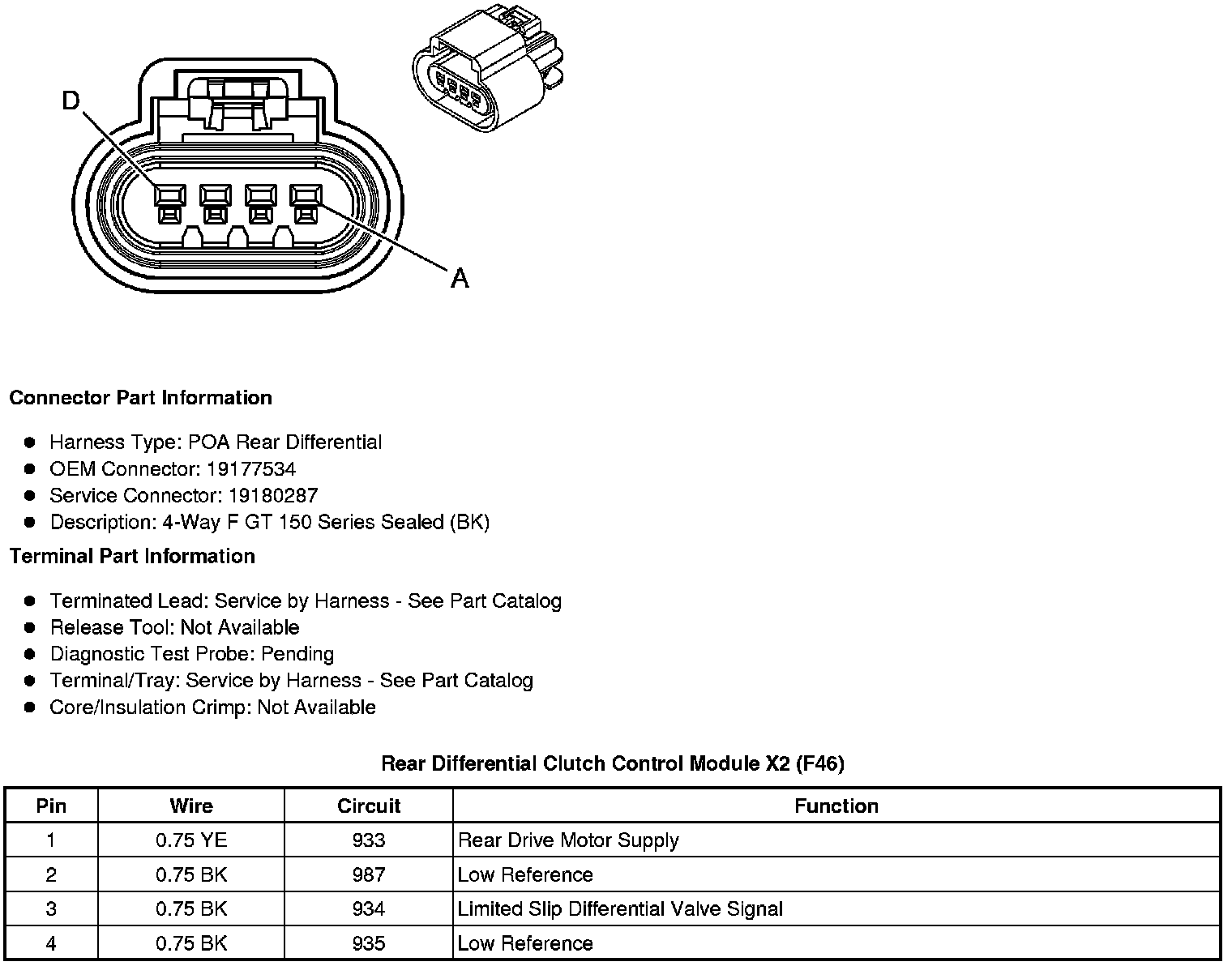

Rear Differential Clutch Control Module X2 (F46)
